Contemporary Research ICC2-ATSC4S 4S HDTV Tuner/Controller with MPEG4

ITEM #: CRC-ICC2-ATSC4S MFG #: 5112-001

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CRC-ICC2-ATSC4S

5112-001 - Overview

The Contemporary Reasearch ICC2-ATSC 4S HDTV Tuner is an integrated HDTV Tuner/Controller that networks HD monitors and projectors in a Display Express TV control system. Housed in a new, smaller enclosure, the unit fits into a standard 1RU rack space for easier mounting on a TV or in a 19" rack.

As a universal TV tuner, the ICC2-ATSC 4S can receive ATSC, NTSC, and clear QAM cable channels, able to decode MPEG-2 and MPEG-4 video. The tuner displays broadcasts through simultaneous HDMI, RGB/Component, and NTSC composite video ports. Full-time audio is available from digital AC-3 HDMI, optical and coax SPDIF ports, as well as variable-level analog stereo audio outputs.

  • Features:

    • Through-the-RF Integration - controls displays through iC-Net technology, communicating via existing CATV coax wiring for 1-way or 2-way control
    • System Solution - communicates with Display Express software, and custom control systems
    • Display Control - employs RS-232 control port for integrated display control, integrator can switch to different make/model types from an onboard library
    • Provides local control via IR remote (optional) or wired IR from control system or remote IR sensor, or 1-way RS-232 commands
    • Tunes ATSC off-air, clear QAM cable, and analog channels
    • Always-active HDMI and composite video, as well as stereo, and digital coax and TOSlink optical audio ports
    • RGBHV or Component outputs switchable from front-panel settings or RS-232 control
    • AC-3, PCM and Variable PCM digital audio formats for SPDIF audio ports and HDMI
    • Front-panel and onscreen menus for tuner setup and scanning, new buttons eliminate need for IR remote for setup
    • Supports dual Air/Cable tuning with optional RF switch
    • Analog and digital closed captioning
    • Upscales SD and analog channels up tp 1080p, or follow native channel resolution
    • Rack-mountable in 1.5RU, two across
    • Field updatable for control and HD processing firmware
    • Green Machine - meets ROHS and California energy-saving standards


  • Specifications:

    • Physical
    • Size (W x H x D): 8.5 inch x 1.75 inch x 8.0 inch (1.5 RU) [216mm x 44mm x 203mm]
    • Weight: 1.94 lbs [890 g]
    • Enclosure: Steel with black powder coat paint
    • Mounting: 1 RU Rack mounting for one or two units side-by-side optional (RK1, RK2-EZ)
    • Certification: ROHS compliant, meets California codes

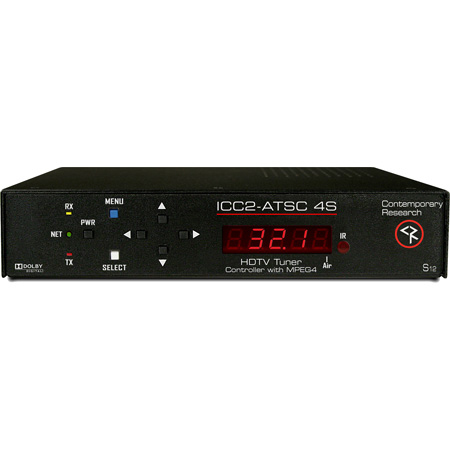

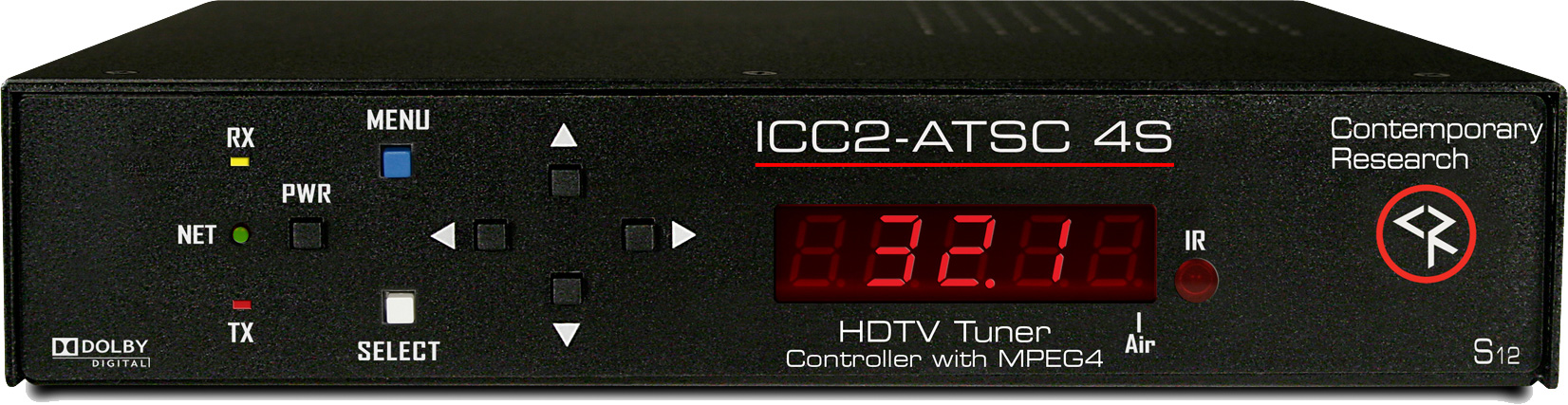

      Front Panel
    • Display: Red LED Channel Display, dot separated major and minor channel numbers, dot at end indicates Off-Air tuning
    • IR: IR sensor
    • Control: Power , Menu, and Select buttons, navigation using Up and Down (Channel Up and Down) buttons
    • Left and Right (Volume Up and Down) buttons
    • LEDs: NET (Green) RS-232 RX (Yellow), RS-232 TX (Red)

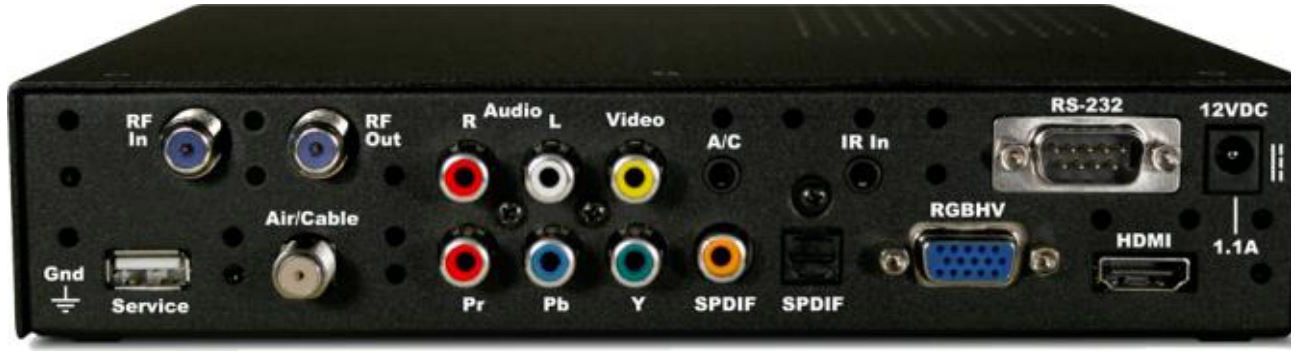

      Rear Panel
    • Service: USB port (not presently active)
    • RF In: 1 'F', female, 75 ohm impedance, recieves RF feed
    • RF Out: 1 'F', female, 75 ohm impedance, outputs RF to Air/Cable
    • Air/Cable: 1 'F', female, 75 ohm impedance, recieves RF from RF Out
    • AV Output: Simultaneous HDMI, RGB/Component, and video out - switchable RGB/Component.
    • Simultaneous HDMI (PCM/AC-3), digital coax and optical (AC-3 or PCM), stereo audio.
    • Video Out: RCA composite video output, 1V p-p at 75 ohm impedance
    • Component Out: 3 RCA Y, Pr, Pb outputs (1080p/1080i/720p/480p/480i)
    • Digital Audio S/PDIF: Coax and TOSlink optical output, Dolby 5.1/PCM
    • Analog Audio Out: Stereo RCA audio, Mono, Stereo, or SAP, variable level
    • RGBHV Out: RGBHV DB-15 female (1080p/1080i/720p/480p/480i)
    • HDMI: HDMI receptacle, Type A, HD video and digital audio (in PCM mode), version 1.2 (1080p/1080i/720p/480p), HDCP
    • RS-232 Control: DB-9 male, RS-232 data link to control display or projector, 1200-115,000 baud
    • A/C (Air/Cable): 3.5 mm closure output to operate the optional RF-AB RF Switch
    • IR In: 3.5 mm stereo input for external IR sensor or wired IR (no carrier, discrete codes available)
    • Power In: 2.1mm coaxial jack (inside center conductor positive)
    • 1 A maximum, 11.5 to 15 VDC, 12 VDC typical

      Tuning
    • Frequency Range: NTSC, ATSC (8-VSB) and Clear QAM (cable) television 55.25 to 801.25 MHz
    • DTV Resolution: ATSC/QAM 1080i/720p/480p/480i
    • Tuning: Off-air 2-69 (NTSC and 8-VSB) and CATV 2-135 (Analog, 64QAM, 256QAM, 8-VSB)
    • Aspect Ratio: 4:3/16:9 (Digital), 4:3, 16:9, Zoom (Analog channels)
    • Captioning: DTV and analog, set by program or customized for size, font and display attributes
    • Lock: Parental option for channels and/or rating

      Captioning
    • On-Screen: Displays on-screen analog and digital captioning on all video ports.
    • Captioning Data: HDMI, RGB, and Component ports don't have the ability to carry captioning data
    • The composite video port will carry Line 21 data, but only when tuned to an analog channel


  • Item Includes:

    • PS12 1.5 12 VDC 1.4A switching power supply
    • RKU, Universal Rack Mount Kit


  • Warranty:

    • 3 year limited warranty
