ZeeVee STBI3 IP and Broadcast Set Top Box Decoder - Digital RF over Coax and H.264

ITEM #: ZV-STBI3 MFG #: ZV-STBI3

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ZV-STBI3

ZV-STBI3 - Overview

Deliver Live Content to Any Screen over Any Network
The ZeeVee STBi3 is a flexible set-top-box that decodes digital RF content delivered over coax and h.264 video streams distributed over an IP network This video workhorse allows you to leverage the same device for playback whether it is on RF, IP, or from both at the same.

Playback both IP & RF Sources
From distributing internal broadcast channels to delivering a full line-up of television programming the STBi3 allows you to pull love content from both RF and IP sources for playback on displays or projectors. Channels from all sources will appear in the on-screen displays allowing users to change channels seamlessly.

Support for All ZeeVee RF Modulators
The ZeeVee STBi3 works with our entire line of RF modulator products including the HDbridge 2000 series, HDbridge 3000 series, and the ZvPro series. The STBi3 will also auto-discover and decode MPEG-2 streams from ZvPro iSeries and HDbridge 2900i units, as well as h.264 streams from HdBridge 3000 h.264 cards.

Support for the MX Video Streaming Products
The STBi3 auto-discovers and decodes streams from the ZyPerMX, ZyperMX2, and ZyPerMX4 h.264 video streaming encoders -- giving users the flexibility to create a channel lineup that fits their needs while modernizing their AV distribution.

  • Features:

    • Autodiscovery - STBi3 auto-discovers the ZyPerMX, ZyPerMX2/4, HDBridge and ZvPro iSeries streams, which are added automatically to the lineup.
    • Additional Channels - Additional channels/streams can be added manually.
    • HD Formats - Supports several HD formats: H.265, H.264, MPEG-2, MPEG4, and others
    • IPTV Programs - Supports many kinds of IPTV programs
    • Control - Infrared remote control with programmable buttons allows direct control of the television (unified remote control for controlling user experience). Change channels remotely via IP commands

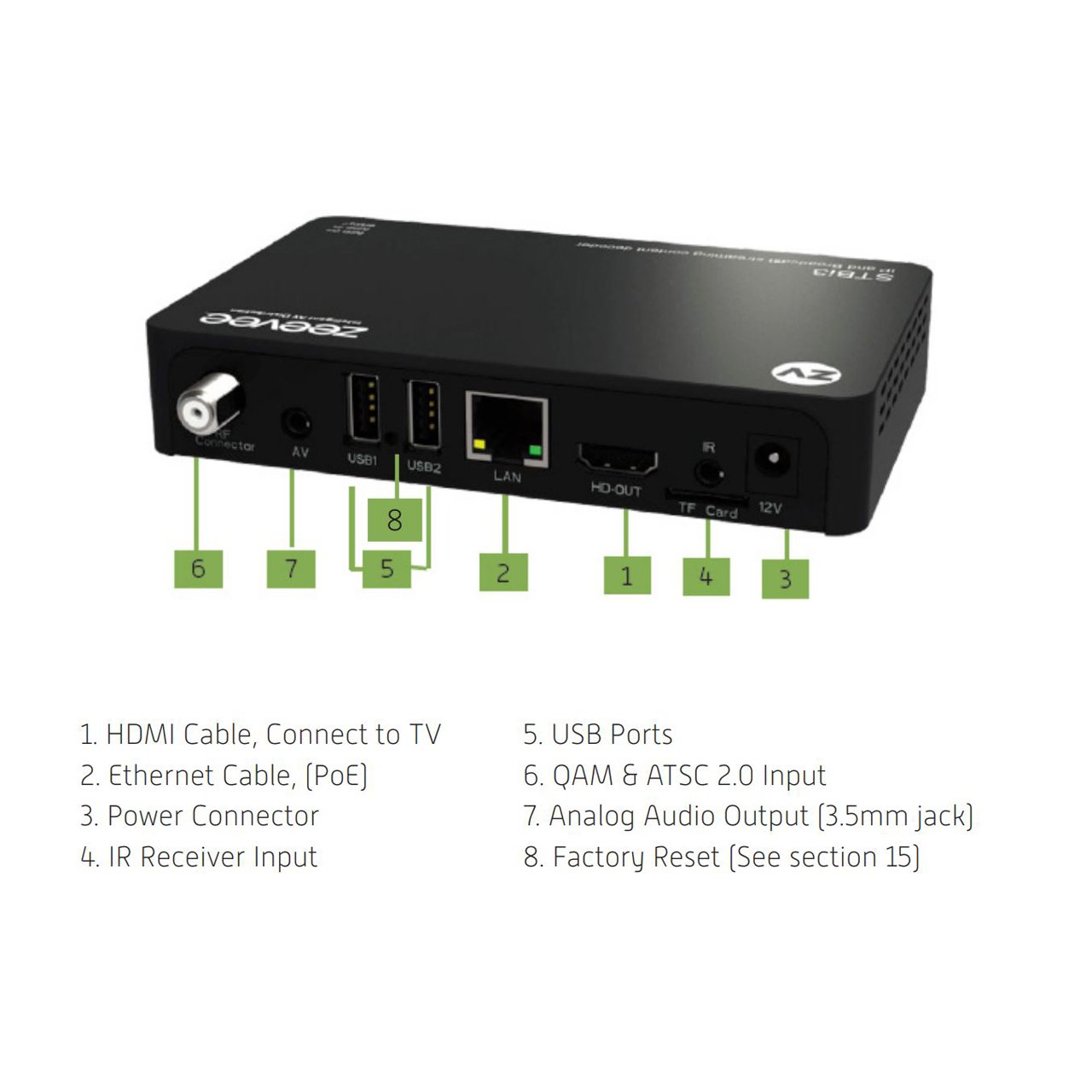

  • Specifications:

    • Network Service
    • Ethernet: 10/100/1000 LAN / 1 RJ45

      Interface
    • Power: DC connector / 12 VDC 1A (Worldwide AC adapter is supplied)
    • PoE Power: Standard PoE+ / RJ45 LAN Connector
    • Video Output: HDMI 1 / 1.4/2.0 female, Up to 1080p60/60Hz, CVBS & Analog audio 1 3.5mm jack
    • Recommended Stream Data Rates: MPEG2 - <=24Mbps, MPEG4 <= approx 6-8MBps
    • Audio Output: HDMI
    • USB Port: USB host / 2 USB2.0 normal type (Type A)
    • QAM and ATSC 2.0 Input: US QAM and ATSC 2.0 tuner input, 1 F Connector
    • Remote Control Receiver: IR port, 3.5mm port. External IR Receiver included

      Appearance
    • Body Material: ABS+PC
    • Color: Black
    • Dimensions (Unit): 5.6 in (143mm) x 3.5 in (90mm) x 1.26 in (32mm)
    • Dimensions (Box): 7.875 in (201mm) x 4.75 in (119mm) x 3.37 in (85mm)
    • Weight (Unit): 175g
    • Weight (Unit + Box): 700g
    • Storage Temperature: -10°C~50°C
    • UPC: 8-12254-01320-6
    • Tariff Code: 8525.50.1000
    • Operating Temperature: 0°C~35°C
    • Operating/ Storage Humidity: 20% to 90% (non-condensing)

      Certifications for Use
    • Standard CE
    • RoHS
    • FCC

  • Item Includes:

    • 1x ZeeVee STBI3 IP and Broadcast Set Top Box Decoder - Digital RF over Coax and H.264
