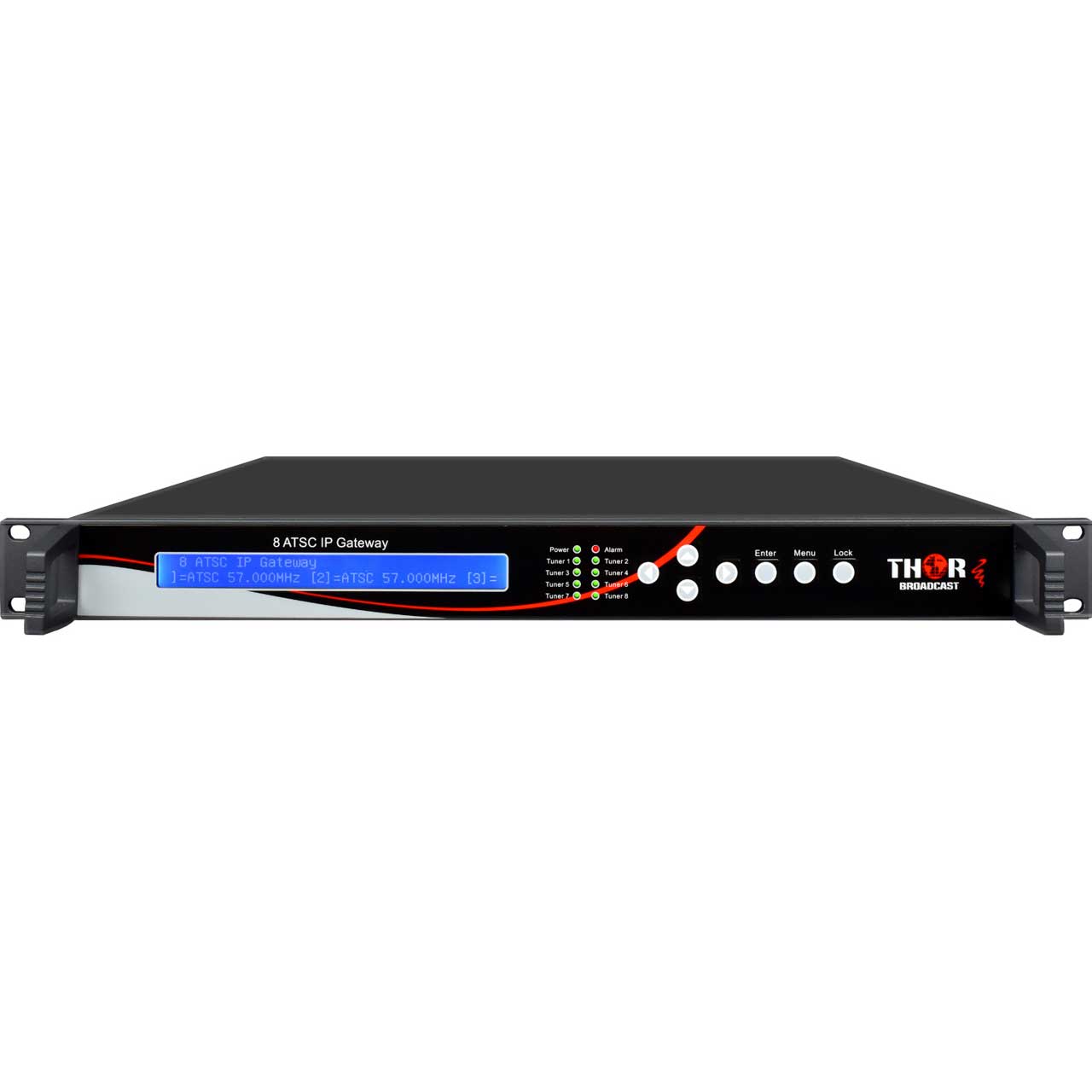

Thor H-8ATSC-IP 8 x ATSC or Satellite Antenna Tuners to IPTV & ASI Output

ITEM #: THR-8ATSC-IP MFG #: H-8ATSC-IP

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$4,194.00

Our Price:

$3,495.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


H-8ATSC-IP - Overview

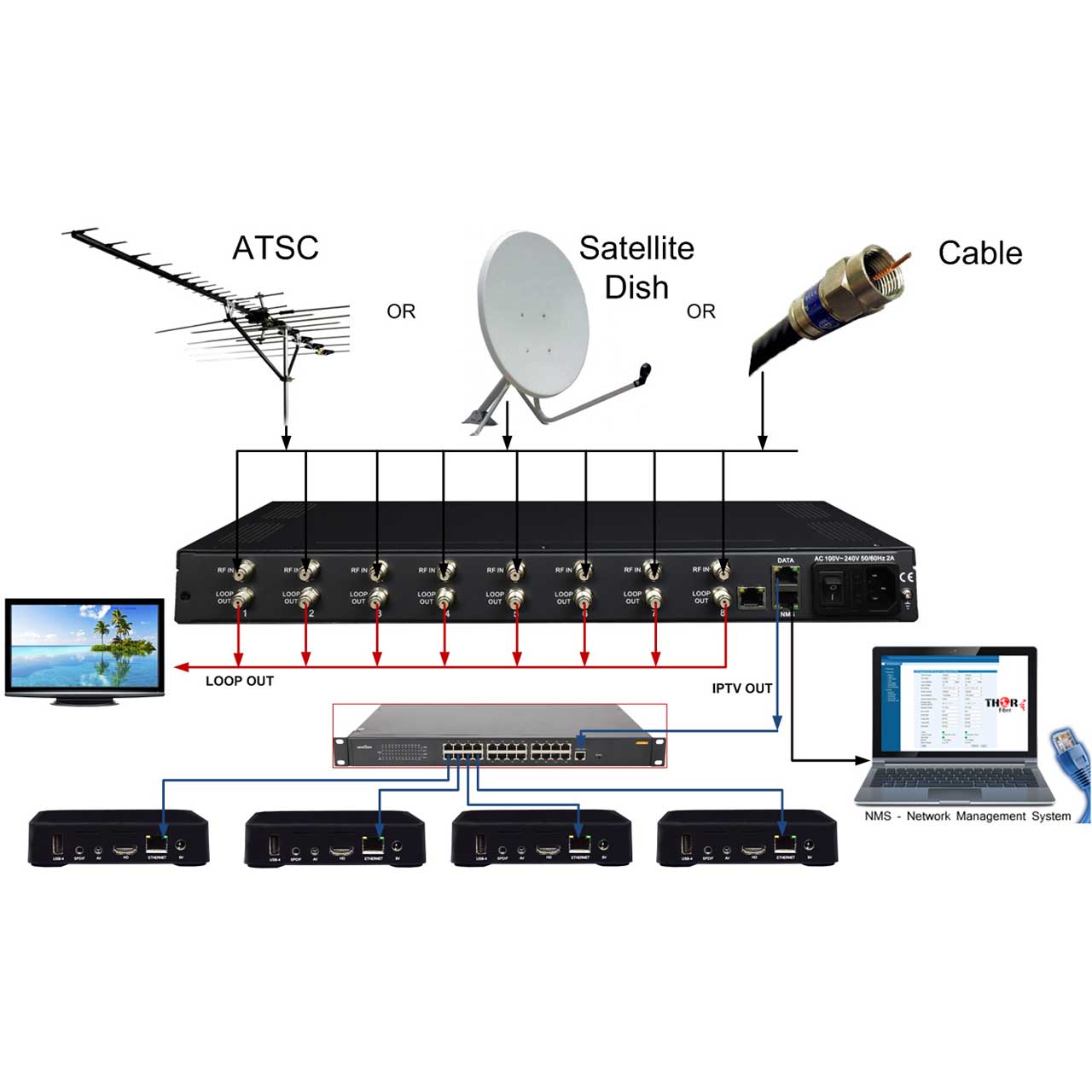

Thor H-8ATSC-IP Broadcast RF-ATSC to IP Converts 8 Antenna RF (off air) or cable Frequencies (channels) and converts all information on each carrier to its own IPTV Streaming SPTS. Output up to 45x SPTS RTP/UDP multicast streams you can receive on any computer, tablet, mobile, IP decoder. Output ASI MPTS data Mux of selected TV services to feed any modulators / servers / transcoders / ASI inputs. It can multiplex up to 8 channels tuned and 1 ASI input to one MPTS. This multiplexer has the functionality of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PCR adjusting. Also the multiplexer can insert EPG (electronic program guide), CA (conditional access), data broadcasting into output TS. This the easiest way to grab ATSC (off air) television programs and convert to IP streams for easy access and distribution for IPTV headends or for transport to headends for re-distribution of signals. Thor Broadcast easy to use NMS (network management system) allows you to quickly and easily setup, monitor and use this RF to IP converter.

  • Features:

    • 8 Tuner(ATSC)+1 ASI input ports (available with S2 or QAM - Model Dependent)
    • ATSC (8VSB) formats supported
    • ASI and IP output
    • Support MPTS over UDP, RTP/RTSP output as mirror of ASI output (RJ45)
    • Integrated demodulating and multiplexing functions
    • Select which channels to stream out
    • Supports multiplexing one program to all outputs
    • Closed Captions supported
    • Full IP control and Network Management through browser via RJ45
    • Front Panel LCD local control
    • IPTV Output Unicast or Multicast IGMP UDP
    • ASI Output with multiplexer cherry picking
    • Low Latency available
    • AC3 , MPEG2 Audio
    • MPEG2 Video or MPEG4 H.264
    • Perfect Full HD Video Quality -No Loss
    • Perfect Full HD Audio Quality -No Loss
    • 5 Years Warranty

  • Specifications:

    • Supported Resolutions: All
    • Video Codecs: MPEG-2 HD 1.5-19.5 Mbps; H.264 HD 0.8-19.5 Mbps
    • Audio Codecs: MPEG-1 Layer II, MPEG-2 AAC, MPEG-4 AAC AC3 Dolby
    • Audio Sample Rate: 48 kHz
    • Audio Bit Rates: 64 kbps, 96 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps
    • Modulation Standard: ATSC, DVB-C, DVB-S2 (model dependent)
    • RF Frequency Range: 30-960 MHz for QAM and ATSC, 850-2100Mhz for L-band
    • Input RF Power Level: 5-35 dBmV
    • DVB-ASI Output: 2 x BNC Connector: 180 Mbps Max
    • DVB-ASI Input: BNC Connector: 1-120 Mbps
    • Programs Selected by PID
    • Programs Muxed to all Outputs
    • IPTV Output: MPTS over UDP, RTP/RTPS out as mirror of ASI output (RJ45)
    • Power Input: 100-240 VAC Auto Switching - 20 W
    • Dimensions: 19 x 8 x 3 Inches
    • Weight: 9 Pounds
    • Operating Temperature: 32° F - 110° F


H-8ATSC-IP - Required Accessories
