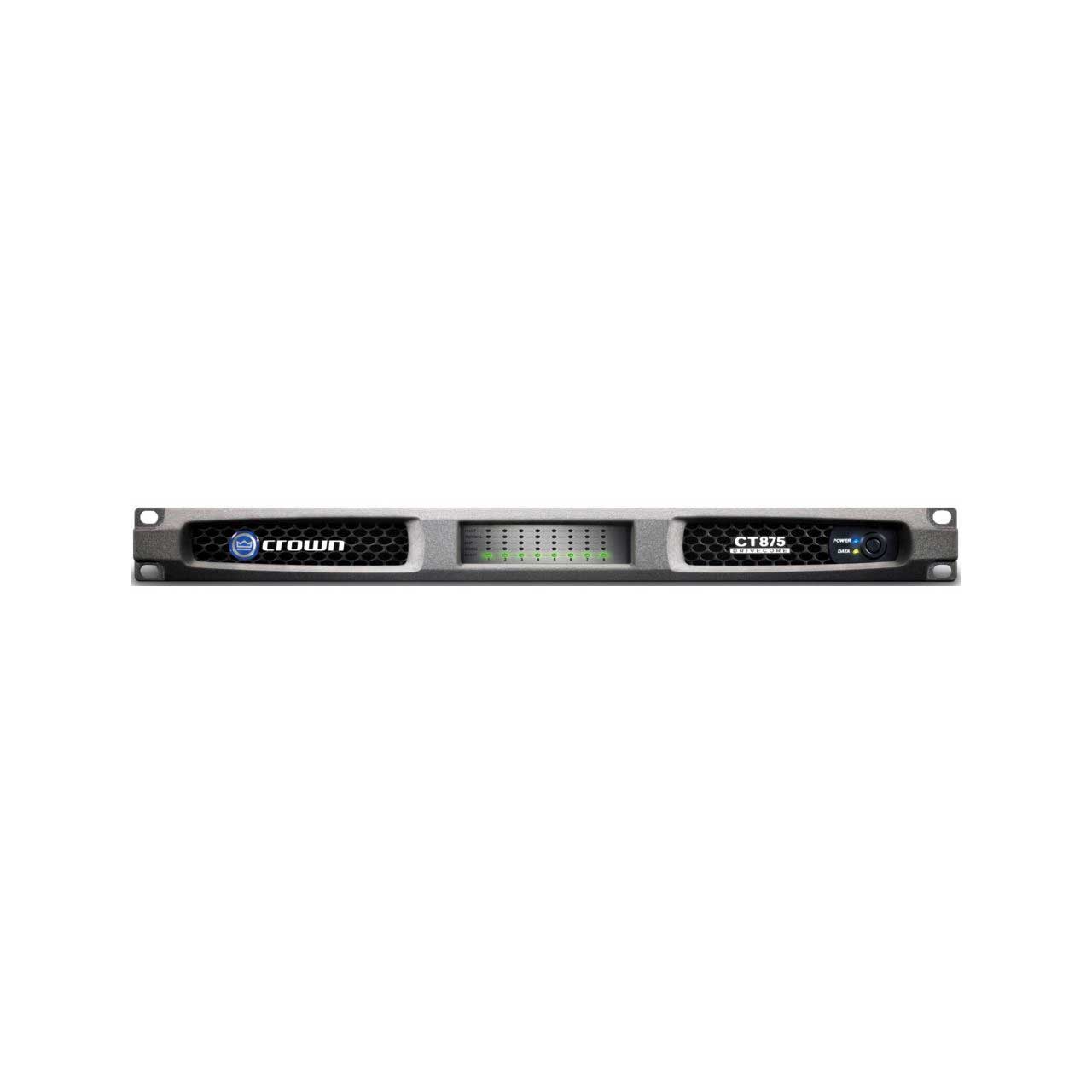

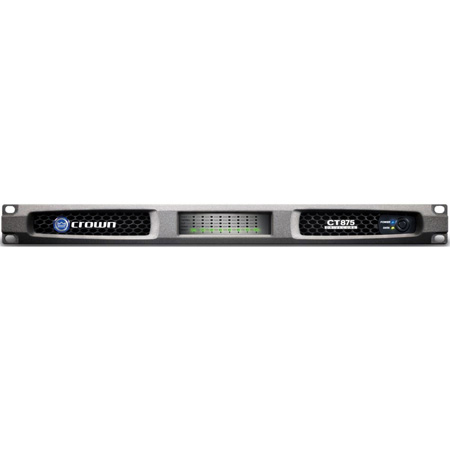

Crown CT875 ComTech DriveCore 8-Channel - 75W/4 Ohms Power Amplifier

ITEM #: CROWN-CT875 MFG #: CT875

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$2,387.00

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CT875 - Overview

The Crown CT875 is an 8-channel, 75W @ 4Ω Power Amplifier that provides state-of-the-art technology for installations that require premium sound quality, multi-channel configurations, noiseless operation and a small footprint with excellent quality and performance.

Powering this remarkable amplifier is the pioneering technology of DriveCore™, which integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design.

  • Features:

    • 8 channel (8 inputs with 8 outputs)
    • Single rack space
    • Balanced 3-pin Barrier block-type/line inputs
    • 4-pin Phoenix-type speaker outputs
    • Amplifier is stable for 2Ω - 16Ω loads
    • Flexible input routing
    • Multiple Power Configuration (Auto-Standby, Deep Sleep, and Green Mode)
    • Auxiliary port for amp status and power saving mode (Deep Sleep)
    • Circuit breaker protection with reset switch
    • Convection-cooled chassis (no fan)
    • Can be used in mass notification and EN 54 systems
    • Patented technology including DriveCore™
    • Fault Reporting through Aux Port
    • Adaptive Rail Technology for power on demand
    • Complies with Green Edge by Harman

  • Specifications:

    • Channels: 8
    • Sensitivity: 1.4 V
    • Rated Power Output (all channels driven): 75W per CH @ 4Ω, 75W per CH @ 8Ω
    • Signal-To-Noise Ratio (below rated power 20Hz - 20kHz, A-Weighted): 110dB
    • THD (full rated power, 20Hz - 20kHz): <0.05%
    • Intermodulation Distortion (from 0dB down to -30dB): <0.05%
    • Frequency Response (@ 1W, 4/8Ω): ±0.5dB
    • Crosstalk (below rated power) 20Hz - 1kHz: >70dB
    • Common Mode Rejection (20Hz - 1kHz): >55dB, typically >70dB
    • Voltage Gain: 25dB
    • DC Offset: ±20mV
    • IEC Power Connector: 15A
    • Idle Power Consumption (Standard Mode): 23W
    • Dimensions (HxWxD): 1.75" x 19" x 15.19"
    • Weight: 10lbs

  • Warranty:

    • Crown products are covered by a 6 Year Warranty

  • GTIN:

    0871015004914
