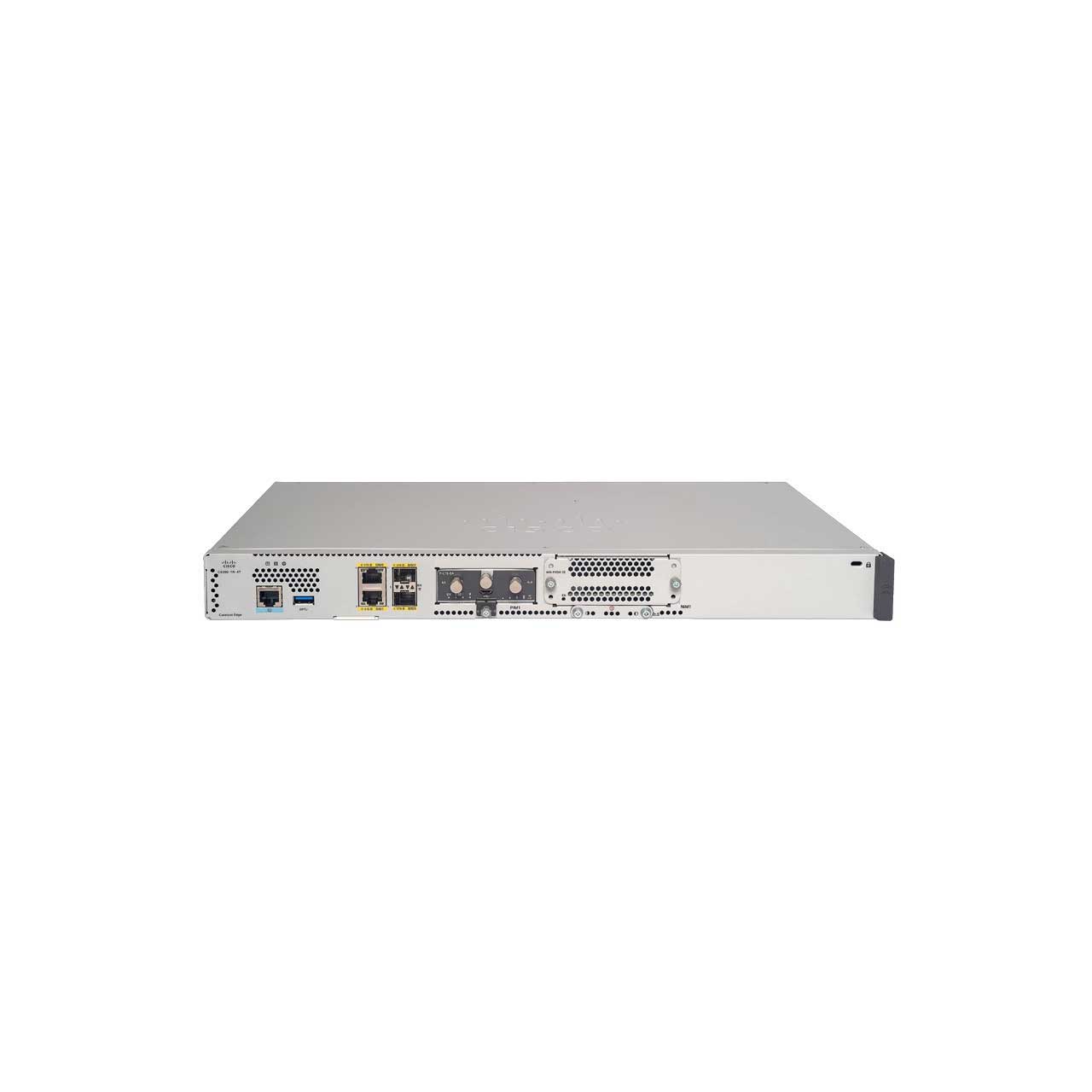

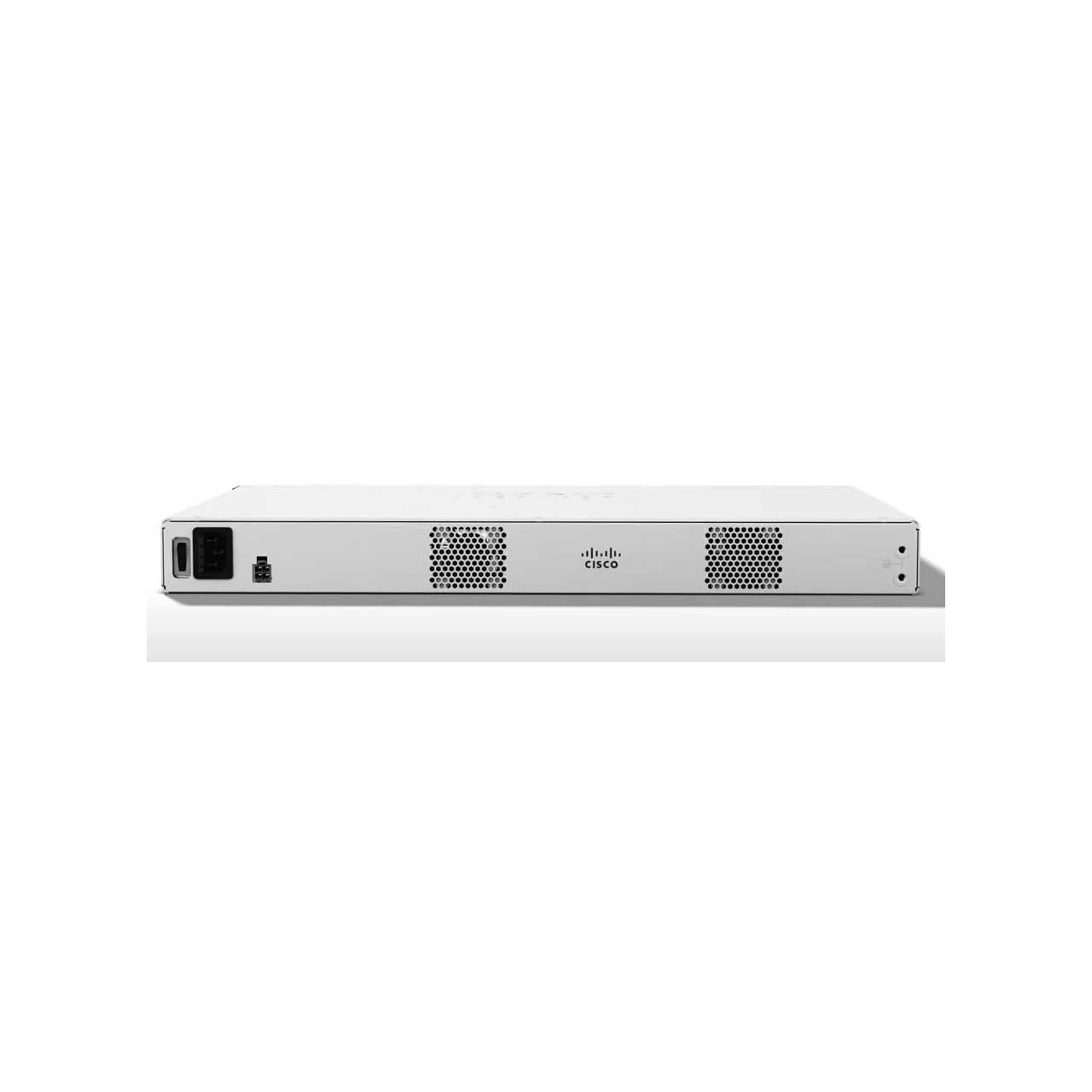

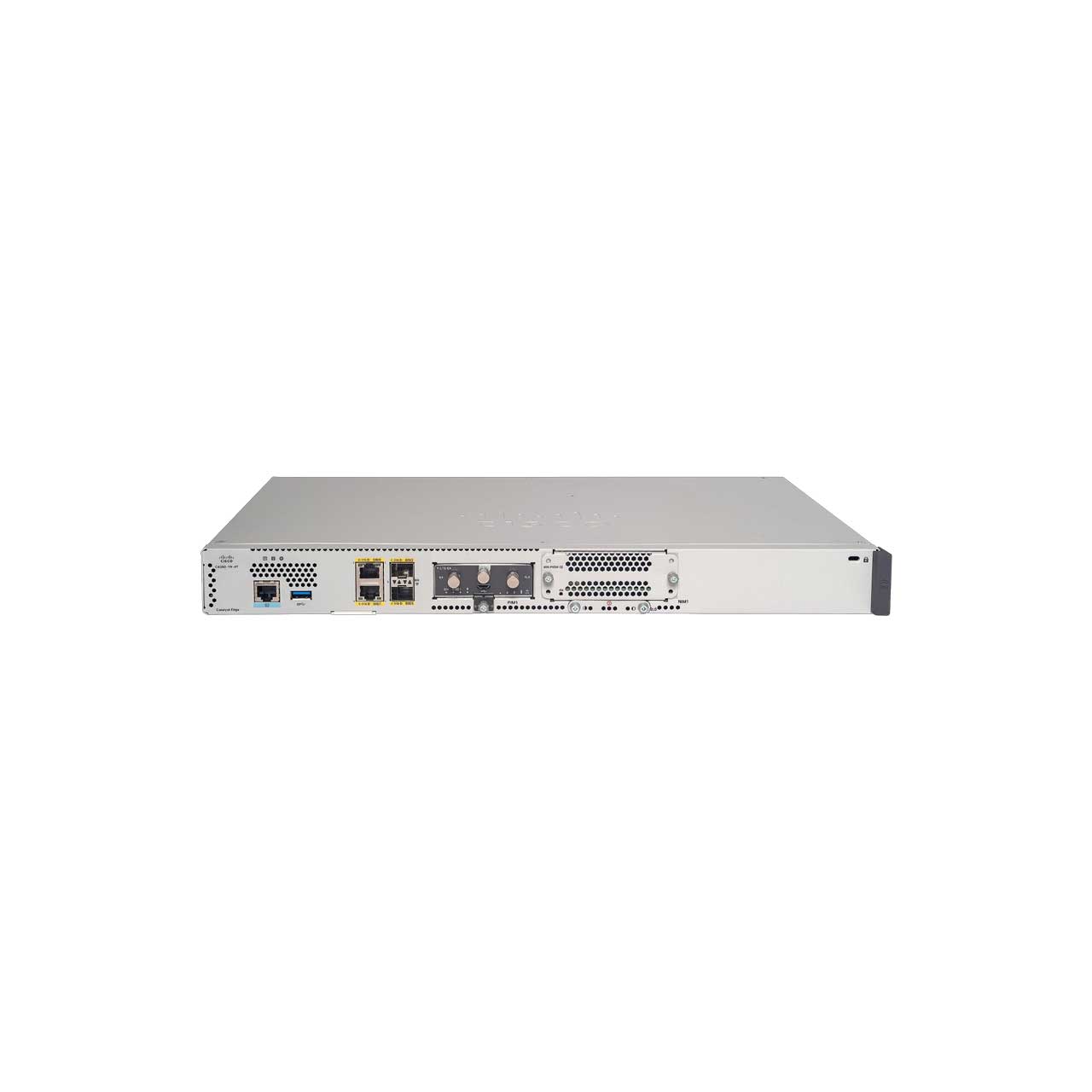

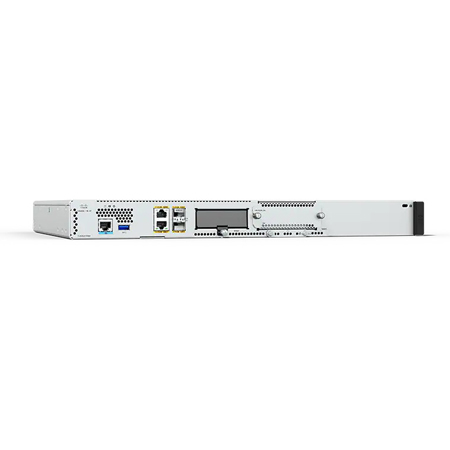

Cisco C8200-1N-4T Catalyst C8200-1N-4T Rack-mountable Router - 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports

ITEM #: CSC-C8200-1N-4T MFG #: 8WB695

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$4,259.19

Our Price:

$1,922.05

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


8WB695 - Overview

Flexible connectivity for the lean branch

The Cisco C8200-1N-4T is best suited for the small to medium-sized branch with requirements for higher throughput, scale, and service flexibility. In addition to supporting SASE-compliant cloud-based security services, the C8200-1N-4T also delivers a flexible system of best-in-class, on-premises security services through container-based apps, using Cisco's third-party ecosystem.

The Cisco Catalyst 8200 Series Edge Platforms with Cisco IOS XE SD-WAN software deliver Cisco's secure, cloud-scale SD-WAN solution for the small branch. The platforms are purpose-built for performance and integrated SD-WAN services along with flexibility to deliver security and networking services together from the cloud or on premises. They have a wide variety of interface options to choose from, with backward compatibility to existing WAN, LAN, and voice modules. Powered by Cisco IOS XE, a fully programmable software architecture, and API support, the Catalyst 8200 Series can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. The platforms also come with a trustworthy solutions 2.0 infrastructure that secures them against threats and vulnerabilities through advanced integrity verification and remediation of threats.

The 8200 Series is well suited for small and medium-sized enterprise branch offices at optimal price/performance with integrated SD-WAN services.

  • Features:

    • Multicore processors
    • Embedded IPsec VPN hardware acceleration
    • Integrated Gigabit Ethernet ports
    • 8 GB of DRAM
    • Flash memory support
    • 16G M.2 storage
    • Modularity and form factor: 1-Rack Unit (1RU) form factor, Supports NIM and Pluggable Interface Module (PIM) slots
    • Integrated security

  • Specifications:

    • Platform Performance
    • SD-WAN IPsec throughput (1400 bytes): Up to 1 Gbps
    • SD-WAN IPsec throughput (IMIX*): 900 Mbps
    • SD-WAN overlay tunnels scale: 2500

      Cisco Autonomous Mode (non SD-WAN) Performance
    • IPv4 forwarding throughput (1400 bytes): Up to 3.8 Gbps
    • IPsec throughput (1400 bytes): Up to 1 Gbps
    • Number of IPsec Static Virtual Tunnel Interface (SVTI) tunnels: 2500

      Cisco autonomous mode (non SD-WAN) system scalability
    • Number of Access Control Lists (ACLs) per system: 4000
    • Number of IPv4 Access Control Entries (ACEs) per system: 72,000
    • Number of IPv4 routes: 1.6M with default 8 GB, up to 4M with 32 GB
    • Number of IPv6 routes: 1.5M with default 8 GB, up to 4M with 32 GB
    • Number of queues: 16,000
    • Number of Network Address Translation (NAT) sessions: 1.2M with default 8 GB, up to 2M with 32 GB
    • Number of firewall sessions: 512,000
    • Number of Virtual Route Forwarding (VRF) instances: 4000
      Software Requirements
    • Cisco Catalyst 8200 Series Edge Platform: Cisco IOS XE Software Release 17.4.1

      Physical
    • Dimensions (H x W x D): 1.73 in (4.39cm) x 17.25 in (43.81 cm) x 11.8 in (29.97 cm).
    • Rack Units (RU): 1RU
    • Chassis weight: 10 lb (4.54 kg)
    • Input voltage: AC: 90 to 264 VAC
    • Operating temperature: 32°F to 104°F (0° to 40°C)
    • Storage temperature: -40°F to 150°F (-40°C to 70°C)
    • Relative humidity operating and nonoperating noncondensing: Ambient (noncondensing) operating: 5% to 85% Ambient (noncondensing) nonoperating and storage: 5% to 95%
    • Altitude: 0 to 10,000 feet
    • Mean Time Between Failures (MTBF): 692,577 hours

  • Item Includes:

    • 1x Cisco C8200-1N-4T Catalyst C8200-1N-4T Rack-mountable Router

  • Warranty:

    • 1-Year Limited Warranty
