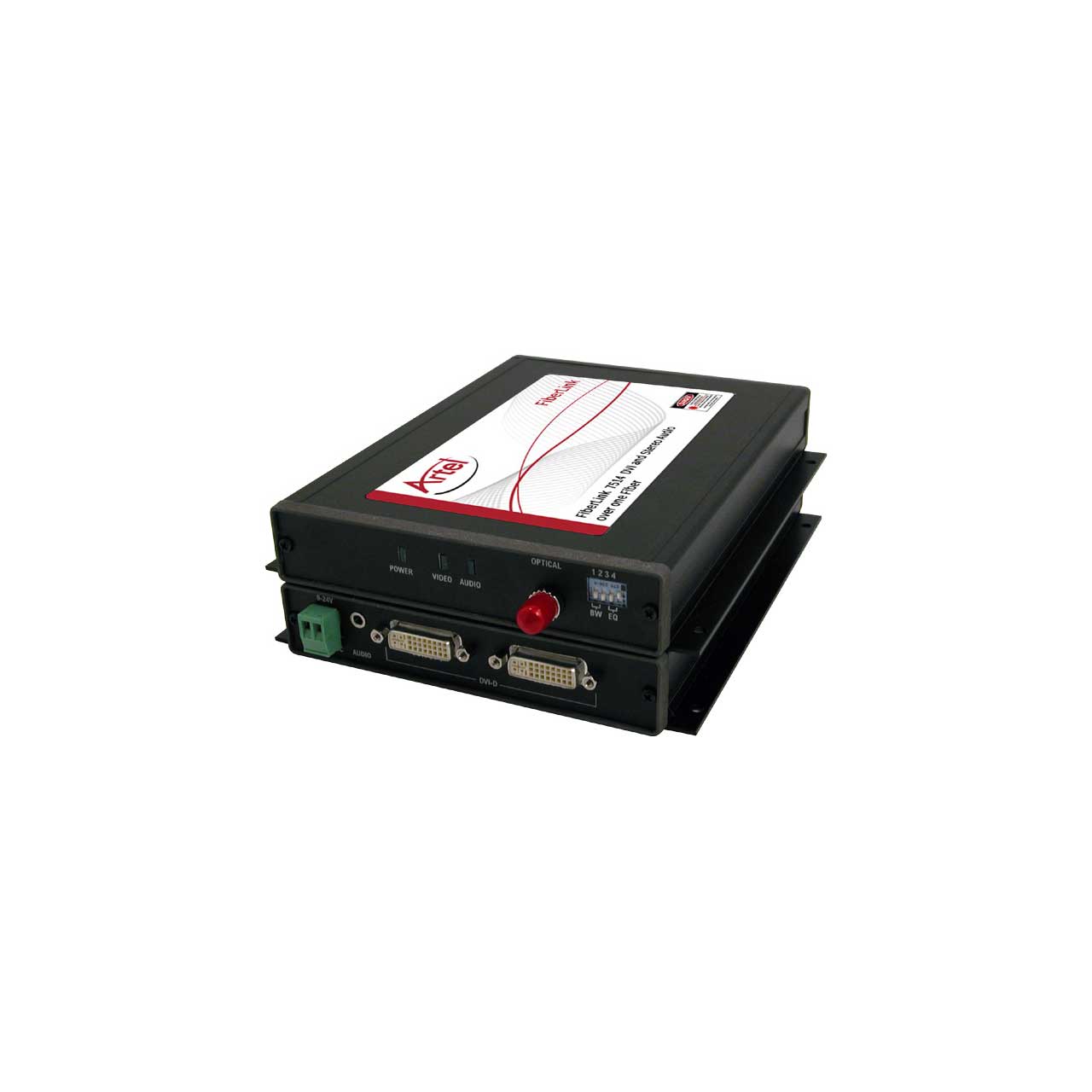

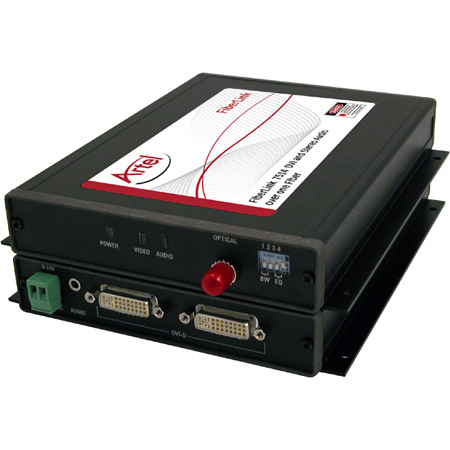

Artel FiberLink 7514-B1S 850nm Multimode DVI & 3.5mm Stereo Audio Fiber Box with ST Connectors - Transmitter

7514-B1S - Overview

• Features:

  • Transmits single-link DVI (640 x 480 up to 1920 x 1200 - 165 MHz pixel clock)
  • Supports HDTV resolutions of 480p, 720p, 1080i and 1080p (DVI format)
  • Uses no compression, color space conversion or scaling for crystal clear signals
  • Only one fiber used - no pixel skewing
  • Supports up to 45 foot (13.72m) DVI input cable
  • DVI Input loop-through on box version
  • Supports EDID from loop-through, internal generation, or capture and storage.
  • Requires no adjustments, equalization or de-skewing during installation
  • Advanced input circuit equalizes and re-clocks noisy and distorted DVI input signals
  • Two DVI outputs on box receiver allows for driving two monitors
  • Transmits signals over one single mode or multimode fiber optic core using advanced CWDM multiplexing
  • Low audio/video skew, <300 uSec
  • Complete, ready-to-install kits are available for both Box and Card versions
  • HDTV Resolutions to 1080p - This product supports HDTV resolutions of 480p, 720p and 1080p.
  • Stereo Audio - This product transmits two channels (stereo) of audio.
  • Single Mode Fiber - This product comes in a version that supports Single Mode Fiber.
  • Multimode Fiber - This product comes in a version that supports Multimode Fiber.
  • Box and Card - This product is available in a box or card configuration.


• Specifications:

  • Video
  • Number of Video Channels: 1 single-link DVI up to 1920x1200
  • Video Processing: 24 bits, no compression or scaling
  • DVI Input Loop-through: Yes
  • EDID (DDC) Support: Yes, from loop-through, internal generation, or storage and capture
  • Pixel Clock Range: 25 - 165 Mhz, continuous
  • Scanning System Supported: Progressive or Interlaced
  • Format Supported: RGB or YPrPb

    Audio Specifications
  • Number of Audio Channels: 2, unbalanced
  • Frequency Response: +0/-0.5 dB, 20 Hz to 20 kHz
  • Bits-per-Sample/Sampling Rate: 24 bits; >48kHz
  • Maximum Audio Level: +10 dBu
  • SNR (A-Weighted): 100 dB


  • Audio Specifications (cont.)
  • THD+N: 0.001%, 20 Hz - 20 kHz
  • Channel Phase Differential: +0.1°
  • Crosstalk: 100 dB (1 kHz)
  • Input Impedance: >24 k Ohms
  • Output Impedance: < 1 Ohm
  • Audio to Video Diff. Delay (skew): < 300 uSec

    Optical Specifications:
  • Operating Wavelength: SM CWDM (1300 - 1600 nm band ), MM CWDM (850nm band )
  • Optical Fibers SM: 8-10/125 microns;
  • MM: 50u or 62.5u
  • Optical Connector: 7500/7501: ST x 1; 7502: ST x 2
    Class I Laser Product complies with FDA performance standard for laser products, Title 21, Code of Federal Regulations, Sub-Chapter J.

    Miscellaneous
  • Operating Temp. Range: -20°C to +45°C
  • Operating Power: 9-24 Volts AC or DC @ 10 watts (max.)
  • Slots filled in 6000A Card Cage: 3


• Item Includes:

  • 1x Artel FiberLink 7514-B1S Transmitter
