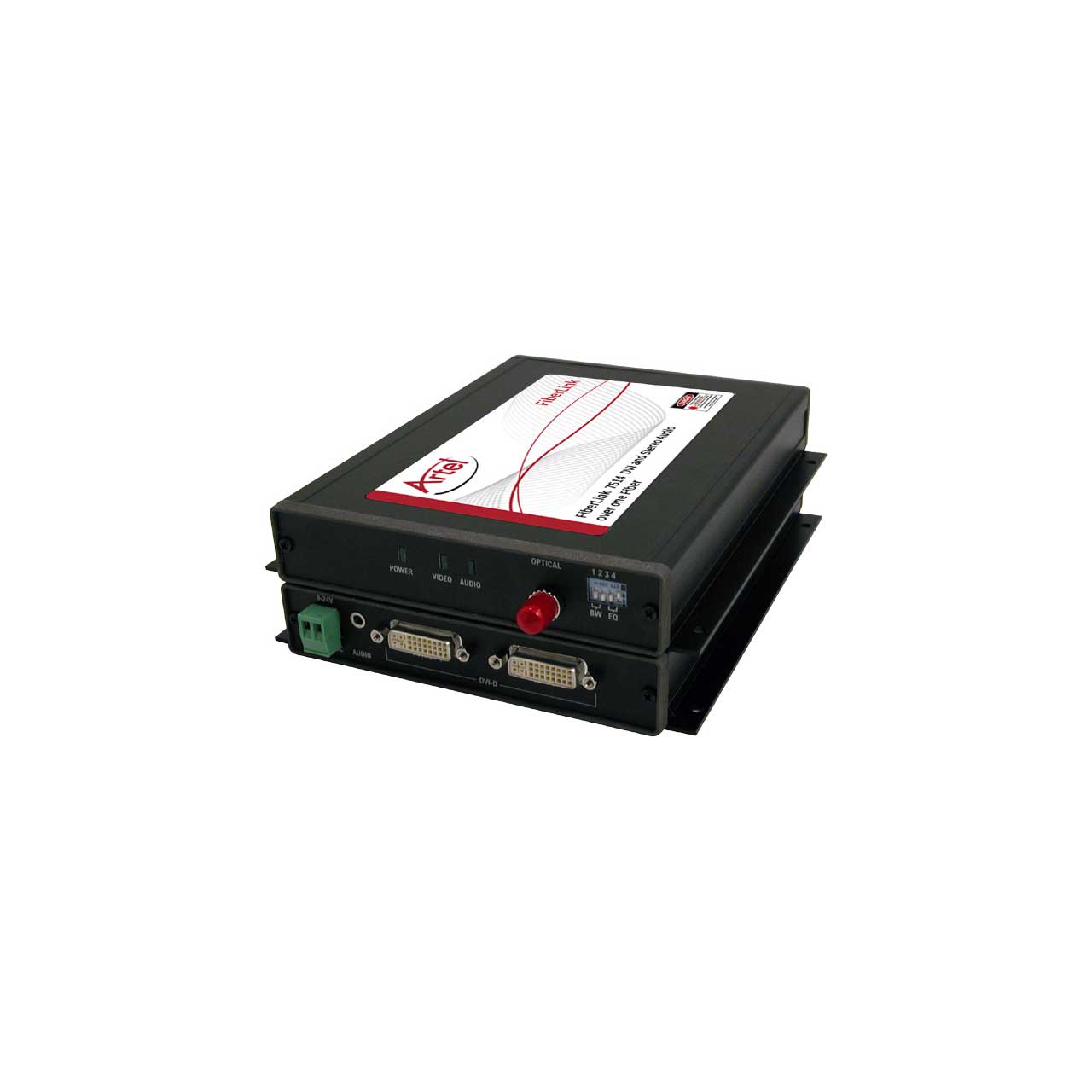

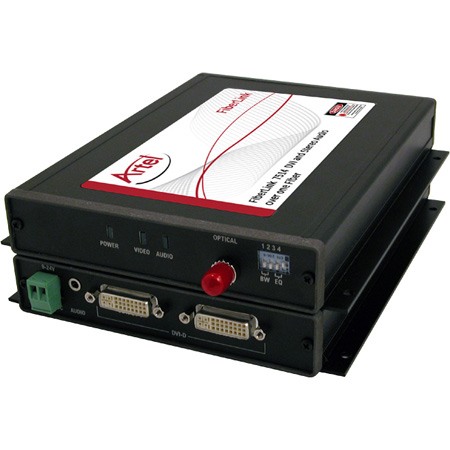

Artel FiberLink 7515-B1S 850nm Multimode DVI & 3.5mm Stereo Audio Fiber Box with ST Connectors - Receiver

7515-B1S - Overview

• Features:

  • Transmits single-link DVI (640 x 480 up to 1920 x 1200 - 165 MHz pixel clock)
  • Supports HDTV resolutions of 480p, 720p, 1080i and 1080p (DVI format)
  • Uses no compression, color space conversion or scaling for crystal clear signals
  • Only one fiber used - no pixel skewing
  • Supports up to 45 foot (13.72m) DVI input cable
  • DVI Input loop-through on box version
  • Supports EDID from loop-through, internal generation, or capture and storage.
  • Requires no adjustments, equalization or de-skewing during installation
  • Advanced input circuit equalizes and re-clocks noisy and distorted DVI input signals
  • Two DVI outputs on box receiver allows for driving two monitors
  • Transmits signals over one single mode or multimode fiber optic core using advanced CWDM multiplexing
  • Low audio/video skew, <300 uSec
  • Complete, ready-to-install kits are available for both Box and Card versions
  • RoHS Compliant
    Not compatible with Fiberlink 7500, 7501 and 7502, 7510, 7511, 7512


• Specifications:

  • Video
  • Input Type: DVI-D or DVI-I (digital signal only) single link
  • Number of Video Channels: 1 single-link DVI-D up to 1920x1200
  • Video Processing: 24 bits, no compression or scaling
  • DVI Input Loop-through: Yes; both box & card versions
  • EDID (DDC) Support: From loop-through, internal or capture & storage capability
  • Pixel Clock Range: 25 - 165 MHz, continuous
  • Scanning System Supported: Progressive or Interlaced
  • Color Space Format: Supported RGB or YPrPb
  • Maximum Input Cable Length: 45 Feet (13.72m)
  • Maximum Output Cable Length: 16 Feet (5m)
  • Number of DVI Outputs: 2 on box version, 1 on card version

    Audio
  • Number of Audio Channels: 2, unbalanced
  • Frequency Response: +0/-0.5 dB, 20 Hz - 20 kHz
  • Bits-per-Sample/Sampling Rate: 24 bits; >48 kHz
  • Maximum Audio Level: +10 dBu
  • SNR (A-Weighted): 100 dB
  • THD+N: 0.001%, 20 Hz - 20 kHz
  • Channel Phase Differential: +0.1o
  • Crosstalk: 100 dB (1 kHz)
  • Input Impedance: >24K Ohms
  • Output Impedance: < 1 Ohm
  • Audio to Video Diff. Delay (skew): 300 uSec


  • Operating Loss Budget and Maximum Usable Distance*
    Wavelength / Loss(dB) / Distance (km)
  • 1310 SM / 0-15 / 15
  • 850 MM / 0-8 / 0.75 (50u), 0.35 (62.5u)
  • 850 MM / 0-4 / 0.60 (50u)
  • Dual Optical: 0.30 (62.5u)

    General Specifications
  • LED Indicators: Power, Video, Audio, Alarm: LED (card version only)
  • Power Requirements: 9-24 volts AC or DC, 10 watts, 34.12 BTU/Hr
  • Operating Temperature Range: -20°C to +45°C
  • Optical Connector: 7514/7515: ST x 1 7516: ST x 2
  • Operating Wavelength: SM: CWDM (1300-1600nm band), MM: CWDM (850nm band)
  • Physical Size: 6.5 W x 1.15 H x 8 L (inches) 165 W x 29 H x 203 L (mm)
  • Weight: 1 lb. (0.455 kg)
  • Slots filled in 6000A Card Cage: 3
  • MTBF: 45,000 Hours
    *For operation from 95-250 volts AC, 50/60 Hz, a PDPS-2 plug-in adapter is required.


• Item Includes:

  • 1x Artel FiberLink 7515-B1S Receiver
