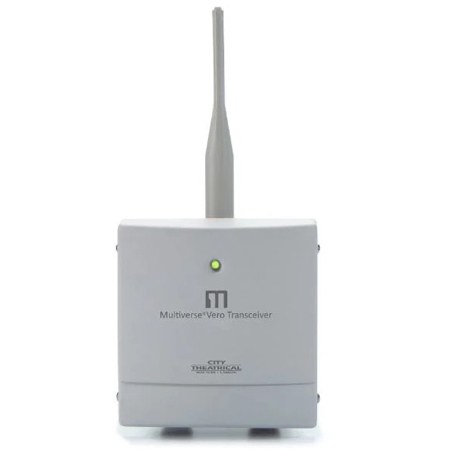

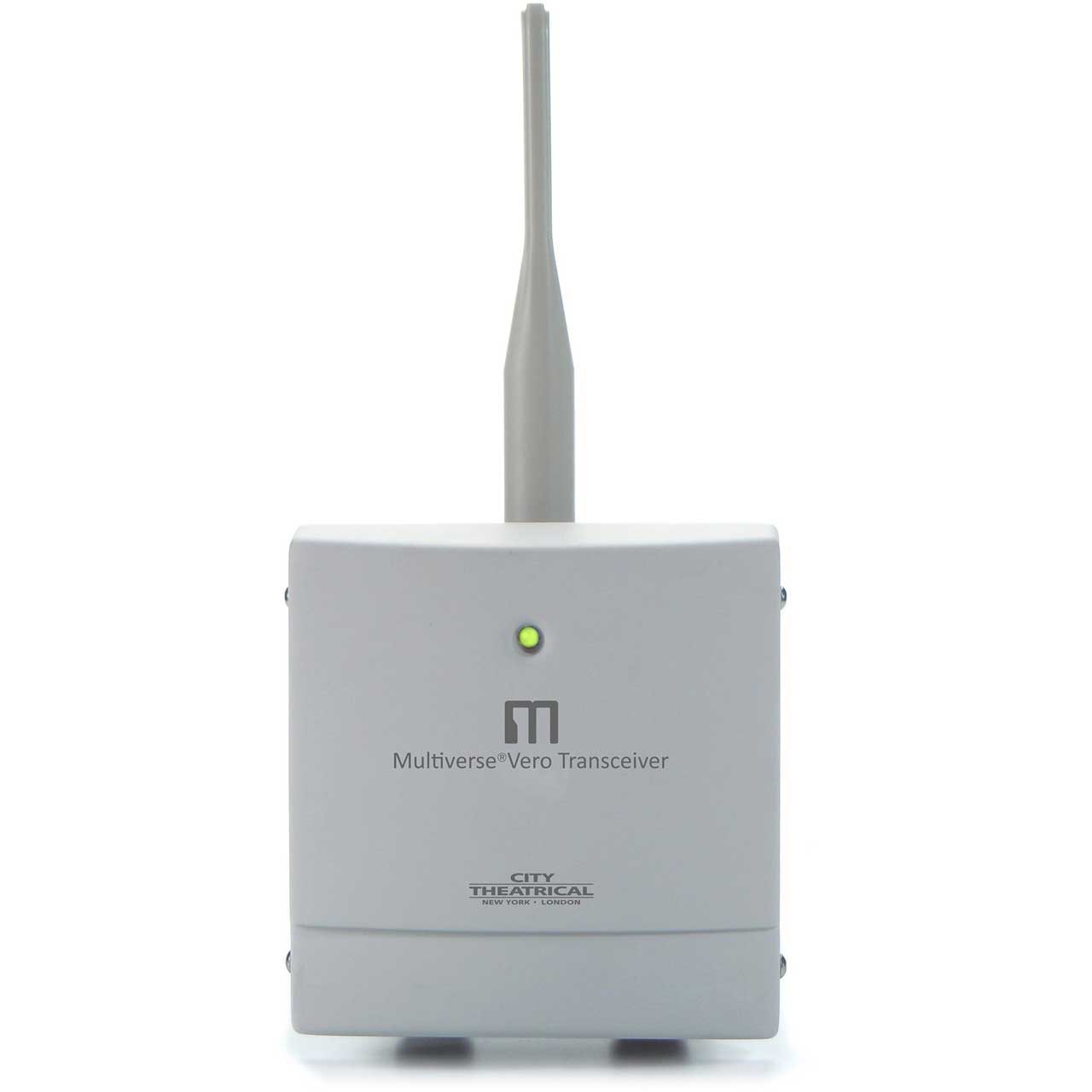

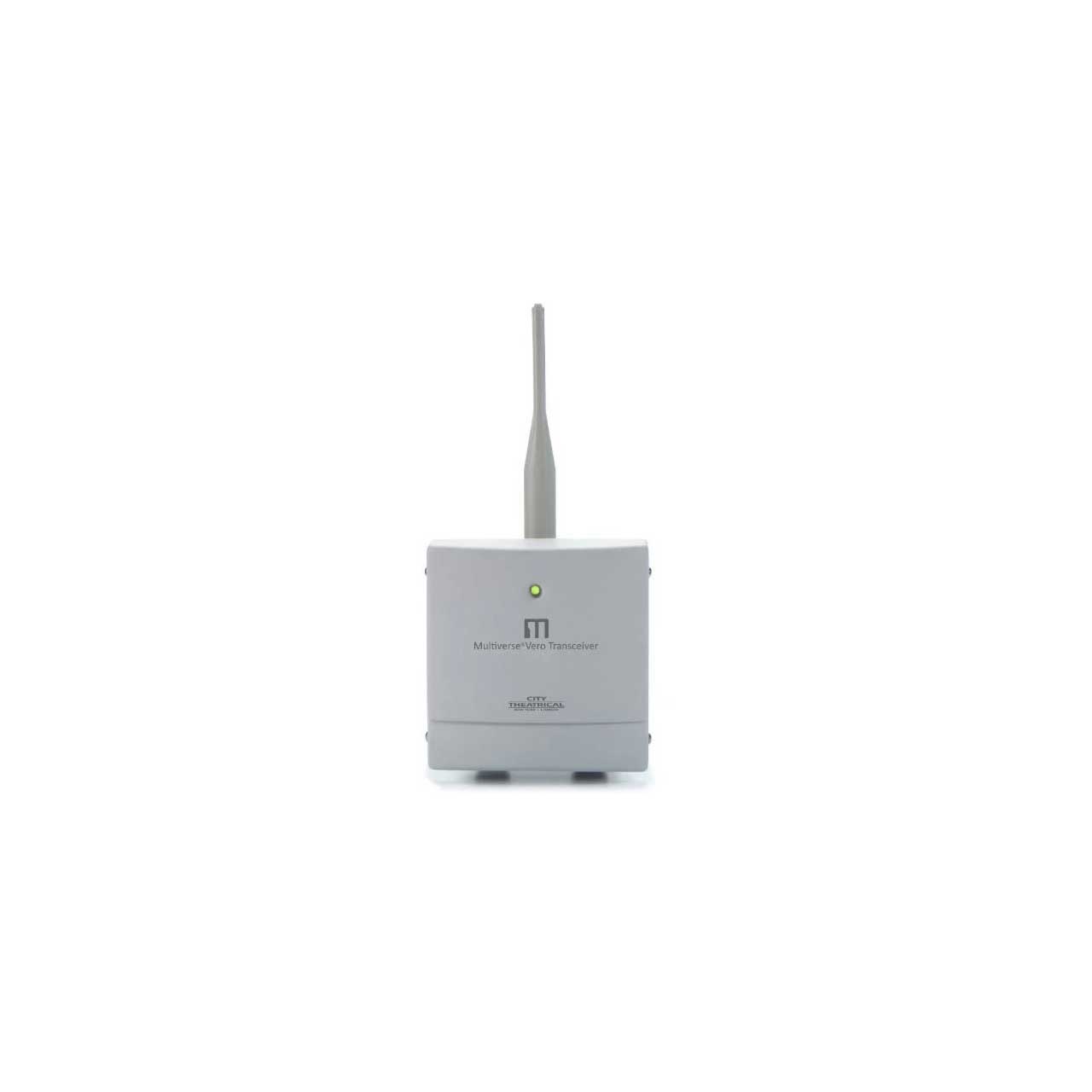

City Theatrical 7400-5902 Multiverse Vero DMX/RDM Transceiver - 900MHz & 2.4GHz

ITEM #: CTYTH-7400-5902 MFG #: 7400-5902

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
City Theatrical Inc.
Free Shipping with $49 Minimum Order

List Price:

$1,949.64

Our Price:

$1,657.19

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

7400-5902 - Overview

The 7400-5902 Multiverse® Vero transceiver 900MHz/ 2.4GHz by City Theatrical has all the advanced features of the Multiverse wireless DMX/RDM system for outdoor installations and entertainment.

The 7400-5902 Multiverse Vero transceiver 900MHz/2.4GHz contains two radios, 2.4GHz (for worldwide use) and 900MHz (for use in the Americas only), which allow the user to select which single universe to receive, and which radio band to use via the Multiverse SHoW ID.

The Multiverse Vero transceiver is housed in a NEMA 4 / IP66 package that provides protection from the outdoor elements. Its internal backlit LCD display makes setup easy and gives feedback on system performance. Each unit comes with a dual band 2.5dBi outdoor omni-directional antenna.

  • Features:

    • Choice Of Broadcast Radio - 2.4GHz or the 900MHz band
    • mDMX
    • mRDM
    • SHoW Key Security
    • Forward Error Correction
    • Ultra Low Latency
    • Adaptive Spread Spectrum Frequency Hopping
    • Adjustable Output Power
    • User Selectable SHoW IDs


  • Specifications:

    • Maximum Concurrent Universes: 1 per transmitter
    • Frequency Range: 2400 - 2480 MHz, 902 - 928 MHz
    • Dimensions: 6.5 x 6.0 x 4.0" (165.0 x 152.0 x 102.0mm)
    • Weight: 1.70lbs (0.77kg)
    • Antenna: Dual band 900MHz/2.4GHz 2.5dBi/2.5dBi
    • User Interface: Internal Backlit four button LCD display
    • Construction: NEMA 4 / IP66 Aluminum enclosure
    • Power: 90-277VAC input, 1A max, on 3 pin screw terminals
    • DMX Terminals: DMX In and Out via 3 pin screw terminals
    • Operating Temperature: -25°C-60°C
    • Latency: 4 ms average
    • RF Sensitivity: -95dBm
    • Loss of Data Behavior: Output stops
    • Broadcast Power: 3.2mW, 10mW, 32mW, 100mW EIRP
    • Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
    • Show IDs: Multiverse: 307; Neo: 70
    • RDM Features: RDM Proxy, RDM Responder
    • Use Environment: Indoor or Outdoor
    • IP Rating: IP66
    • Compliance: FCC, IC, cETLus Listed


  • Item Includes:

    • 1x 7400-5902Multiverse Vero Transceiver 900MHz/2.4GHz
    • 1x 5983 Antenna, Omni Broadband, 900MHz/2.4GHz, 2.5dBi/2.5dBi


  • Warranty:

    • 1-year
