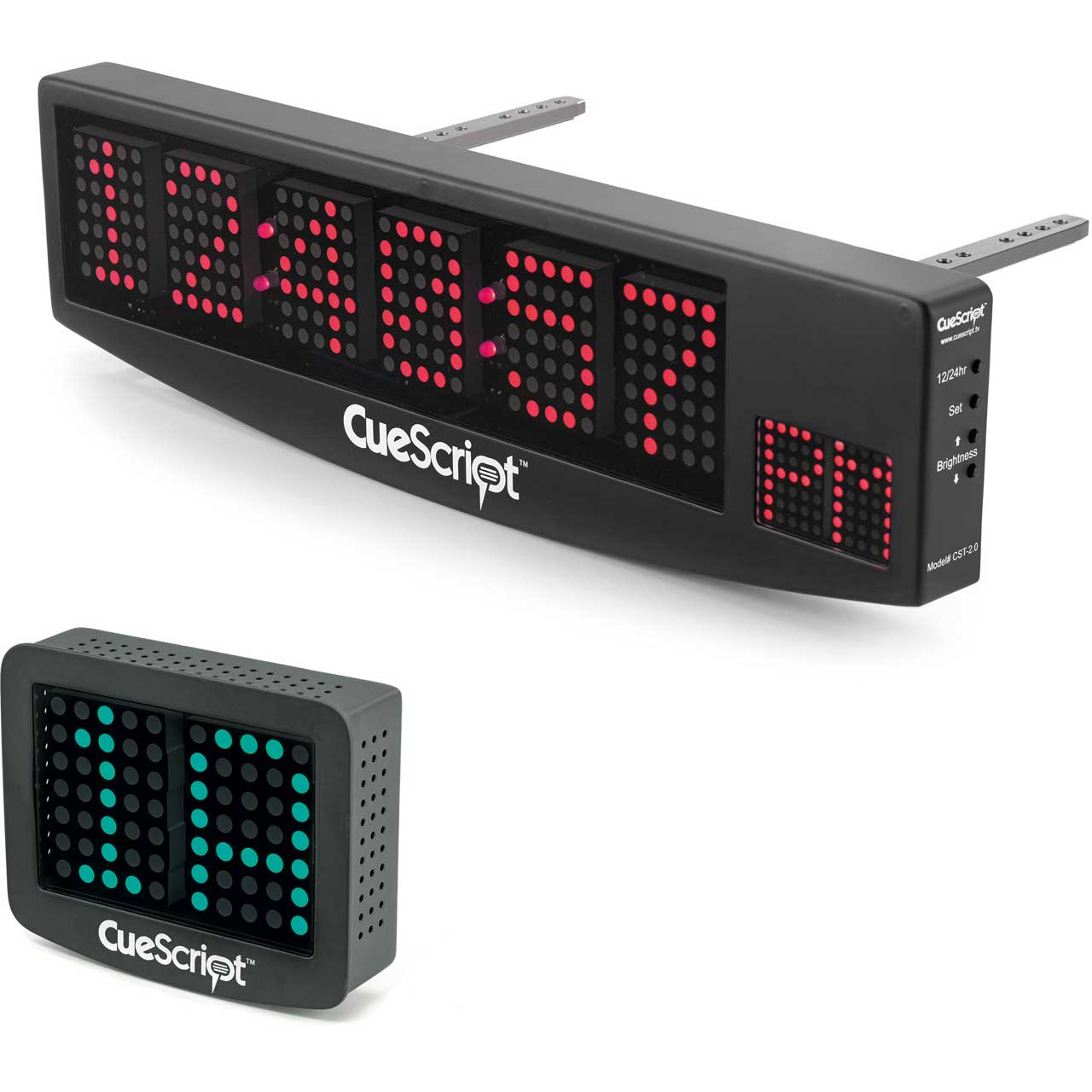

CueScript CSTDCN Time Display with Cue Number Package

CSTDCN - Overview

• Features:

  • Time Display
  • VTC input and backup time kept with a 32kHz watch crystal
  • Power and VITC via USB direct from the CueScript monitor
  • Simple mounting to CueScript CSM and CSMV2 Monitors
  • 12 hour or 24 hour mode selection
  • Adjustable brightness
  • Changes colour from green to red on tally
  • Reads and displays VITC SMPTE time code both NTSC and EBU

    Cue Number
  • Adjustable Brightness
  • The green numbers and/or letters will change to red when the tally signal is received.


• Specifications:

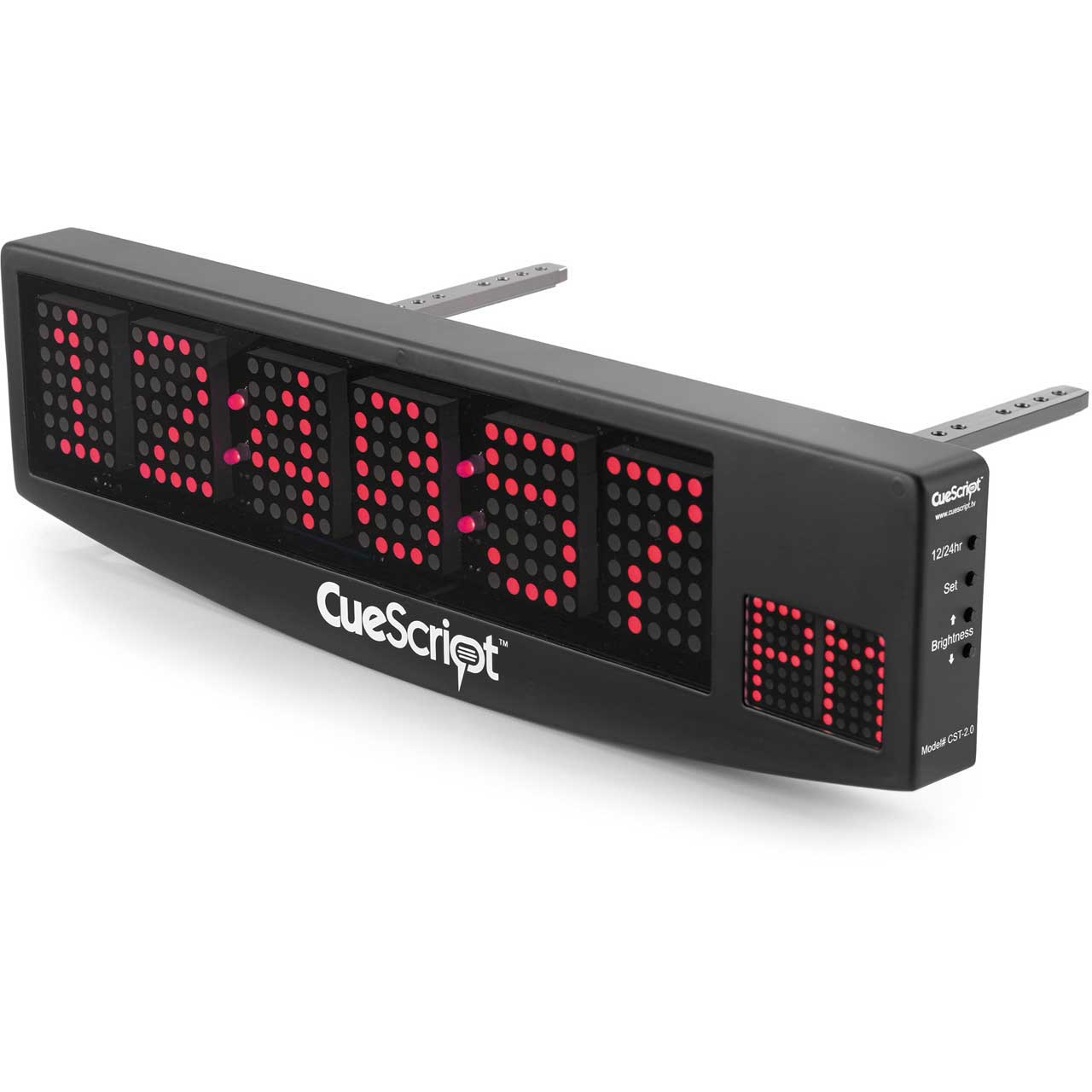

  • Time Display
  • Dimensions (LxWxH): 17" x 13" x 7"
  • Weight with Mounting Arms: 1.54lbs
  • LED Displays: 6 2" 5x7 dot matrix 5mm LED displays and 2 1.2" 5x7 3mm displays for AM or PM
  • Power: Powered directly from monitor (5V) and low current (500ma).

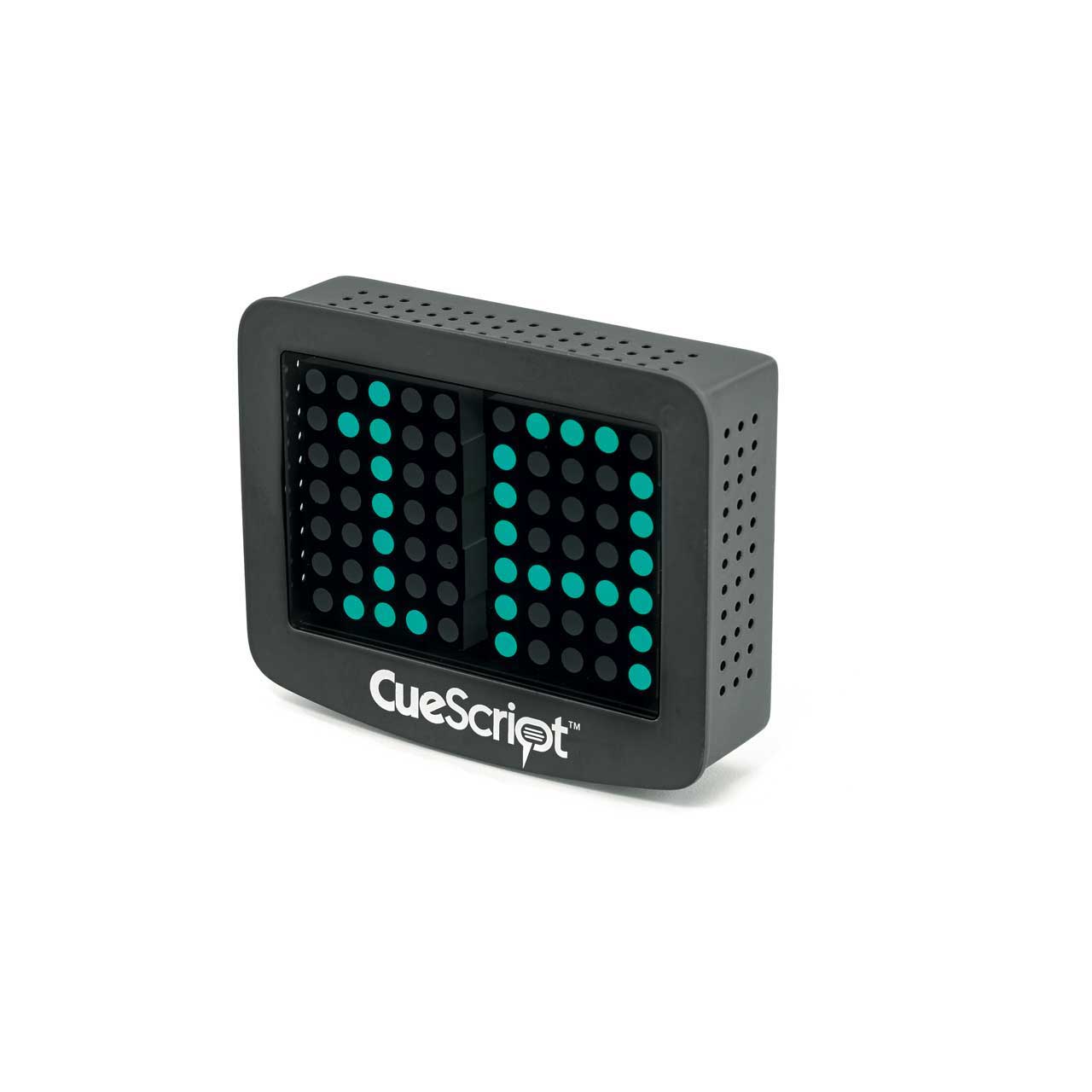

    Cue Number
  • Dimensions (LxWxH): 17" x 13" z 7"
  • Weight: 1lb


• Item Includes:

  • 1x CueScript CSTD Time Display
  • 1x CueScript CSCN Cue Number
  • 1x Hood mounting
  • 1x Time display mounting hardware
  • 2x USB cables


• Warranty:

  • 3-Year Limited Warranty
