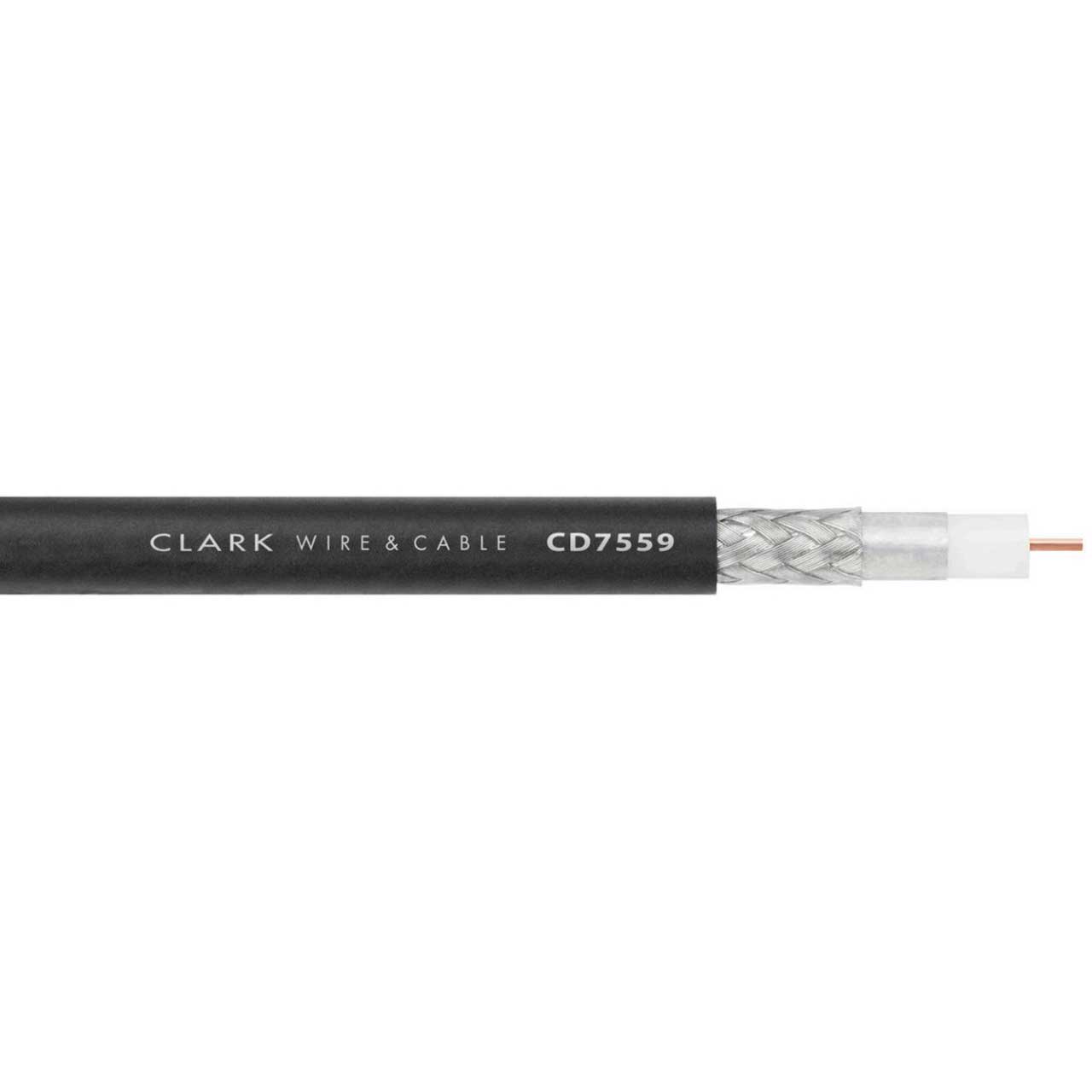

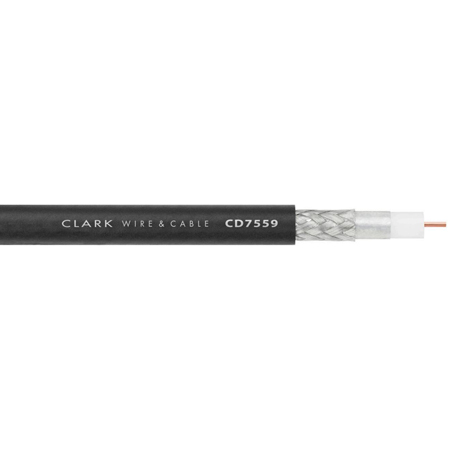

Clark Wire & Cable CD7559 RG59 6GHz 4K Digital Video Coax Cable - Black - 1000 Foot Spool

Name: Clark Wire & Cable CD7559 RG59 6GHz 4K Digital Video Coax Cable - Black - 1000 Foot Spool
Brand: Clark Wire & Cable
SKU: CWC-CD75591000BK
Price: 509.00 USD
Availability: PreSale

ITEM #: CWC-CD75591000BK MFG #: CD7559-1000BK

Clark Wire & Cable

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

CD7559-1000BK - Overview

The CD7559 is a precision 6 GHz RG59 coax for HD/SDI, standard SDI or high resolution video applications. Clark's CD series coax features specifications that meet or exceed standards for digital video interconnects up to 6 Gb/s. Also built for easy termination, the CD series has an easy-to-strip outer jacket and dielectric that streamline connector termination. UL rated type CMR, the CD7559 can be installed in a variety of permanent installation locations and environments.

Features:
- Low-Loss RG59 Size Coax - ideal for general purpose use in studios and facilities
  6 GHz Bandwidth - meets or exceeds SMPTE 292M, 424M, ST2081-1, ST2082, ST1081-1 standards
  100% Sweep Tested- network analyzer quality control for consistitent performance
  Gas-Injected Dielectric - achieves precision electrical performance and mechanical strength
  Foil + Braid Shield - dual layer shieldng for exceptional broadband RF/EMI rejection
  UL Listed Type CMR - for rack or in-wall installations
Specifications:

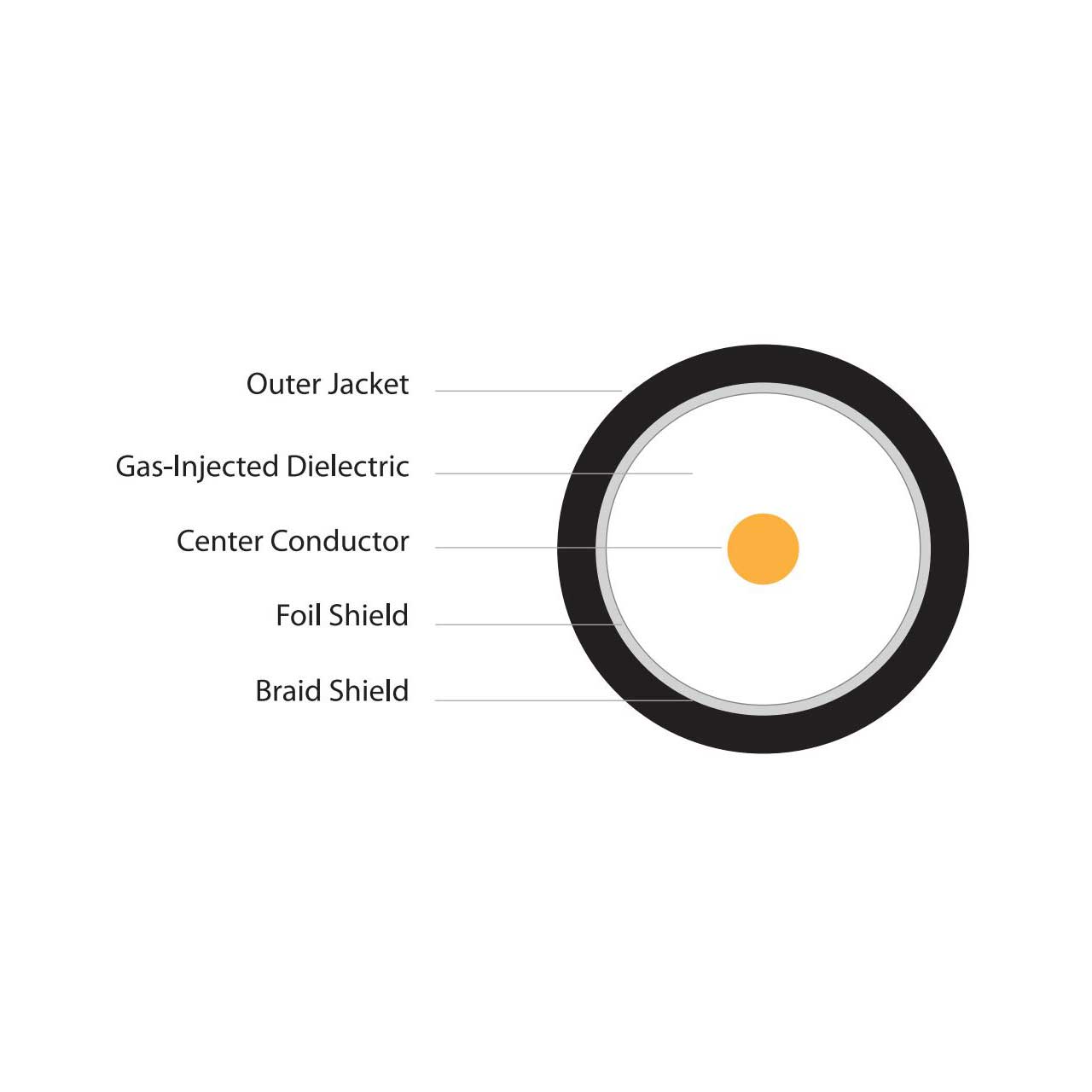

- Center Conductor: 20 AWG Solid BC .032" O.D.
- Dielectric: Gas-Injected Foam PE .146" OD
- Shield: 100% Aluminum Foil, 95% TC Braid
- Jacket: Low Pressure, Easy Strip PVC
- Overall Diameter: 242"
