QSC CX302 2 Channel Powered Amplifier 200 Watt at 8 Ohms

ITEM #: CX302 MFG #: CX302

Primary Image

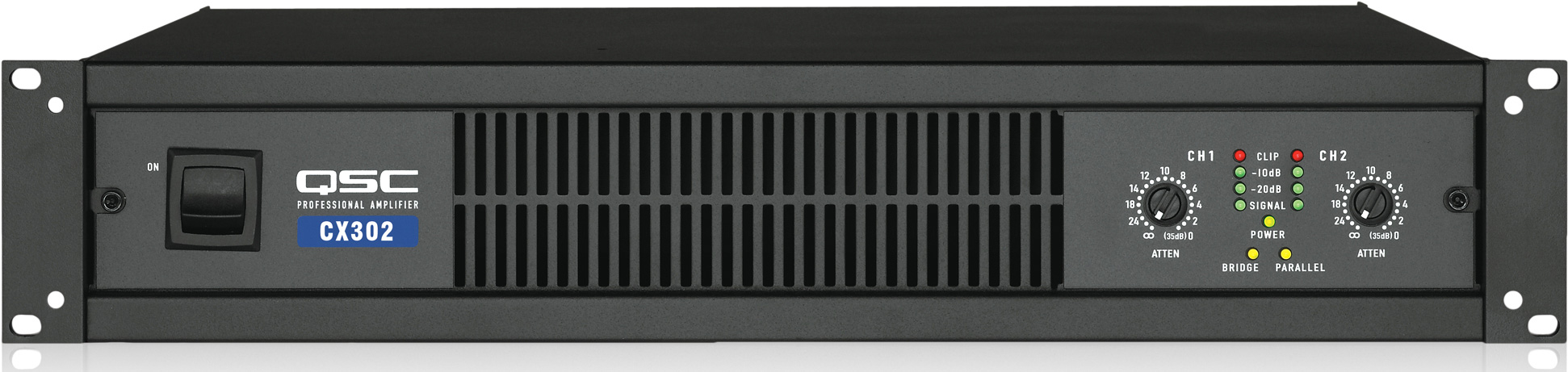

  • Product Image Thumbnail 1 of 4

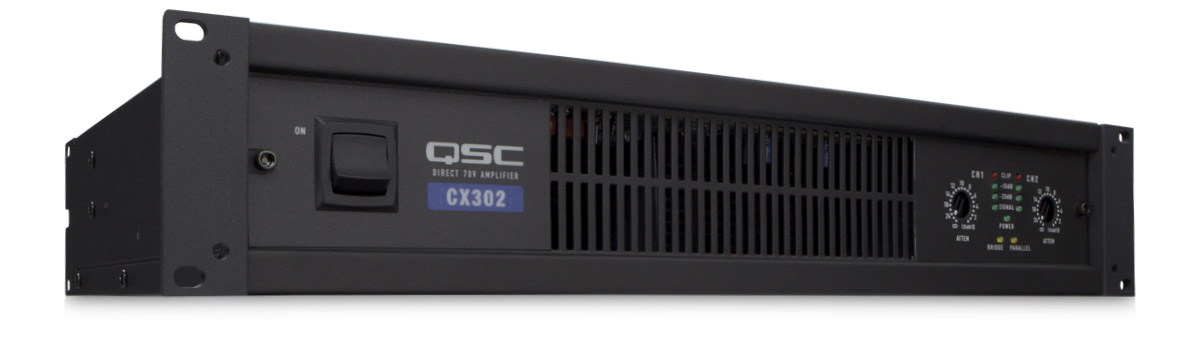

  • Product Image Thumbnail 2 of 4

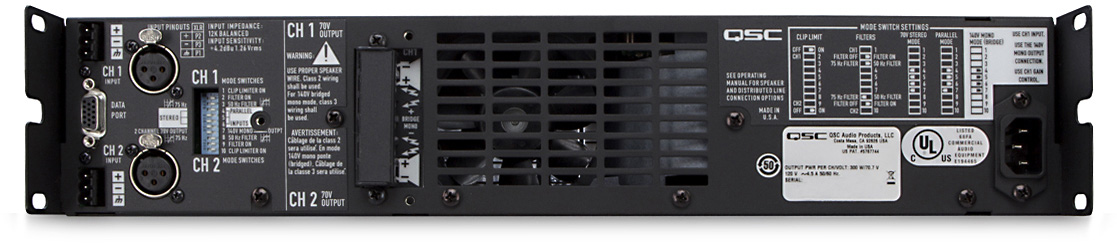

  • Product Image Thumbnail 3 of 4

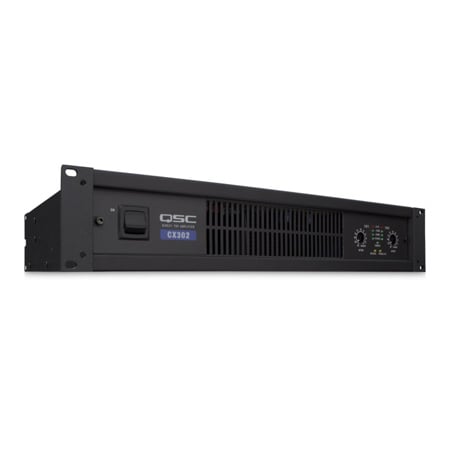

  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CX302

CX302 - Overview

The CX302 2 channel power amplifier is designed to meet the specialized needs of sound contractors. With high output power, versatile loading options, high thermal capacity and reliability, the CX Series is the ideal solution to any permanently installed sound system.

The new CX amplifiers are equipped with many contractor specific features including 1 dB detented gain controls for easily repeatable settings and a custom security cover for tamper-proof installations. Active inrush limiting eliminates AC inrush current, cutting the need for power sequencers.

CX amplifiers also include an HD15 Data Port connector to interface with QSControl, QSC's computer-controlled audio system, that allows remote amplifier monitoring and control via a standard Ethernet network.

The CX 2-channel series is a line of amplifiers designed for installation applications requiring premium sound quality and high output. Recognized by sound contractors worldwide for their reliability, CX 2-channel amplifiers feature PowerLight power supply technology reducing weight, eliminating AC mains hum and improving audio quality. The highly efficient power supply also draws less power and produces less heat resulting in added energy savings. CX 2-channel amplifiers also feature advanced amplifier control and monitoring via the Q-SYS network audio platform.

  • Features:

    • Exclusive PowerLight switch-mode power supply technology for high performance and compact size
    • Custom integrated security cover for tamper proof installations
    • Variable speed fan for low noise
    • 1-dB detented gain controls for fast and accurate gain settings
    • Active inrush limiting eliminates AC inrush current, removing the need for expensive power sequencers
    • XLR and detachable Euro style input connectors
    • HD15 DataPort connector for Q-SYS networked control and monitoring
    • Dip switch control for clip limiters, high pass filters, bridge mono and parallel operation
    • Selectable high pass filters protect speakers and prevent speaker transformer saturation with minimal effect on program material (33 Hz or 75 Hz)
    • Comprehensive front panel indicators including signal, clip, protect and QSC's exclusive bridge mono and parallel input LEDs
    • Barrier strip output connector
    • Comprehensive protection circuitry including DC, infrasonic, thermal overload and short circuit protection
    • Optional external transformer accessory pack for isolated 25-, 70-, and 100-volt outputs (converts CX302 to 400 watts per channel, or 300 watts into 25 V)
    • Compact size - only 2 rack units high and 14" deep for reduced rack cost and floor space
    • Lightweight - weighs only 21 pounds (9.5 kg) for easier racking and shipping
    • 3-year warranty plus optional 3-year extended service contract
    • All CX Series amplifiers meet the European Union's 2006 RoHS directive to restrict the use of hazardous materials used in electronic devices.

  • Specifications:

    • 8Ω, 20 Hz-20 kHz, 0.05% THD: 200 W
    • 4Ω, 20 Hz-20 kHz, 0.05% THD: 325 W
    • 2Ω, 1 kHz, 1% THD: 600 W
    • 16Ω, 20 Hz-20 kHz, 0.1% THD: 400 W
    • 8Ω, 20 Hz-20 kHz, 0.1% THD: 700 W
    • 4Ω, 1 kHz, 1% THD: 1200 W
    • Noise, 20 Hz-20 kHz: -107 dB
    • Input Sensitivity @ 8 ohms: 1.26 Vrms
    • Maximum Voltage Gain: 30 dB
    • Output Circuitry Class: AB+B
    • Distortion (SMPTE-IM): Less than 0.02%
    • Distortion (Typical)20 Hz-20 kHz 10 dB below rated power 1.0 kHz and below full rated power: Less than 0.01% THD
    • Frequency Response: 20 Hz-20 kHz, ±0.2 dB
    • Damping Factor: Greater than 500
    • Input Impedance: 6 kΩ unbalanced, 12 kΩ balanced
    • Input Clipping: 10 V rms (+22 dBu)
    • Cooling: Variable-speed fan, rear-to-front air flow
    • Connectors, each channel Input: 3-pin XLR & 3-pin detachable terminal blocks (1 each per channel)
    • Connectors, each channel Output: Safety-shrouded barrier strip
    • Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, and RF protection. Stable into reactive or mismatched loads.
    • Load Protection: On/off muting, DC-fault power supply shutdown
    • Dimensions (HWD) inches: 3.5 x 19 x 14 / 2RU
    • Net Weight: 21 lbs net
    • Shipping Weight: 27 lbs shipping

  • GTIN:

    0684284000484
