Switchcraft D4F 4-Pin Female XLR Panel/Chassis Mount Connector

Name: Switchcraft D4F 4-Pin Female XLR Panel/Chassis Mount Connector
Brand: Switchcraft
SKU: D4F
Price: 10.03 USD
Availability: InStock

ITEM #: D4F MFG #: D4F

Switchcraft

Genders:

Genders

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$11.00

Our Price:

$10.03

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

D4F - Overview

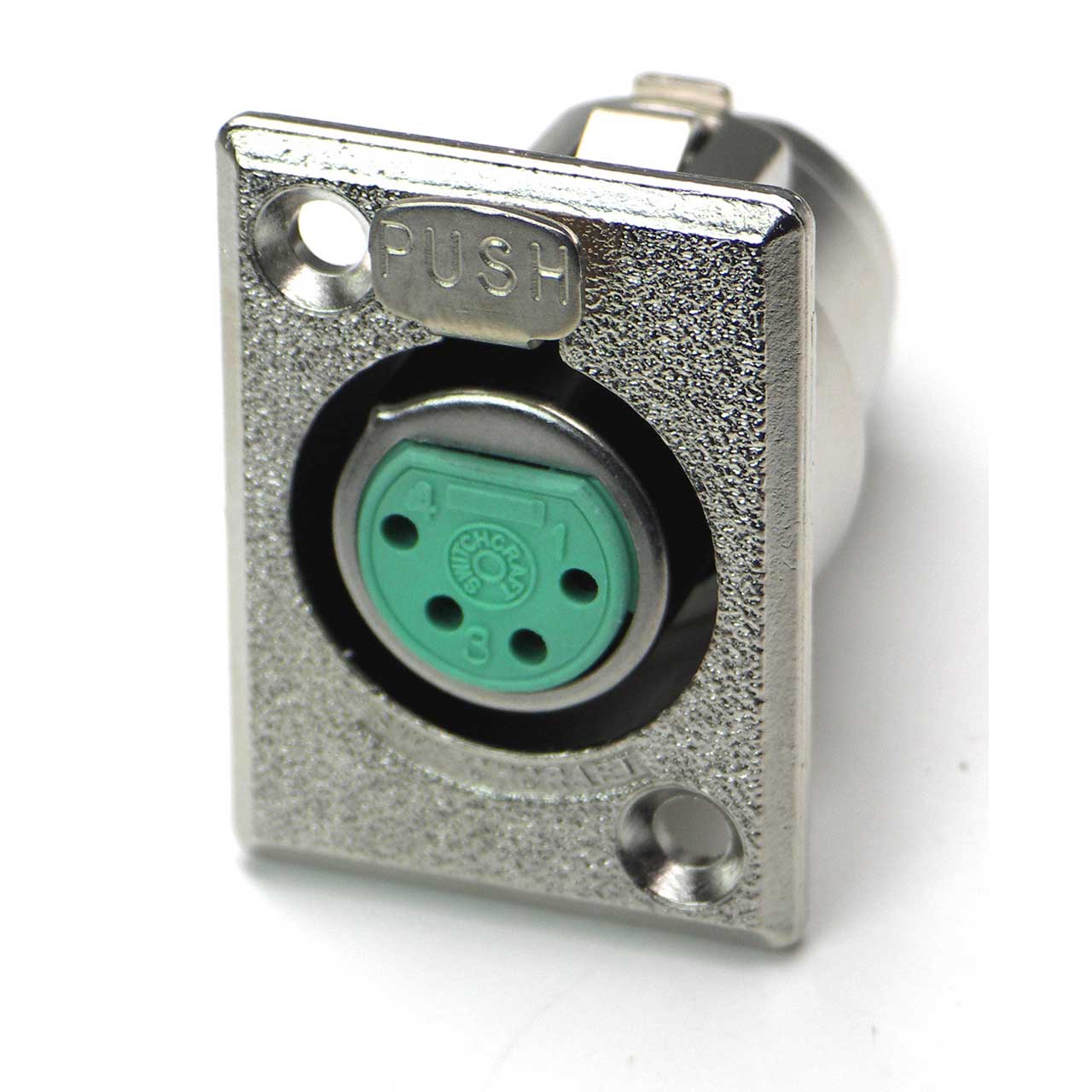

Switcraft D4F female receptacle for panel or chassis mounting. Flange has two .136" (3.45 mm) diameter countersunk holes for #5-40 flat head mounting screws (not supplied). Mounts from front of panel or chassis in .953" (24.21 mm) diameter hole. Series D(*)F has standard latchlock; Series D(*)FD has FAS-DISCONNECT detent. Satin nickel finish (Series D*F and D*FD) and "Black-Velvet" finish (Series D*FBAU).

Features:
- Sturdy, die-cast zinc construction with satin nickel or Black Velvet finish to withstand hard use - even abuse
  High impact, molded thermoplastic insert insulation delivers high dielectric strength and superior insulation resistance
  Latchlock on female plugs & chassis mounts prevent accidental disconnect
Specifications:
- Contact Resistance: 50 milliohm maximum, per pole.
- Current Rating: 3 pole - 15A, 4 pole - 10A, 5 and 6 pole - 7.5A, 7 pole - 5A @ 125VAC.
- Insulation Resistance: 1,000 MO, minimum.
- Dielectric Withstanding Voltage: 1,000 V (rms).
- Capacitance: 2 pF between pins and 4 pF between pins and shell, maximum (AA3M and AA3F).
- Shell: Die-cast zinc. Satin nickel finish, black velvet.
- Insert Insulation: Molded thermoplastic.
- Socket Contacts: Silver-plated copper alloy tarnish-resistant; bifurcated on 3-contact type. Gold is available.
- Pin Contacts: Silver-plated copper alloy. Resists tarnishing, and provides excellent electrical conductivity. Gold is available.
- Latchlock: High-strength die-cast zinc.
- Latch Release: Steel, nickel-plated.
- Latch Detent: Formed stainless steel.
- Insert Screw: Stainless steel.
- Flex Relief: TPR (thermoplastic rubber).
GTIN:
0637963207148
