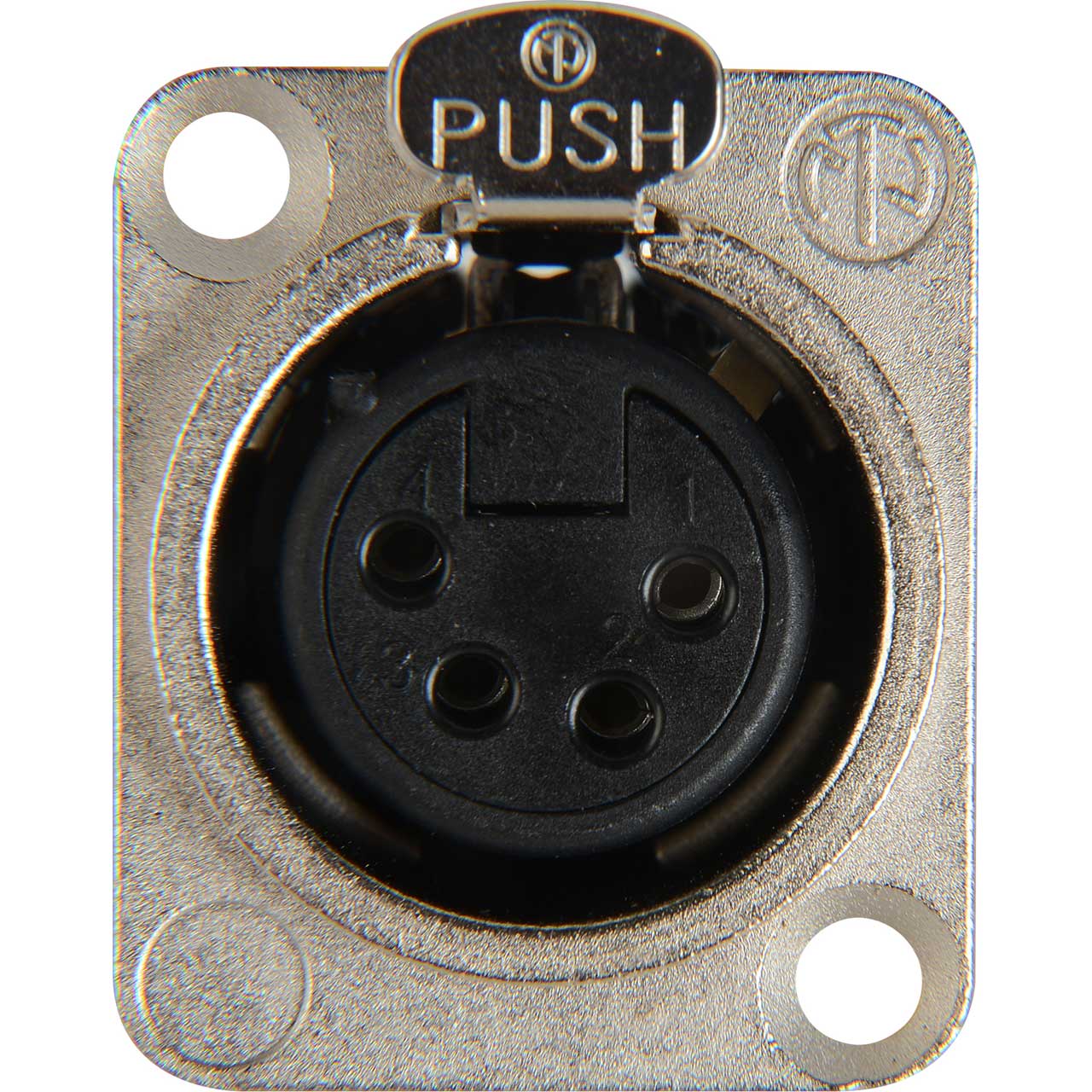

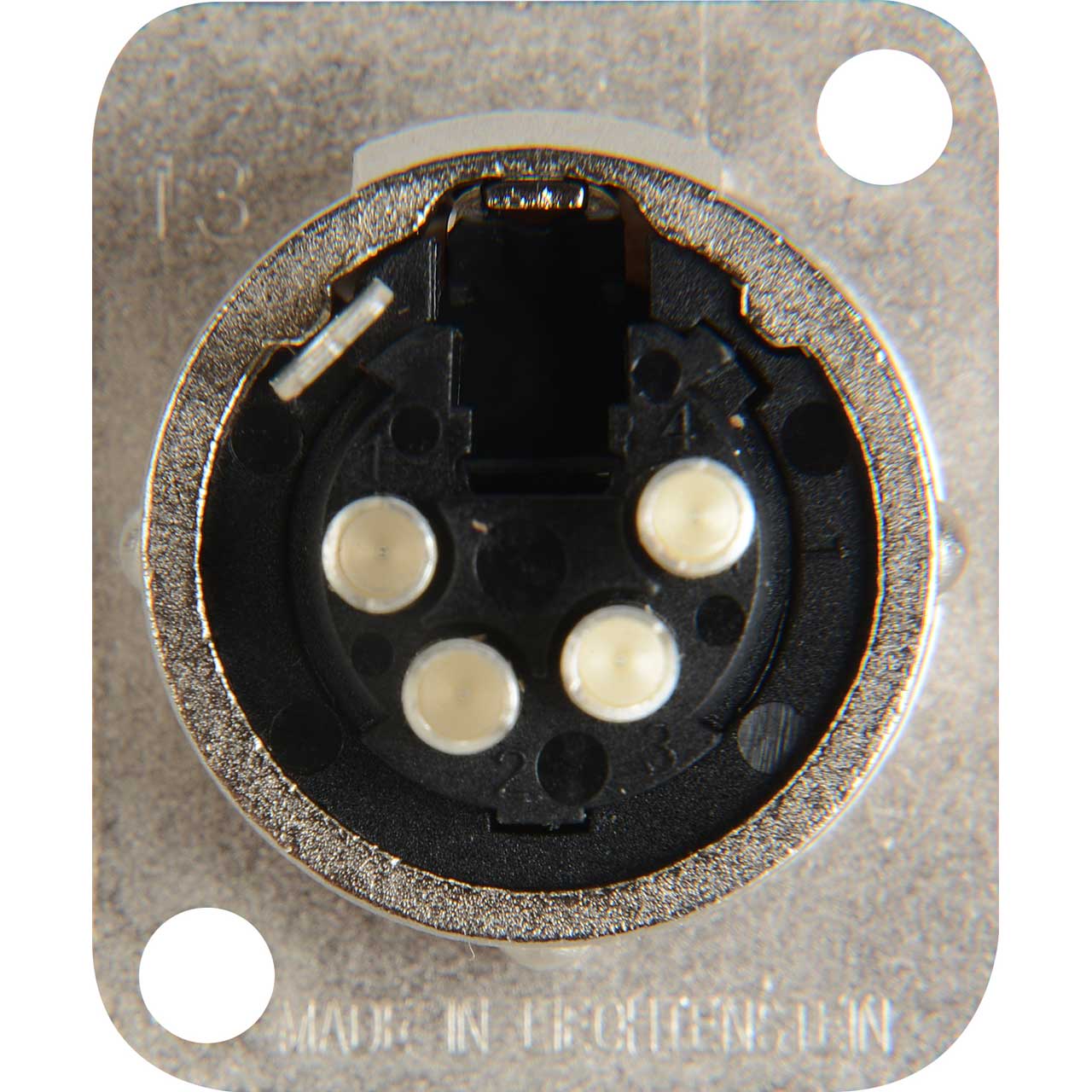

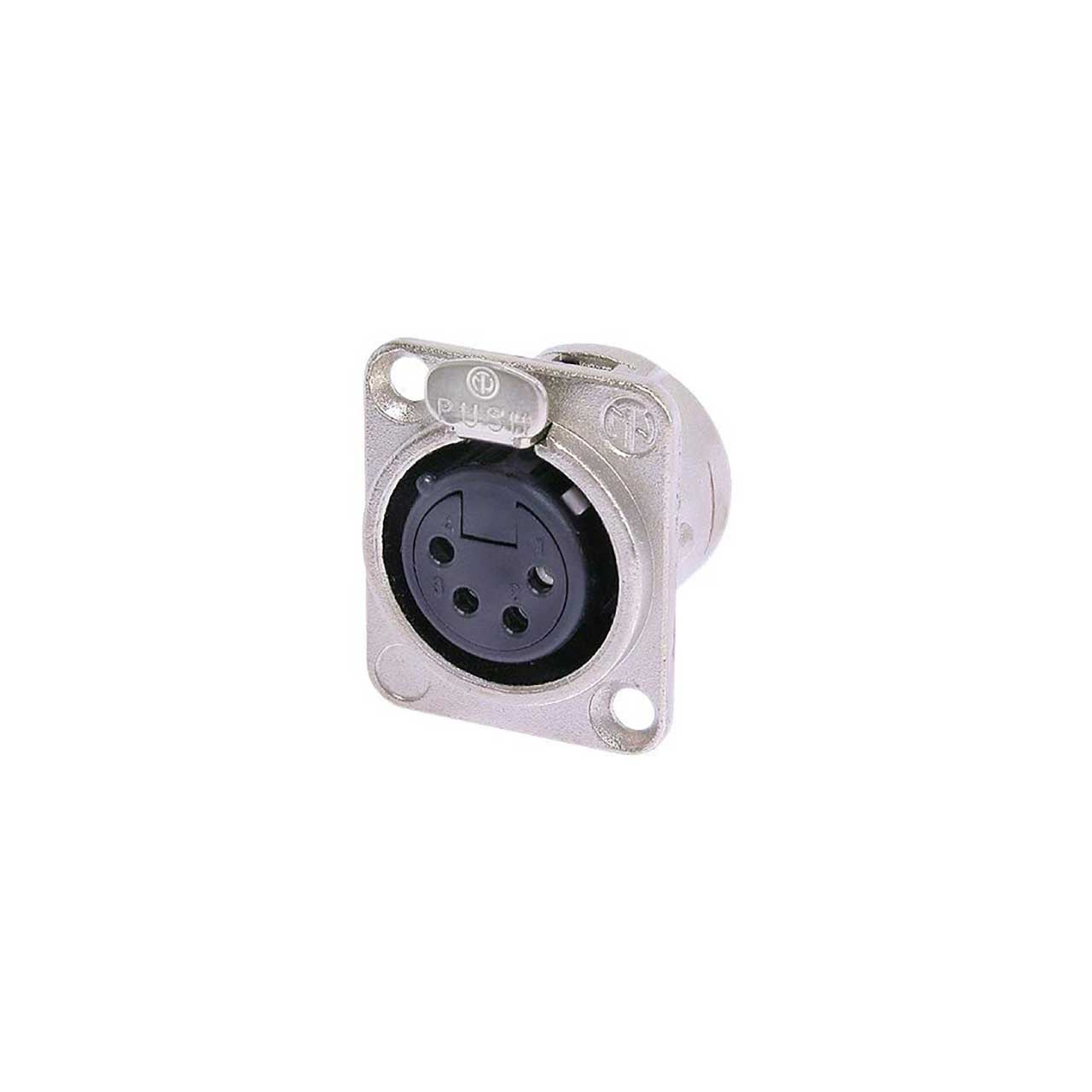

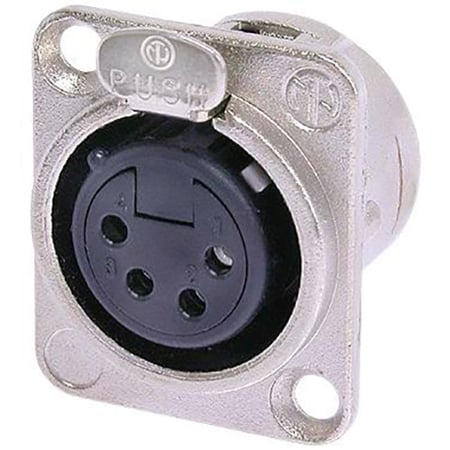

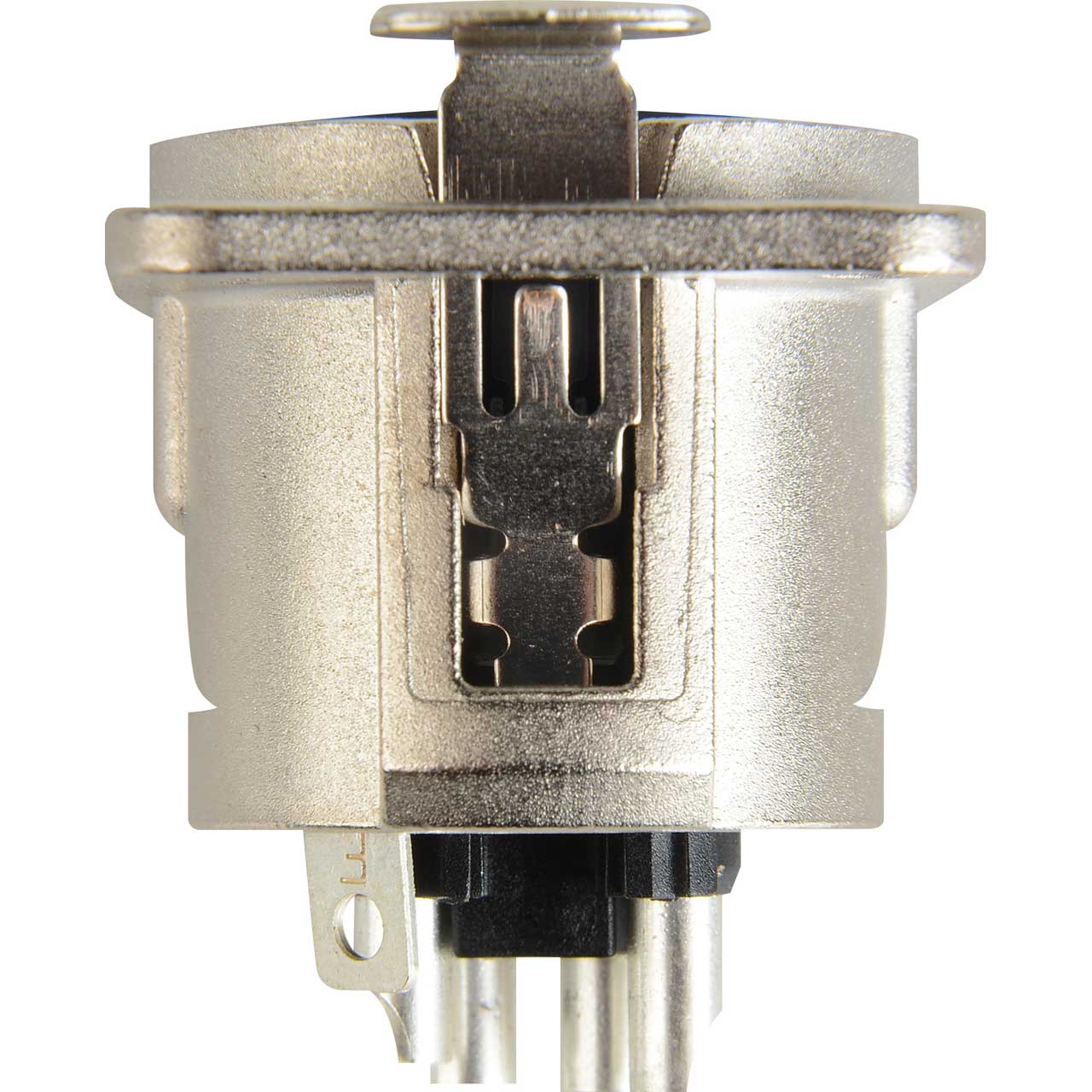

Neutrik NC4FD-L-1 4-Pin XLR Female Panel/Chassis Mount Connector

NC4FD-L-1 - Overview

• Features:

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups on 3 - 7 pole version


• Specifications:

  • Electrical
  • Capacitance between contacts: = 7 pF
  • Contact resistance: = 5 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 10 A
  • Rated voltage: < 50 V

    Mechanical
  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.5 mm²
  • Wiresize: max. 16 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Chassis shape: D

    Material
  • Contact plating: 2 µm Ag over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel

    Environmental
  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C


• Item Includes:

  • 1x Neutrik NC4FD-L-1 4-Pin XLR Female Panel/Chassis Mount Connector
