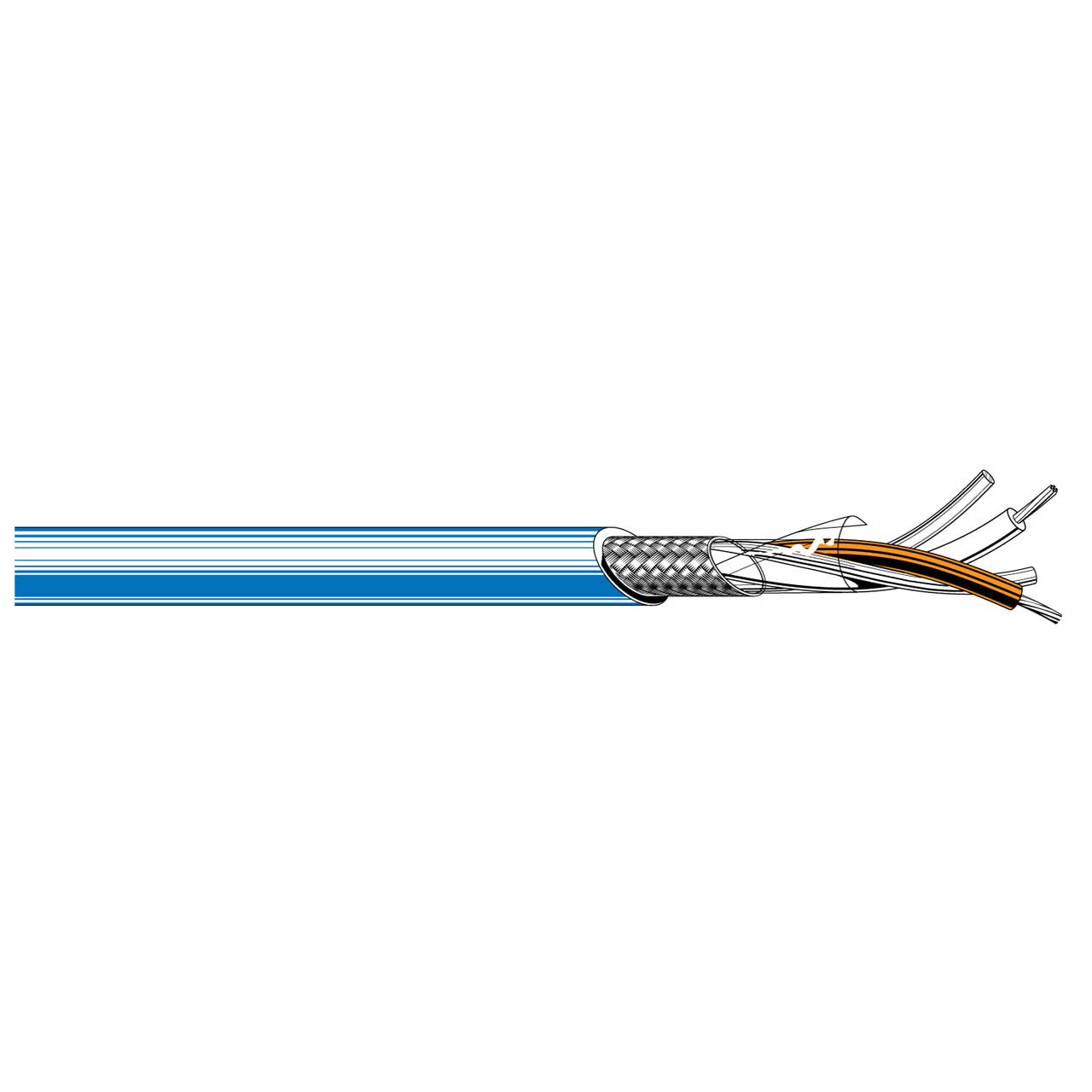

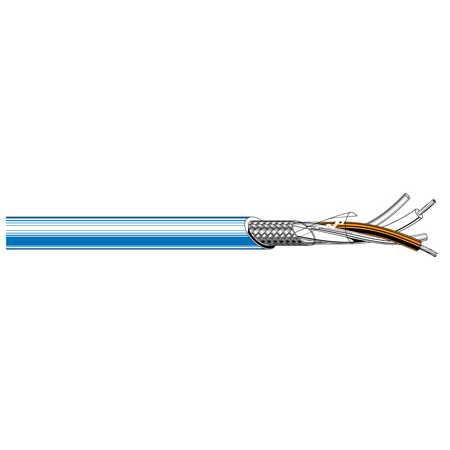

Canare DA206 110 Ohm AES/EBU Digital Audio Cable by the Foot - Blue

Name: Canare DA206 110 Ohm AES/EBU Digital Audio Cable by the Foot - Blue
Brand: Canare
SKU: DA-206
Price: 1.16 USD
Availability: InStock

ITEM #: DA-206 MFG #: DA-206

Canare

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1.16

Add to Wish List Leasing Options

Availability: In Stock

This item is not returnable. See Terms & Conditions for details.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

DA-206 - Overview

Canare DA206 is the cable of choice for running AES/EBU digital audio signals. Its large O.D. and robust construction makes it the perfect choice for the longest cable runs in digital pro-audio and broadcast video field recording.

Twisted Pairs with Braid Shield Special PE Filter Rods maintain constant 110ω impedance. Maximum recommended AES/EBU Length: 1,180ft (360meters). Jacket color: BLUE

Features:
- AES/EBU Digital Audio
- Audio Rack Wiring
- Post Productions
- Twisted Pairs with Braid Shield
- Special PE Filter Rods maintain constant 110 ohm impedance
Specifications:
- Nom. O.D. (mm): 0.287" (7.3)
- PVC Jacket Nominal Thickness (mm): 0.035 (0.9)
- Brittle Point F° (C°): -56 (-49)
- Number of Conductors: 2 - Orange / White
- Insulation Type* Thick Mil: IPE 30.3
- Cond-AWG (Qty./mil) Cross Section Area mm²: AC-#20 (7/12.60) 0.56
- Shield Coverage: >95% Braid
- *Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
- Conductor D.C.R. ohm/1000ft (ohm/100m): <10.1 (<3.3)
- Shield D.C.R. ohm/1000ft (ohm/100m): <4.3 (<1.4)
- Nominal Capacitance (between conductors) pF/ft (pF/m): 14.6 (48)
- Nominal Capacitance (shield to conductors) pF/ft (pF/m): 22.3 (73)
- Nominal Impedance: 110ω
- Nomimanl Attenuation @3MHz dB/100m: 2.2
- Jacket Color: Blue
Applications:
- AES/EBU Digital Audio
- Audio Rack Wiring
- Post Productions
