DBX ZC1 Wall-Mounted Zone Controller with Programmable Remote Volume Control

Name: DBX ZC1 Wall-Mounted Zone Controller with Programmable Remote Volume Control
Brand: DBX Professional Products
SKU: DBX-ZC1
Price: 79.00 USD
Availability: PreSale

ITEM #: DBX-ZC1 MFG #: ZC-1

DBX Professional Products

Options:

Options

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$85.69

Our Price:

$79.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

ZC-1 - Overview

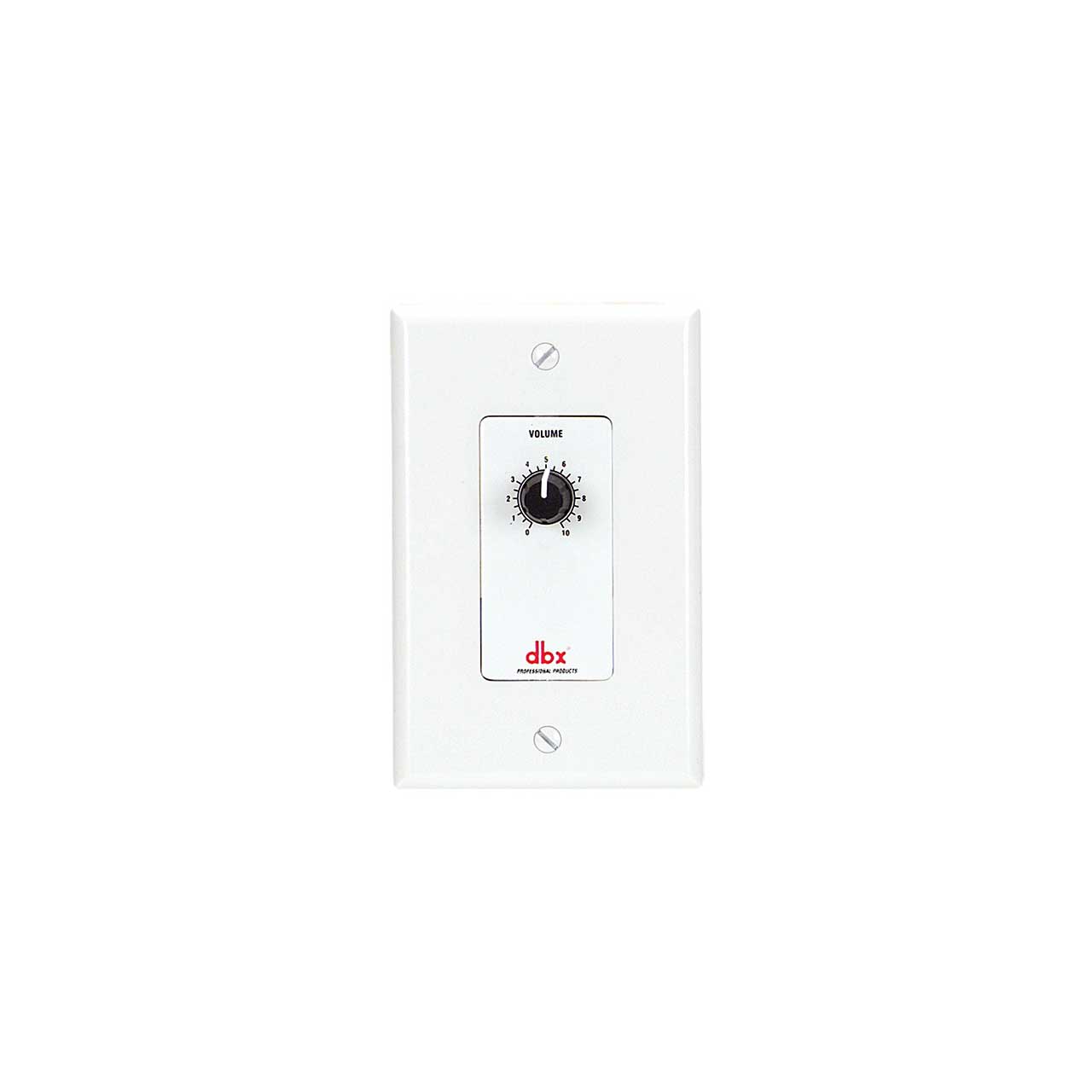

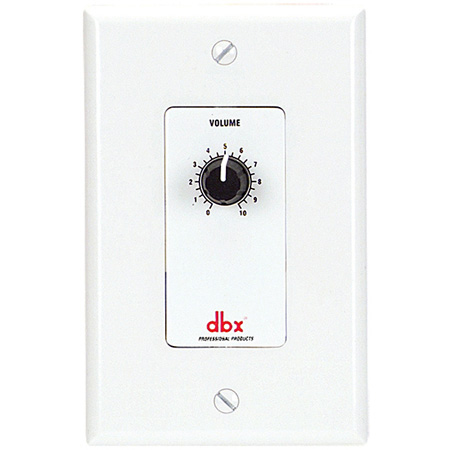

The dbx ZC1 Wall-Mounted Zone Controller offers computer programmable rotary potentiometer volume control for the dbx DriveRack 260, 220i and ZonePro devices. The remote device shall have DIP switches allowing identification with connection to the processing device via CAT 5 cable on RJ-45 connectors.

Features:
- Programmable volume control
- Up to 1000ft on CAT 5 cable
Specifications:
- Connectors: 2x RJ-45
- Series Wiring: Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600ft. Six Zone Controllers: 300ft.
- Parallel Wiring using ZC-BOB: Up to Six Zone Controllers: 1000ft
- Parallel Wiring Cable: CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher
GTIN:
0691991400667
