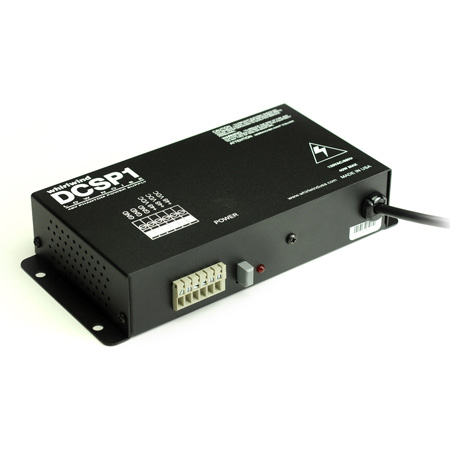

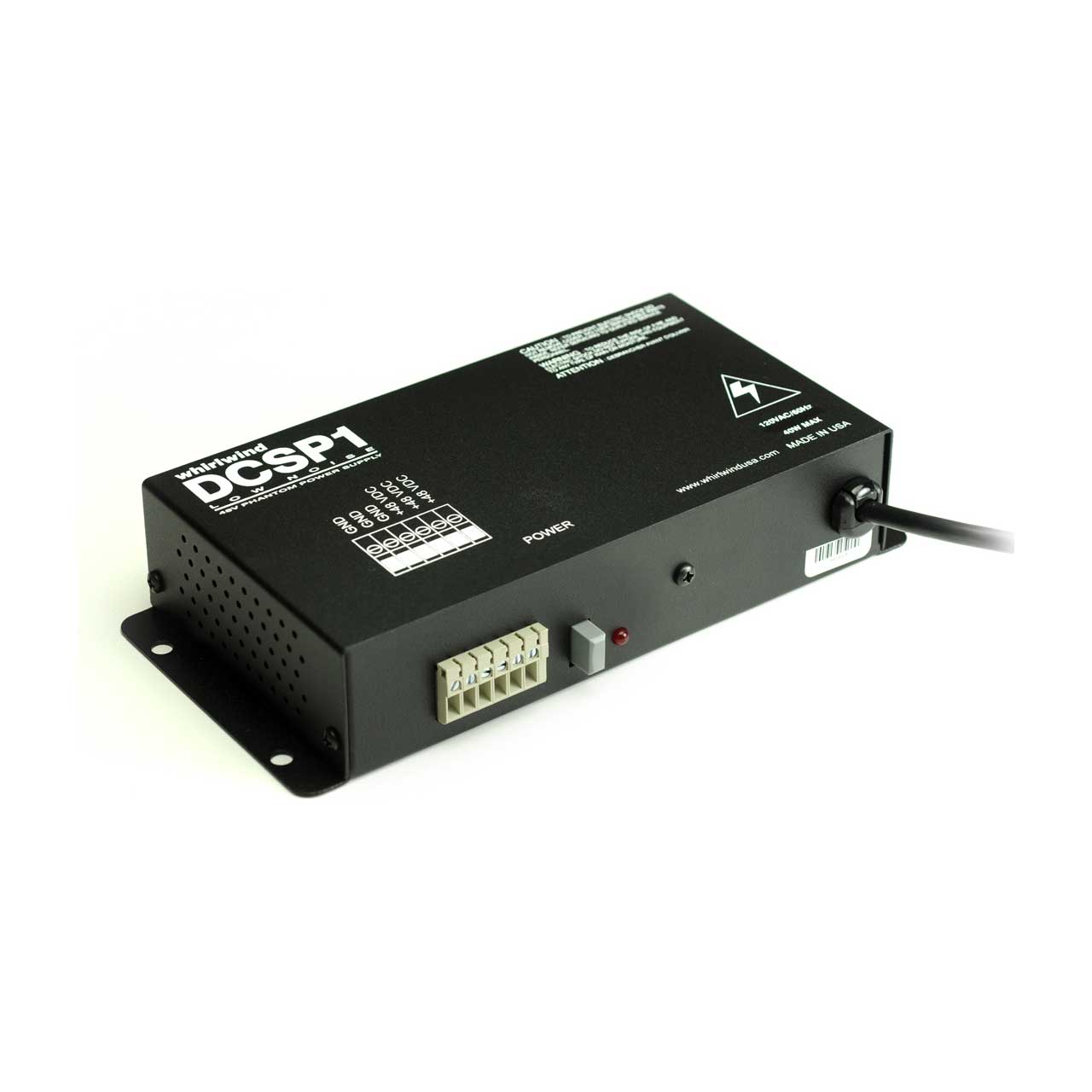

Whirlwind DCSP1 Power Supply - Contractor Splitter / 48V Phantom

DCSP1 - Overview

• Features:

  • The Whirlwind DCSP1 48 Volt Power Supply is a linear regulated supply designed for the most professional of applications. The linear supply keeps noise very low with no possibility of RF interference. A toroidal power transformer is used which produces extremely low magnetic fields, keeping induced hum at bay.
  • The Whirlwind DCSP1 delivers up to 500 mA of current and can power up to 48 channels of phantom powered microphones.
  • Connections are via convenient screw type terminals.
  • The Whirlwind DCSP1 also uses diode "OR-ing" circuits so that 2 or more units can be wired in parallel, offering redundancy for critical applications. When 2 supplies are connected, each one shares half the load, maximizing life and minimizing heat. If one supply fails, the transition to the other supply is seamless.
  • A 230 VAC 50 Hz model is available (model number DCSP1X)


• Specifications:

  • Input: 120 VAC
  • Output: 48 VDC, Regulated
  • Output Connections: Screw Terminals + RJ45 for Whirlwind DCS88 ONLY
  • Amperage: 500 mA


• Item Includes:

  • 1x Whirlwind DCSP1 Power Supply - Contractor Splitter / 48V Phantom


• GTIN:

  0692465013796
