DCP-C3F - Overview

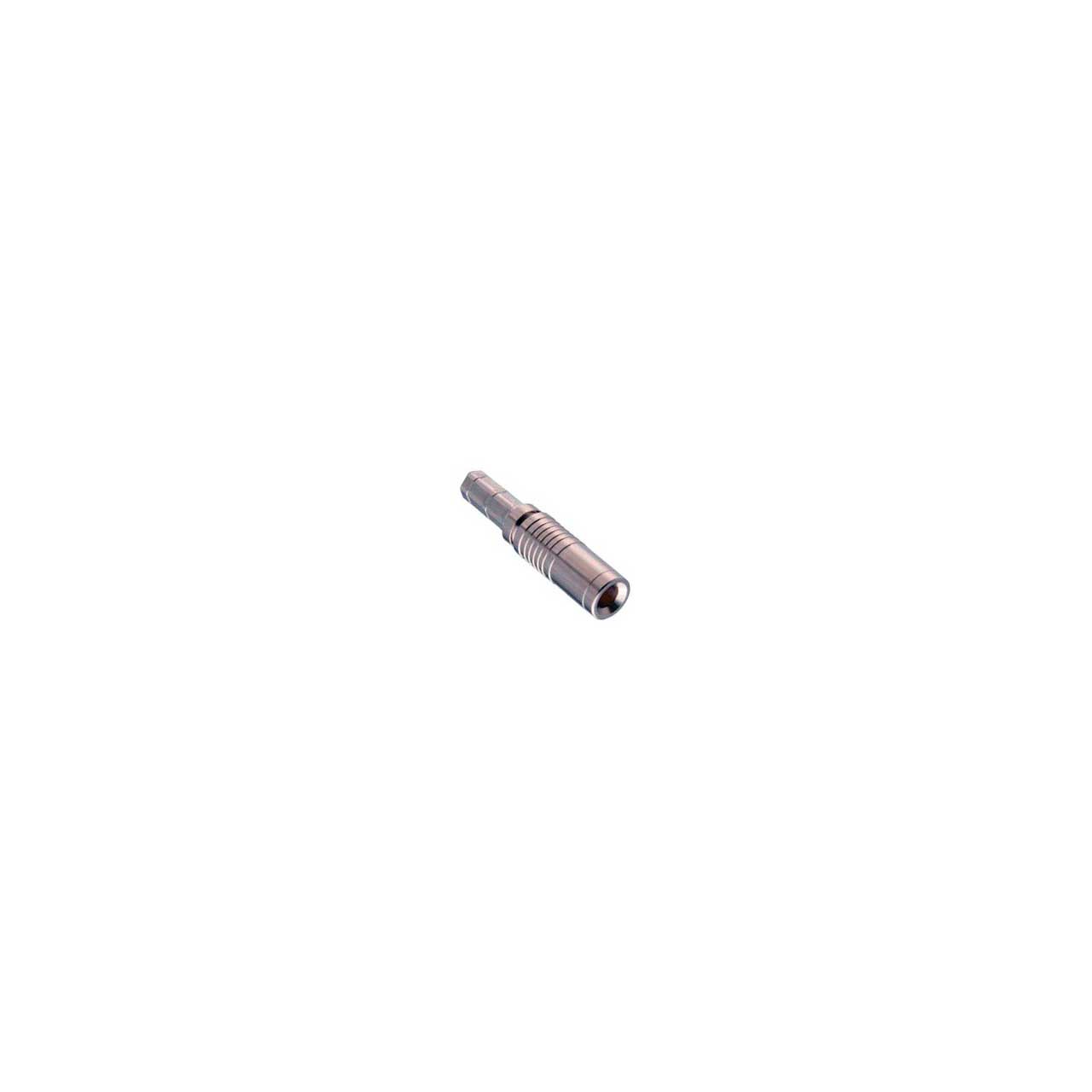

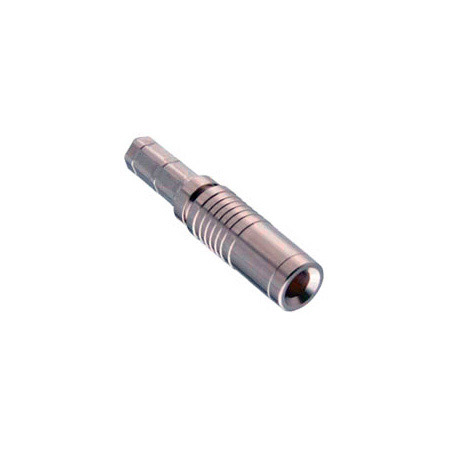

Canare 75 Ohm DIN 1.0/2.3 Crimp Plug for L-3CFB Cable

  • Features:

    • IEC 61169-29 and DIN 47 297 compatible
    • Ball locking mechanism. Smooth action and reliable connection (Patent Pending)
    • Canare's original enlongated sleeve design
    • Superior cable pull strength and bending performance
    • Captive Contact Pin
    • True 75 ohm


  • Specifications:

    • Applicable Standards: IEC-61169-29m DIN 47 297
    • Nominal Impedance: 75 Ohms Unbalanced
    • Return Loss: 26dB or greater (0-2.0GHz)
    • 20dB or greater (0-3.0GHz)
    • Center Pin: Gold Pating
    • Cable Connecting Force: 150N or More
    • Operating Temperature: -40 to +85 Deg C
    • Weight: Approx. 7.0g each
