Delvcam SDI-10 9.7 Inch 3G-SDI Video Monitor with Dual HDMI Input and 1 HDMI Output - Bstock - Broken Case

ITEM #: DELV-SDI-10BSTK MFG #: DELV-SDI-10

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DELV-SDI-10BSTK

DELV-SDI-10 - Overview

The Delvcam SDI-10 9.7" LCD is the ideal size for a small broadcast desktop monitor but large enough to pick out the finest details in a shot. These monitors are known for displaying accurate and clear images with a natively high resolution providing clarity at an aspect ratio that works well with 16:9 and 4:3 content. The 1:1 pixel mapping allows you to maintain the original resolution of your camera's output and avoid any unexpected focus issues in post-production. This monitor also offers customizable peaking, false color, histogram, and exposure, auxiliary function buttons.

The Delvcam SDI-10 includes an HDMI-output feature which allows you to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected. This monitor includes all the 3G-SDI connections that a broadcast professional needs. Composite and component through BNC connectors and HDMI inputs covers all the bases for common broadcast applications. It even includes one HDMI output, so no extra expensive HDMI splitters are required.

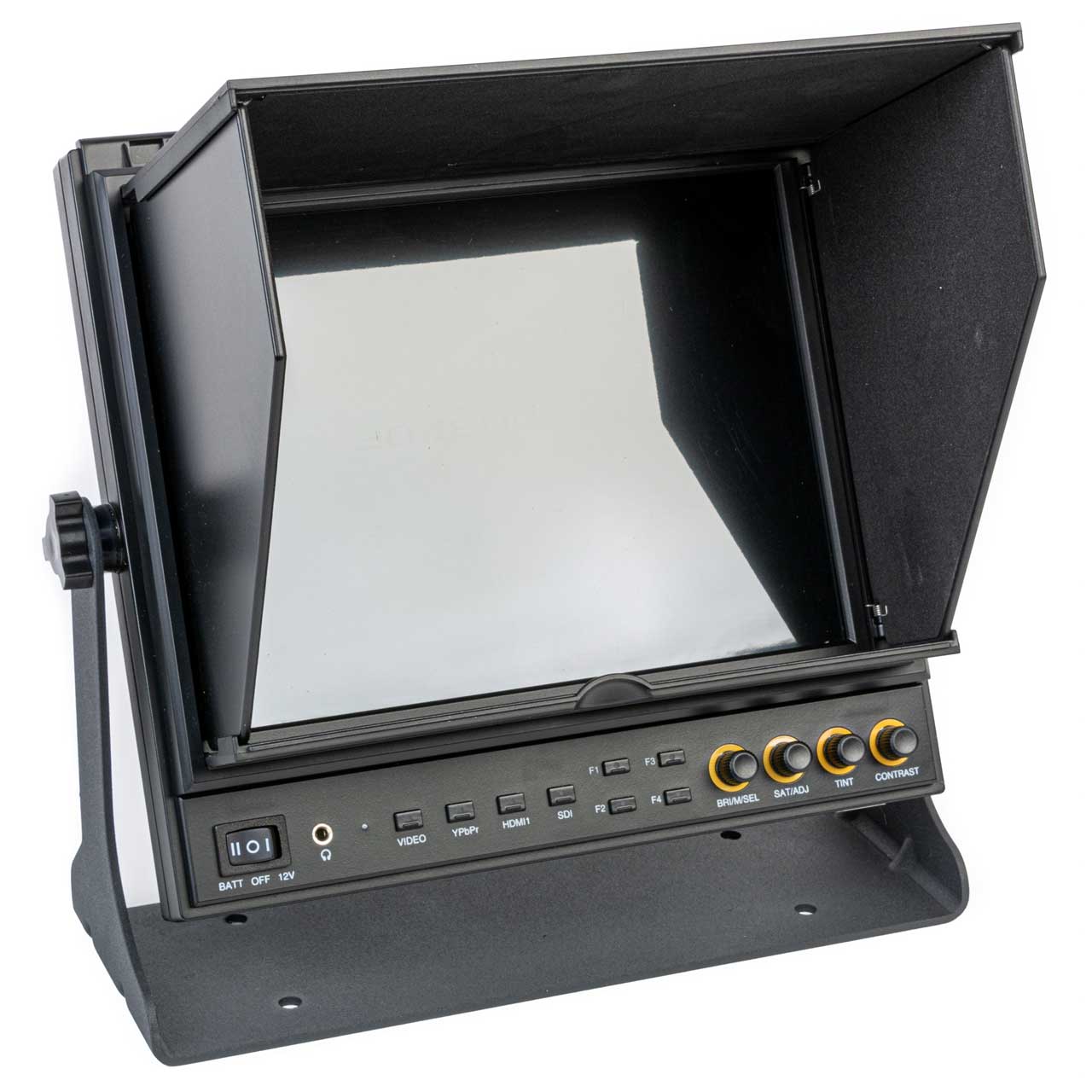

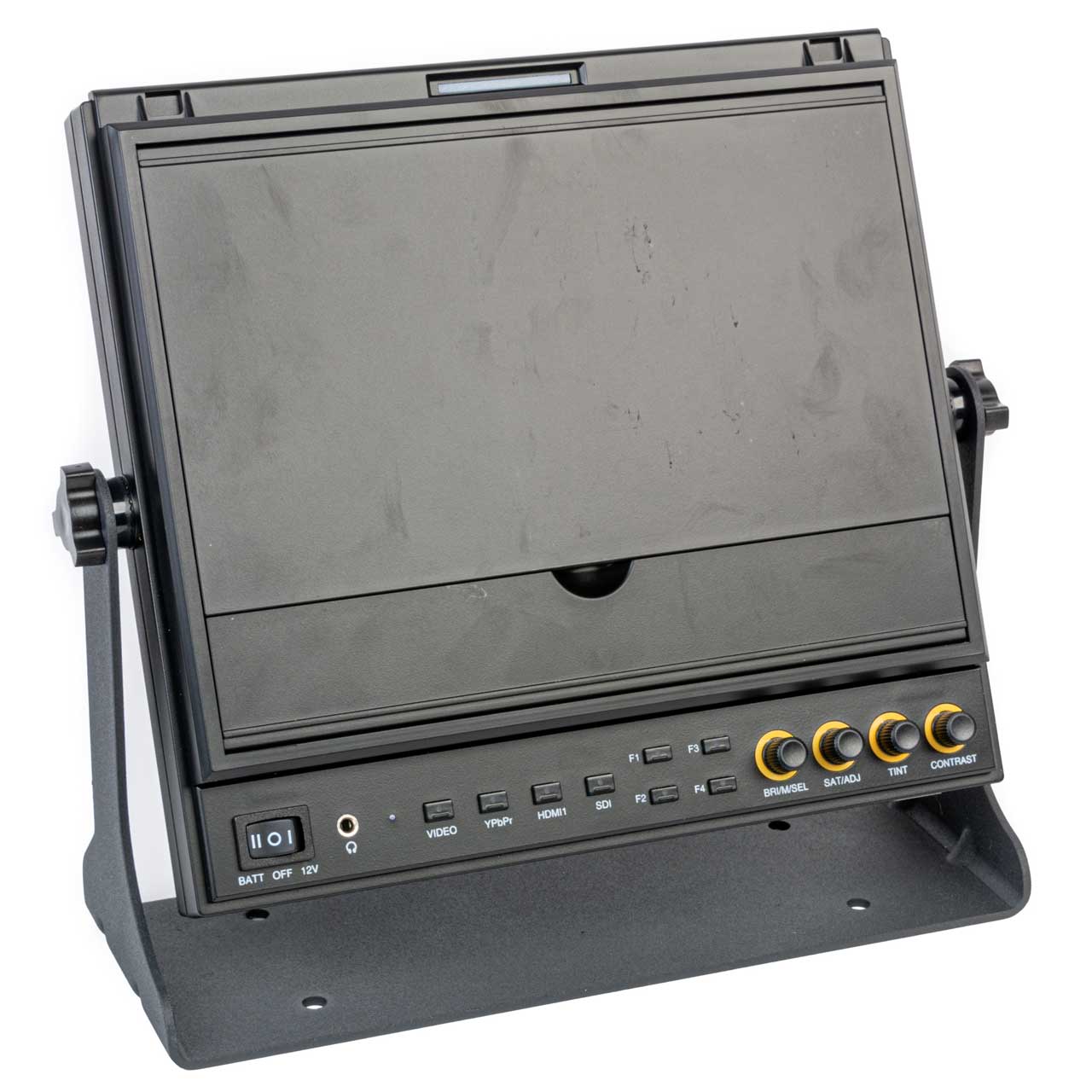

The smart sunhood folds away to be a screen protector for the LCD, ideal for broadcast environments where mini monitors are exposed to a great deal of movement!

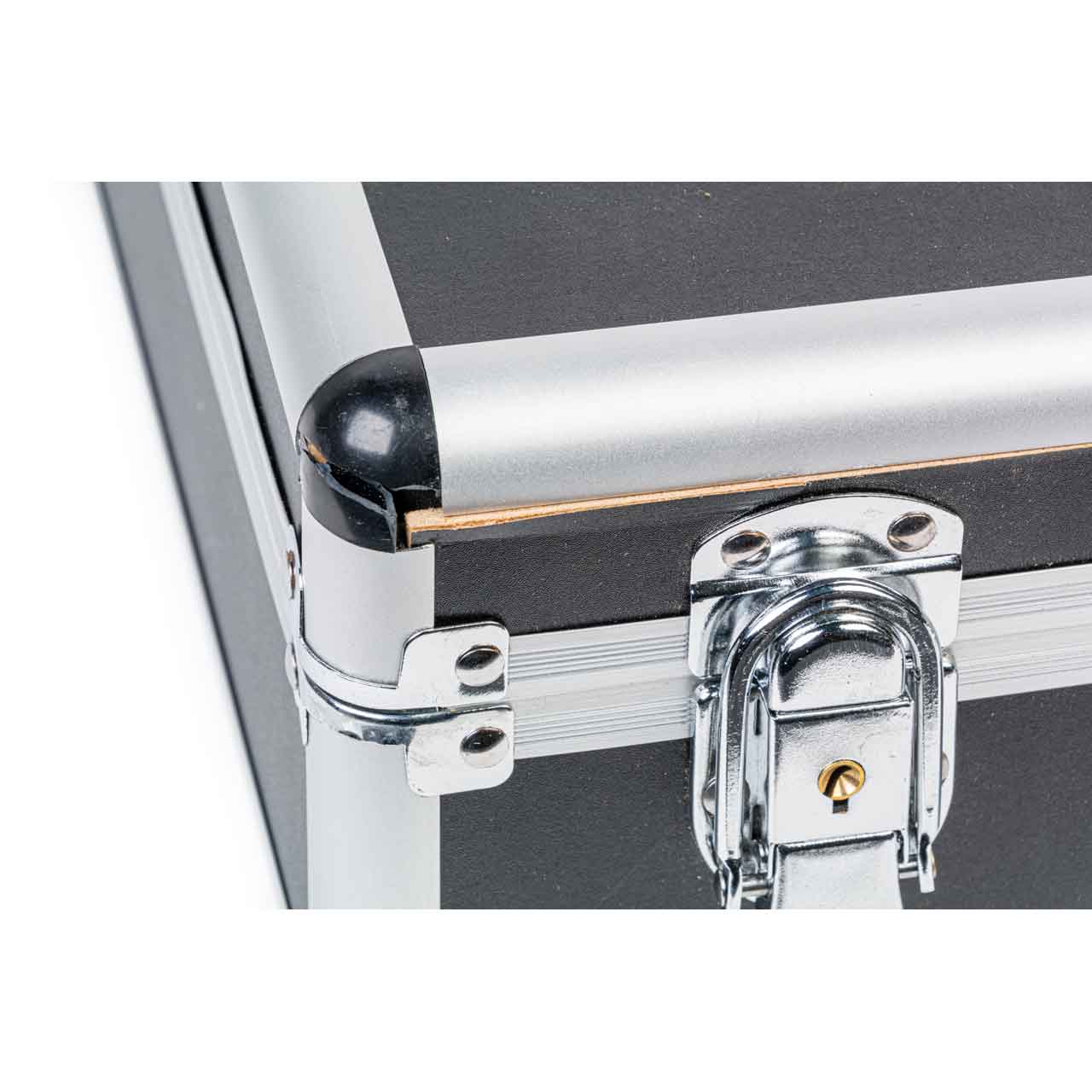

Please Note: This is a BSTOCK unit - The case is broken

  • Features:

    • This is a BSTOCK unit - The case is broken
    • IPS panel 178° wide viewing angles
    • 3G-SDI & HDMI input
    • Wide voltage: DC 7-24V
    • TALLY interface & 5V charging
    • Comply with IP52 standard

  • Specifications:

    • DISPLAY
    • Panel 9.7" LED backlit
    • Physical Resolution 1024x768, support up to 1920x1080
    • Aspect Ratio 4:3
    • Brightness 400cd/m2
    • Contrast 600:1
    • Viewing Angle 178°/178°(H/V)
    • Response Time (ms): SDI 2.278, HDMI 6.444, AV 1.75, YPBPR 1.486
    • Compatibility: SDI A, SDI B limited to1080i60

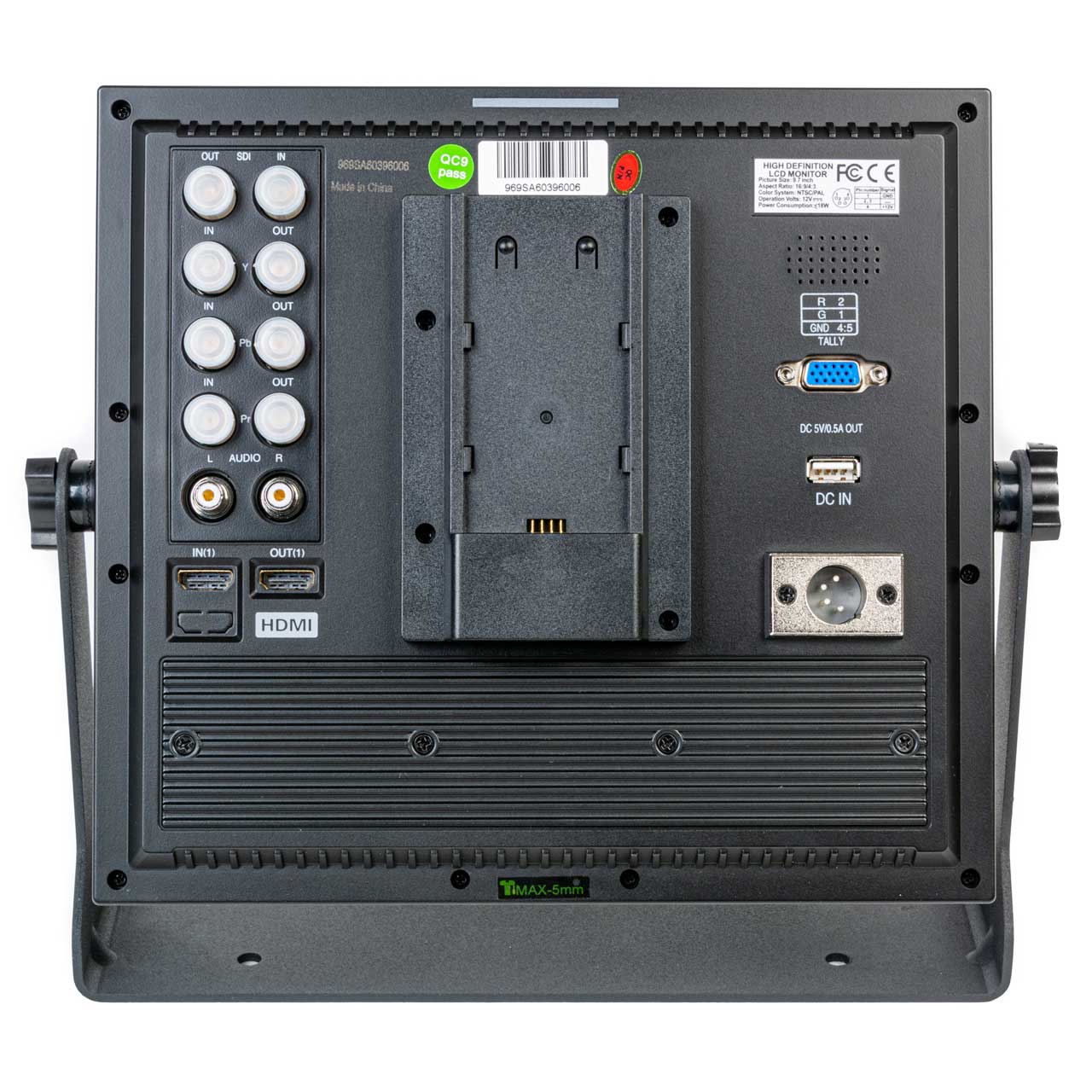

    • INPUT
    • 3G-SDI 1
    • HDMI 1
    • YPbPr 3(BNC)
    • TALLY 1
    • AUDIO 2(L/R)
    • OUTPUT
    • 3G-SDI 1
    • HDMI 1
    • YPbPr 3(BNC)
    • USB 1(5V for charging)
      AUDIO
    • Speaker 1(build-in)
    • Ear Phone Slot 1
    • POWER
    • Current 1500mA
    • Input Voltage DC 7-24V(XLR)
    • Battery Plate: LPE6, F970, DU21, QM91D
    • V-mount / Anton Bauer mount /
    • Power Consumption =18W
    • ENVIRONMENT
    • Operating Temperature -20C - 60C
    • Storage Temperature -30C - 70C
    • DIMENSION
    • Dimension(LWD) 9.69 x 8.82 x 1.22 inch
    • Weight 2.36 lbs/3.06 lbs (with cover)

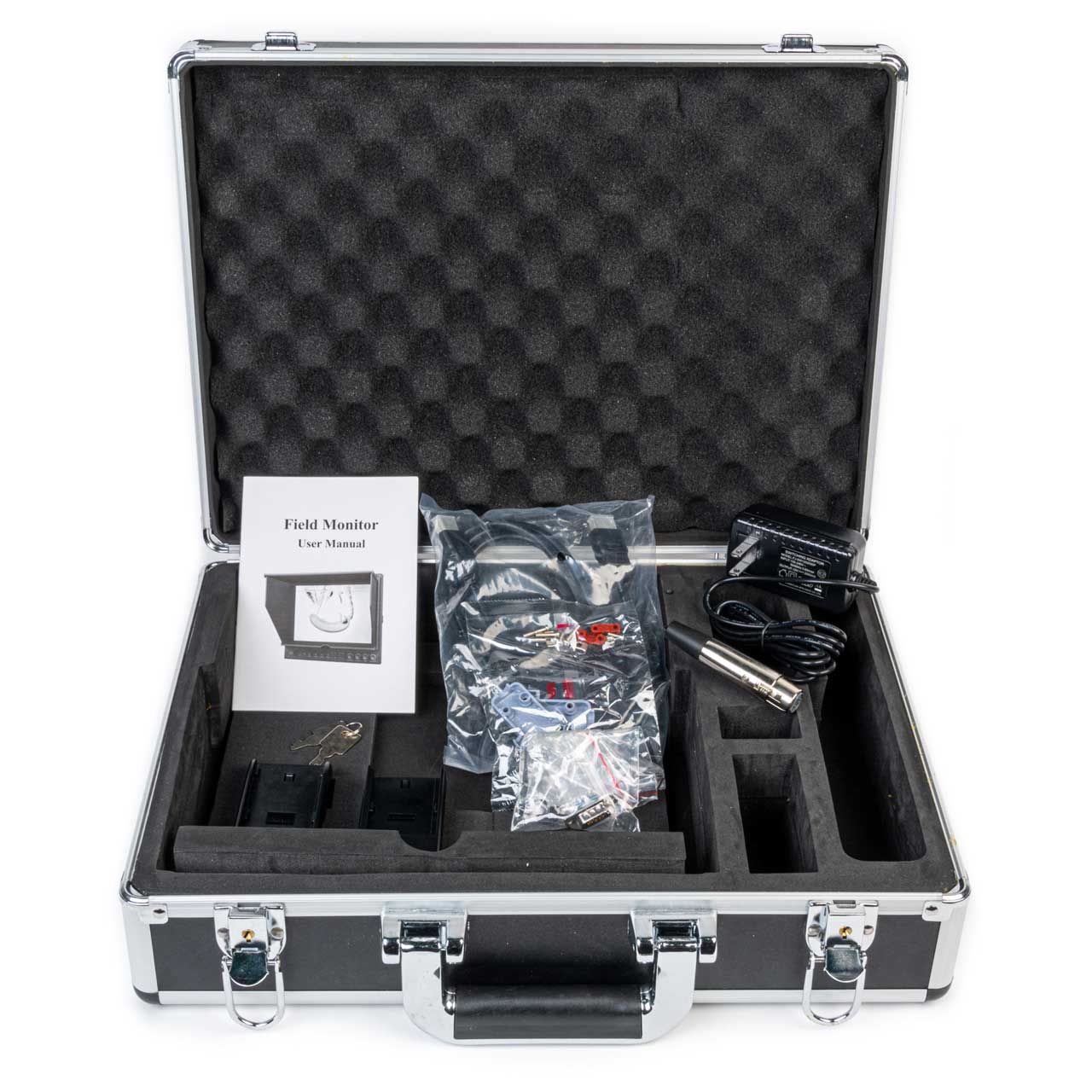

  • Item Includes:

    • Sunshade
    • Battery Plate Bracket
    • HDMI Cable
    • 12VDC Power Cable (XLR)
    • Talley Connector
    • Battery Plates: LPE6, F970

  • Warranty:

    • 1 Year
