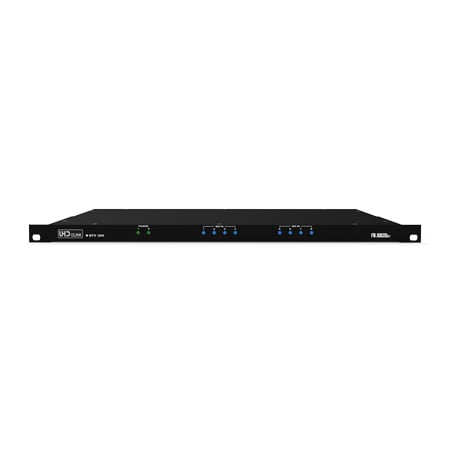

Digital Forecast UHD OLINK 8TX 12G 0.5RU 8-Channel 12G to ST Duplex Singlemode Fiber Optic Transmitter with Loop Out

ITEM #: DF-OLINK-8TX-12G MFG #: OLINK 8TX 12G

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,190.00

Our Price:

$2,081.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


OLINK 8TX 12G - Overview

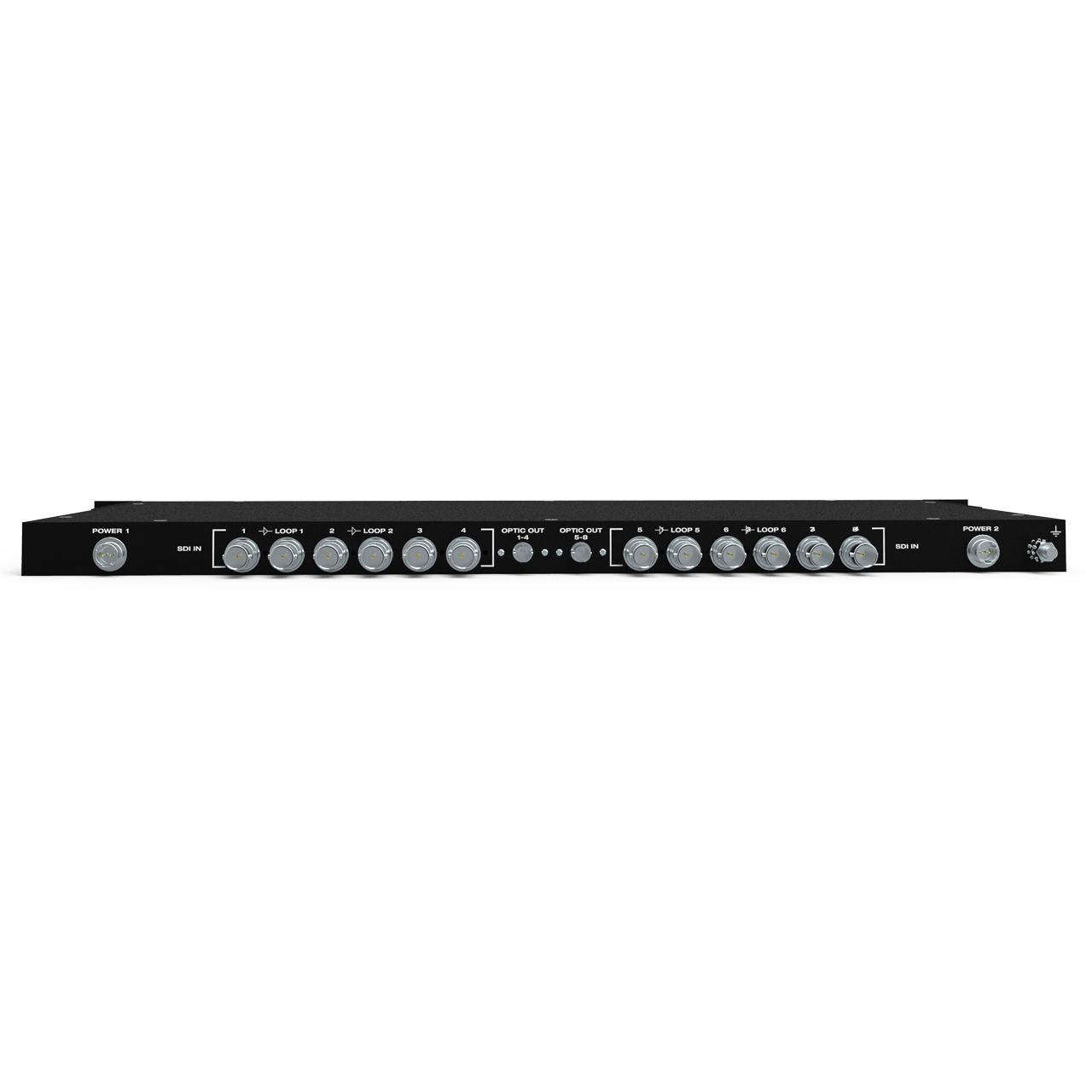

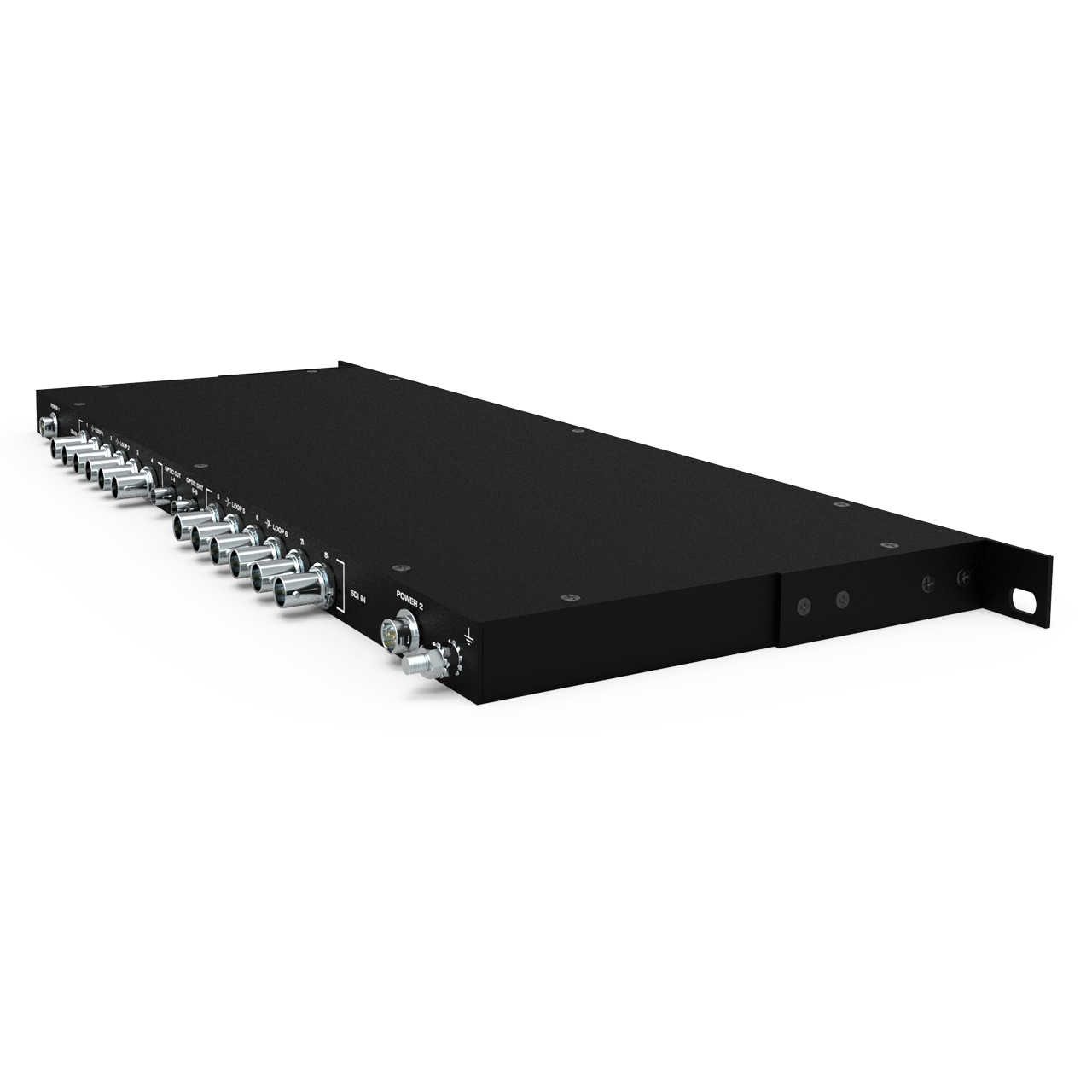

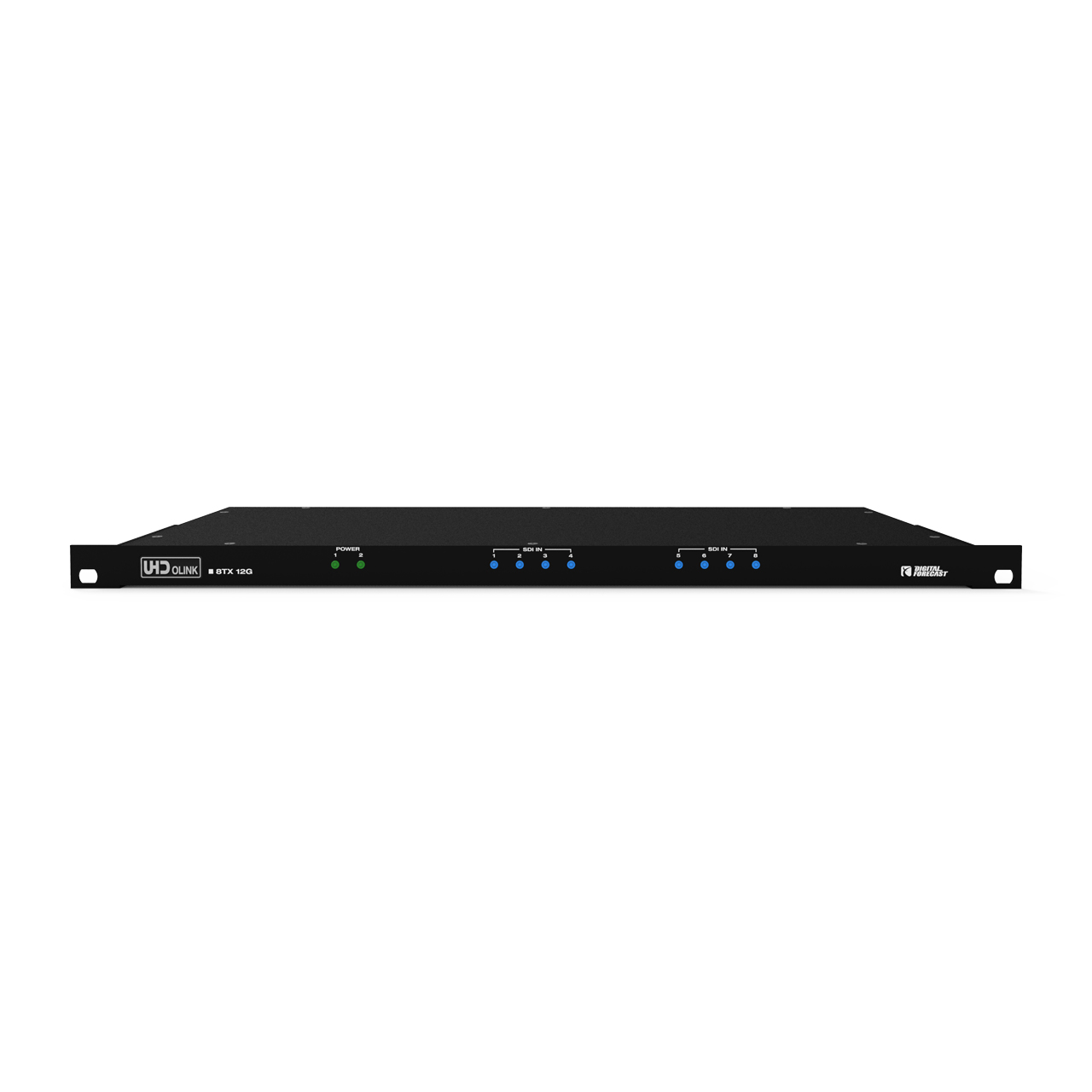

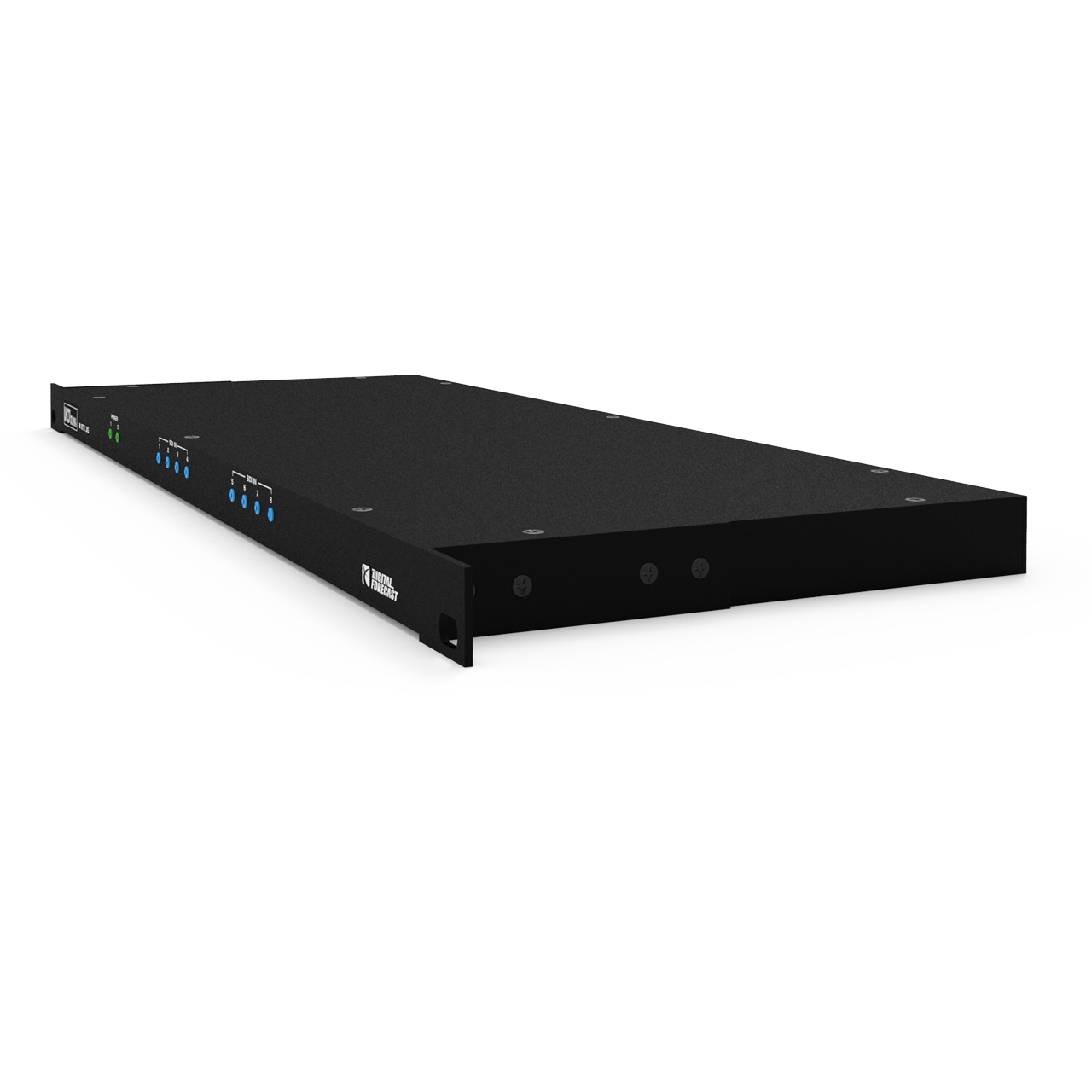

12G Optic Transmitter - UHD Multi-Channel SDI Over Fiber Transmitter with Loop Out
The Digital Forecast Bridge UHD OLINK 8TX 12G system is a rack-mount type system that can convert 8 Channel SDI signals into optical signal and transmit them. It is a unidirectional model and transmits 8CH SDI signals simultaneously

The compact-sized UHD OLINK system for long-distance transmission of a large number of 12G SDI signals enables the construction of a stable transmission system in a variety of environments.

  • Features:

    • Standard SDI(SD,HD,3G,6G,12G) format supported
    • Uni-direction transmission 8TX
    • Signal transmission possible up to 10km using dual core
    • Use of dual single mode cable (ST type optical connector)
    • +12V Dual Power.

  • Specifications:

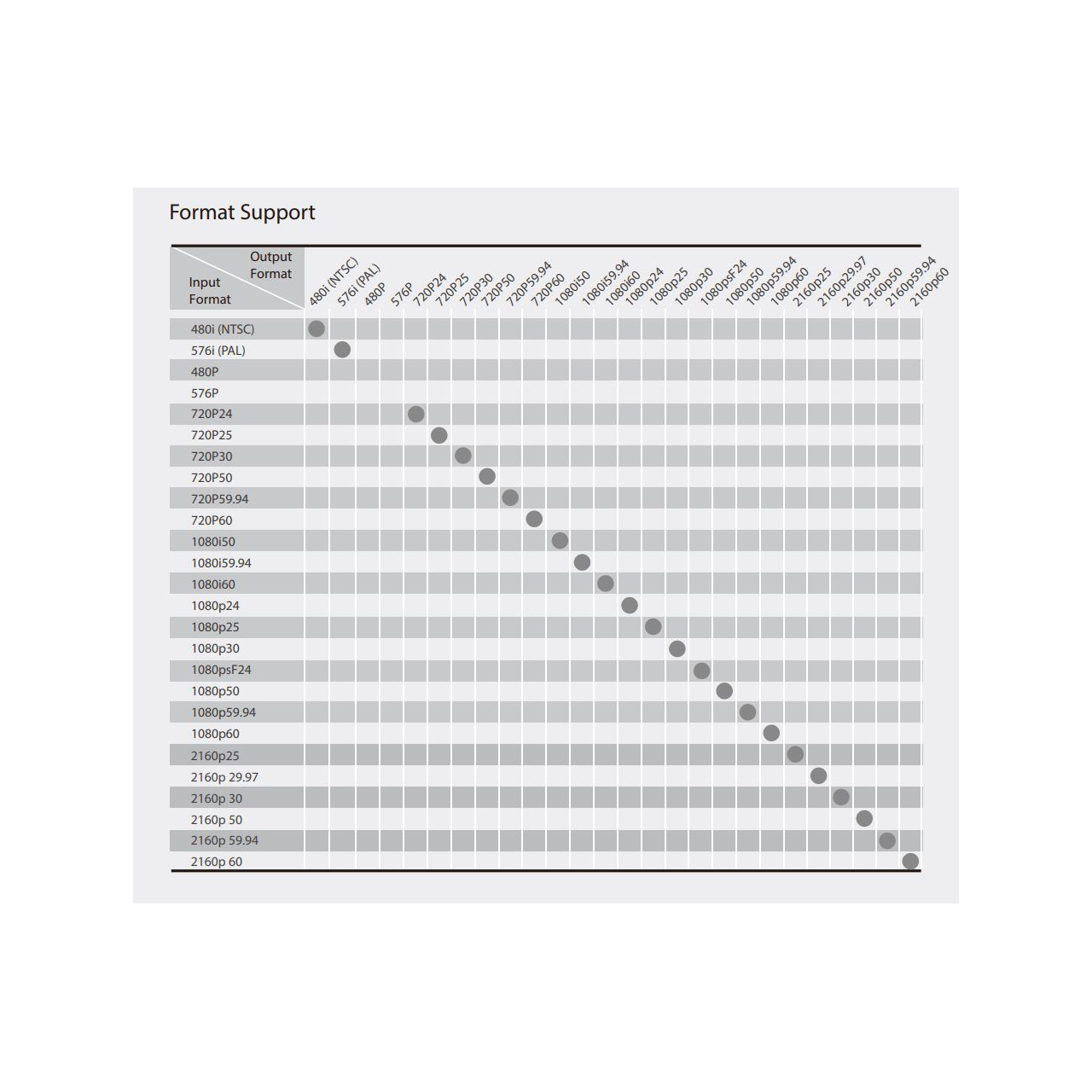

    • Digital Video Specs.
    • SMPTE-296M: 720p (60/59.94/50)
    • SMPTE-274M, SMPTE-292M: 1080i (60/59.94/50), 1080p (23.98/24/25/29.97/30/23.98PSF/24PSF)
    • SMPTE-424M: 1080p (60/59.94/50) 3G
    • SMPTE-ST2081: 2160p (30/29.97/25) 6G
    • SMPTE-ST2082: 2160p (60/59.94/50) 12G

      Operating Environment
    • Power Level: +7V ~ +16V DC
    • Power Consumption: 12 Watts (Max 15 Watts)
    • Operating Temperature: 32°F - 131°F (0°C - 55°C)
    • Humidity: 0% - 95% RH, Non-condensing
    • Data Rate: 12G
    • Signal Level: 800mVp-p ±80mV

  • Item Includes:

    • 1x Digital Forecast UHD OLINK 8TX 12G 0.5RU 8-Channel 12G to ST Duplex Singlemode Fiber Optic Transmitter with Loop Out
