Doug Fleenor Design 1212-DIN-JBOX-PS 1 x 12 DMX512 / RDM Isolated Splitter in a Standard Junction Box with Power Supply

ITEM #: DFD-1212DINJBOXP MFG #: 1212-DIN-JBOX-PS

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Doug Fleenor Design, Inc.
Free Shipping with $49 Minimum Order

List Price:

$1,219.00

Our Price:

$1,099.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

1212-DIN-JBOX-PS - Overview

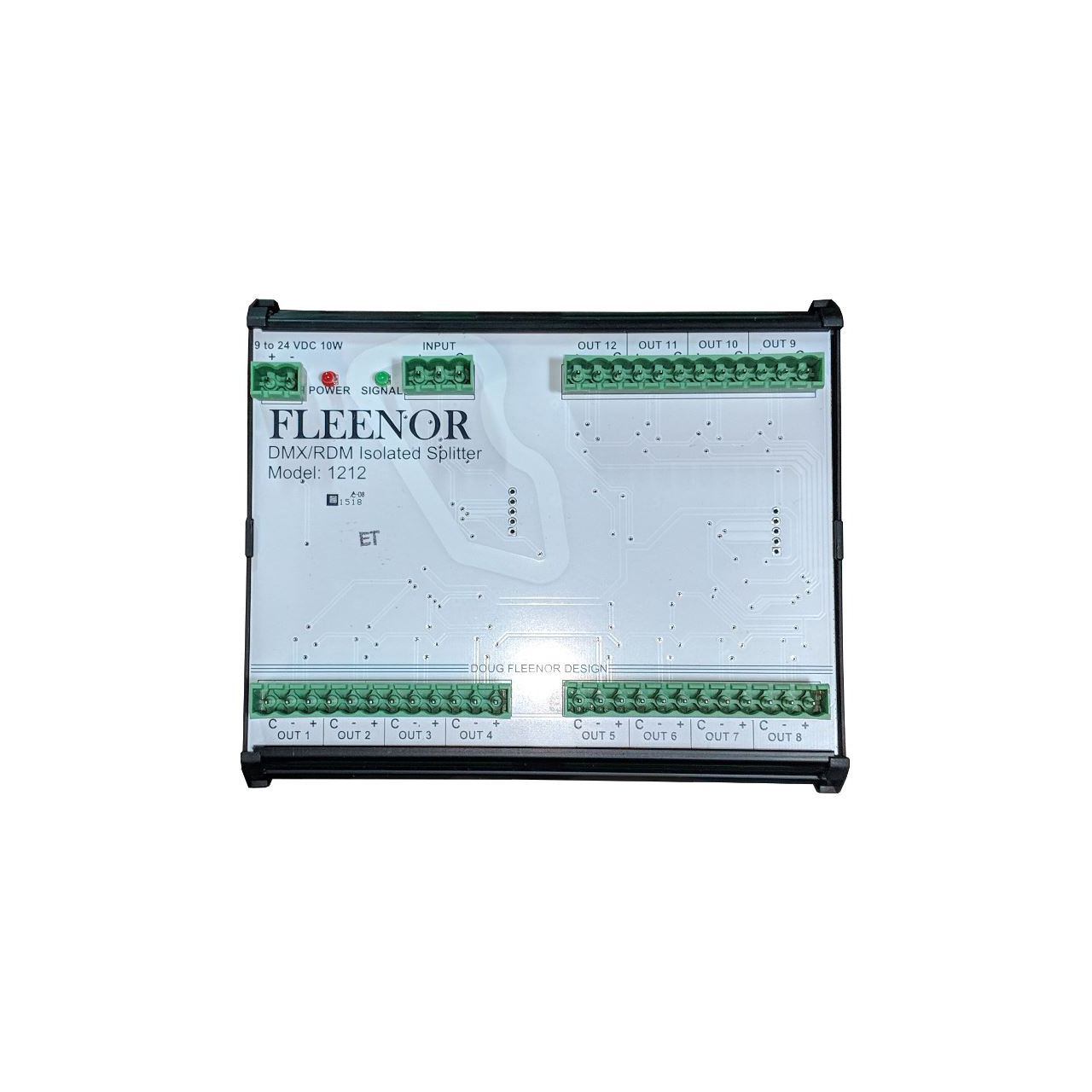

Doug Fleenor Design 1212-DIN-JBOX-PS is a 1 x 12, DIN Mount, DMX/RDM Isolated Splitter in a standard Junction Box with a Power Supply (9-24 VDC, 10W). The 1212-DIN is a bi-directional DMX512/RDM isolated splitter with a fully isolated input. The twelve outputs are separately driven, but are not isolated from one another. This splitter is installed in a standard junction box with a PSDIN-30W-24V power supply included. LED indicators are provided for power (red), and signal present (green).

Please Note: Cabling used for DMX512 signals to and from the 1212 must be specified for DMX512 usage. Examples include Belden 9829 and Belden 9729 or their equal. (cable sold separately)

  • Features:

    • Bi-Directional
    • Black DIN rail tray with white circuit board
    • Convection cooling, no fan required
    • Red POWER LED lights when unit is powered on
    • Green SIGNAL LED lights when DMX512 or RDM is present


  • Specifications:

    • Input Circuit: Protected EIA-485 receiver (LT1785)
    • Input Protection: Undamaged by up to 60 Volts continuous, 15KV transients
    • Input Signal: DMX512, DMX512/1990, DMX512-A, or RDM
    • Signal Connectors: Pluggable Phoenix terminal blocks: three 12-position for the outputs, one 3-position for the input
    • Termination: Input and all outputs are terminated per RDM specifications
    • Power Input: 9-24 VDC, 10W, 2-position pluggable Phoenix terminal block
    • Indicators: Red POWER LED lights when unit is powered on Green SIGNAL LED lights when DMX512 or RDM is present
    • Cooling: Convection cooling, no fan required
    • Isolation: DMX512/RDM input is optically isolated to 1,500 Volts.
    • Color: Black DIN rail tray with white circuit board
    • Size and Weight for 1212-DIN-JBOX-PS: 12"H x 4"D x 12"W, 3 pounds
    • Environmental: 0-40 °C (32-104 °F), 10-90% humidity, non-condensing
    • Mounting: DIN rail or junction box
      Please Note: All specifications meet or exceed DMX512 requirements


  • Item Includes:

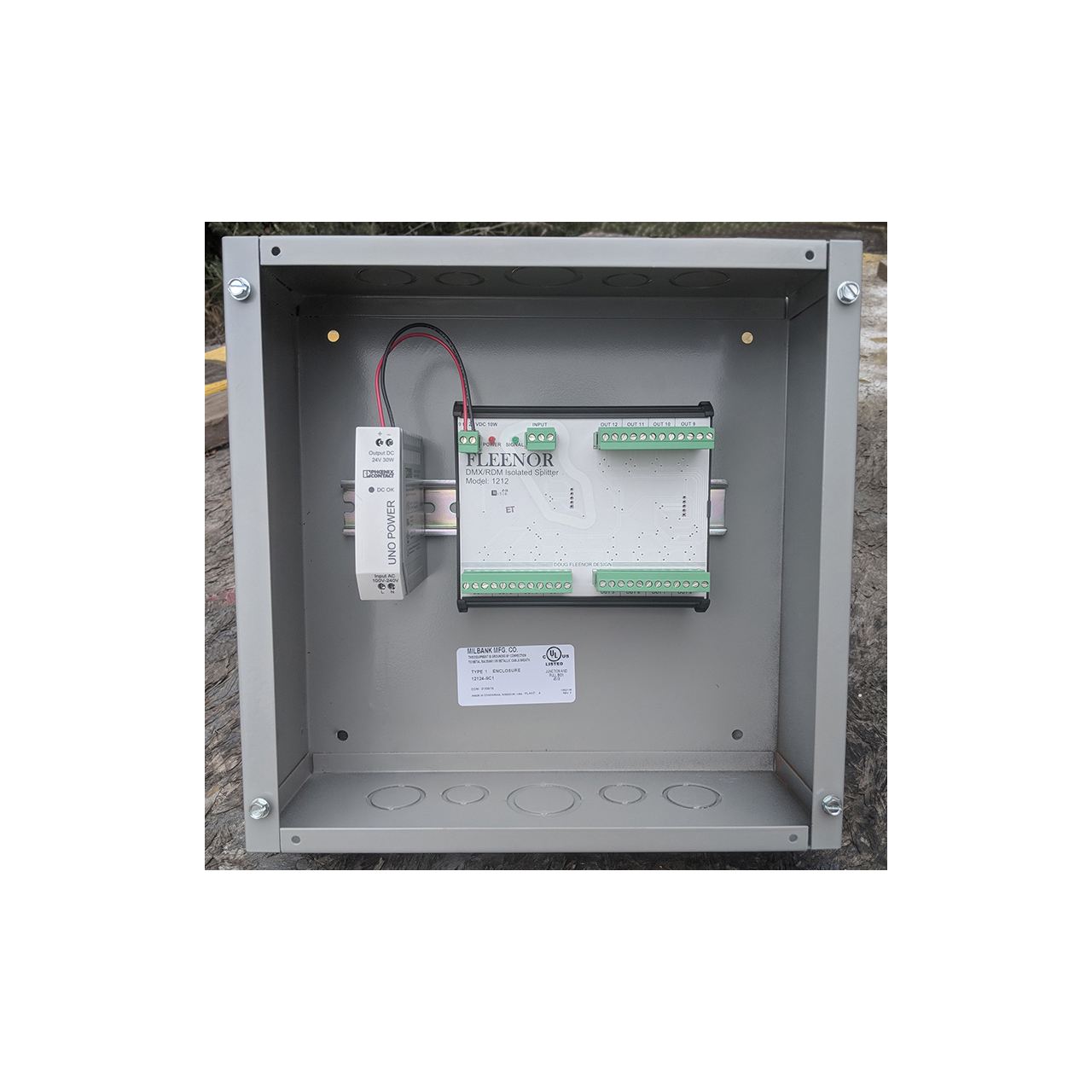

    • 1x 1212-DIN DMX Splitter with PSDIN-30W-24V Power Supply - Din Rail Mounted in a standard Junction Box


  • Warranty:

    • Five-year parts and labor
