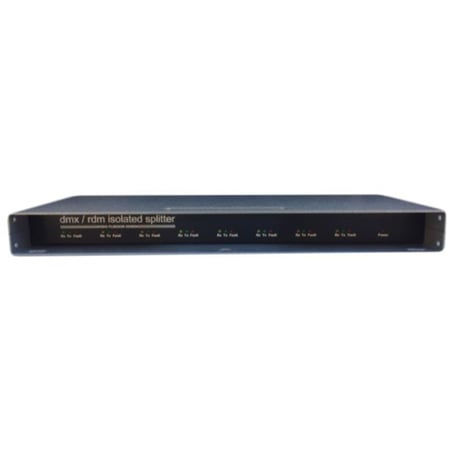

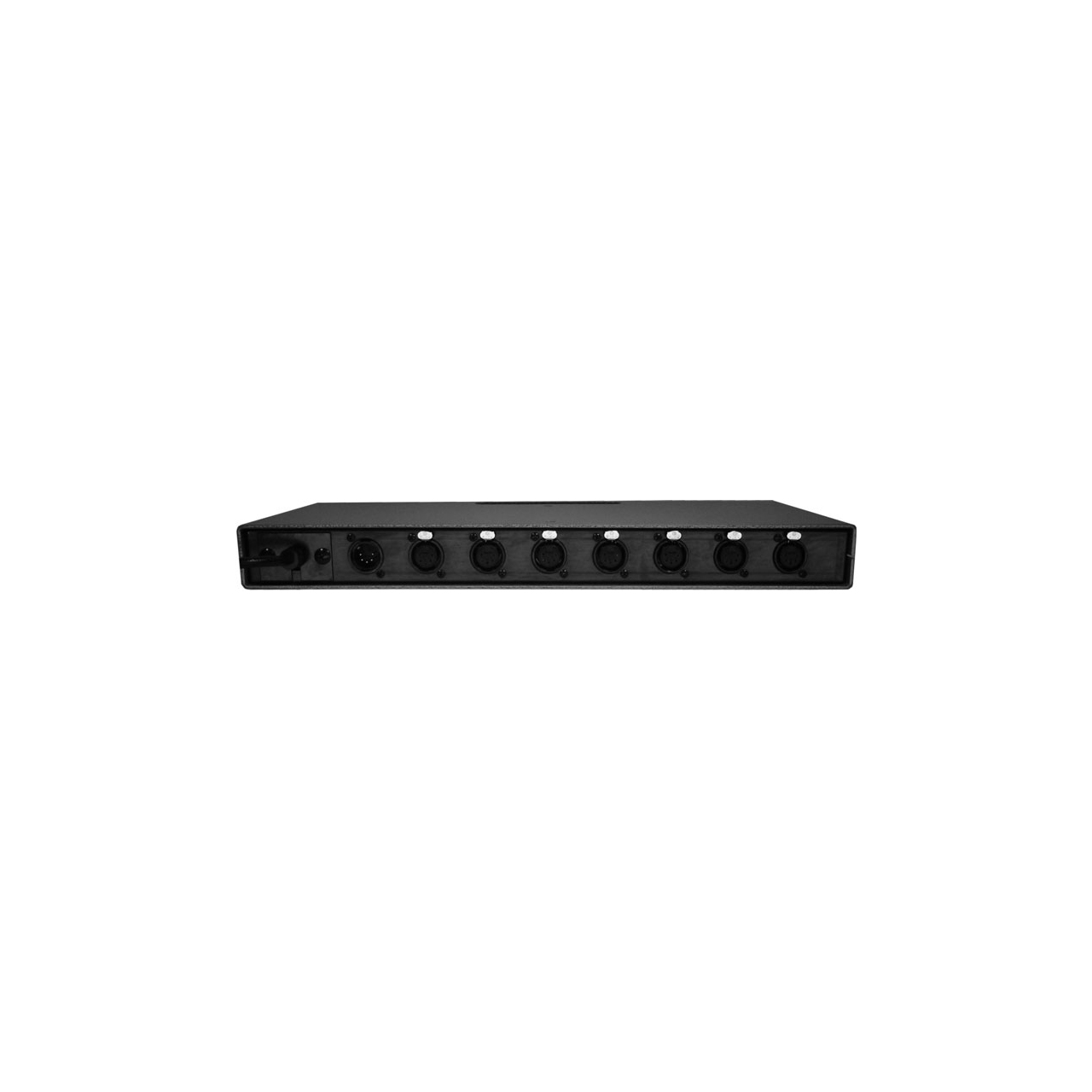

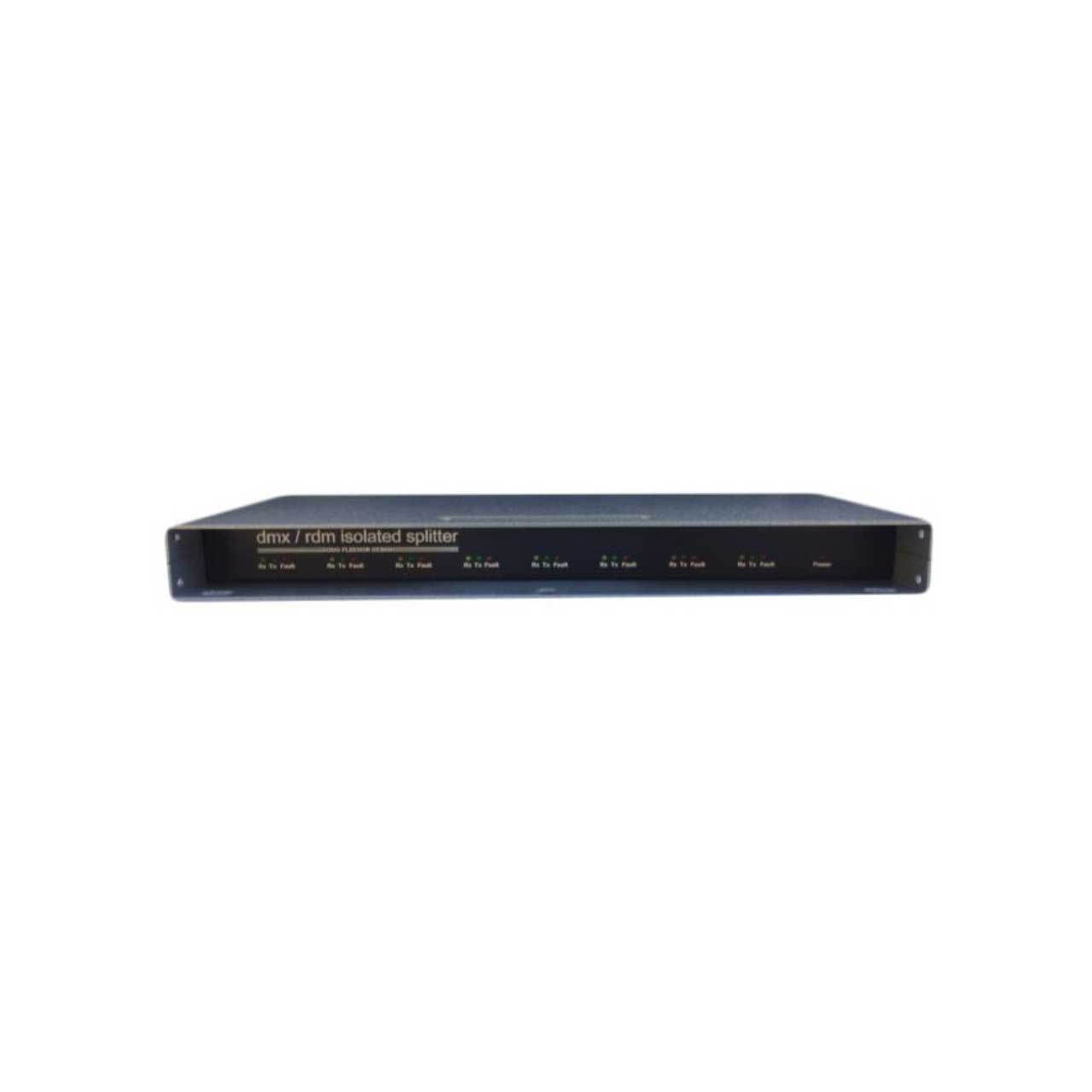

Doug Fleenor Design 127-5 7 Output DMX/RDM Isolated Splitter

ITEM #: DFD-127-5 MFG #: 127-5

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Doug Fleenor Design, Inc.
Free Shipping with $49 Minimum Order

List Price:

$1,915.00

Our Price:

$1,682.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

127-5 - Overview

The Doug Fleenor Design 127-5 is a bi-directional DMX512/RDM splitter with 5 pin XLR connectors. Each of the eight ports is fully isolated, and bi-directional with optical isolation, fault protection to ±60V, and transient protection to ±15KV. The unit has a universal voltage power supply and uses slew-rate-limited output drivers. Slew-rate-limited drivers minimize EMI and reduce reflections caused by improperly terminated cables.

Note: This product uses a slew-rate-limited output drivers. Slew-rate-limited drivers minimize EMI and reduce reflections caused by improperly terminated cables.

  • Specifications:

    • Input Circuit: EIA-485 transceiver with 120 ohm fail safe termination between +Data and -Data
    • Input Protection: Undamaged by up to ±60 Volts continuous, ±15KV transients.
    • Input Signal: DMX512, DMX512/1990, DMX512-A, or RDM. 0.2 volts minimum, 12 volts maximum
    • Signal Connectors: Gold plated 5 pin Neutrik D-1 Series (3 pin connectors, terminal blocks, or RJ45 optional)
    • Termination: Input and all outputs are terminated per RDM specifications.
    • Power Input: 100 to 240 VAC 50/60 Hz, 1/2 Amp
    • Indicators: Red LED for POWER. Green LED for presence of DMX512 or RDM.
    • Isolation: All eight ports are electrically isolated from each other to 1000 Volts.
    • Color: Front, Back: Black, Top, Bottom, Sides - Silver Hammertone
    • Size and Weight: 1.7"H x 6.5"D x 16.5"W, 4.5 pounds
    • Environmental: 0-40° C (32-104° F), 10-90% humidity, non-condensing
    • Mounting: Capable of being installed in a standard rack with a rack kit (model RK16-1)


  • Item Includes:

    • 1x Doug Fleenor Design 127-5 7 Output DMX/RDM Isolated Splitter
