Obsidian Control Systems RDM6 IP Six Port DMX/RDM Splitter - IP66 Rated Chassis

Name: Obsidian Control Systems RDM6 IP Six Port DMX/RDM Splitter - IP66 Rated Chassis
Brand: Elation
SKU: ELAT-RDM6-IP
Price: 599.00 USD
Availability: PreSale

ITEM #: ELAT-RDM6-IP MFG #: NIP101

Elation

List Price:

$750.00

Our Price:

$599.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NIP101 - Overview

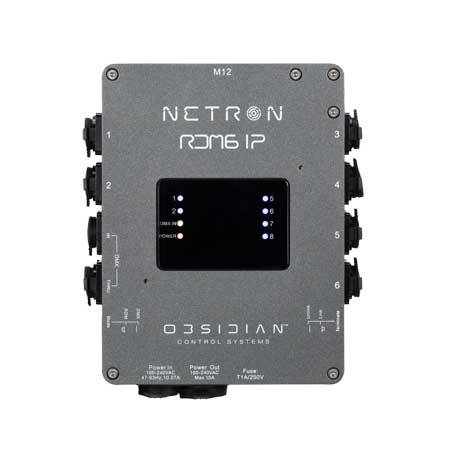

The Obsidian Control Systems Netron RDM6 IP is a six port DMX/RDM splitter in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.

Features:
- IP66 DMX Data Splitter
- 6x XLR 5pin outputs
- DMX and RDM compliant
- Optically isolated ports
- Power / DMX Thru connectors
- Powder-coated aluminum chassis
Specifications:
- Mounting
- Standalone
- Truss-mount(M10 or M12)
- Wall-mount

  Connections

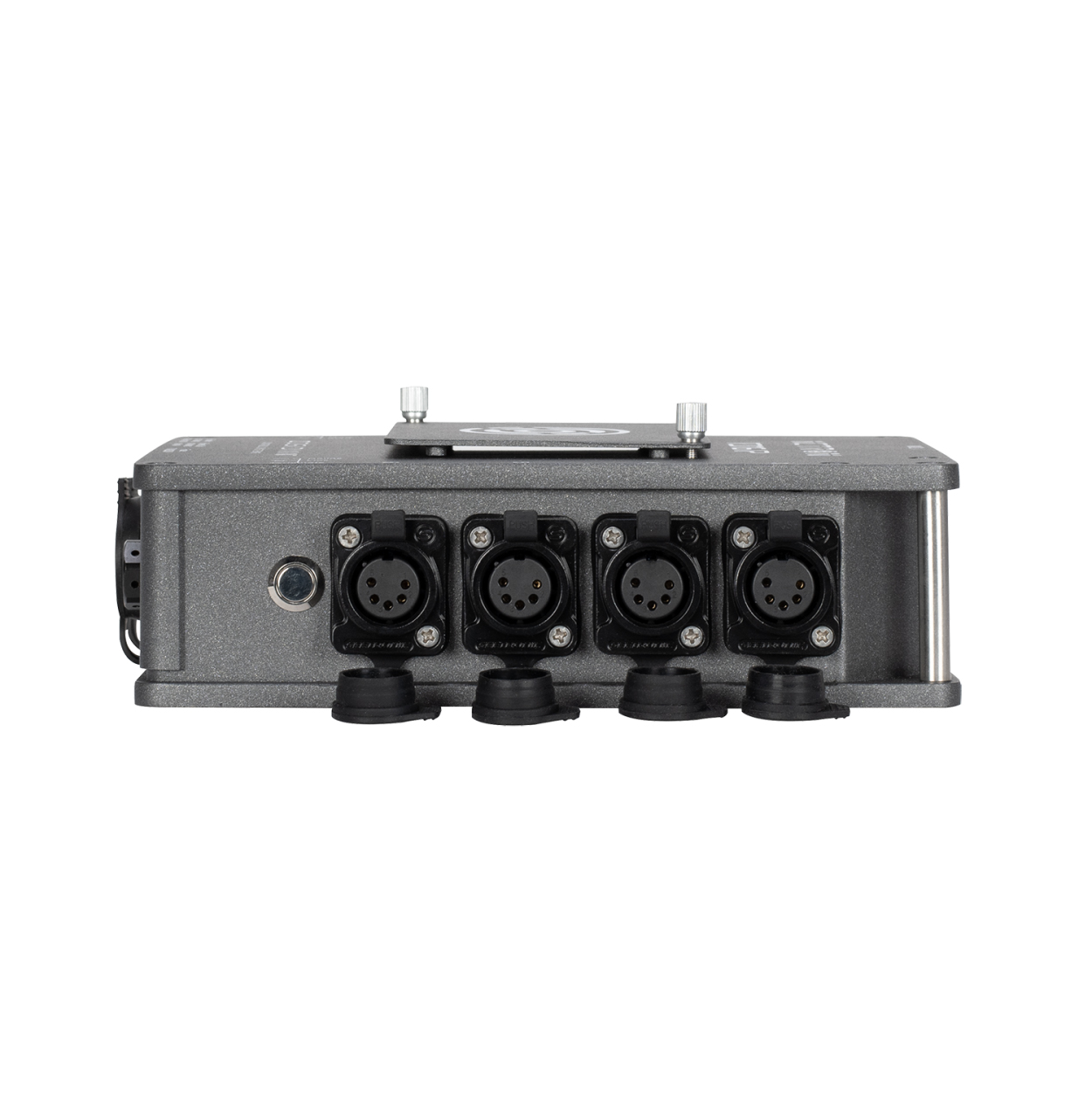

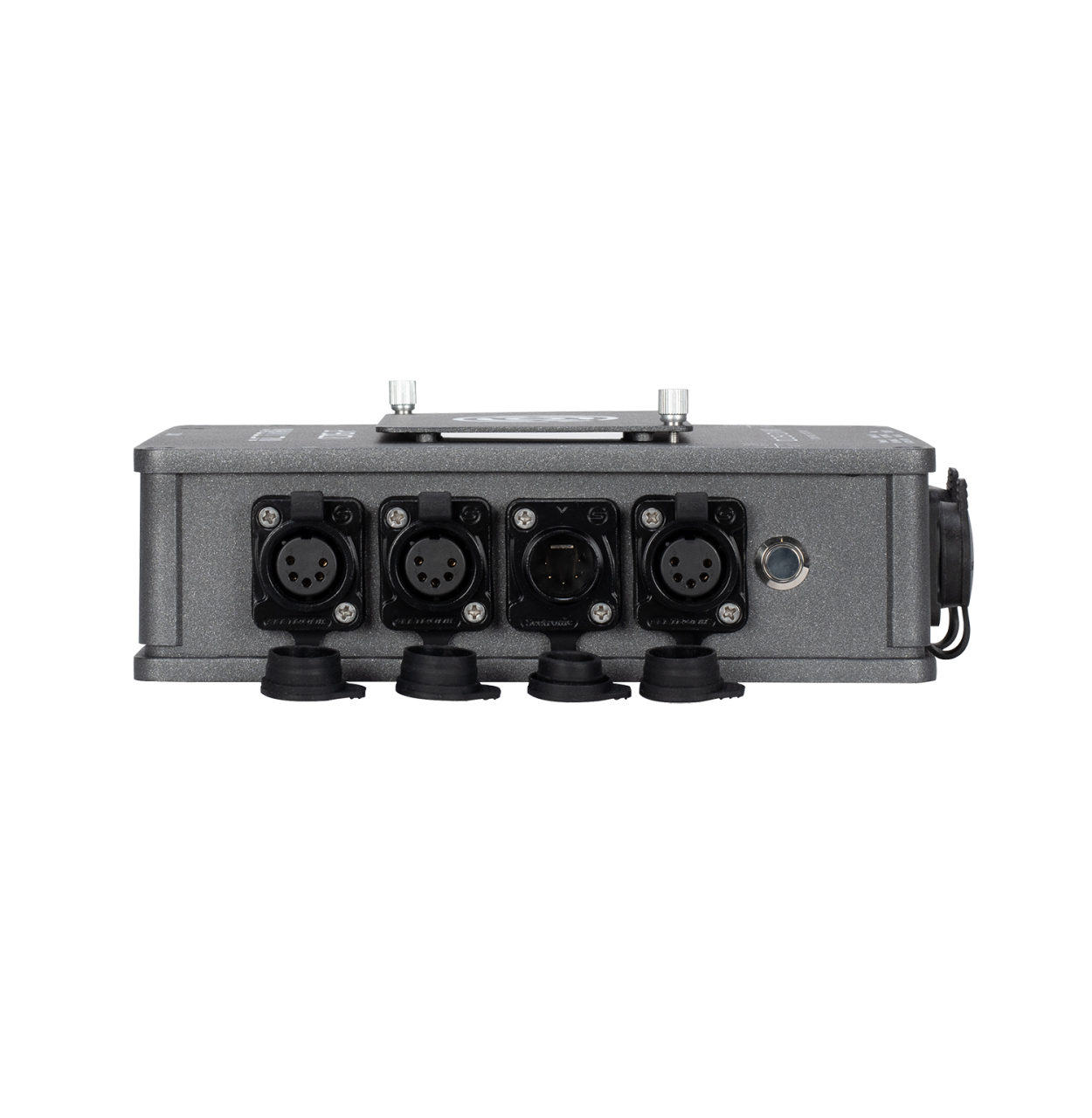

- Sides:
  - 1x 5pin IP66 DMX In
  - 1x 5pin IP66 DMX Thru
  - 6x 5pin IP66 DMX/RDM optically isolated ports
  - DMX Termination Button
  - RDM Enable / Disable Button

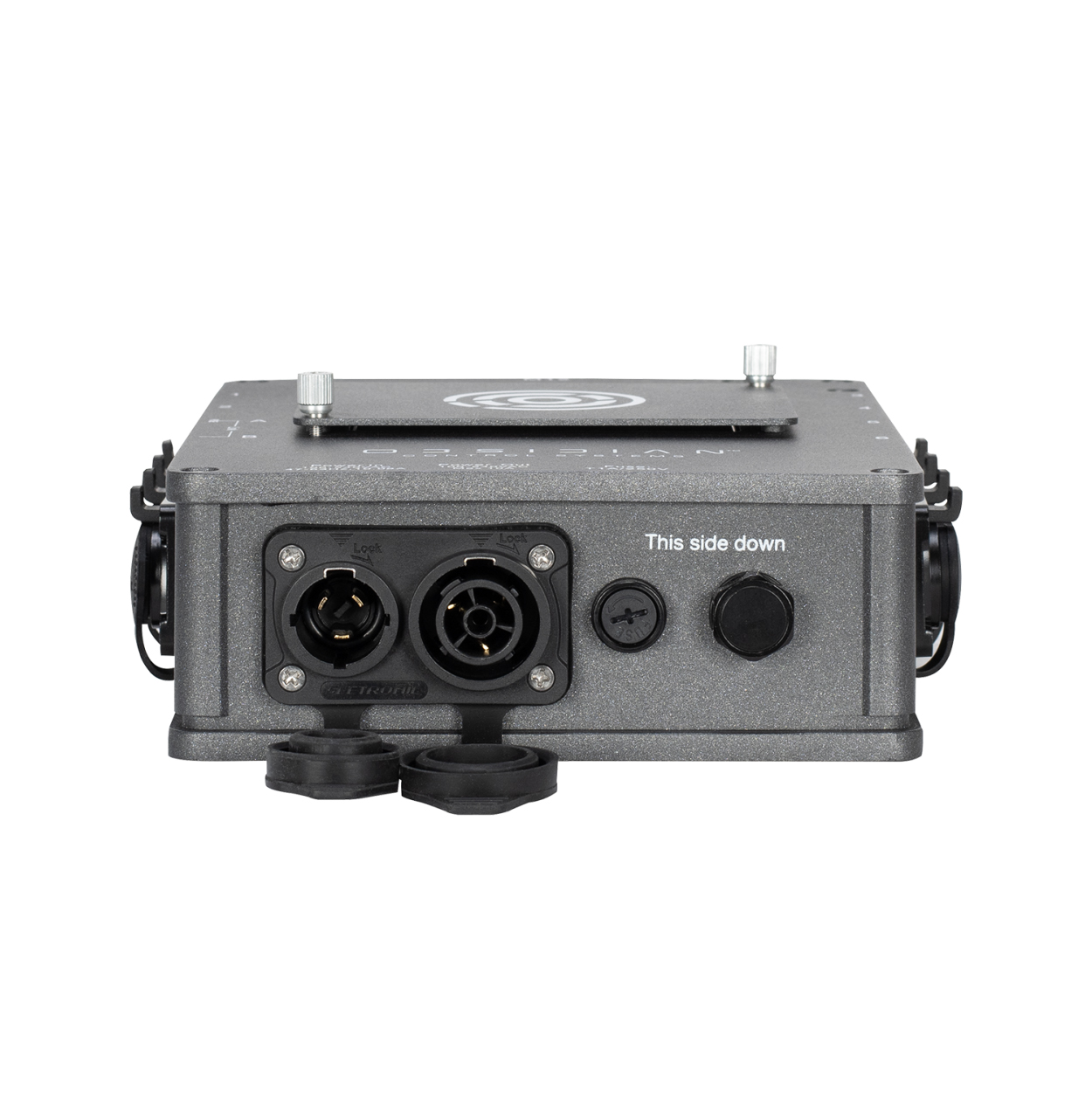

- Bottom: Locking IP66 Power In/Thru

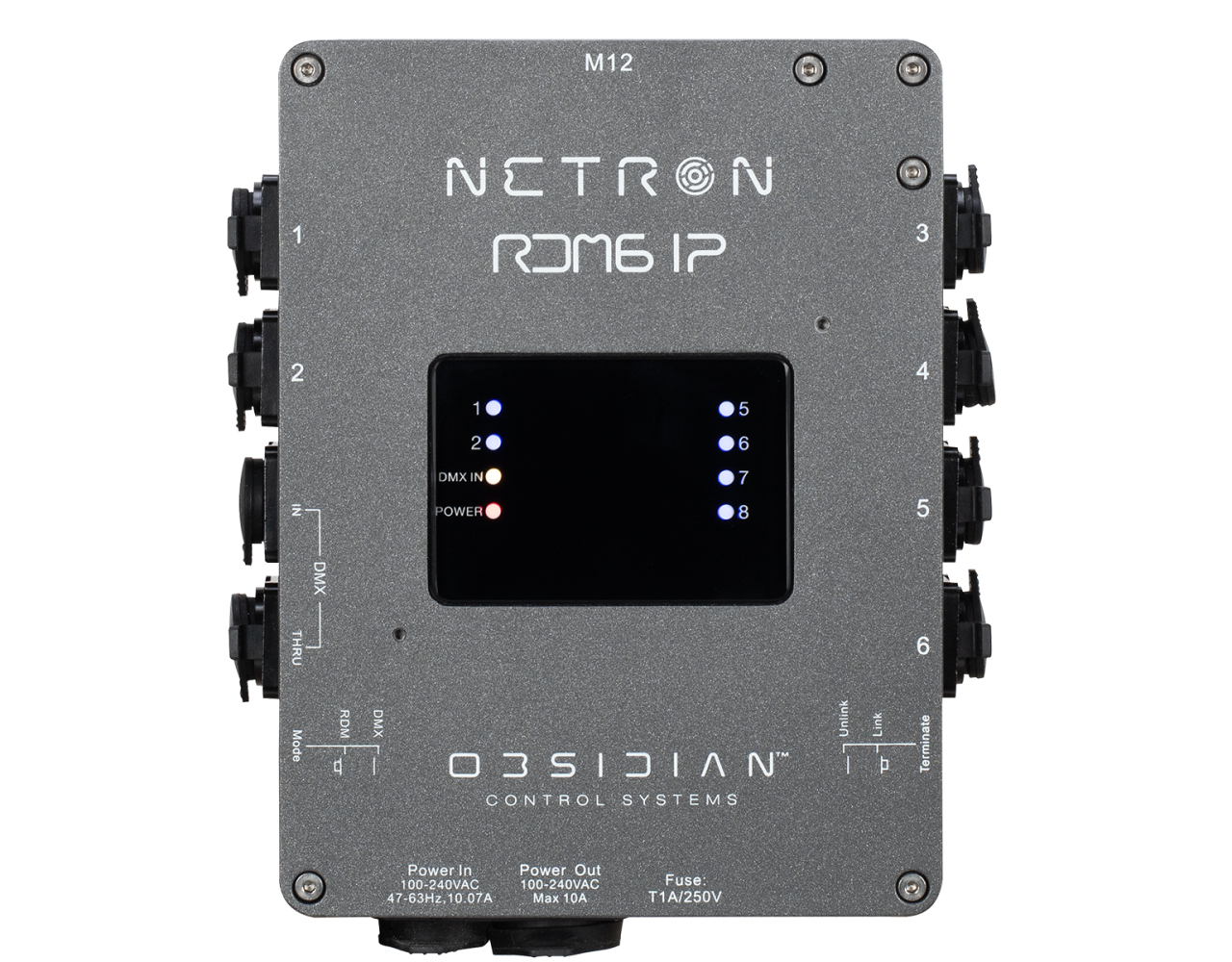

- Front: LED Port Feedback

  General
- Dimensions:
  - Length: 204mm (8 in.)
  - Width: 179mm (7.1 in.)
  - Height: 61mm (2.4 in)
- Weight: 2 kg (4.41 lbs)
- Electrical: 100-240 V Nominal, 50/60 Hz, 5W
- Approvals/Ratings: cETLus / CE / UKCA / IP66
Item Includes:
- 1x 1.5m IP65 locking power cable (EU or US version)
- 2x Wallmount brackets
- 1x M10 to M12 adapter
- 1x Metal display protection cover
Warranty:
- 2 Year Warranty
GTIN:
0810008264232
