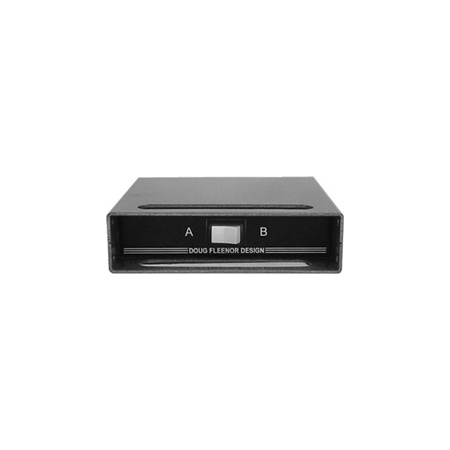

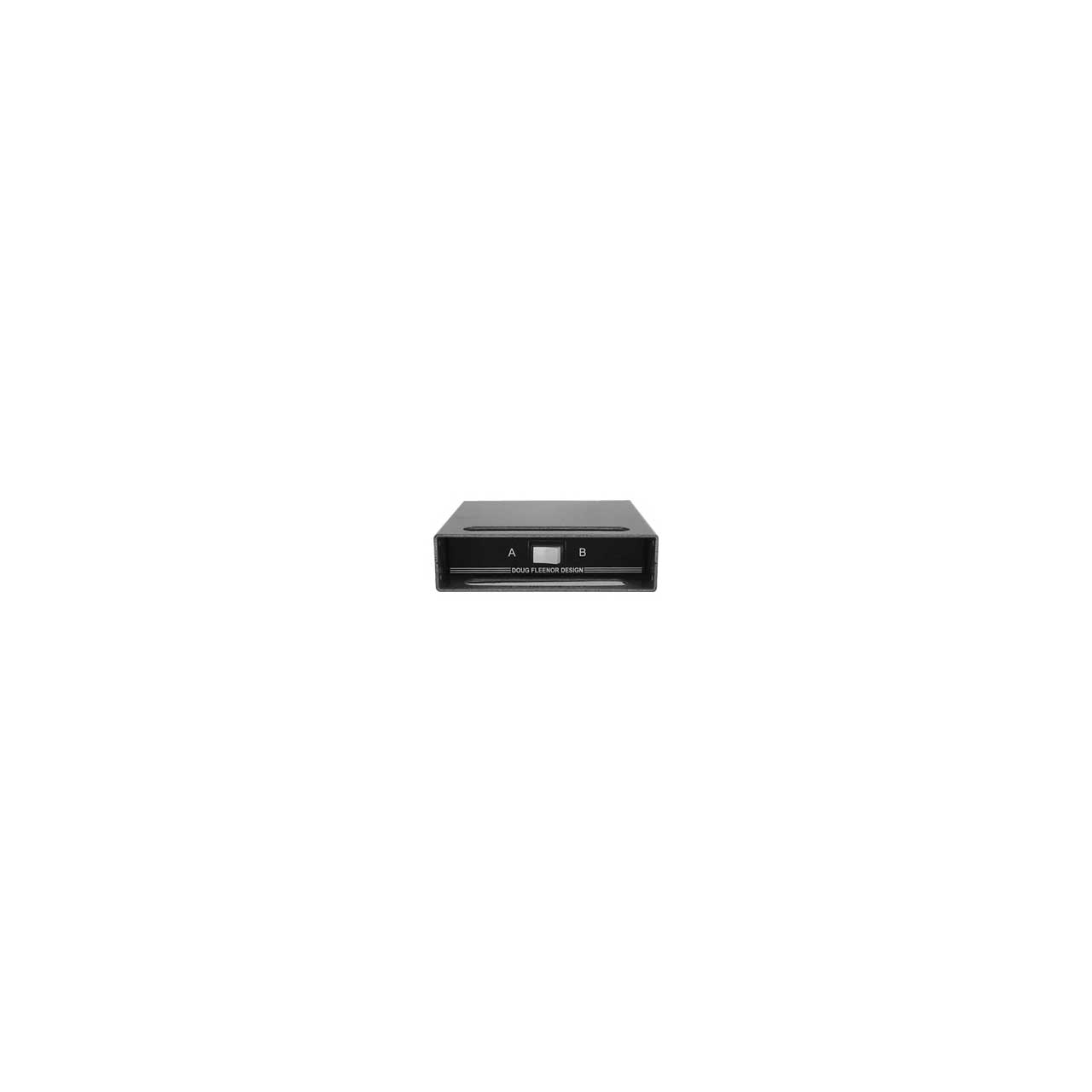

Doug Fleenor Design SW1-RJ-ESTA One Universe DMX A/B Switch - RJ-45 - ESTA Pinout

ITEM #: DFD-SW1-RJ-ESTA MFG #: SW1-RJ-ESTA

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$242.00

Our Price:

$211.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SW1-RJ-ESTA - Overview

Doug Fleenor Design SW1-RJ-ESTA is a One Universe DMX A/B Switch with a RJ-45 - ESTA Pinout. Doug Fleenor Design makes a series of selector switches specifically designed for DMX512 signals. Originally designed to switch between primary and backup consoles, these are often used to select from two (or more) input locations. Model SW1 switches a single DMX512 universe (one A input, one B input, one output). Model SW 2 switches two DMX512 universes. Model SW3 switches three DMX512 universes. Model SW4 (pictured above) switches four DMX512 universes (four A inputs, four B inputs, four outputs). Custom units for switching any number of universes are available. Custom units for switching between more than two input sources are available (A/B/C switches, for example). Doug Fleenor Design Switch Boxes consist of a high reliability switch (rocker or rotary) wired to Neutrik five pin gold plated XLR style connectors (three pin or terminal block optional). The units are housed in metal enclosures of appropriate size and are rack mountable (with optional rack ears). The standard units switch the Data+ and Data- lines. Custom units can switch any or all contacts. Custom "remote switch" units using relays in place of the manual switch are also available.

  • Specifications:

    • Input connectors: Gold plated 5 pin male (Neutrik D-1 series). 3 pin or terminal block optional.
    • Output connectors: Gold plated 5 pin female (Neutrik D-1 series). 3 pin or terminal block optional.
    • Switched contacts: Pins 2 and 3 (Data- and Data+). Other contacts switched optional.
    • Power Input: None required on manual switch boxes. User specified on "remote switch" units.
    • SW1: Single Universe A/B Switch Box:
    • Switch: Two position rocker switch.
    • Color: Top, bottom and sides: Silver hammer tone. Front and back: Black.
    • Size and weight: 1.7"H x 6.5"D x 6.5"W, 1.4 pounds (optional 19" rack adapter)
