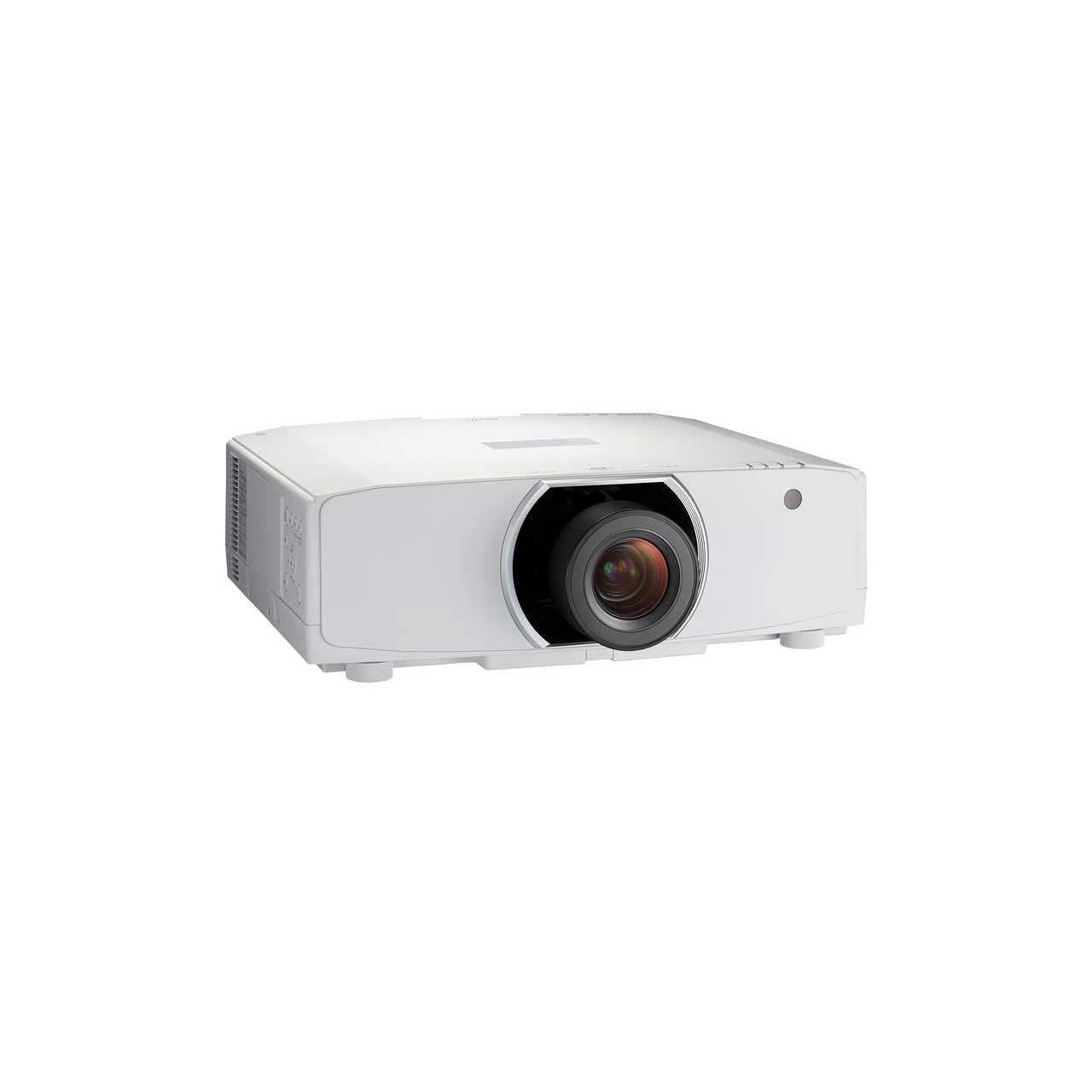

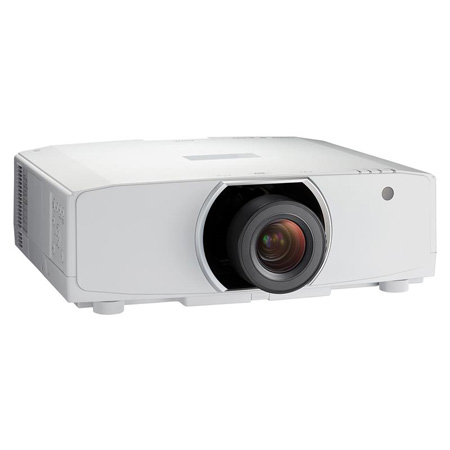

Dukane 6785W WXGA - 8500 Lumens Projector - LCD - Lens Shift - Network - HDBT In/Out - HDMI x 2 - Display Port NO LENS

6785W - Overview

• Features:

  • Variable audio-out enables the remote control to be used to adjust volume of self-powered external speakers that are connected to the
  • projector. In stand-by mode, the audio-out stays active, allowing the
  • last input used to pass to the self-powered external speakers.
  • Advanced AccuBlendT ensures detailed images when non- native resolution sources are connected to the projector
  • 64-step image magnification with location control
  • Built-in HTTP page for control and monitoring over a LAN network. Email notification of error messages or lamp end-of-life can be sent
  • to remote locations.


• Specifications:

  • Display Technology: 0.76" LCD w MLA
  • Light Output (Lumens): 8500 normal
  • Resolution:
    Native: WXGA 1280 x 800
    Maximum: 4K 4096 x 2160
  • Contrast Ratio: 10,000:1 with auto iris
  • Lamp Life (up to): 3000 hours normal / 5000 hours eco
  • Screen Size (Diagonal): 40 to 500" (1.02 to 12.7m), NP40ZL, NP41ZL, NP42ZL (50 to 500" (1.27 to 12.7m)
  • Throw Ratio
    NP11FL 0.81:1
    NP30ZL 0.79 - 1.04:1
    NP12ZL 1.16 - 1.52:1
    NP13ZL 1.46 - 2.95:1
    NP14ZL 2.90 - 4.68:1
    NP40ZL 0.79 - 1.10
    NP41ZL 1.30 - 3.02
    NP42ZL 2.99 - 5.98
  • Projection Distance: 2.5 to 68.5 ft. / 0.74 to 20.9m
  • Projection Angle: 10.3 to 10.8° tele / 13.7 to 14.5° wide
  • Lens
    Zoom: Powered / Manual
    Zoom Ratio: Variable
    Focus: Powered / Manual
    NP11FL: Manual Zoom/Focus, F= 2.3, f= 13.2mm, 2.6Lbs (1.2kg)
    NP30ZL: Manual Zoom/Focus, F= 1.9 to 2.1, f= 13.2 to 17.2mm, 2.6Lbs (1.2kg)
    NP12ZL: Manual Zoom/Focus, F= 2.2 to 2.69, f= 19.4 to 25.3mm, 2.6Lbs (1.2kg)
    NP13ZL: Manual Zoom/Focus, F= 1.7 to 2.37, f= 24.2 to 48.6mm, 1.9Lbs (0.84kg)
    NP14ZL: Manual Zoom/Focus, F= 2.2 to 2.64, f= 48.5 to 77.6mm, 2.6Lbs (1.2kg)
    NP40ZL: Power Zoom/Focus, F=2.0 to 2.43, f= TBD, 4.4Lbs (2.0kg)
    NP41ZL: Power Zoom/Focus, F=1.7 to 2.0, f= 21.8 to 49.8mm, 4.1Lbs (1.85kg)
    NP42ZL: Power Zoom/Focus, F=2.2 to 2.3, f= TBD, 4.1Lbs (1.85kg)
    Shift: Powered +0.5/-0.1 vertical, ±30 horizontal
  • Keystone Correction: ±40° horizontal - ±40° vertical
  • Synchronization Range:
  • Horizontal: Analog: 15-100kHz, Digital: 15-153kHz
    Vertical: Analog: 48-120Hz, Digital: 24-120Hz
  • Supported Video Standards: NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
  • SD/HD Video Signal Compatibility: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
  • PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
  • Macintosh Compatibility: Yes

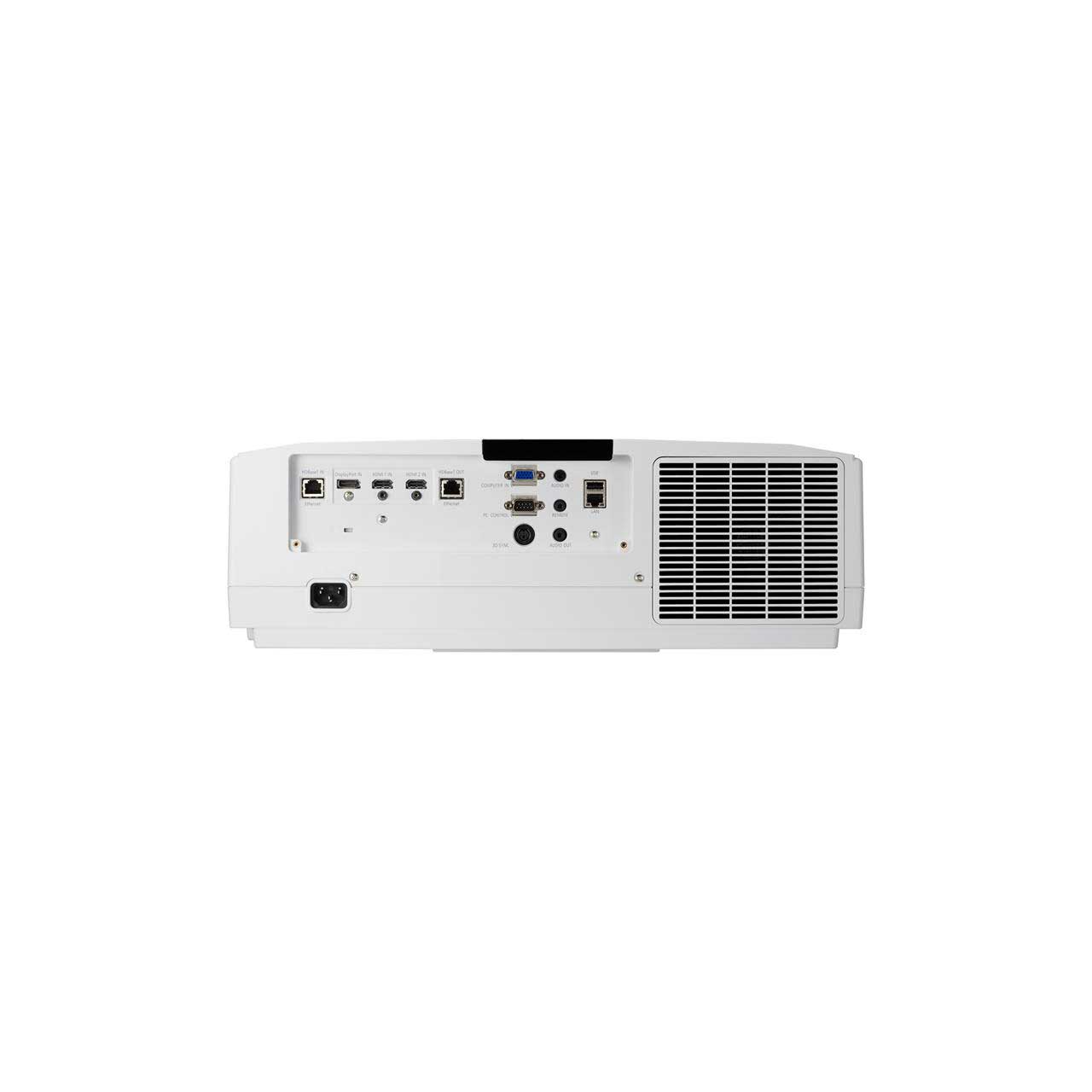

  • Input Terminals
    RGB1 (analog): VGA 15 pin D-sub, Component video using ADP-CV1E adapter
    RGB2 (digital): HDMI (V1.4) w/HDCP (V2.2)
    RGB3 (digital): HDMI (V1.4) w/HDCP (V2.2)
    RGB4 (digital): DisplayPort w/HDCP (V1.4)
    RGB5 (digital): HDBaseT w/HDCP (V2.2)
    Audio1: Stereo Mini Jack
  • Output Terminals
    Monitor Out: HDBaseT
    Audio Out: Stereo Mini Jack
    3D Sync Line: 3Pin D
  • Audio: 10W mono
  • External Control: RS-232, IR, HDBaseT, DDC/CI, RJ-45
  • Sync Compatibility: Separate Sync / Composite Sync / Sync on G
  • Power Requirements: 100 - 240V AC, 50/60Hz
  • Input Current: 5.6A - 2.7A 6.2A - 3.1A
  • Power Consumption (ECO off/ECO Mode/Standby/Standyby-Power Saving): 566W/390W/0.7W/0.3W
  • Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
  • Dimensions (WxDxH): 19.8 x 16.2 x 6.6 in. / 503 x 411 x 168mm
  • Net Weight: 22.5Lbs (10.2kg)
  • Fan Noise: 39 dB normal / 33 dB eco
  • Regulations: USA: UL 1950 FCC Class B, Canada: CSA950 (C-UL), NOM
  • Operating Temperature: 41° to 104°F (5° to 40°C)
  • Storage Temperature: -14° to 122°F (-10° to 50°C)
  • Humidity: 20 to 80% (non-condensing)


• Item Includes:

  • Remote control
  • Batteries
  • Power Cord


• Warranty:

  • Five (5) year limited warranty plus Dukane's 1 year Peace of
  • Mind Loaner Program


• GTIN:

  0605194005598
