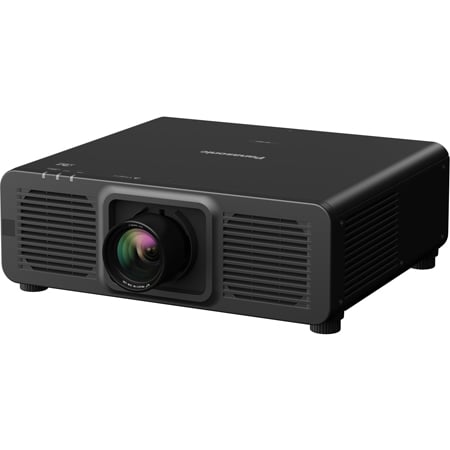

Panasonic PT-RQ7LBU7 7500 Lumen 4K 1 Chip DLP Laser Projector with Quad Pixel Drive - 3840 x 2400 - Black - No Lens

ITEM #: PAN-PT-RQ7LBU7 MFG #: PT-RQ7LBU7

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$18,999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT-RQ7LBU7 - Overview

Immersive experiences that wrap an entire area with engaging visuals is becoming widespread, from theme parks to museums, to education and corporate environments. To address the production complexities these experiences can present, the new PT-RQ7 Series 1-chip DLP 4K projector was developed to provide production teams and integrators more choice. The PT-RQ7 Series projector produces high-definition 4K visuals, while offering reliable and efficient workflows.

Seamless Visuals, Endless Possibilities
Fitting between the FRQ60 Series and the REQ15 Series, the RQ7 Series expands the 1-Chip DLP 4K projector lineup to offer more freedom and choice. With Quad Pixel Drive technology, it creates smooth 4K images without visible pixels or gridding, ideal for immersive 360° attractions. Project 1080/240p video, and with the ET-SWR10 kit, seamlessly blend content and motion in real-time. Dynamic Contrast, Rich Color Enhancer, and Digital Art Mode deepen the sense of realism, drawing guests into the creator's world.

Compact and Expandable for Easy Installation
The RQ7 Series redefines production efficiency. At just 16.6 kg (36.59 lbs) and about 29% smaller than our RZ790/RZ690 models, it lightens the logistical burden and shrinks your carbon footprint. Simplify complex layouts with optional function boards for the Intel SDM standard-compatible SLOT, including the ET-SBFMP10 with camera-based warping/blending. Businesses can use existing DLE, Series lenses, and the revised mounter enables bracket-free attachment of the ET-DLE020G/ET-DLE020 ultra-short-throw zoom lens.

Please Note: Lens sold separately.

  • Features:

    • Smooth, Dimensional 4K visuals are the result of Quad Pixel Drive, offering with rich color and minimal blur. Project 240 Hz/1080p content seamlessly with our Real-Time Tracking Projection-Mapping System for immersive experiences.
    • Improved Dynamic Contrast boosts visual impact, while a new Museum Mode further optimizes image quality.
    • Compact, Lightweight Design for Installation Ease and an Effortless Workflow, along with optional Intel SDM standard SLOT-compatible function boards which simplifies and expands projector connectivity. Save time with preactivated Geo Pro upgrade kits.
    • Stable, Reliable, & Efficient Projection with an energy-efficient optical engine & laser light source conforming to IP5X Dust Protected (IEC 60529) standard for a filter-less design reducing waste & enabling maintenance-free operation for 20,000 hours
    • Multi-Laser Drive Engine and Backup Input maintain image display, securing a repeatable guest experience.

  • Specifications:

    • Main Unit
    • Power Supply: AC100V-240V, 50/60 Hz
    • Maximum Power Consumption: 670 W (6.8A-2.8A) [680VA](The power consumption is 650 W at 200-240V)
    • On-Mode Power Consumption(Operating mode):
      - [NORMAL] 540 W (100V-120V), 520 W (200V-240V)
      - [ECO] 410 W (100V-120V), 400 W (200V-240V)
      - [QUIET] 410 W (100V-120V), 400 W (200V-240V)
    • Standby Mode Power Consumption:
      - [NORMAL] 14 W
      - [ECO] 0.5 W
    • BTU Value: Max 2,290 BTU
    • DLP Chip Size [0.65 in] diagonal (16:9 aspect ratio)
    • Display System: DLP chip x 1
    • Number of Pixels: 2,073,600 pixels (1920 x 1080 dots)
    • Refresh Rate: 240 Hz Refresh rate varies depending on scanning frequency.
    • Light Source: Laser diode
    • Light Output Operation Mode:
      - [NORMAL] 7,500 lm / 7,500 lm(ANSI) / 7,700 lm(Center)
      - [ECO] 6,000 lm
      - [QUIET] 6,000 lm
    • Time until Light Output Declines to 50% Operation Mode:
      - [NORMAL] 20,000 hours
      - [ECO] 24,000 hours
      - [QUIET] 20,000 hours
    • Resolution: 4K (3840 x 2160 dots) (Quad Pixel Drive: ON)
    • Contrast Ratio: 15,000:1 (All White/All Black, Dynamic Contrast [3])
    • Center to Corner Zone Ratio: 90%
    • Lens: Optional Powered Zoom/Focus Lenses

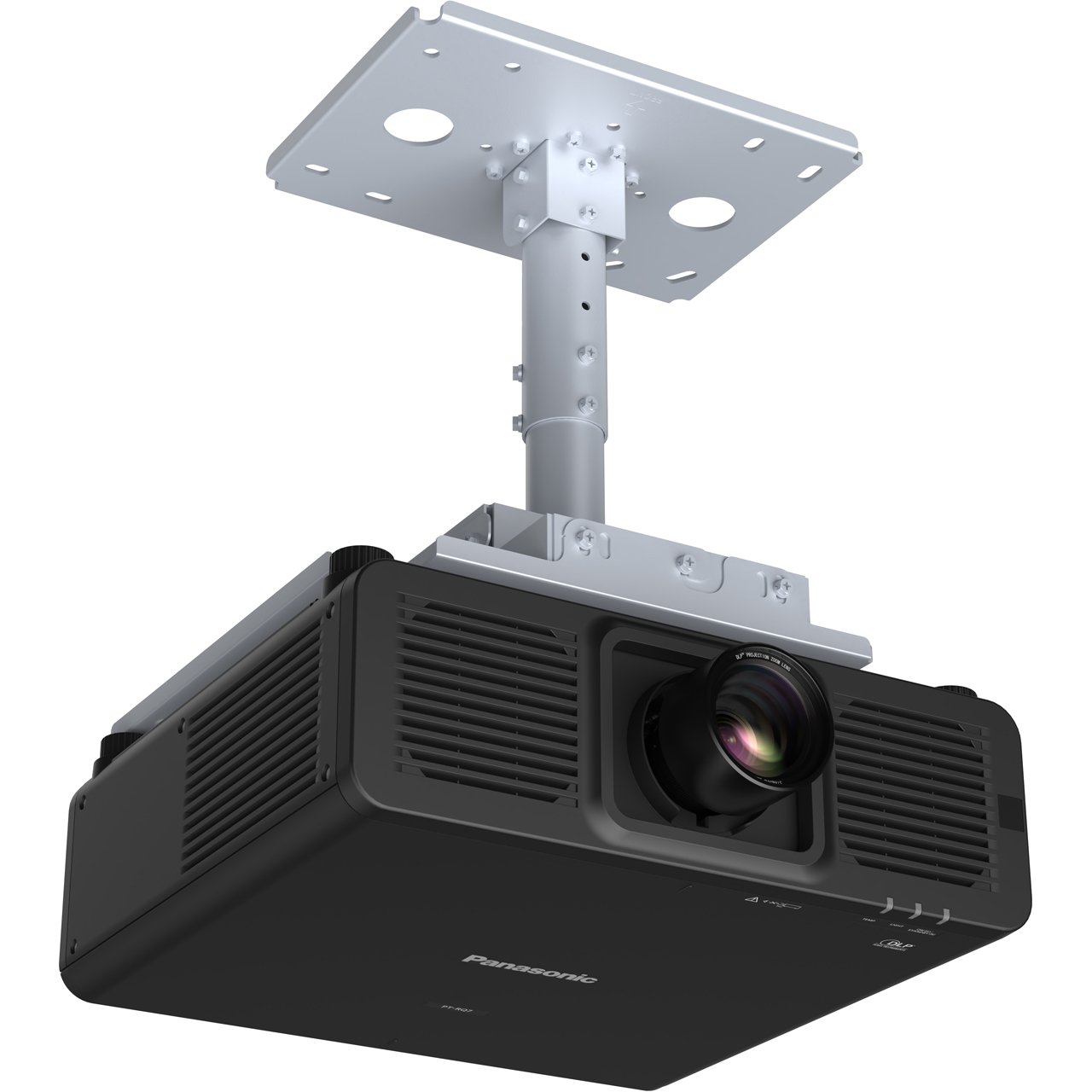

    • Installation: Ceiling/floor, front/rear, free 360-degree installation
    • Compatible Signal:
      - HDMI signal input: Moving image signal resolution: 480/60p, 576/50p to 4096 x 2160/60p / Still image signal resolution: 640 x 480 to 3840 x 2400 (non-interlace) / Dot clock frequency: 25 MHz to 594 MHz
      - DIGITAL LINK signal input: Moving image signal resolution: 480/60p, 576/50p to 4096 x 2160/60p / Still image signal resolution: 640 x 480 to 3840 x 2400 (non-interlace) / Dot clock frequency: 25 MHz to 297 MHz
      - SDI signal input: HD-SDI signal / 3G-SDI signal / 12G-SDI signal

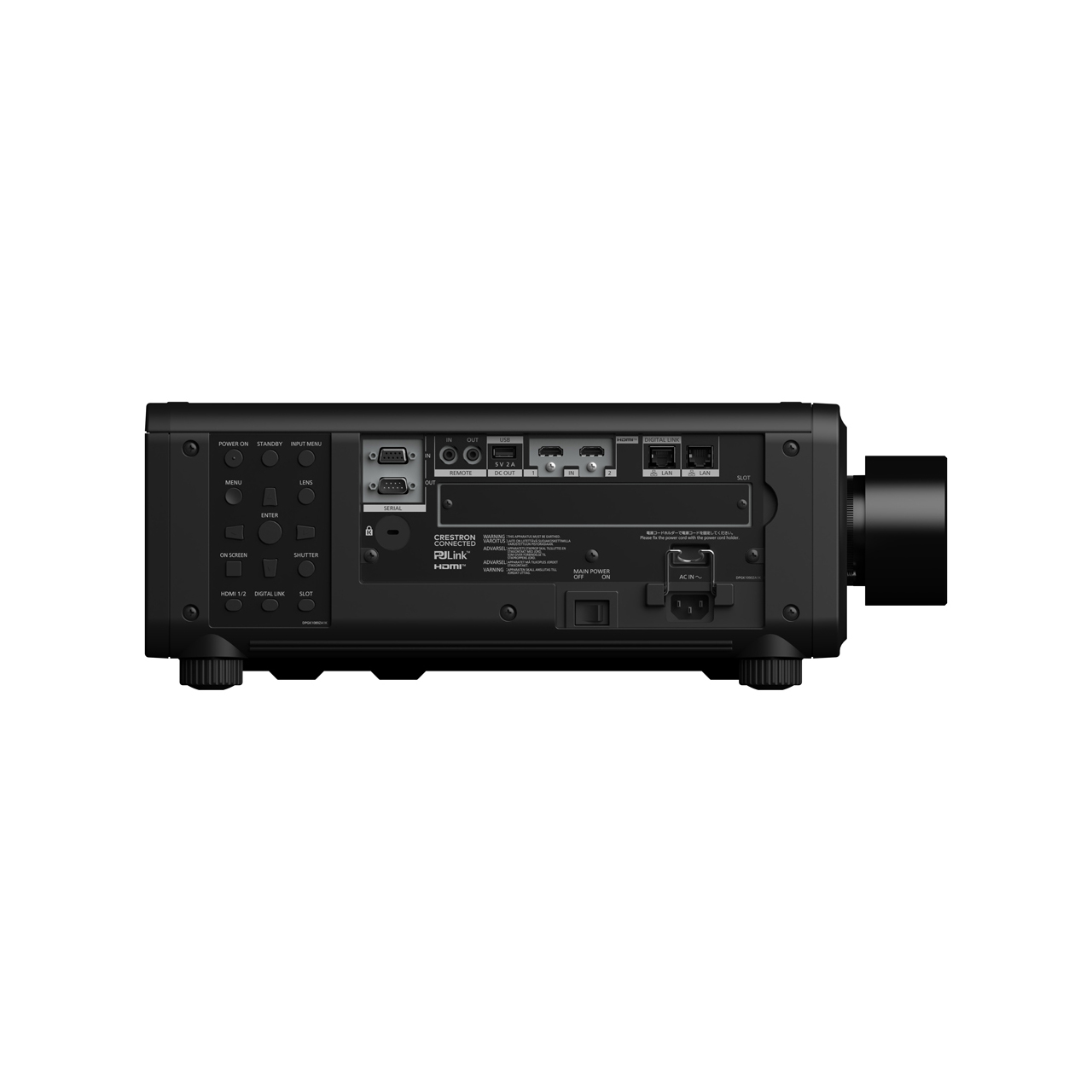

    • Terminals
      - HDMI 1 IN / HDMI 2 IN: HDMI x 2 Deep Color, compatible with HDCP2.3, 4K/60p signal
      - SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
      - SERIAL OUT: D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
      - REMOTE IN: M3 stereo mini jack x 1 for wired remote control
      - REMOTE OUT: M3 stereo mini jack x 1 for link control (for wired remote control)
      - DIGITAL LINK/LAN RJ-45: x 1 for network and DIGITAL LINK connections (HDBaseTT compliant), PJLink (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.3 compatible, Deep Color compatible, 4K/60p signal input
      - LAN RJ-45: x 1 for network connection, PJLinkTM (class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
      - USB (DC OUT): USB connector (type A) x 1 for connecting the optional Wireless Module (Model No.:AJ-WM50 Series), for connecting USB memory, for power supply (DC 5 V, maximum 2 A)
      - SLOT: SLOT x 1 Open slot, for function boards, Intelr SDM compatible
    • Supported Internet Protocol: version IPv4, IPv6
    • Power Cord Length: 9' 10" (3.0 m) ((6' 7") (2.0 m) for Taiwan)
    • Cabinet Materials: Molded plastic
    • Dimensions:
      - Width: 19.59" (498 mm)
      - Height: 7.09" (180 mm) (with the feet at shortest position)
      - Depth: 17.3125" (440 mm)(excluding protrusions)
    • Weight: Approx. 36.59 lbs (16.6 kg) (excluding the optional lens)
    • Operating Noise:
      - [NORMAL] 35 dB
      - [ECO] 35 dB
      - [QUIET] 32 dB
    • Laser Classification:
      - Laser Class: Class 1 (IEC/EN 60825-1:2014) / China: Class 3R (IEC60825-1:2007)
      - Risk Group: Risk Group 2 (IEC 62471-5:2015): ET-DLE020G/ET-DLE020, ET-DLE035, ET-DLE055, ET-DLE060, ET-DLE085, ET-DLE105, ET-DLE150, ET-DLE170, ET-DLE250 / Risk Group 3 (IEC 62471-5:2015): ET-DLE350, ET-DLE450
    • Operating Temperature: 32-113 °F (0-45 °C)
    • Operating Humidity: 10-80% (no condensation)
    • IP Rating (dust protection): IP5X (only the optical engine and light source module)

      Remote Control Unit
    • Power Supply: 3V DC (AAA/R03/LR03 battery x 2)
    • Operation Range: Approx. 98' 5" (30 m) (when operated directly in front of signal receiver)
    • Dimensions:
      - Width: 1.875" (48mm)
      - Height: 5.719" (145mm)
      - Depth: 1.0625" (27mm)
    • Weight: Approx. 3.60oz (102g) including batteries

  • Item Includes:

    • 1x PT-RQ7LB 1-Chip DLP Projector
    • 1x Power Cord
    • 1x Wireless/Wired Remote Control Unit
    • 2x Batteries for Remote Control
    • 1x SLOT Adapter
    • 1x Belt Clip

  • GTIN:

    0885170429055
