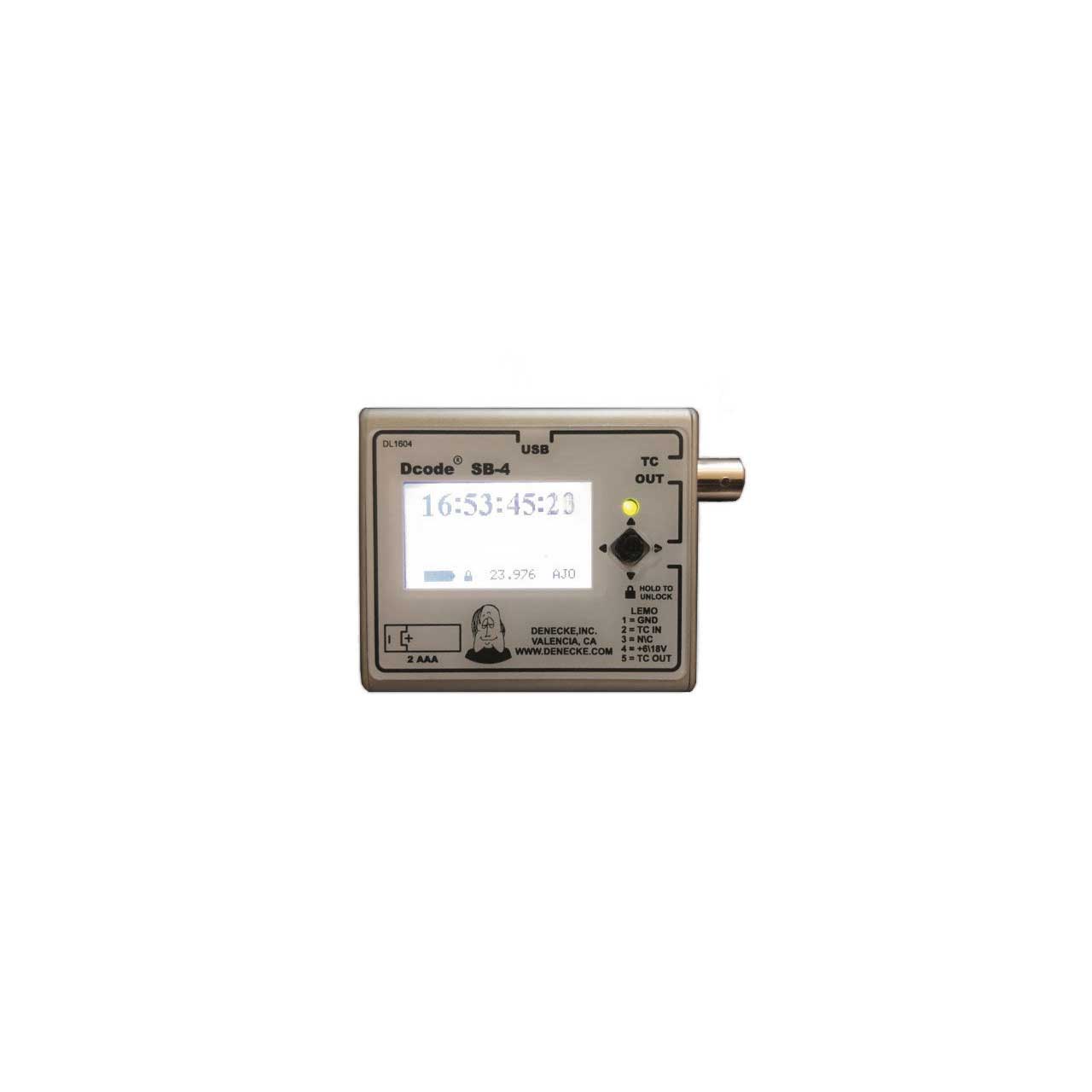

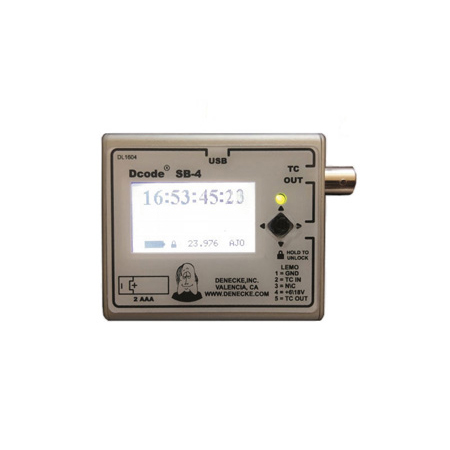

Denecke SB-4 Syncbox Time Code Generator

SB-4 - Overview

• Features:

  • Generates and Jam Syncs to all common SMPTE Timecode frame rates.
  • Cross jams regardless of incoming frame rates.
  • Sunlight-readable display with backlight.
  • Jam from an external timecode source or set it internally and use as a stand alone generator.
  • Selectable TC output levels, eliminating the need for external output reduction pads.
  • Runs on 2 AAA batteries or external power connection.
  • Simple to set up. Reprogrammable for new features and updates, via both Mac and Windows computers.
  • Very high stability crystal ensures low drift.
  • Provides indication of drift/inaccuracy between SB-4 and a timecode input signal.


• Specifications:

  • Input: -15dB @ 4.7K; LEMO Connector
  • Output: Selectable 2.0V, 1.0V, 0.50V and 0.20V
  • Battery Power: 2 “AAA” Batteries
  • External Power: 6 to 18 Volts DC, via LEMO Connector 5V, via Micro USB Connector
  • TCXO Crystal: +/- 0.1PPM @ -40° to +85° C
  • Size: 2.5” (W) x 2.2” (H) x 1.0” (D)
  • Weight: 4 oz. (with batteries)
  • Battery Life: 30+ Hours; Approximately 15+ Hours With Back Light Continuously ON.
