Brainstorm SR-112 Time Code Distripalyzer - Time Code Reshaped & Distributed

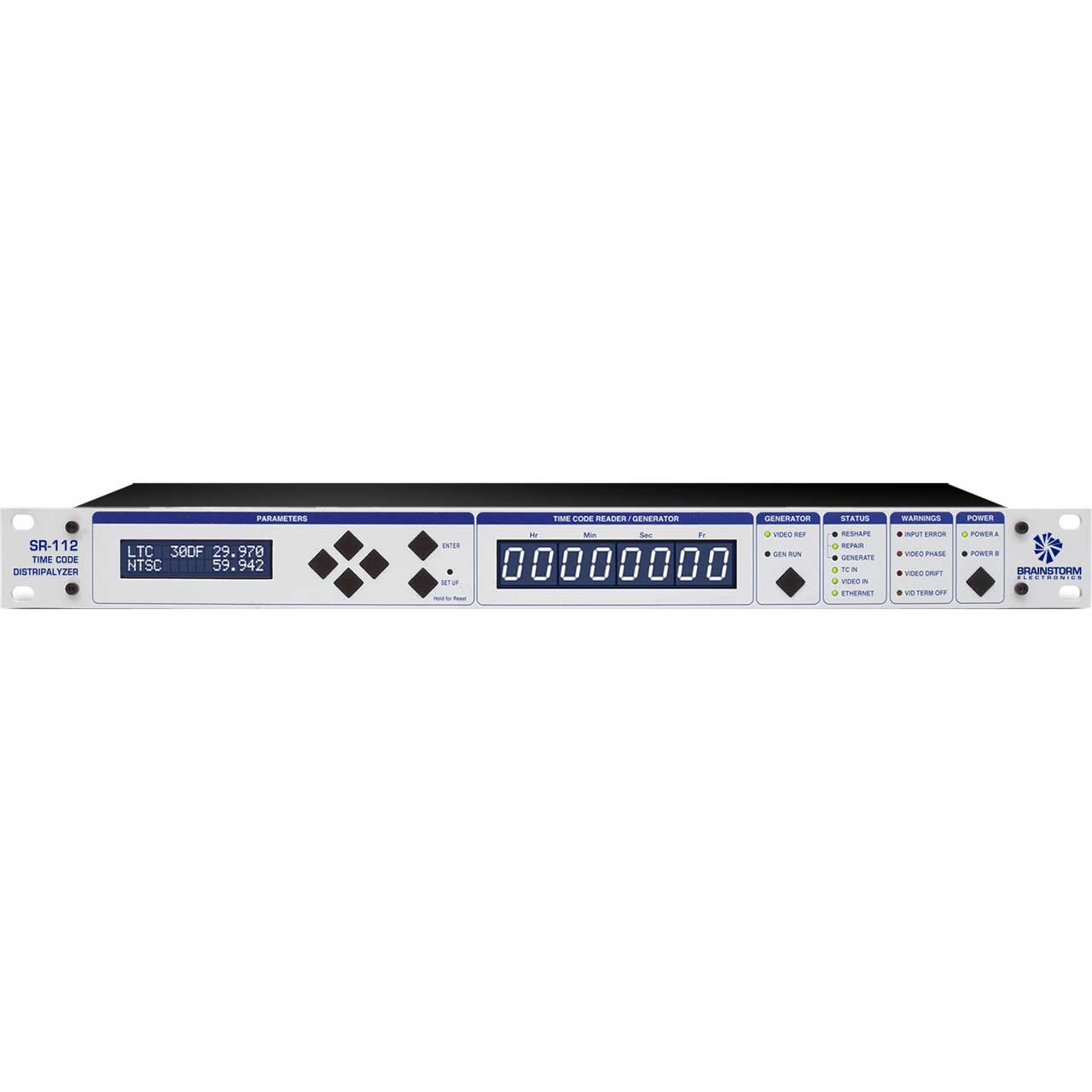

SR-112 - Overview

The Easy Way to Reshape & Distribute Time Code!

• Features:

  • Time Code Analyzer
  • Identify Time Code errors (drop outs...)
  • Monitor video phase (HD & SD)
  • Display format and frame rate
  • Comprehensive report including all errors
  • Large 8 digit time code reader

    Reshaper/Distributor
  • 1x12 time code distributor
  • Individually adjustable output levels
  • Level fluctuations eliminated
  • Amplitude distortions eliminated
  • Buffered outputs

    Ethernet
  • Set parameters and load firmware updates
  • Output a comprehensive time code report

    Power And Expansion
  • Dual redundant power supply
  • Option card slot for future I/O's


• Specifications:

  • TC Distributor: 1x12
  • TC Input Connector: XLR Female
  • TC Output Connectors:
    1x DB-25 Female (8 outputs - Tascam/Avid analog pin configuration)
    2x XLR Male
    2x 1/4" TRS
  • Input Signal: SMPTE/EBU Longitudinal Time Code
    Impedance: 20kΩ bal.; 10kΩ unbal.
    Level: -30dbU min; +20dbU max
  • Output Signal: Waveform: switchable rise time: 1us (square); 25us (SMPTE); 50us (EBU)
    Impedance: 600Ω bal.; 300Ω unbal.
    Level: Adjustable: full off to +8dbU bal.; to + 2dbU unbal.
    Amplitude Distortion: less than 2%
  • Status LEDs:
    Reshape
    Generate (TCG option)
    Video In
    Repair (TCG option)
    TC In
    Ethernet
  • Warning LEDs:
    Input Error (Red)
    Video Drift (Red)
    Video Phase (Yellow)
    Video Termination Off (Yellow)
  • Time Code Reader: 8-digit LED Display indicates hours, minutes, seconds and frames. The display also flashes error descriptions when detected.
  • LCD Display: In addition to being used for SET UP, the 32 character LCD display indicates the following:
    - Format and rate of the incoming time code
    - Format and rate of the video reference
    - User Bits
    - Video Phase
    - List of errors

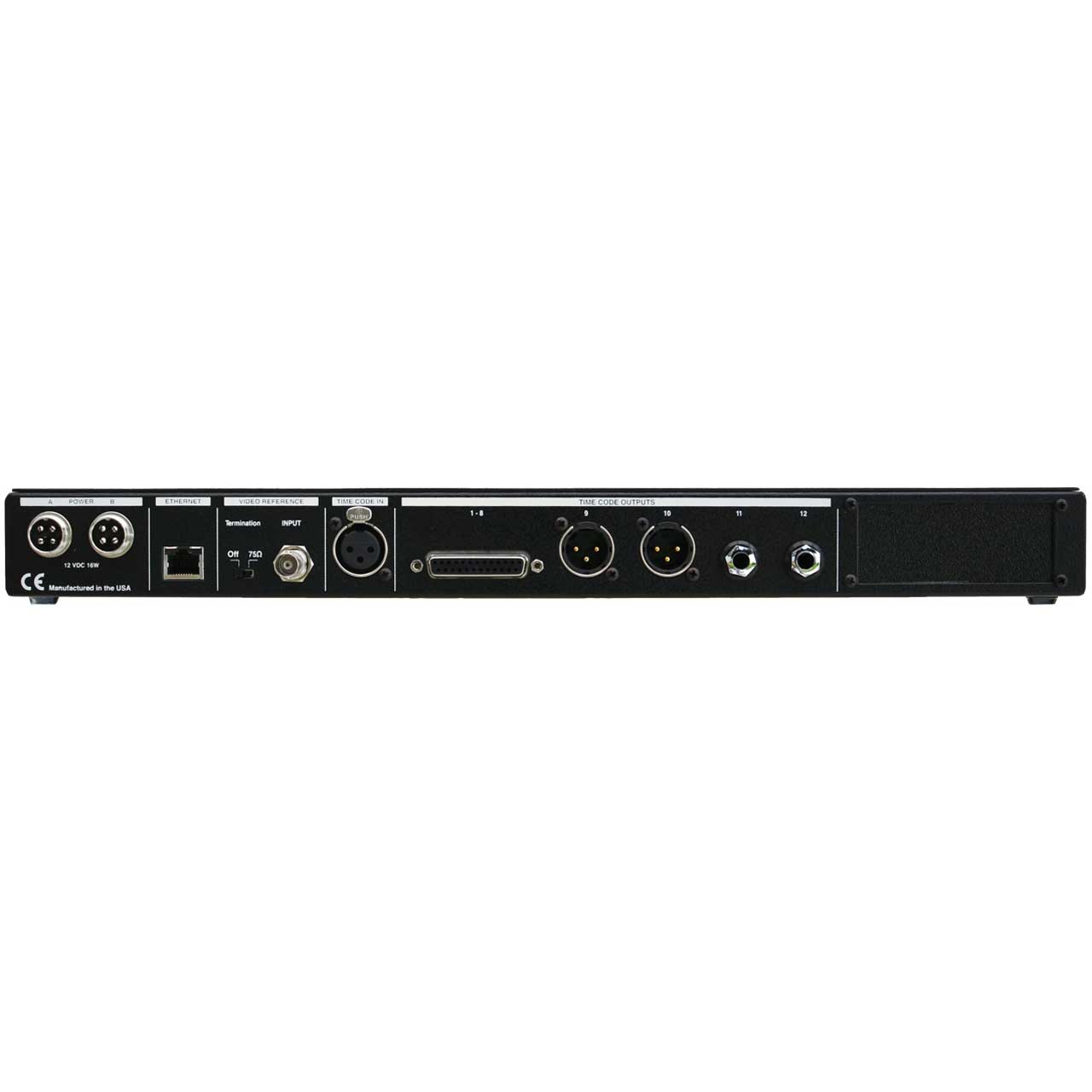

  • Connectors:
    Time Code In: XLR Female
    Video Ref: BNC
    Time Code Outputs:
    - 1x DB25 - Tascam/Avid analog pin configuration: outputs 1 - 8
    - XLR Male: Outputs 9 - 10
    - 1/4" TRS: Outputs 11 - 12
    Ethernet: RJ45 jack
  • Power Connector: 4-pin circular
  • Power: 12VDC @ 5A
    Redundancy: Two separate supplies can be connected to the 2 separate power inputs. If one supply fails, the other takes over and an error is reported. The faulty supply can be swapped without having to power down.
  • Dimensions: 19" x 8.13" x 1.75" (48.26cm x 20.64cm x 4.45cm)


• Item Includes:

  • 1x Power Supply
