4K 60Hz Display Controller with HDCP & Loop Through

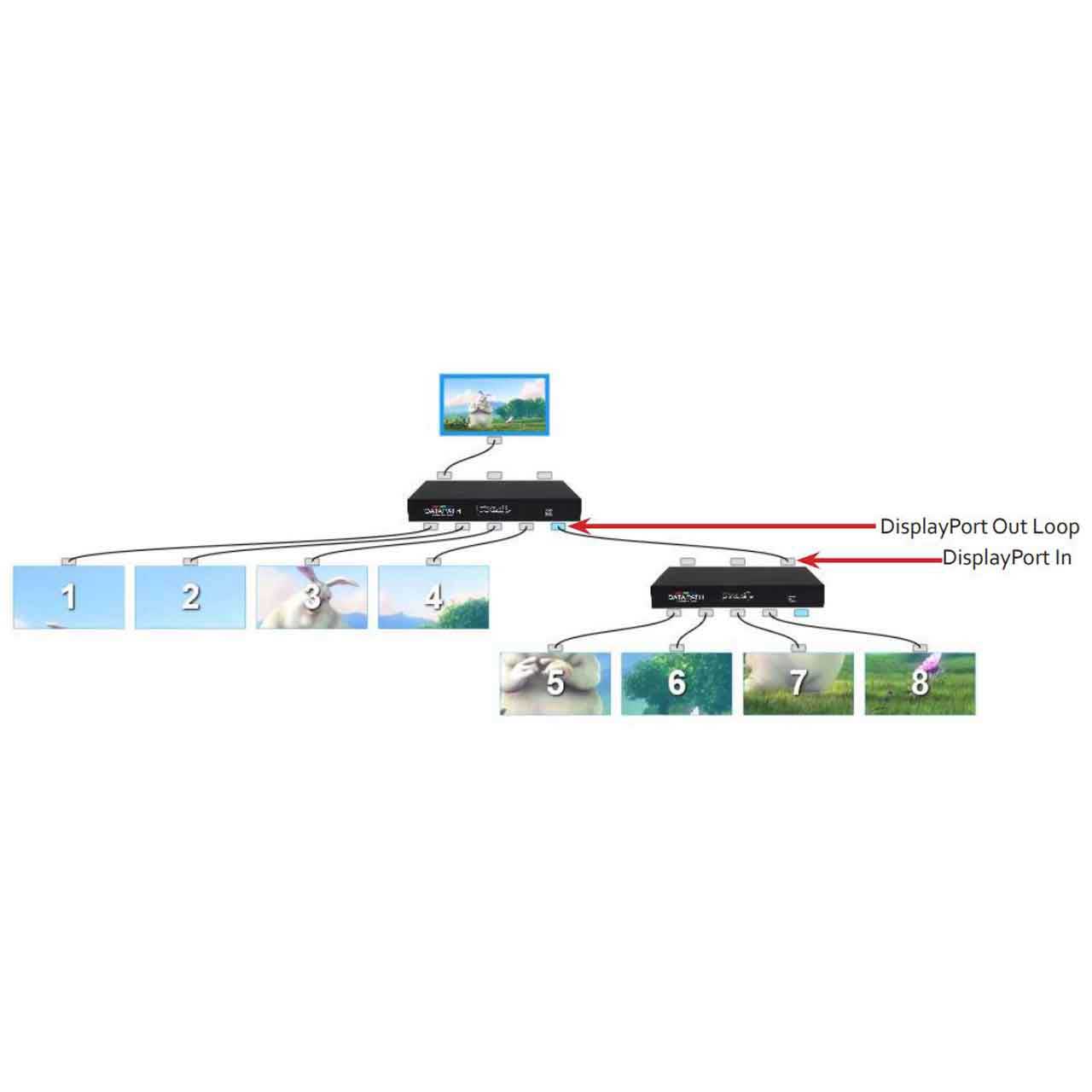

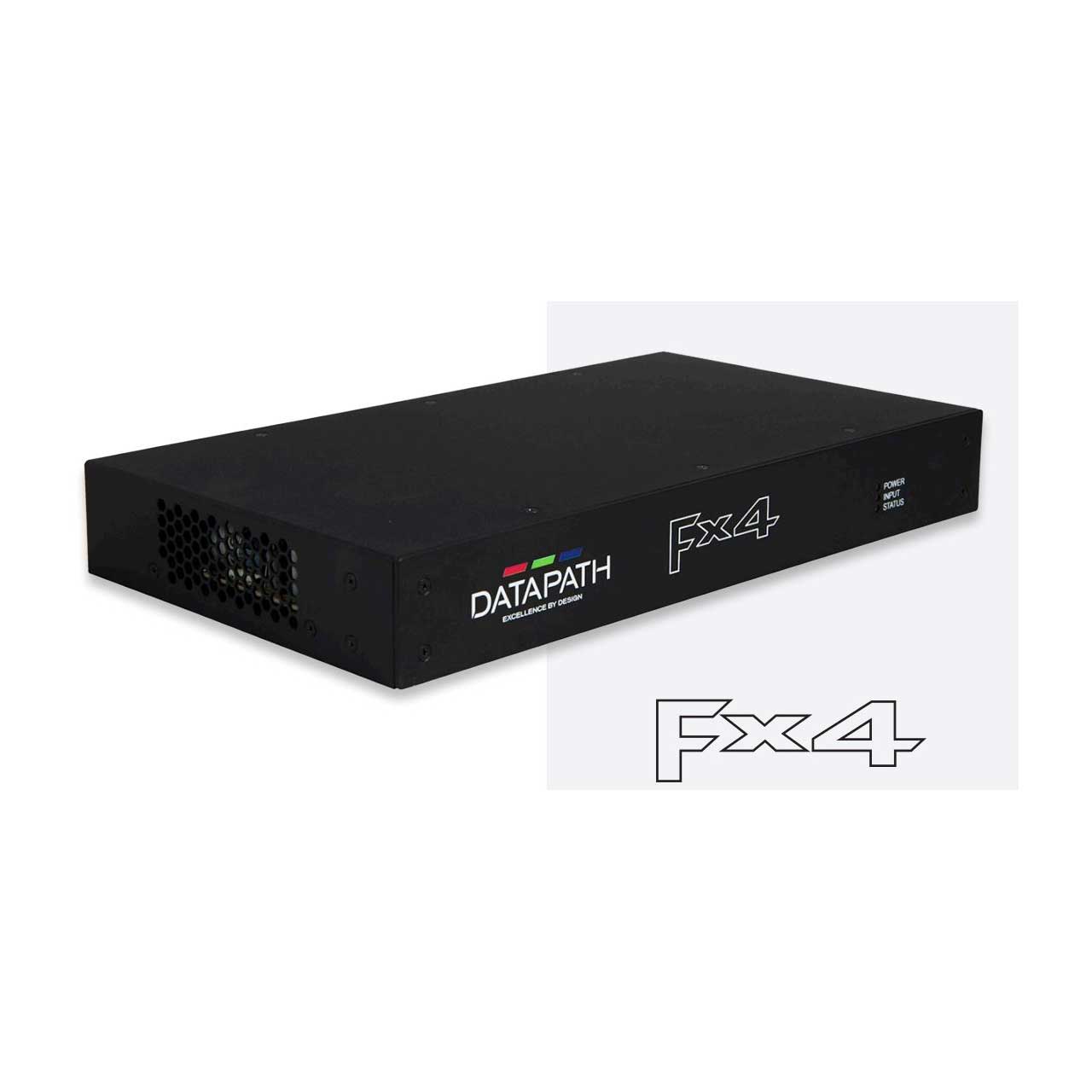

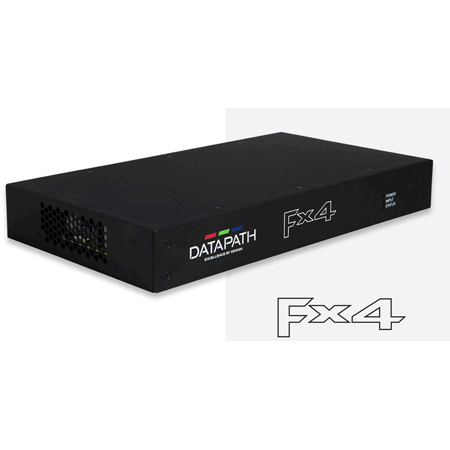

The Datapath Fx4-D is a multi-faceted stand alone Digital Signage Display Controller that supports a choice of inputs. The -D version adds a high bandwidth loop-through as well as 4 genlocked outputs in either DisplayPort or HDMI.
High Performance Controller

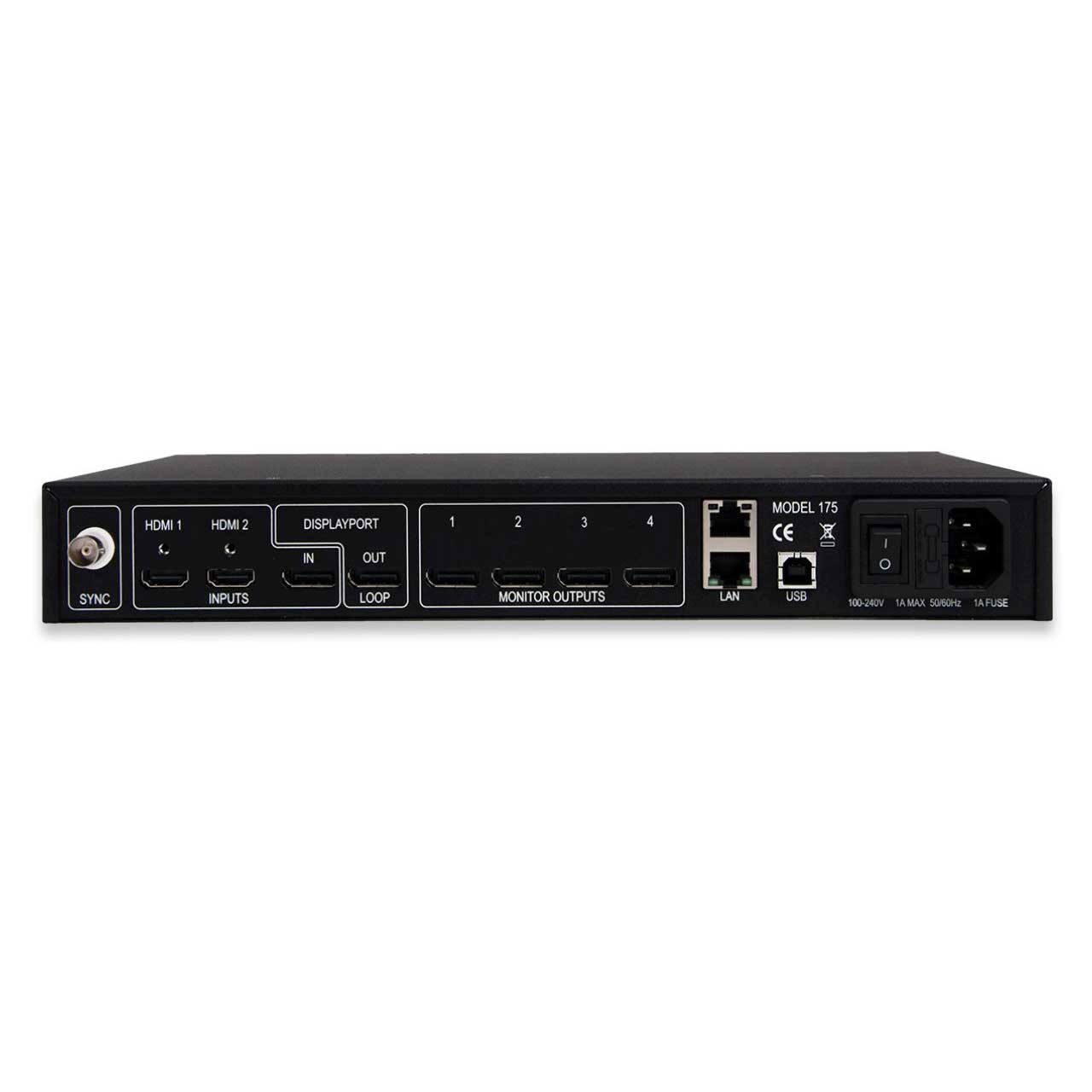

Advancements in digital signage allow much greater freedom in creating and deploying any scale signage projects. At the forefront of this is the Datapath Fx4, a multi-faceted stand alone display controller. The Fx4-D supports a choice of inputs, high bandwidth loop-through as well as 4 genlocked outputs in either DisplayPort or HDMI. The Fx4 features a DisplayPort1.2 main input alongside two HDMI1.4 inputs offering 4K 4096 x 2160p at 60fps. The intuitive user interface allows users to determine which input is used.
Additional Features

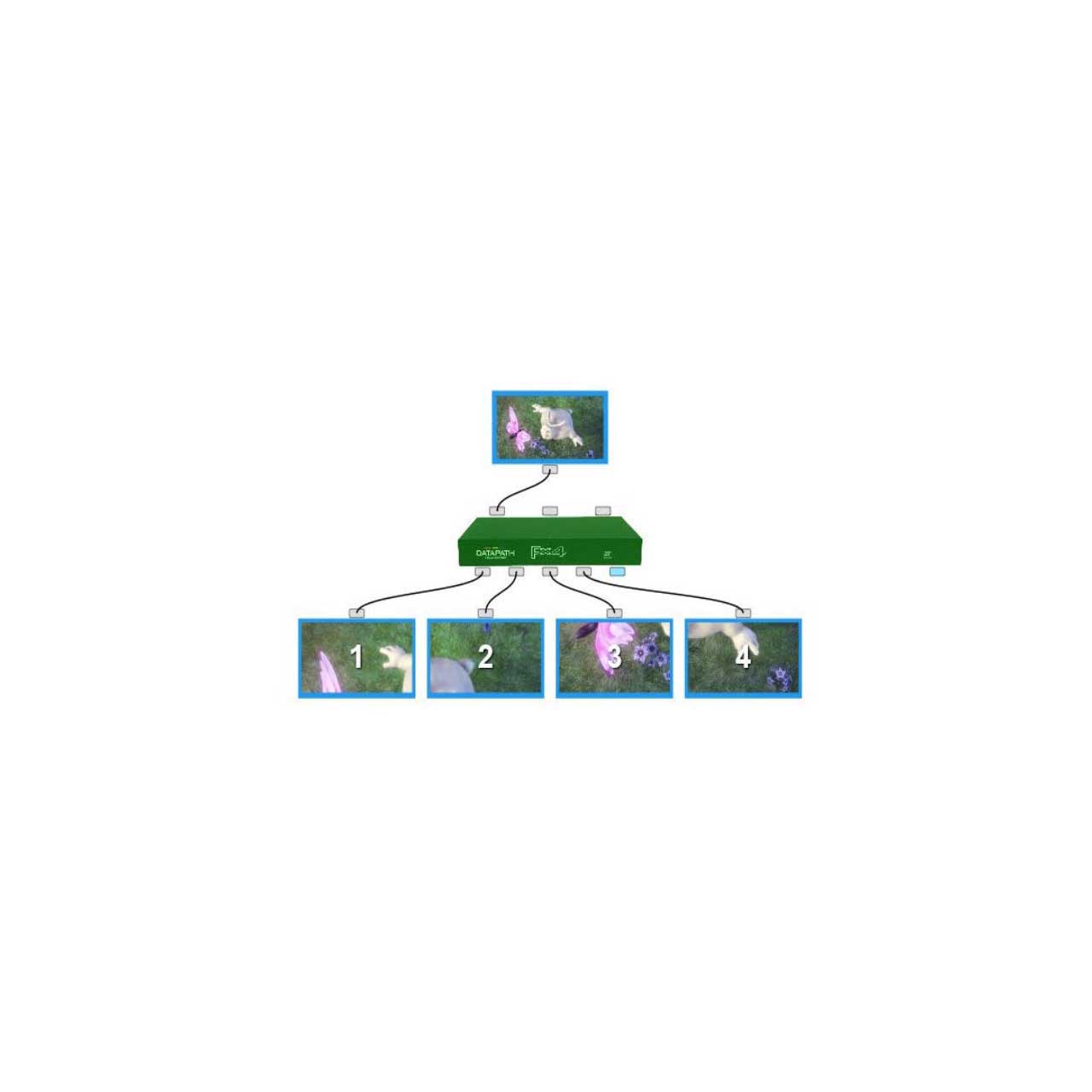

Each output monitor can take its input from any region of the input image as all of the required cropping, scaling, rotation and frame-rate conversion is handled by the Fx4 hardware. These regions can overlap to allow any output to replicate another or can be configured to support any creative splice of the source material. This allows the support of many nonrectangular screen arrangements, as well as any mix of monitor orientations allowing users to create an almost unlimited multi-monitor canvas. The Fx4 also allows users to pre-load an image for immediate display in those cases when the media source or cables malfunction and no signal is being received.
Network Connectivity
The Datapath Fx4 has dual ethernet ports to allow users to add the device to their networks. Only one Datapath Fx4 in the chain requires connection to the physical LAN as ethernet loop through is supported on the second port, meaning multiple devices can be connected.
Wall Designer

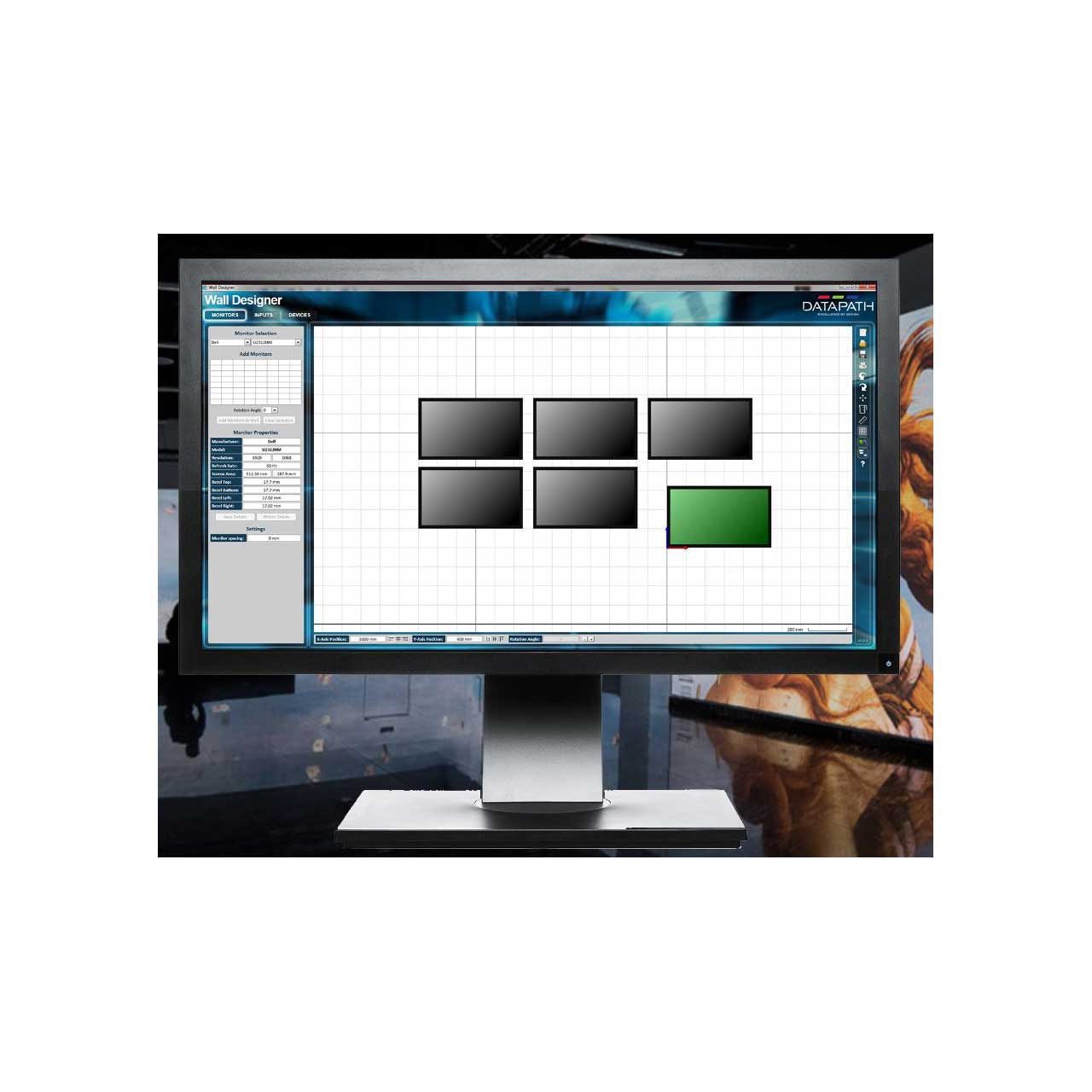

Datapath's hugely popular multi-screen design tool, Wall Designer has also been updated to incorporate Fx4. Wall Designer allows users to add displays from the ever expanding database of monitors, visualise their content by adding inputs and adjusting display regions and finally instantly program all Datapath Fx4s either via USB or the network ports.
