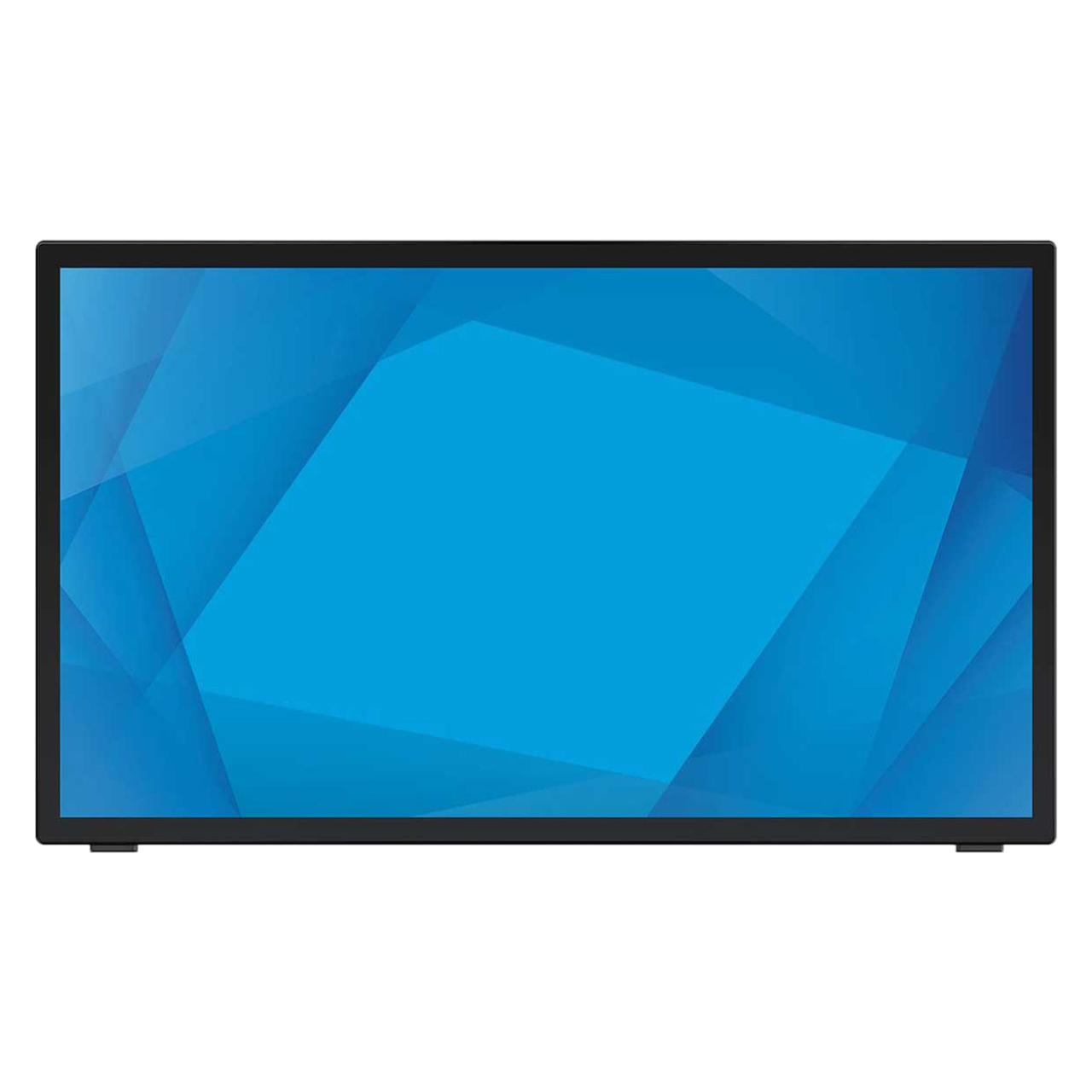

Elo 2470L 24 Inch Full HD TFT Touchscreen Monitor for Digital Signage - 16:9/16 ms - Black

ELO 2470L - Overview

The touchmonitor just got better!

• Features:

  • Narrow border touchscreen with edge-to-edge glass
  • Energy Star 8.0 certified power efficiency
  • Low blue light & Flicker free
  • Flexible stand - from 20° to 70°, place the display at the angle you want or collapse for VESA mounting.
  • Durable IK07 design with scratch resistant surface
  • Up to 70% reduction in bezel width compared to similar models
  • Power collection function via DDCCI


• Specifications:

  • Color: Black
  • Diagonal Size: 23.8" / 604.52 mm
  • Active Touch Area: 20.75" x 11.67" / 527.04 mm x 296.46 mm
  • LCD Technology:Active matrix TFT LCD
  • Touch Technology: TouchPro PCAP
  • Number of Touches: 10 Touches
  • Aspect Ratio: 16:9
  • Native Resolution: 1920 x 1080
  • Preset Video Timings: 640 x 400 70Hz, 640 x 480 60Hz, 720 x 400 70Hz, 800 x 500 60Hz, 800 x 600 56, 60Hz, 1024 x 768 60Hz, 1280 x 720 @ 58Hz, 60Hz, 1280 x 800 60Hz, 1280 x 1024 60Hz, 1366 x 768 60Hz, 60Hz RB, 1440 x 900 60Hz, 60Hz RB, 1680 x 1050 60Hz, 60Hz RB,1920 x 1080 50 60Hz
  • Number of Colors: 16.7M
  • Brightness (typical) Panel: 250 nits; with TouchPro PCAP: 225 nits
  • Response Time (Tr + Tf): (typical) 16 msec
  • Viewing Angle (typical): Horizontal: 89°/89° or 178° total; Vertical: 89°/89° or 178° total
  • Contrast Ratio (typical): 1000:1
  • On-Screen Display (OSD): Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.
  • Controls: Menu, Power
  • Settings: Brightness, Contrast, Video Priority, Clock, Phase, H-position, V-position, Auto-Adjust, Color Temperature, Low Blue Light, Volume, Mute, Audio Source Select, Line-in/Headphone Out OSD Timeout, OSD Language, Aspect Ratio, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults
  • Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
  • Lockouts: OSD, Power

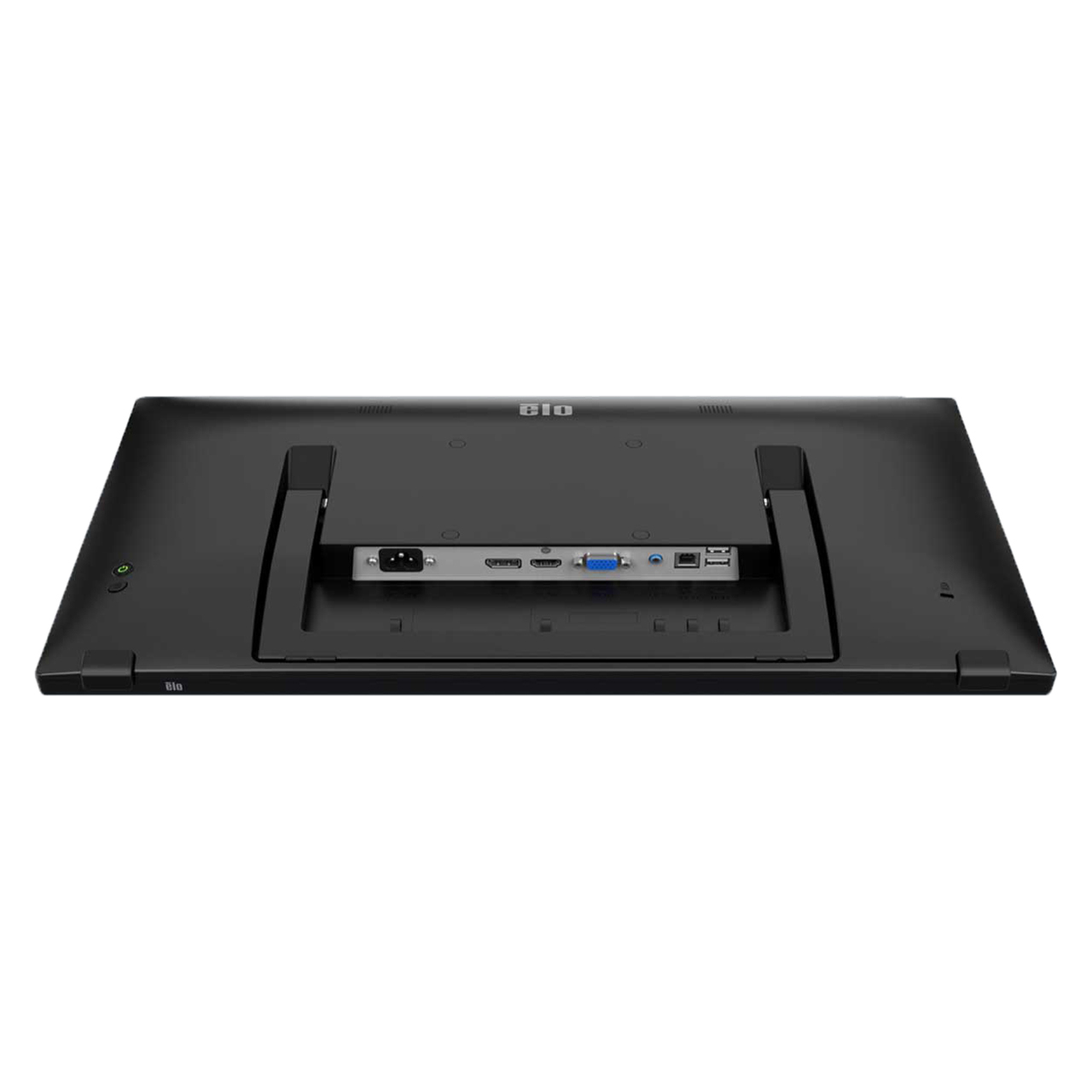

  • I/O Ports: AC Input (IEC60320 C6), Audio in/out, VGA, HDMI, DisplayPort, USB 2.0 Type B, 2x USB 2.0 Type A - Video VGA (Female DB-15 connector), HDMI (receptable type A), DisplayPort
  • Input Video Horizontal Sync frequency range: 30 - 82KHz, Input Video Vertical Sync (frame rate) frequency range: 50 - 75Hz
  • Speakers: 2 x 2W internal speakers
  • AC power input connector: (IEC 60320 C6), AC input voltage range: 100-240VAC, 50/60Hz
  • Power Consumption (typical): only display and touch function available - ON (Default 80% Brightness): 14.5 W, ON (100% Brightness):16.7 W, SLEEP: 0.5 W, OFF: 0.16 W
  • Dimensions (H x W x D): 21.66" x 12.96" x 1.65" / 550.2 mm x 329.3 mm x 41.8 mm
  • Shipping Dimensions (H x W x D): 24.80" x 5.35" x 16.46" / 630 mm x 136 mm x 418 mm
  • Weight: 10.58 lbs / 4.8 kg
  • Shipping Weight: 15.65 lbs / 7.1 kg
  • Mounting Options: VESA 4-hole 100mm mounting interface on rear of unit - Kick stand Adjustable angle (20-70 degree)


• Item Includes:

  • 1x 2470L Touchmonitor
  • 1x Quick Install Guide
  • 1x HDMI cable
  • 1x Touch USB cable
  • 1x NA Power cable
  • 1x EU Power cable
  • 1x EEI Label (EU)
  • 2x EEI Label (UK)
  • 2x Replace foot cover
  • 5x Cable tie


• Warranty:

  • 3 Year


• GTIN:

  0843173131542
