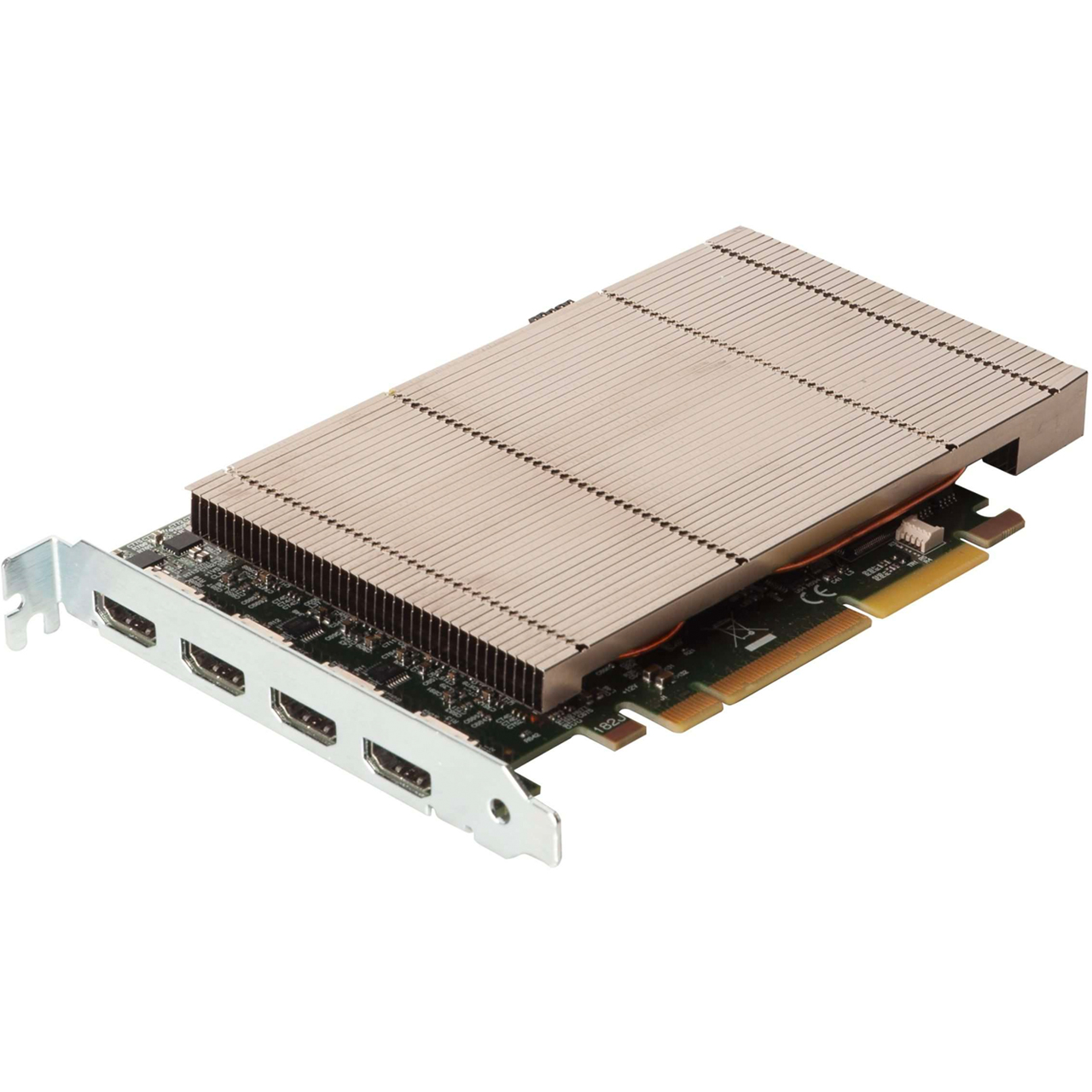

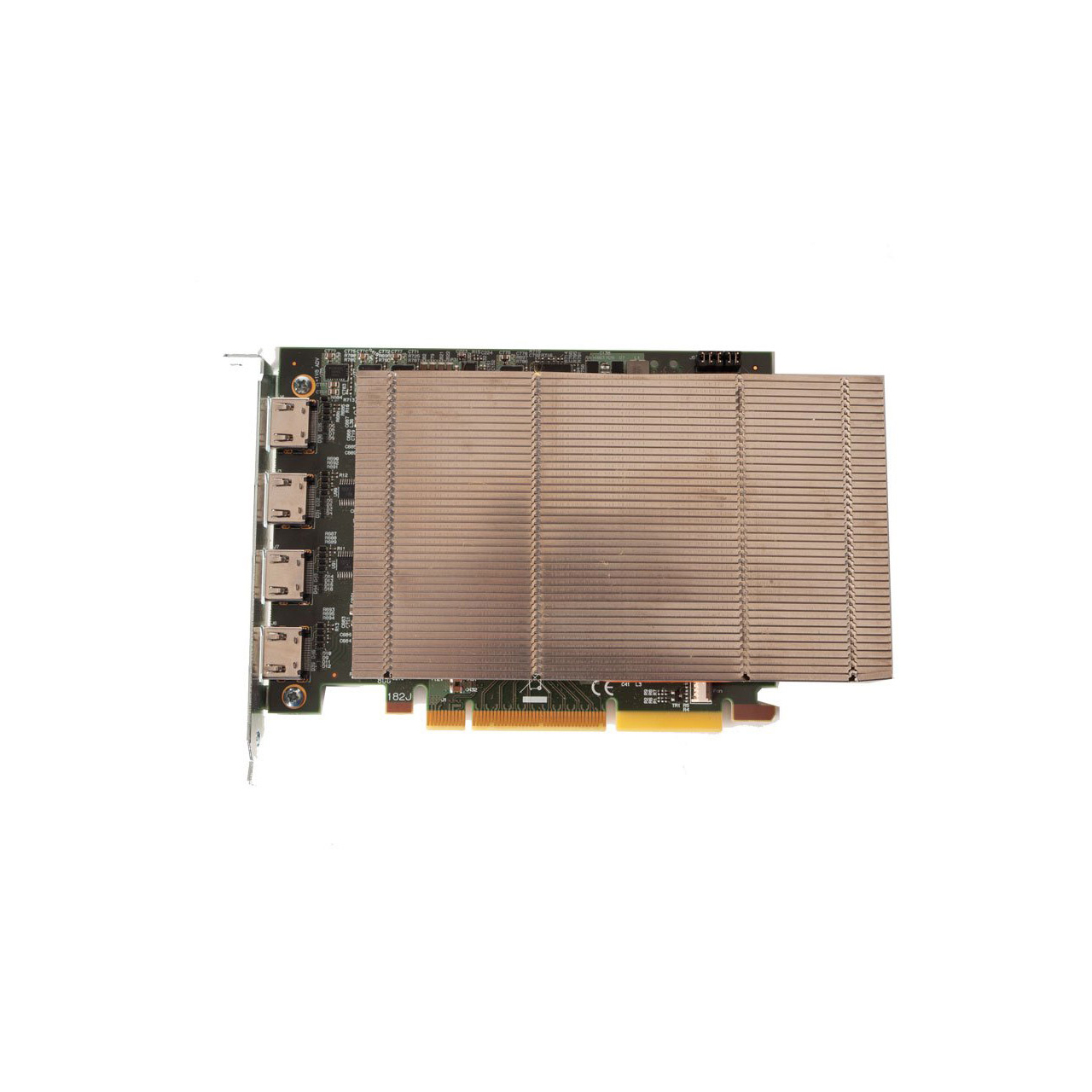

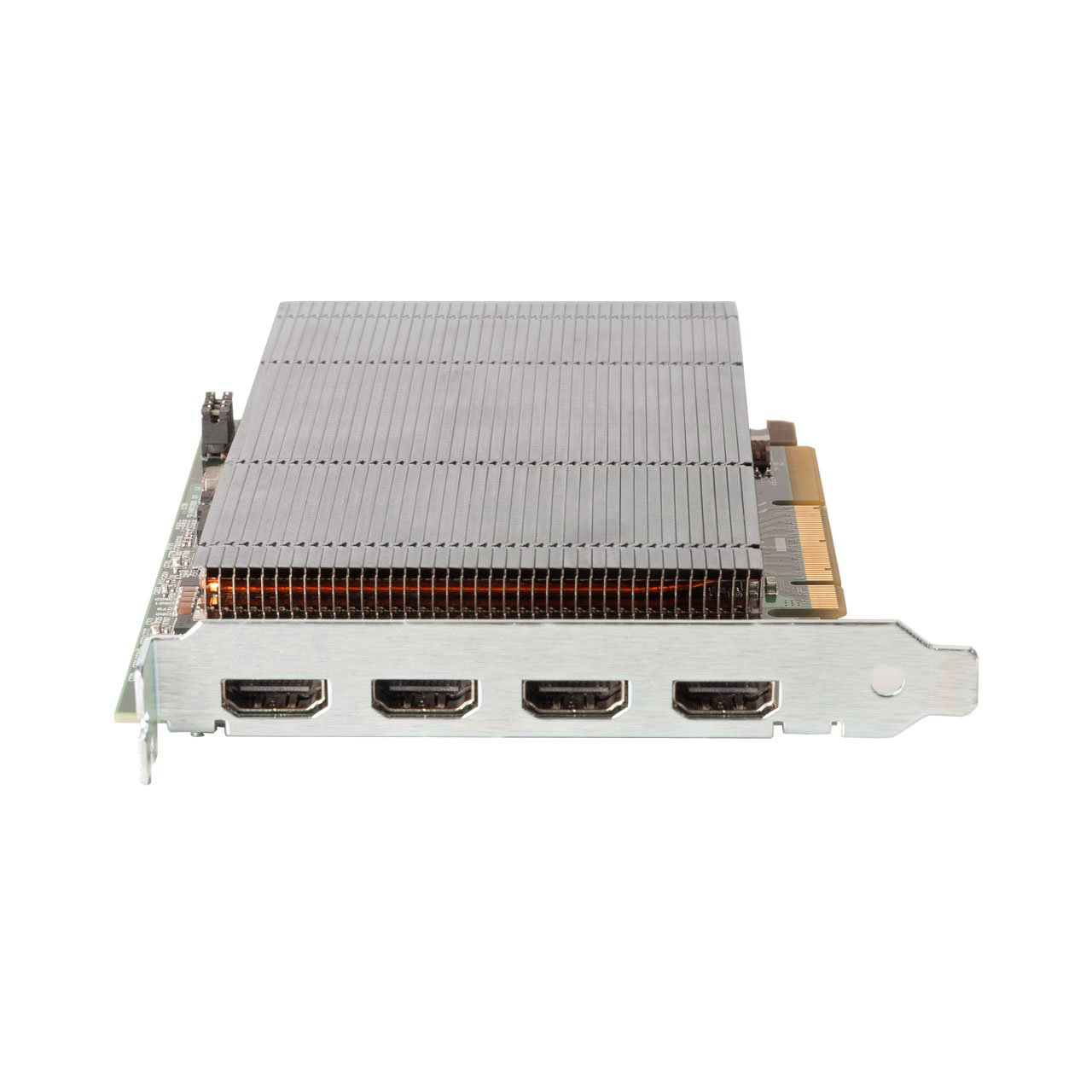

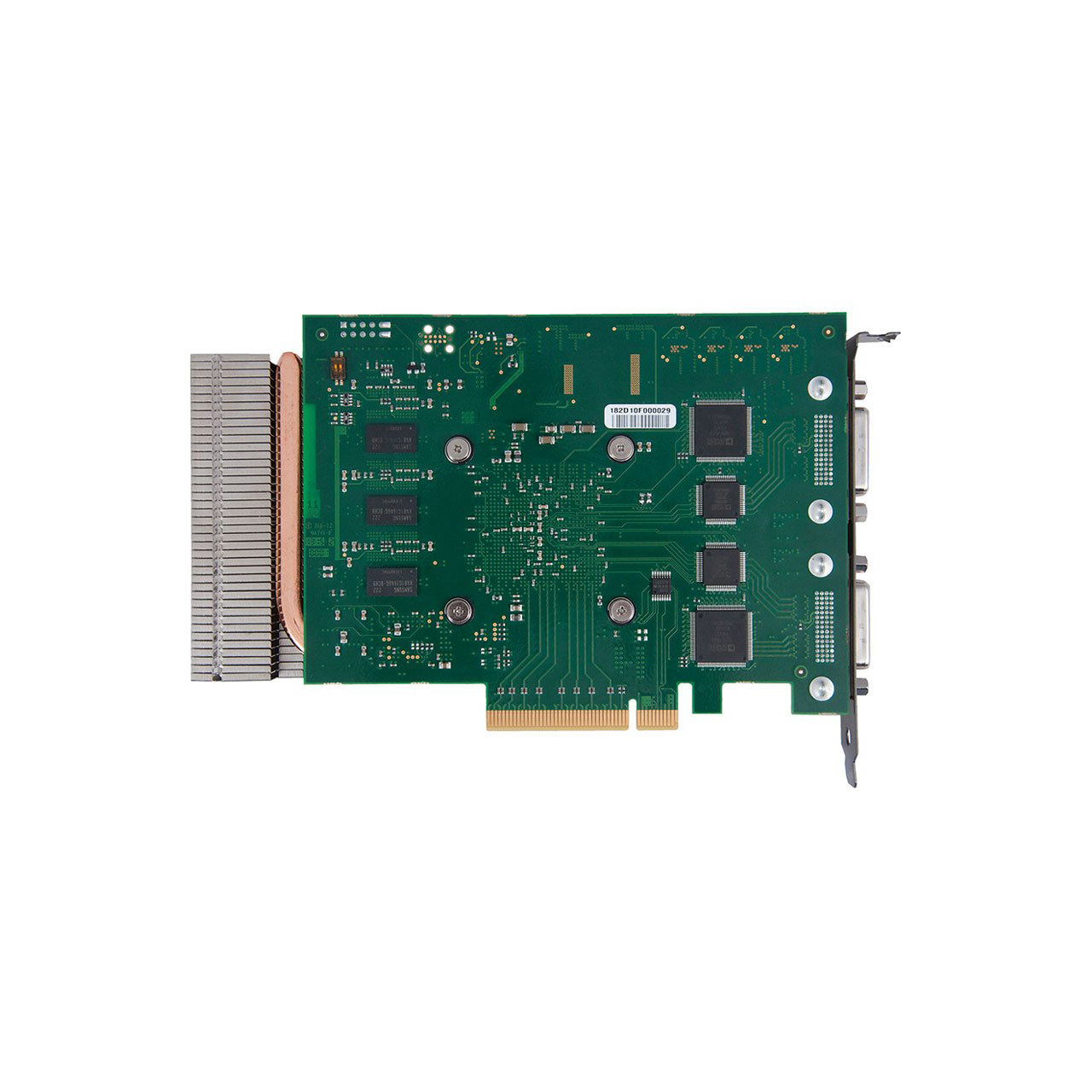

Datapath's VisionSC-HD4+ audio video capture card provides an outstanding, powerful solution for multiple HDMI or DVI video capture with support for HDCP. A wide range of applications demand multiple channels of video capture from a single card. These markets include advanced medical, machine vision capture, military applications and security/surveillance systems.
The VisionSC-HD4+ has four channels of HDMI 1.4, two supporting 297MHz (3840x2160 at 60 fps) and two supporting 165 MHz (1920x1080 at 60 fps), all operating independently of each other. This enables four separate video sources to be captured and controlled simultaneously. The card also has embedded audio support across all four channels. The VisionSC-HD4+ is shipped with adapter cables for either HDMI or DVI.
Vision Performance Features
The VisionSC-HD4+ is supplied with the Datapath Vision Performance Driver. Combining both Hardware and Software enhancements the Vision Performance Driver provides users with a variety of features to help them achieve their goals.
Features include LiveStream:Capture, low latency capture solution, MultiStream allowing for the independent control of multiple instances of a single capture, a hardware based time stamping facility, automatic signal detection and more.
Video Streaming
For streaming applications, the VisionSC-HD4+ can be used with Windows Media Encoder to compress and stream captured video. To replay the video, use Windows Media Player.
Any application compatible with Windows DirectShow technology can use the VisionSC-HDMI4 due to it built-in WDM support.
Compatibility
For streaming applications, the VisionSC-HD4+ can be used with Windows Media Encoder to compress and stream captured video. To replay the video, use Windows Media Player.
