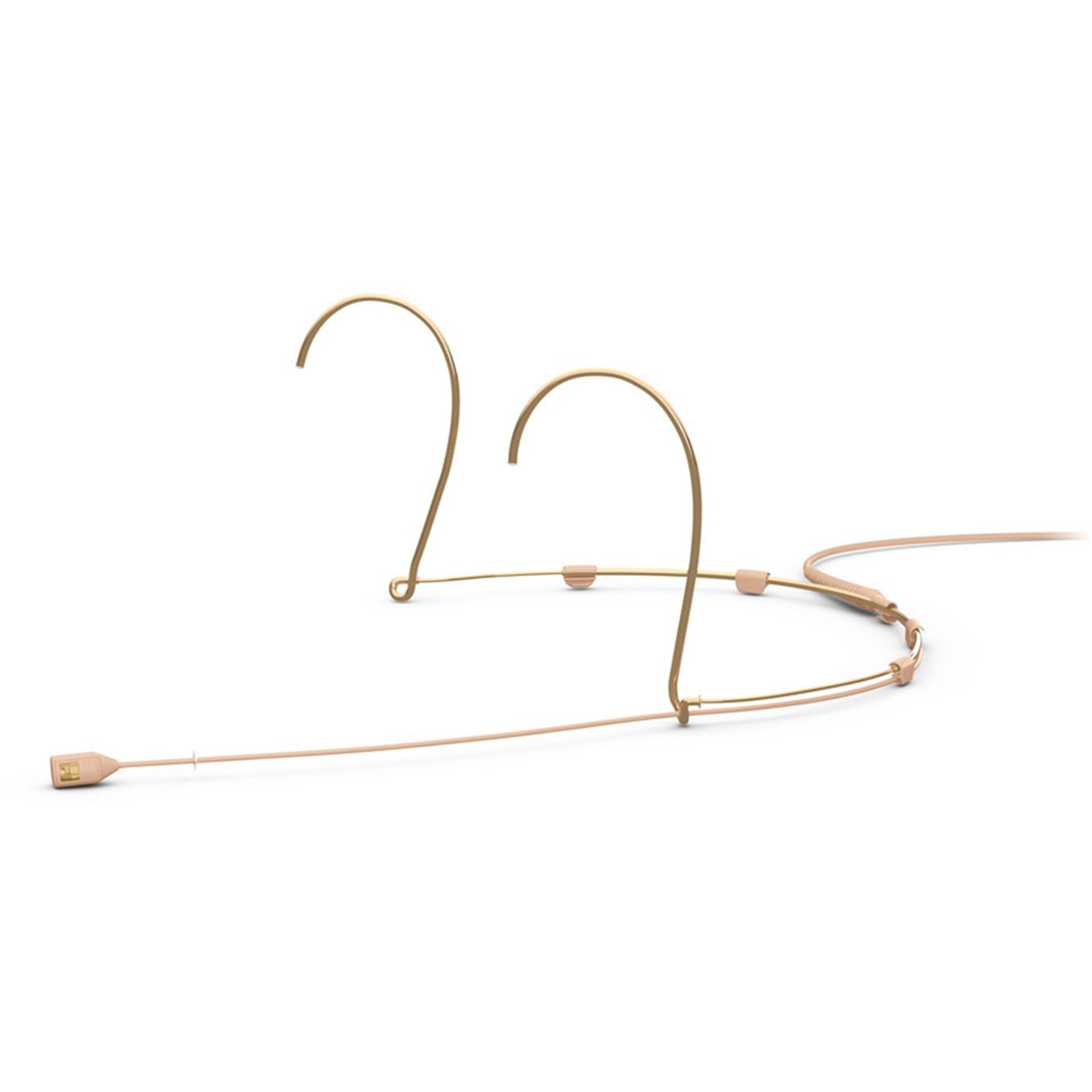

DPA 4088-DC-A-F34-LH 4088 CORE Directional Headset Microphone with Mini-Jack - Beige

ITEM #: DPA-4088DCAF34LH MFG #: 4088-DC-A-F34-LH

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$975.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


4088-DC-A-F34-LH - Overview

Ideal for both spoken word and vocal performance applications

The DPA DPA 4088-DC-A-F34-LH is a Core 4088 Directional Headset Microphone with 3.5mm Locking Mini-Jack Connector, medium in beige. The Core 4088 microphone was created for theater and broadcast applications and provides a 14 dB increase in both THD (total harmonic distortion) and dynamic range to improve clarity and openness. This headworn cardioid microphone is small at 0.25" diameter and light with a 0.5-ounce body and was designed for discreet and comfortable use featuring a dual design that can be worn on either ear for versatility.

This mic provides excellent off-axis rejection in high-SPL situations. It efficiently suppresses distant sound sources making it perfect for demanding live performance environments where background noise and feedback are concerns. In high-SPL events, or when feedback is a issue, this microphone will tackle these challenges with ease. The bass response is designed for optimal linearity at 2-3 cm (1 inch) from the sound source. This means that the bass roll-off will be relatively prominent at a greater distance - a paramount factor when it comes to rejection of background noise and in the fight to avoid feedback.

  • Features:

    • IP58 certified
    • Water-repellant nano-coating cover and housing
    • Hermetic sealed amplifier at the core of the mic
    • Dual gold plated diaphragm
    • Pristine audio quality
    • Lightweight and flexible
    • Easy mounting to the left or right ear
    • Resistant to humidity
    • Flexible adapter system fits most professional wireless systems

  • Specifications:

    • Directional pattern: Cardioid
    • Principle of operation: Pressure gradient
    • Cartridge type: Pre-polarized condenser
    • Frequency response: 20 Hz - 20 kHz
    • Effective frequency range: ±2 dB, Near field 2-3 cm (0.8 - 1.2 in)100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)
    • Sensitivity: nominal, ±3 dB at 1 kHz6 mV/Pa; -44 dB re. 1 V/Pa
    • Equivalent noise level: A-weighted Typ. 26 dB(A) re. 20 æPa (max. 28 dB(A)
    • Equivalent noise level: ITU-R BS.468-4Typ. 38 dB (max. 40 dB)
    • Distortion: THD < 1% - Legacy 120 dB SPL RMS, 123 dB SPL peak
    • Distortion: THD < 1% - CORE 134 dB SPL RMS, 137 dB SPL peak
    • Dynamic range - Legacy: Typ. 97 dB
    • Dynamic range - CORE: Typ. 111 dB
    • Max. SPL: THD 10% 144 dB SPL peak
    • Rated output impedance: 30 - 40 Ω
    • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
    • Power supply (for full performance): For wireless systems - Min. 5 V - max. 10 V through DPA adapter/DAD6001-BC: P48 (Phantom Power). Will work from 12 V
    • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
    • Connector: Mini-Jack
    • Color: Beige
    • Weight: 14 g (0.5 oz) incl. Cable
    • Microphone diameter: 5.4 mm (0.21 in)
    • Microphone length: 11 mm (0.5 in)
    • Cable length: 1.2 m (3.9 ft)
    • Cable diameter: 1.6 mm (0.06 in)
    • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
    • Temperature range: -40°C to 45°C (-40°F to 113°F)
    • Relative humidity (RH): Up to 90%

  • Item Includes:

    • 1x 4088 CORE Directional Headset Mic in Beige with Mini-Jack
    • 1x Foam windscreen
    • 1x Makeup cover
    • 1x Clothing clip
    • 1x Pop screen

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    5713055011963
