DPA 4097-DC-F-B01-120 CORE Supercardioid Choir Mic & 48-Inch Boom & Floor Stand - IP58 rated - XLR w/MicroDot - Black

ITEM #: DPA-4097FB01120 MFG #: 4097-DC-F-B01-120

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,300.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


4097-DC-F-B01-120 - Overview

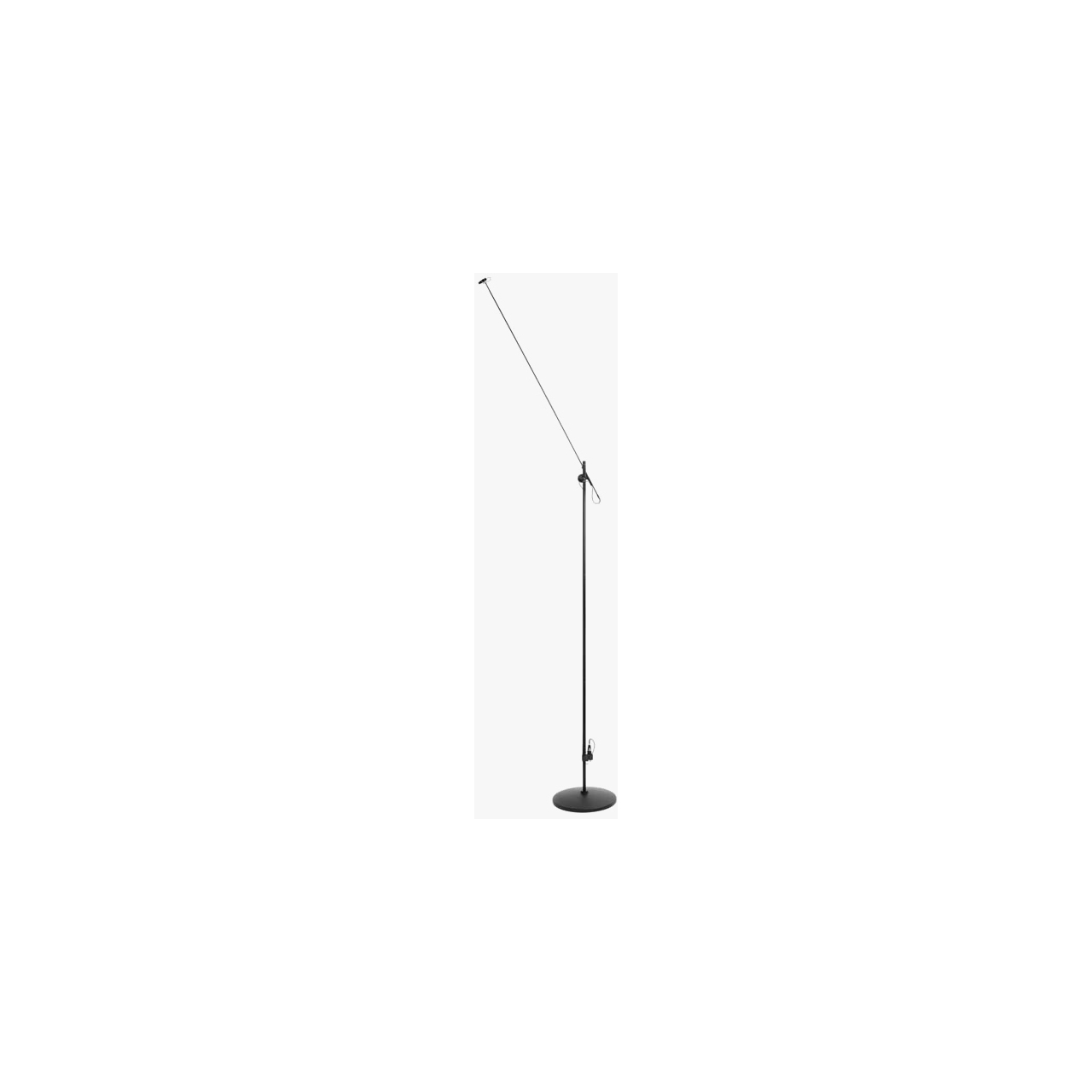

The DPA 4097-DC-F-B01-120 is a 4097 CORE Supercardioid Choir Mic that comes with a 48-Inch Boom & Floor Stand, all in black. Designed as a choir mic, predominately for use in House of Worship communities, the 4097 CORE Supercardioid Choir Mic will suit anyone looking for an unobtrusive, versatile and great sounding choir mic, such as live broadcast shows with choir or ensemble vocal performances.

An inconspicuous floor stand solution specifically designed to capture the natural sound of a choir, the 4097 is unlike any Choir Mic available on the market. Each part of the solution has been specifically designed and tested to ensure it meets the needs of a wide range of choir situations.

The 4097 has a smaller, slimmer, more unobtrusive footprint, seen from the audience's point of view. Part of this is due to the elegant and exclusive looking black matte, non-reflective surface, which diminishes reflections from overhead lights

The 4097 has a more stable construction than any other dedicated choir mic on the market. The shorter active boom pole is very quick to stabilize if accidently bumped. The three built-in shock mounts - in the microphone capsule, the swivel joint and the floor base - combine to decrease rumble if bumps happen. The unobtrusive, yet, balanced floor base contains an integrated shock mounting solution, which helps stabilize the entire construction. The vertical pole that attaches to the base consists of three individual pieces that can be used to adjust the total height of the system. Simple, yet secure thread screws hold the three pieces together.

  • Features:

    • Unobtrusive, yet elegant design
    • Supercardioid pick up pattern
    • Uniform off-axis response
    • Reaches up to 253.3 cm (99.7 in)
    • Three integrated shock mounts ensure stability
    • Rapidly stabilizing active boom pole
    • Wireless capabilities ensure a flexible solution
    • IP58 rated - Protected from limited dust ingress - Protected from long term immersion up to a specified pressure.

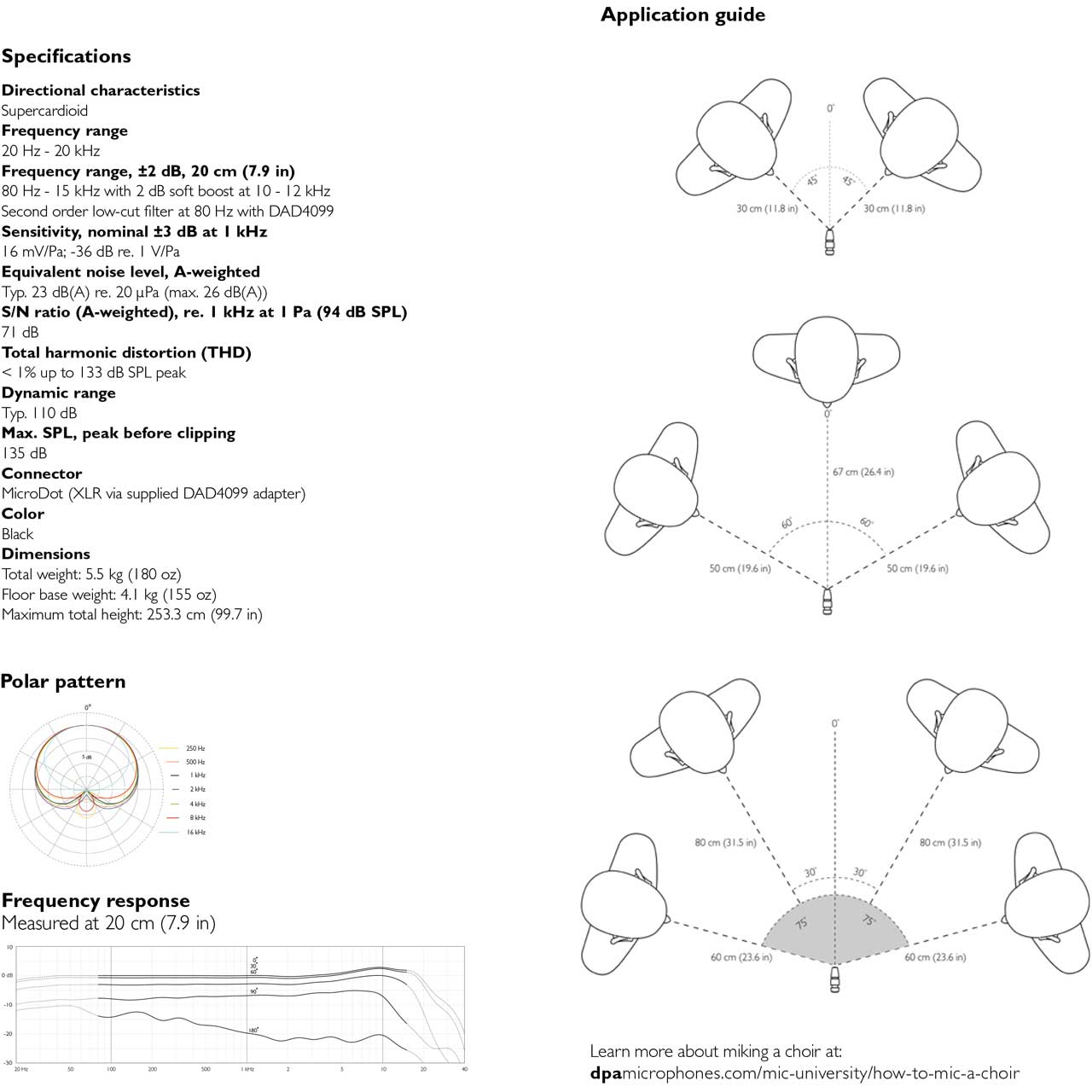

  • Specifications:

    • Directional pattern: Supercardioid
    • Principle of operation: Pressure gradient
    • Cartridge type: Pre-polarized condenser
    • Frequency response: 20 Hz - 20 kHz
    • Effective frequency range ±2 dB, at 20 cm (7.9 in): 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz. Second order low-cut filter at 80 Hz with DAD4099-BC
    • Sensitivity, nominal, ±3 dB at 1 kHz: 16 mV/Pa; -36 dB re. 1 V/Pa
    • Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 æPa (max. 26 dB(A))
    • Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
    • Distortion, THD < 1%: 130 dB SPL RMS, 133 dB SPL peak
    • Dynamic range: Typ. 110 dB
    • Max. SPL: THD 10%135 dB SPL peak
    • Rated output impedance: From MicroDot: 30 - 40 Ω. From DAD4099-BC XLR Adapter: 100 Ω
    • Cable drive capability: Up to 300 m (984 ft) with DAD4099-BC XLR Adapter
    • Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD4099-BC XLR Adapter
    • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter With DAD4099-BC: P48 (Phantom Power). Will work from 12 V
    • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD4099-BC XLR Adapter
    • Connector: Micro Dot XLR via supplied DAD4099-BC adapter
    • Color: Black
    • Weight: Total: 5.1 kg (180 oz). Round Base: 4.4 kg (155 oz)
    • Maximum Total Height: 253 cm (100 in)
    • Temperature range: -40°C to 45°C (-40°F to 113°F)
    • Relative humidity (RH): Up to 90%

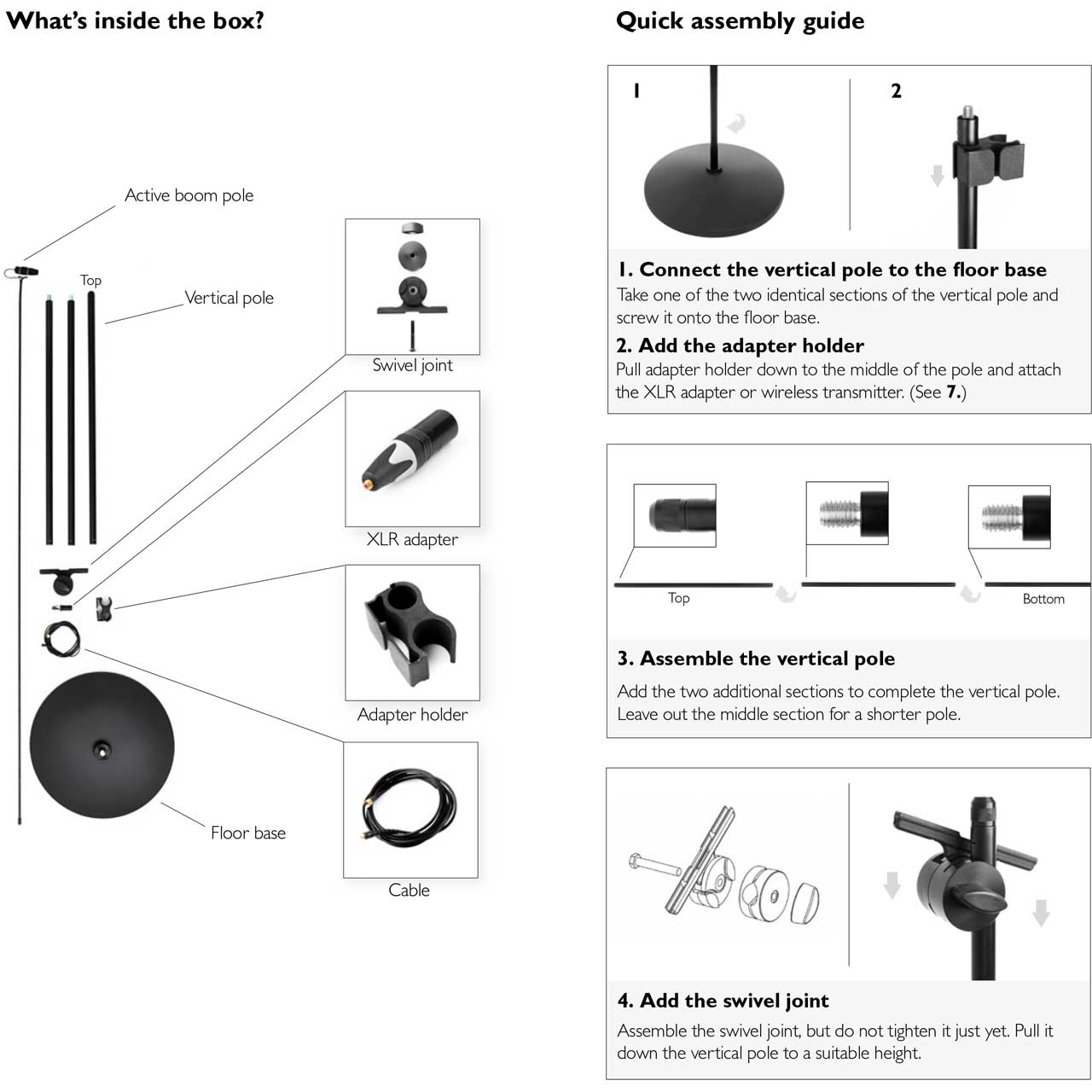

  • Item Includes:

    • 1x 4097 Core Supercardioid Choir Microphone (Black)
    • 1x DAD4099-BC Micro-Dot to XLR w/Belt Clip and Low-Cut Filter for 4099 Microphone
    • 1x Mic Cable with MicroDot Termination
    • 1x Active Boom Pole
    • 3x Vertical Poles
    • 1x Swivel Joint
    • 1x Adapter Holder
    • 1x Floor Base

  • Warranty:

    • 2-Year
