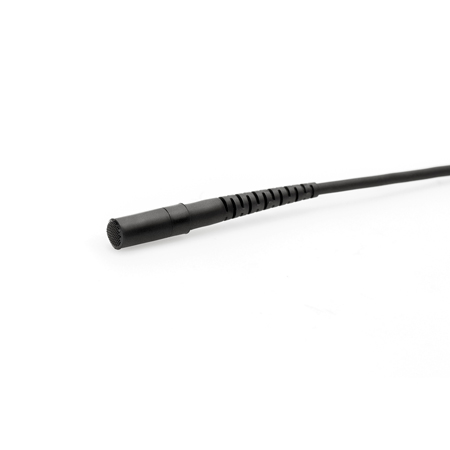

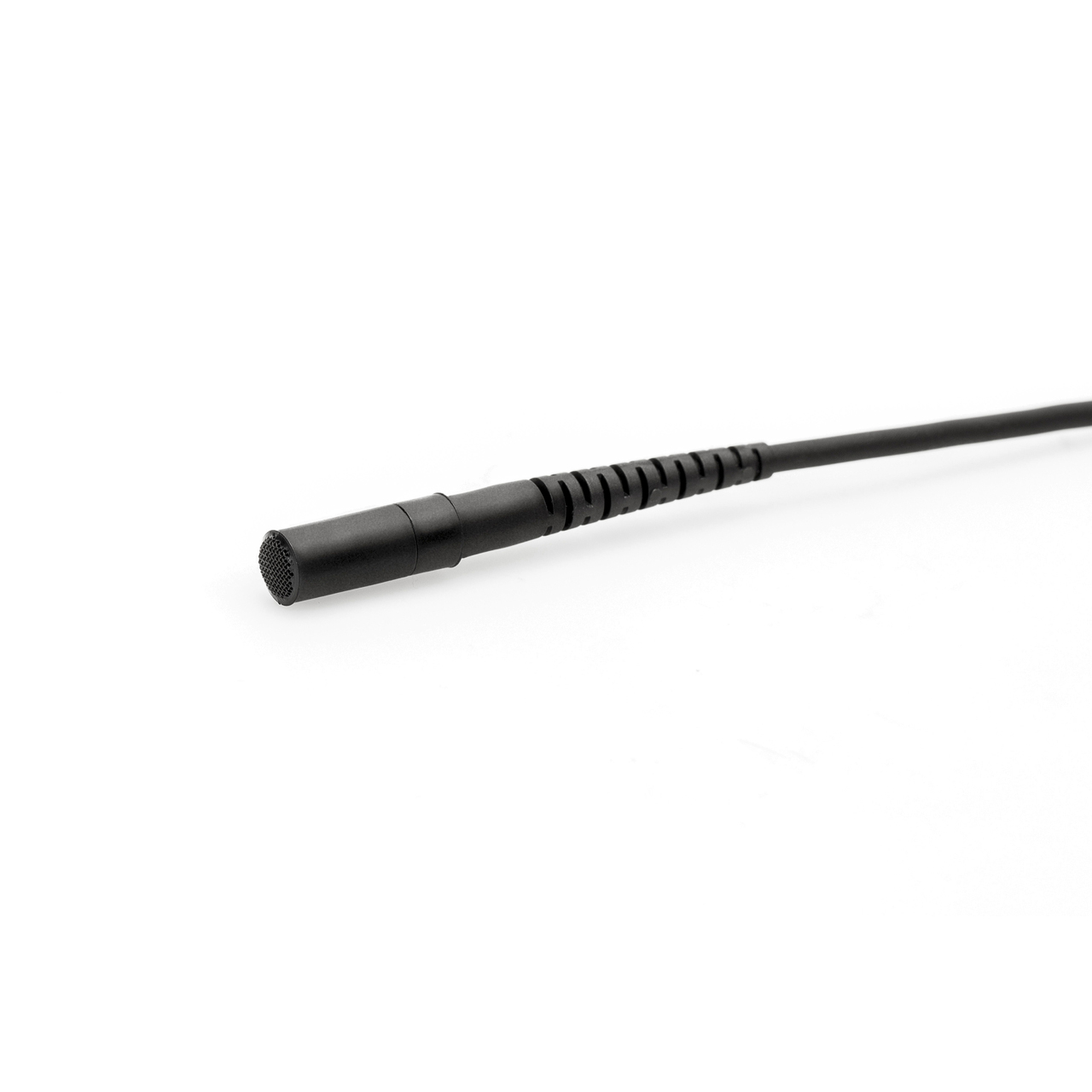

DPA 4671 CORE+ Heavy Duty Omni Lavalier Mic with Presense Boost and Loud SPL - Black - MicroLock

ITEM #: DPA-4671-OP-HB90 MFG #: 4671-OP-H-B90

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$715.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


4671-OP-H-B90 - Overview

Made for situations where you require maximum security and where the visual size of the mic is less important. The Heavy Duty DPA 4671 features a stainless steel housing, a heavy-duty cable relief and a thick 2.2 mm (0.09 in) cable. DPA Heavy Duty microphones are a more robust version of the original mics they are based upon. CORE+ is a revolutionary leap ahead in microphone design, blurring the lines between what is and isn't acoustically possible.

CORE+ is a technology that neutralizes distortion across the entire dynamic range of the microphone making any residual distortion imperceptible to the naked ear and virtually unmeasurable.

Removing these remnants of distortion allows sound engineers to capture a new level of audio clarity easily and efficiently, so they can shape an extraordinary listening experience for the audience.

CORE+ applications
Microphones with CORE+ deliver crystal clear, distortion-free sound across the entire dynamic range of the microphone. Anyone seeking the highest possible sound quality will appreciate CORE+.

Whether recording or amplifying content, the sound will remain clear and completely undistorted by the microphone, even when the talent speaks or sings at louder volumes.

Especially at higher sound pressure levels and with multiple microphones on stage, the elimination of distortion will enhance the overall clarity and transparency of the entire sound image.

For miniature microphones in particular, sound professionals in theaters and film industry are the primary beneficiaries.

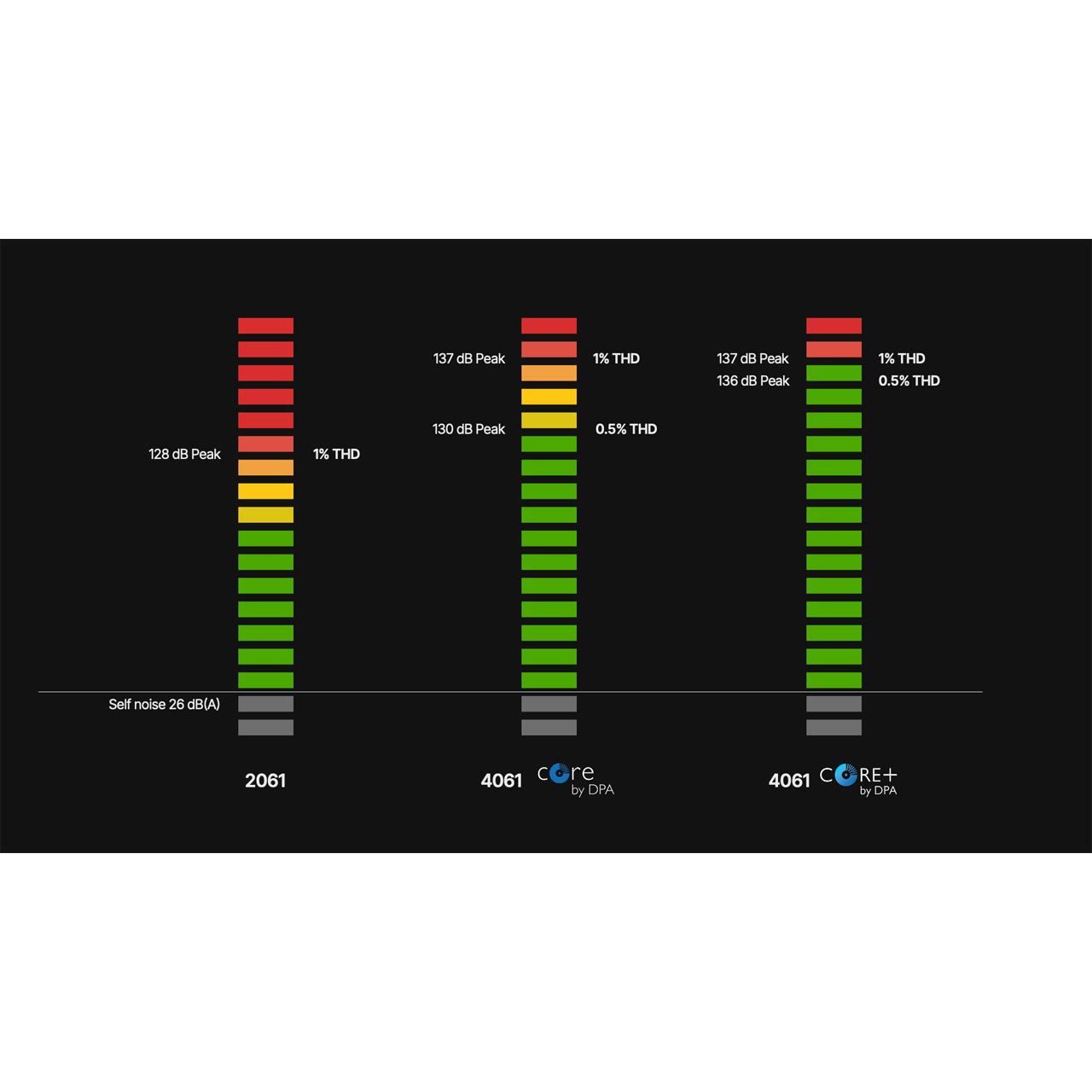

Core vs CORE+, what is the difference?
Microphones with CORE+ provide even more clarity across the entire dynamic range, from low to high sound pressure levels.

Miniature microphones with CORE+ provide unheard levels of openness. While CORE allows mics to handle higher SPLs without significant artifacts up to 1% THD, CORE+ eliminates those artifacts completely.

With CORE+ DPA has shifted the sound pressure level at which they achieve THD 0.5% to be nearly the same as THD 1%.

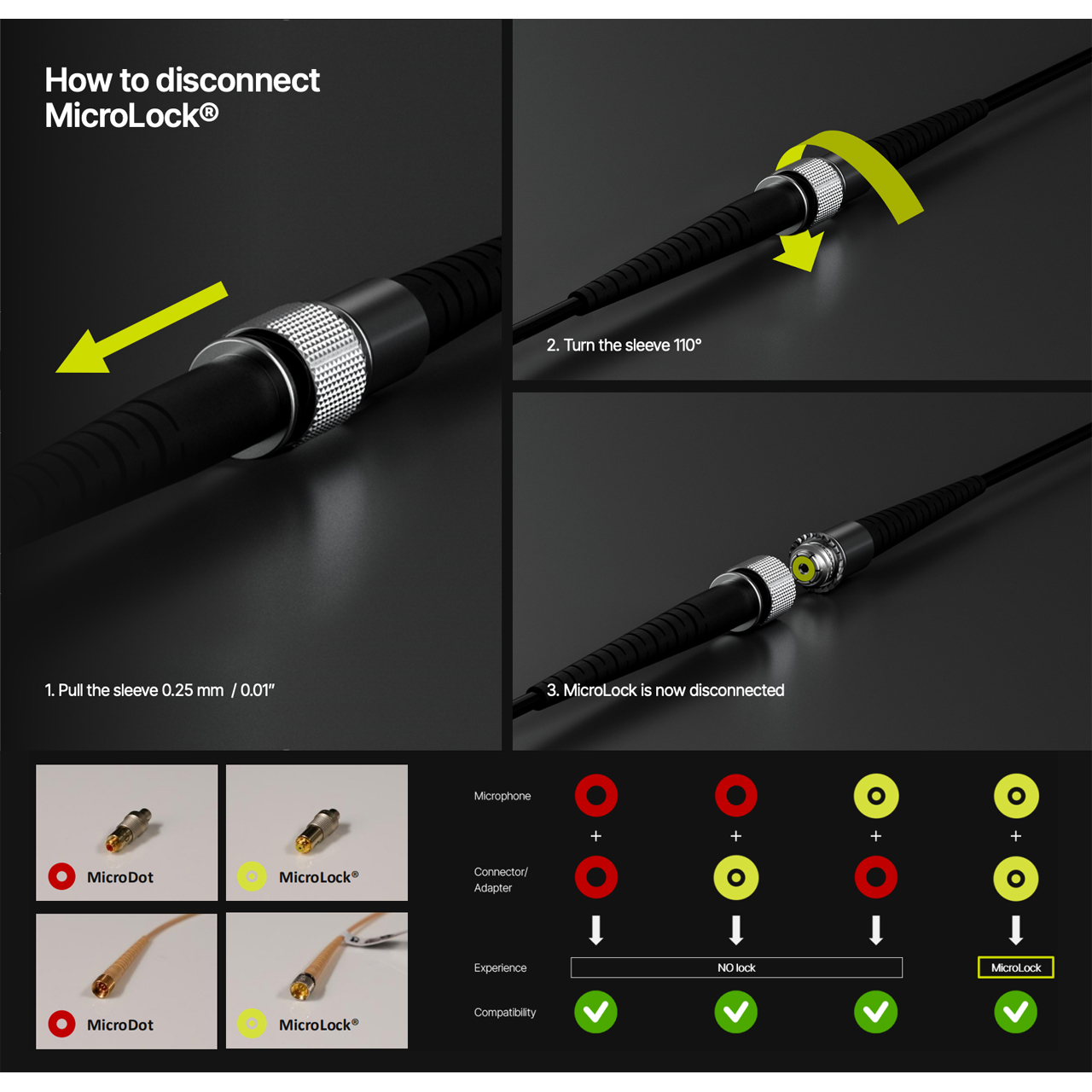

What is unique about MicroLock®?
The uniqueness of MicroLock lies in its combination of remarkable flexibility with enhanced reliability. As with MicroDot, this new connector allows you to use your microphones with different brands of transmitters, so you don't have to buy a new mic for each system. In other words, you are no longer bound to one wireless system.

MicroLock® Compatibility
DPA has made MicroLock fully backwards compatible with the MicroDot connection.

This means that MicroLock parts can be assembled with MicroDot parts and function as if they were of MicroDot type.

MicroDot tool works for MicroLock®

Please Note: The locking function is only achievable if both the male and female parts are MicroLock.

  • Features:

    • The most rugged and reliable version of DPA miniatures
    • Stainless steel housing, heavy-duty strain relief and thick cable
    • Exceptional audio quality
    • Uniform, consistent sound between DPA mics
    • Sturdy but small for flexible and easy concealment
    • Modular adapter system fits most professional wireless systems

  • Specifications:

    • Directional Pattern: Omnidirectional
    • Principle of Operation: Pressure
    • Cartridge Type: Pre-polarized condenser
    • Frequency Response: 20Hz - 20kHz
    • Effective Frequency Range ±2dB: 100Hz - 15kHz with typ. 5dB soft boost at 4 - 6kHz
    • Sensitivity, Nominal, ±3dB at 1kHz: 6mV/Pa; -44dB re. 1V/Pa
    • Equivalent Noise Level, A-Weighted: Typ. Typ. 26dB(A) re. 20μPa (max. 28dB(A))
    • Equivalent Noise Level, ITU-R BS.468-A: Typ. 38dB (max. 40dB)
    • Distortion, THD < 1%: 134dB SPL RMS, 137dB SPL peak
    • Dynamic Range: Typ. 111dB
    • Max. SPL, THD 10%: 144dB SPL peak
      Rated Output Impedance:
      - From MicroLock: 30Ω - 40Ω
      - From DAD6001-BC: 100Ω
    • Cable Drive Capacity: Up to 300m (984ft) with DAD6001-BC XLR Adapter
    • Output Balance: Signal balanced with DAD6001-BC XLR Adapter
    • Common Mode Rejection Ratio (CMRR): > 60dB from 50Hz - 15kHz with DAD6001-BC XLR Adapter
    • Power Supply (for full performance):
      - For wireless systems Min. 5V - max. 10V through DPA adapter
      - With DAD6001-BC: P48 (Phantom Power). Will work from 12V
    • Current Consumption: Typ. 1.5mA (microphone). 3.5mA with DAD6001-BC XLR Adapter
    • Connector: MicroLock
    • Weight (Single Ear): 0.03lb (0.5oz)
    • Microphone Diameter: 0.21" (5.4mm)
    • Cable Length: 5.9ft (1.8m)
    • Cable Diameter: 0.09" (2.2mm)
    • Temperature Range: -40°F - 113°F (-40°C - 45°C)
    • Relative Humidity: Up to 90%

  • Warranty:

    • 2 Year Limited Warranty
