DPA 6066 CORE Omni Headset Mic with MicroLock - Brown

ITEM #: DPA-6066-OC-RC90 MFG #: 6066-OC-R-C90

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
DPA Microphones
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$985.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

6066-OC-R-C90 - Overview

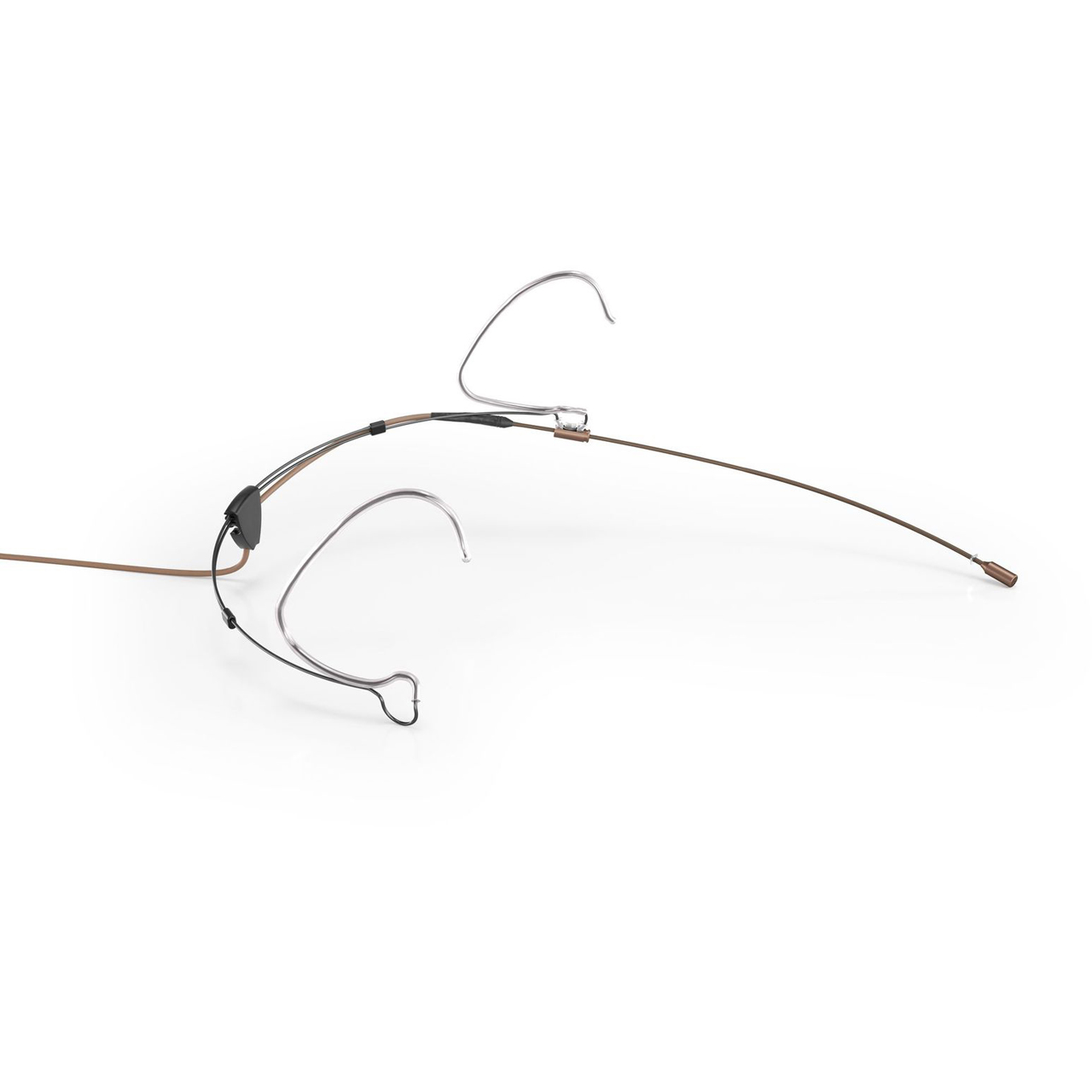

The capsule of the DPA 6066 CORE Subminiature Headset is just 3 mm (0.12 in) in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability - three qualities that truly matter. By shrinking the newly introduced CORE by DPA technology, DPA ensures you don't have to compromise on sound to focus on aesthetics.

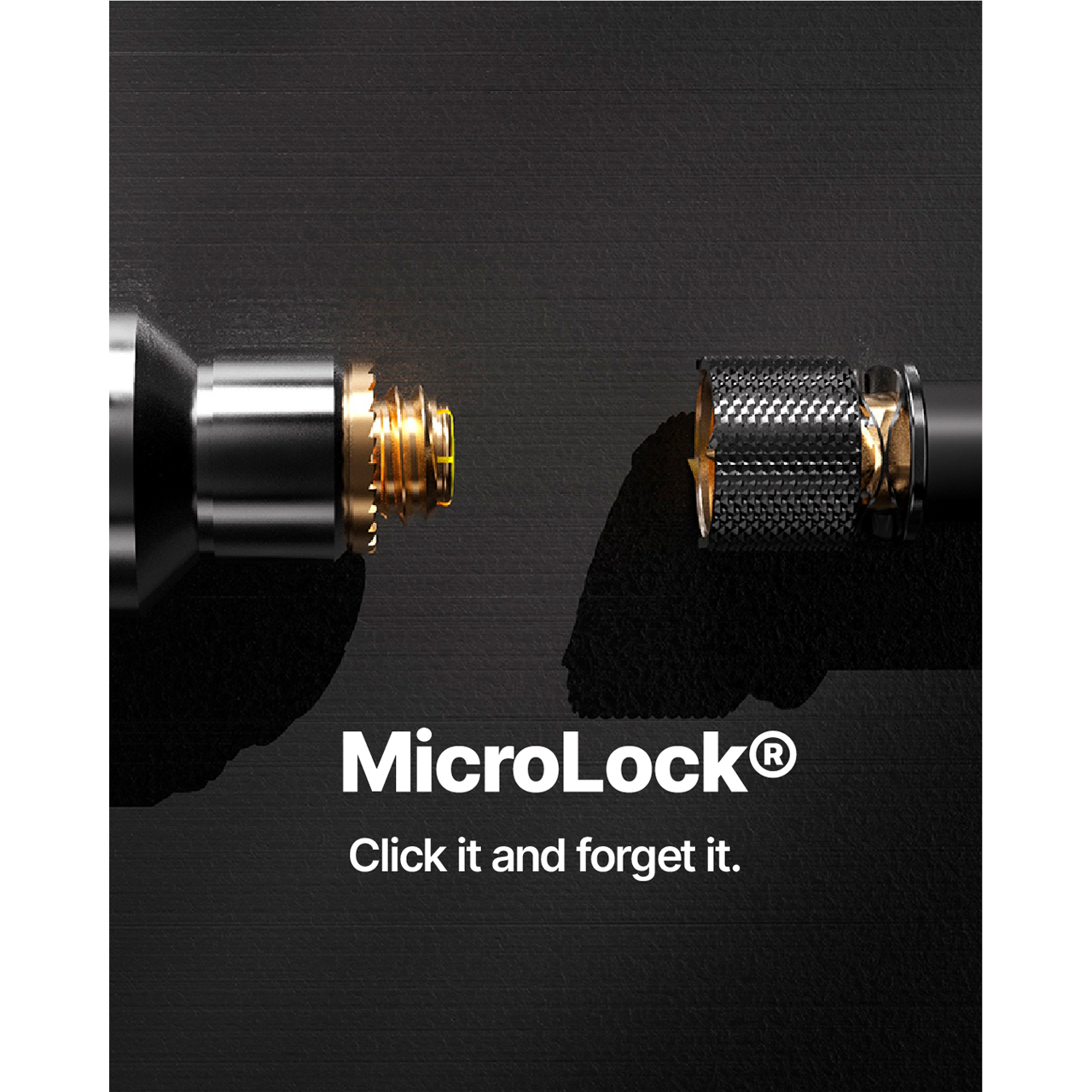

What is unique about MicroLock®?
The uniqueness of MicroLock lies in its combination of remarkable flexibility with enhanced reliability. As with MicroDot, this new connector allows you to use your microphones with different brands of transmitters, so you don't have to buy a new mic for each system. In other words, you are no longer bound to one wireless system.

MicroLock® Compatibility

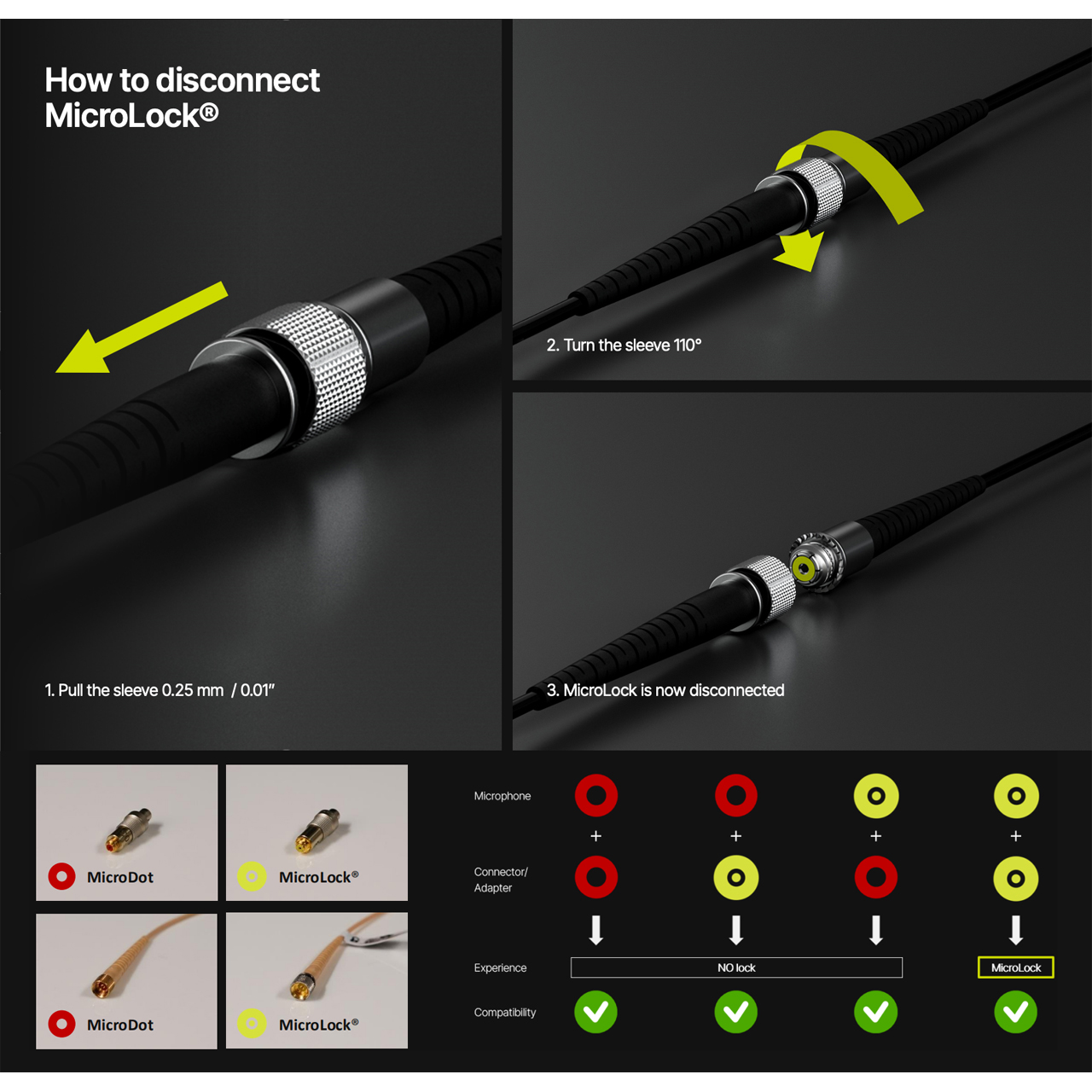

DPA has made MicroLock fully backwards compatible with the MicroDot connection.

This means that MicroLock parts can be assembled with MicroDot parts and function as if they were of MicroDot type.

MicroDot tool works for MicroLock®

Please Note: The locking function is only available if both the male and female parts are MicroLock.

  • Features:

    • Amazing 3 mm CORE by DPA capsules technology
    • Renowned DPA sound in a 60% smaller capsule

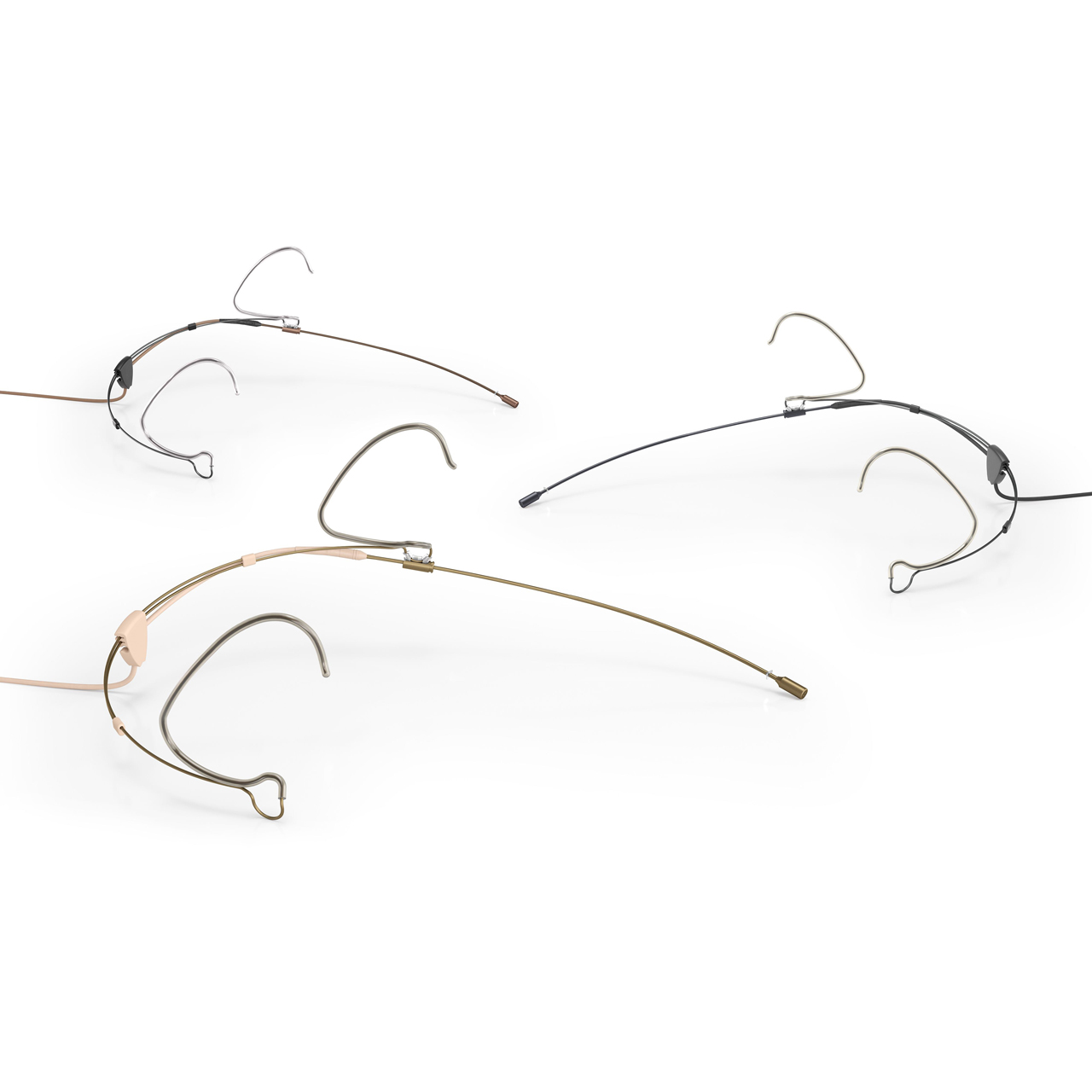

    • One-size-fits-all, headset fits securely and comfortably
    • 2-way adjustable, non-reflective boom with locking system
    • Unique, comfortable 3-point gripping system above, below and behind the ear
    • New 90° cable management constructed to guide the cable and minimize cable breaks


  • Specifications:

    • Directional Pattern: Omnidirectional
    • Principle of Operation: Pressure
    • Cartridge Type: Pre-polarized condenser
    • Frequency Response: 20Hz - 20kHz
    • Effective Frequency Range ±2dB: 40Hz - 20kHz with 4dB soft boost at 8Hz - 20kHz
    • Sensitivity, nominal, ±2.4dB at 1kHz: 20mV/Pa; -34dB re. 1V/Pa
    • Equivalent Noise Level, A-Weighted: Typ. 26dB(A) re. 20µPa (max. 28dB(A))
    • Equivalent Noise Level, ITU-R BS.468-A: Typ. 38dB (max. 40dB)
    • Dynamic Range: Typ. 102dB
    • Max. SPL, THD 10%: 144dB SPL peak
    • Rated Output Impedance:
      - From MicroDot: 30Ω - 40Ω
      - From DAD6001-BC: 100Ω
    • Cable Drive Capacity: Up to 300m (984ft) with DAD6001-BC XLR Adapter
    • Output Balance: Signal balanced with DAD6001-BC XLR Adapter
    • Common Mode Rejection Ratio (CMRR): > 60dB from 50Hz to 15kHz with DAD6001-BC XLR Adapter
    • Power Supply (for full performance):
      - For wireless systems Min. 5V - max. 10V through DPA adapter
      - With DAD6001-BC: P48 (Phantom Power). Will work from 12V
    • Current Consumption: Typ. 1.5mA (microphone). 3.5mA with DAD6001-BC XLR Adapter
    • Connector: MicroLock
    • Weight (Single Ear): 0.024lbs (11g)
    • Microphone Diameter: 3.4" (8.9mm)
    • Microphone Head Size: 0.13"/0.57" (3.4mm/14.4mm)
    • Cable Length: 5.9ft (1.8m)
    • Cable Diameter: 0.12" (3mm)
    • Temperature Range: -40°F - 113°F (-40°C - 45°C)
    • Relative Humidity: Up to 90%


  • Warranty:

    • 2-Year Limited Warranty
