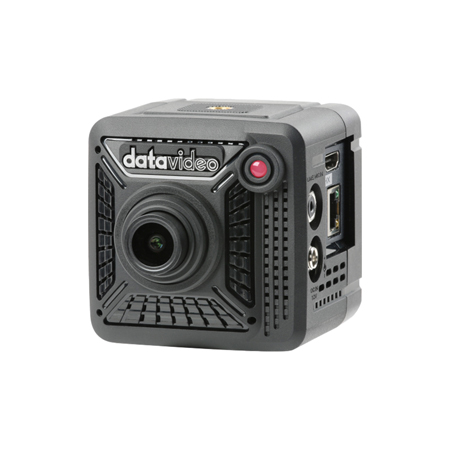

Datavideo BC-15PN 4K60p POV NDI Camera with PoE HDMI and 1/2.3 Inch CMOS Sensor and Built-in Tally Light

ITEM #: DV-BC-15PN MFG #: BC-15PN

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,099.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BC-15PN - Overview

The Datavideo BC-15PN is an innovative compact POV camera designed specifically for sports events. The camera is equipped with a 1/2.3" 4K CMOS sensor for capturing high quality images and incredible details that present every subtle expression of the player. Its built-in lens saves the user hassles of finding suitable but costly lens. With SRT streaming, video, control signals (DVIP), and power (PoE) are carried on a single Ethernet cable, so that system setup is easy and fast. The three 1/4-20 UNC screw holes add greater versatility to hardware installation. The BC-15P is one of the best choices for capturing eSport players with the wide angle lens that comes with the package. The standard lens fulfills a wide range of applications.

Elevate Your Content with Seamless 4K Streaming
During video production, you can stream your program to different platforms such as YouTube and Facebook. If using Datavideo dvCloud, you can even stream your program to 25 different platforms at the same time while backing up your program on the cloud server.

Low-Latency SRT Streaming Engine Allowing Online Switching to dvCloud with Nearly Zero Latency
Many viewers may have encountered streaming issues, such as video stuttering or frame loss, often attributable to fluctuating bandwidth and network instability. dvCloud incorporates the SRT protocol, effectively reducing frame loss even when your network is unstable. If you are still encountering problems with RTMP streaming, dvCloud stands out as the optimal solution for a smoother and more enjoyable viewing experience.

Built-in Tally Light
Built-in tally lights make it easier for the talent to know which camera is live during a multi-camera live production.

Physical Buttons Make Camera Setup Very Easy
When the camera is set up, there is no need to use an additional remote controller. The physical buttons on the rear panel of the BC-15P make it very easy to adjust settings.

  • Features:

    • Built-in Fixed Lens
    • 1/2.3" CMOS Sensor with 4K 50/60p Output
    • NDI-HX Networking Support
    • Compact Design
    • Seamless 4K Streaming
    • 1/4" Screw Hole for Mounting
    • Supports H.264/H.265 Streaming
    • Built-in Swappable Fixed Lens
    • App Control
    • Built-in Tally Light

  • Specifications:

    • Video format/Resolution: 2160p60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25
    • Image Sensor: 1/2.3" CMOS
    • Effective Pixels (approx.): 12.3Mega Pixels
    • S/N Ratio: 50 dB
    • Min. Illumination: 0.5Lux (F1.0, AGC ON)
    • Electronic Shutter: 1/25(1/30), 1/50(1/60), 1/75(1/90), 1/100(1/120), 1/125(1/150), 1/150(1/180), 1/200(1/210), 1/500(1/600), 1/1000(1/1200), 1/2000(1/2400), 1/4000(1/4800), 1/8000(1/9000) sec
    • Zoom Ratio: 2x Digital Zoom
    • Gamma Control: Standard / Mode1 / Mode2 / Mode3
    • Iris Control: Fixed IRIS (F1.0)
    • Digital Noise Reductions: 2D/3D
    • HDR/WDR: WDR
    • Flip Image: Yes
    • Focus Mode: Full Manual
    • Focal Length: Standard Lens: 6mm, Wide Lens: 2.8mm
    • Field of View (Horizontal, Wide): Standard Lens: H: 8.6, V:21.9, D: 44.1, Wide Lens: H: 75.5, V:46.6, D:82.7
    • Image Compensation: Auto
    • Video Output: 1x HDMI 2.0
    • Audio Input: 1x 3.5mm Line in/Mic in (Stereo)
    • Tally LED: Dual color (Red, Green)
    • Lens Filter: IR cut built-in
    • Control Protocol: DVIP
    • Remote Control Interface: RJ-45: for IP control (DVIP)
    • Video Compression Format: H.265, H.264
    • Audio Compression Format: AAC
    • Audio Bitrate: 128Kbps
    • HD IP Interface: 10/100/1000M
    • Streaming Protocols: RTMP(S), SRT
    • First Stream Supported Resolution:
      - 1920x1080
      - 1280x720
      - 1024x576
      - 960x540
      - 640x480
      - 640x360
    • Video Bitrate: 1Mbps ~ 7Mbps
    • Video Bitrate Mode: VBR, CBR
    • Encoding Frame Rate: 50Hz: 1-50fps, 60Hz: 1-60fps
    • PoE: IEEE 802.3af
    • F/W Update: Ethernet
    • Camera Control Unit: RMC-300 series/BC View Assist APP
    • Tripod Mount: 1/4-20 UNC
    • Color: Black
    • Dimensions(LxWxH): 10.3 x 8.2 x 4.7"/26.2cm x 20.8cm x 12cm
    • Weight: 0.44lb/0.97kg
    • Operating Temp. Range: 32-104°F/40°C
    • Power: DC 12V 9W

  • Item Includes:

    • 1x Datavideo BC-15PN 4K60p POV NDI Camera with PoE and HDMI
    • 1x Standard Lens (attached on camera with lens cap)
    • 1x Wide-angle Lens (attached with lens caps)
    • 1x DC 12V power adaptor
    • 1x Carry Case

  • Warranty:

    • 1-Year Limited Warranty
