PTZOptics STUDIO 4K Ultra HD Live-Streaming Box Camera with 12x Zoom Fixed Lens - NDI HX2/SDI/HDMI Outputs - Gray

ITEM #: PT12XSTUDIO4KGG3 MFG #: PT12X-STUDIO-4K-GY-G3

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,099.00

Our Price:

$999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT12X-STUDIO-4K-GY-G3 - Overview

Fixed Camera, Unmatched 4K Video
Whether as a standalone camera or an addition to a larger studio setup, PTZOptics' Studio 4K provides crystal-clear 4K resolution, 12X or 20X zoom and conveniently Hive-Linked™ to PTZOptics' easy-to-use online platform, Hive Studio, delivering future-ready connectivity and control from anywhere.

Connect, Point, Produce!
The Studio 4K features SDI, HDMI, USB, and IP output and comes native with NDI® HX2, allowing for seamless integration into various video production setups, connecting directly to a live production switcher, streaming over a network, or recording through an SDI interface. Built-in connectivity links to Hive Studio automatically!

Zoom In with Power and Endurance
The Studio 4K is your perfect entry into the world of 4K videography, offering powerful zoom capabilities and reliable performance. Capture a head-and-shoulders shot of your subject from up to 90 feet away with zoom strengths of 12X or 20X, ideal for medium or large spaces. Designed for utility and endurance, its unobtrusive design, continuous operation, and a variety of mounting options, the Studio 4K will be your new video system workhorse.

A Multitude of Applications
The Studio 4K is the perfect companion to a Move SE or Move 4K multi-camera setup, enhancing your production capabilities with an additional fixed-camera option that complements your PTZ cameras. The Studio 4K's high-quality construction and discreet profile makes it the perfect choice for streaming municipal meetings, worship services, sports, and security applications. In addition, as a fixed camera the Studio 4K is courtroom friendly.

Future-Friendly Performance
To accommodate ever-evolving productions, the Studio 4K is Hive-Linked, PTZOptics proprietary built-in automatic connection to Hive Studio, allowing centralized multi-camera control & management from anywhere within the comfort of a web browser. With just a few clicks, you'll have centralized management of all your cameras from anywhere with just a web connection, enabling controlling and configuring multiple cameras from a single interface-no need for complex multi-software setups.

Free Software for PTZOptics Users
PTZOptics cameras are compatible with a wide range of free software solutions, including:

- Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
- Control apps for desktop and mobile devices
- Plugins and integrations for popular platforms, including OBS
- Camera configuration and management tools
- Support and testing utilities
- And more!

  • Features:

    • 12x or 20x Optical Zoom/16x Digital Zoom
    • 72.5° (12x) or 60.7° (20x) Field of View
    • 5 Year Warranty
    • 4K @ 60fps Resolution
    • Hive-Linked for One-Click Integration
    • SDI, HDMI, USB, and IP Outputs with NDI® HX2
    • USB 3.0 (Type C)
    • USB 2.0 (Type A, power only)
    • HDMI
    • PoE+
    • SRT
    • RTSP/RTMP(S)
    • Compact & Modern Fixed Design

  • Specifications:

      Camera & Lens
    • Image Sensor & Lens: 12x or 20x: 1/2.8" CMOS, 8MP (8.4M effective pixels)
    • Digital Zoom: 16x
    • Resolution and Frame Rate:
      - HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
      - SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50
    • Optical Lens Focal Length (Zoom):
      - 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
      - 20x: f = 4.7mm ~ 94mm, F1.6 ~ F3.6
    • Optical Lens Field of View, Horizontal & Vertical:
      - 12x: H 6.9° ~ 72.5° / V 3.9° ~ 44.8°
      - 20x: H 3.5° ~ 60.7° / V 1.9° ~ 34.1°
    • Display Field of View:
      - 12x: 80.2°
      - 20x: 67.8°
    • Min Lux: 0.5 Lux @ (F1.8, AGC ON)
    • Shutter: 1/30x ~ 1/10000s
    • Presets: 255 Presets
    • Presets Accuracy: 0.1°
    • Image Flip: Supported
    • Image Mirror: Supported
    • Image Freeze: Supported

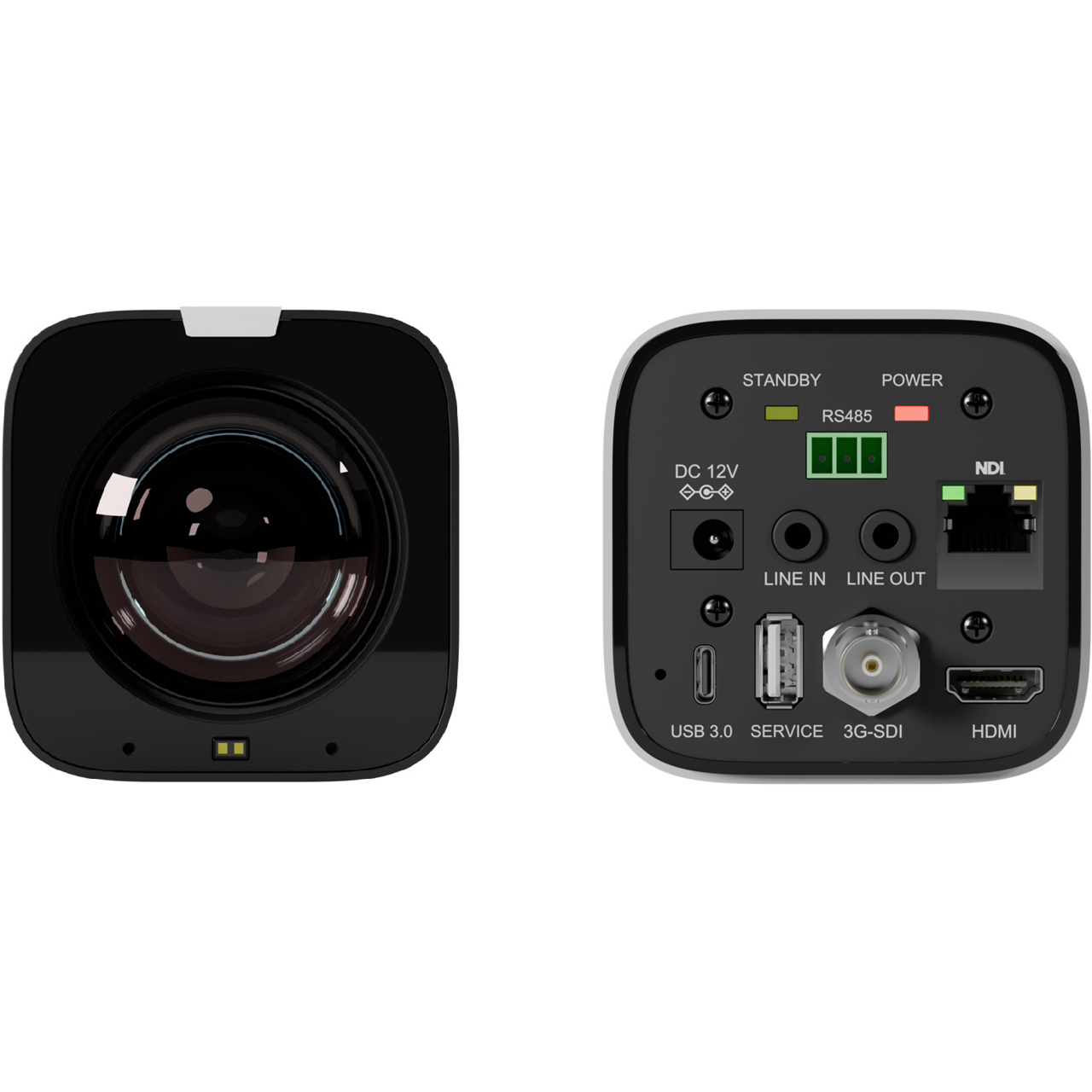

      Connections
    • HD Video Output:
      - 1x RJ45: 10/100/1000M Adaptive Ethernet Port NDI® HX2 enabled
      - 1x HDMI: Version 2.0
      - 1x USB: 3.0 Type C
      - 1x 3G-SDI: BNC type, 300mVP-p, 75Ω, Along to SMPTE 424M
    • Audio Interface:
      - 1x 3.5mm Line level input
      - 1x 3.5mm Line level output
    • Video Formats:
      - USB: YUY2: Max resolution 1920x1080p @ 30fps
      - MJPEG: Max resolution 3840x2160p @ 30fps
      - H.264 AVC & SVC: Max resolution 3840x2160p @ 30fps
    • RTSP/NDI® HX2 only:
      - H.265: Max resolution 3840x2160p @ 60fps
    • Compression Standards: H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX2 only)
    • UVC Version Supported: UVC 1.1 ~ 1.5
    • Supported Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX2, SRT, Multicast, etc.
    • IR: 4x IR Addresses, Max distance 30ft / 9m
    • Power Supply: JEITA type (DC IN 12V) / PoE+ (802.3at)
    • Current Consumption: Max 2A
    • Power Consumption: Max 18W

      Physical Specifications
    • Material: Aluminum, Plastic
    • Color: Gray or White
    • Dimensions (L x W x H): 5.7" L x 2.99" W x 3.09" H / 145mm L x 76mm W x 78.5mm H
    • Weight: 12x: 1.5 lbs / 0.68kg
    • 20x: 1.4 lbs / 0.64kg
    • Working Environment: Indoor
    • Humidity Range: 10% ~ 80%
    • Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C)
    • Storage Temperature: -40°F ~ 140°F (-40 ~ 60°C)

  • Item Includes:

    • 1x Studio 4K 12x
    • 1x 12V 2A International Power Supply
    • 1x Lens Cap
    • 1x USB A-C Cable
    • 1x Quick Start Guide
    • 1x IR Remote
    • 2x AAA Batteries

  • Warranty:

    • 5 Year

  • GTIN:

    0840170500906
