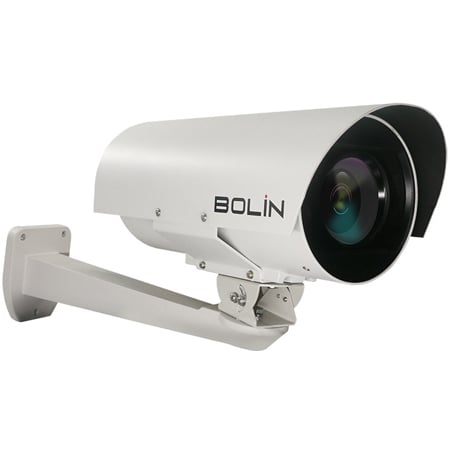

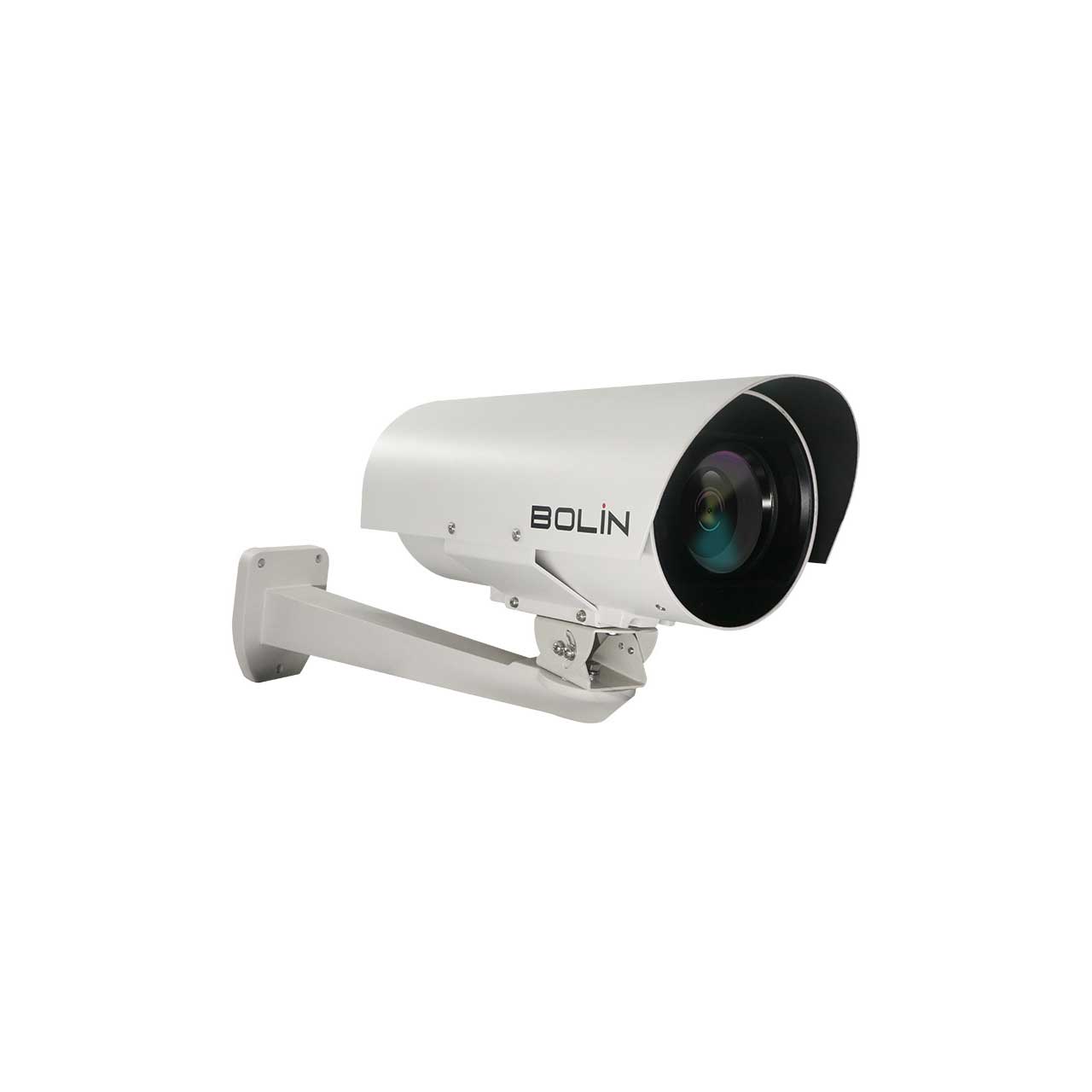

Bolin FEX30SHD-B-RSNP2 Rugged Fixed SDI+IP Dual Output 30x Indoor/Outdoor Zoom Camera

Name: Bolin FEX30SHD-B-RSNP2 Rugged Fixed SDI+IP Dual Output 30x Indoor/Outdoor Zoom Camera
Brand: Bolin Technology
SKU: BOL-FEX30SHDBRSN
Price: 3295.00 USD
Availability: InStock

ITEM #: BOL-FEX30SHDBRSN MFG #: FEX30SHD-B-RSNP2

Bolin Technology

Our Price:

$3,295.00

Add to Wish List Leasing Options

Availability: In Stock

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

FEX30SHD-B-RSNP2 - Overview

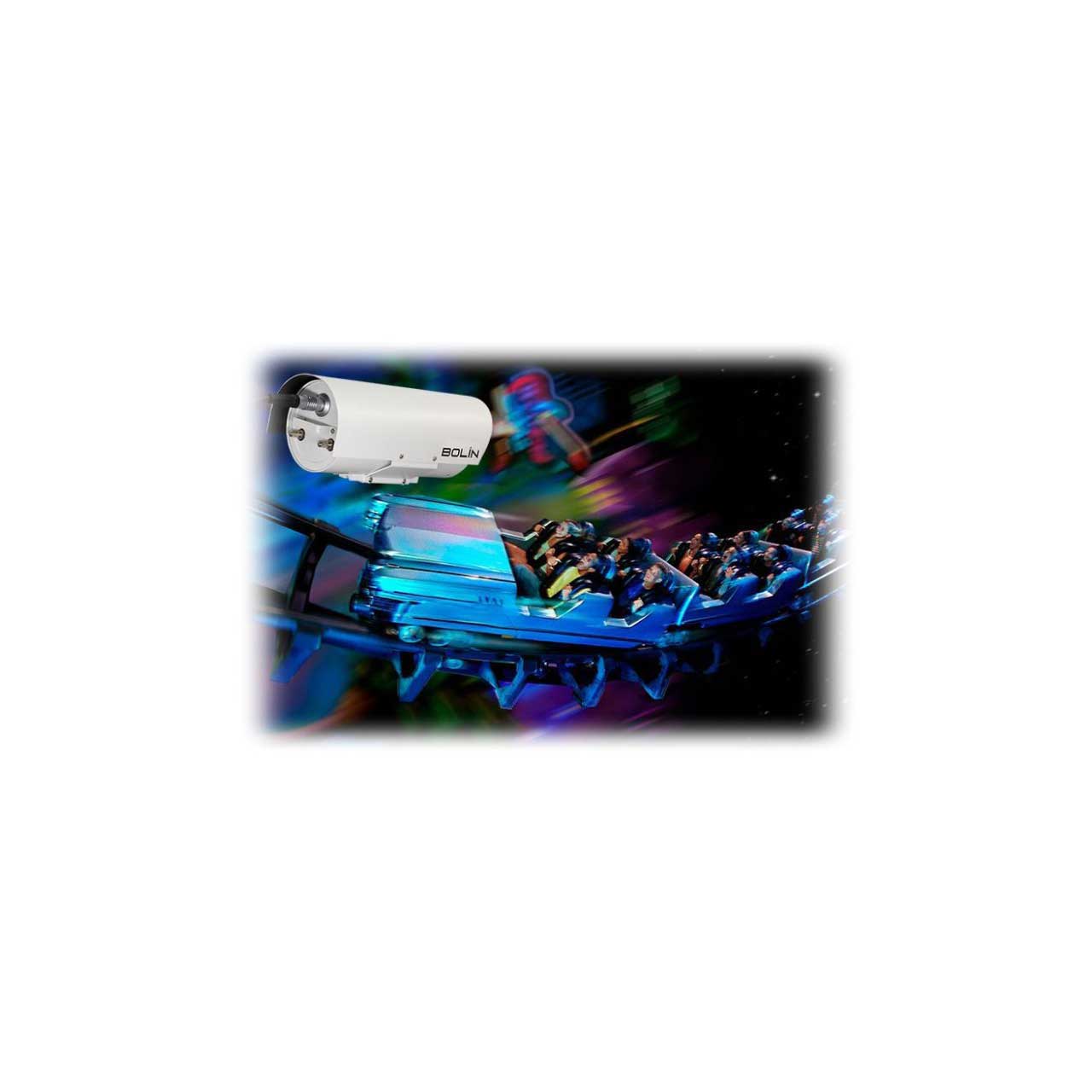

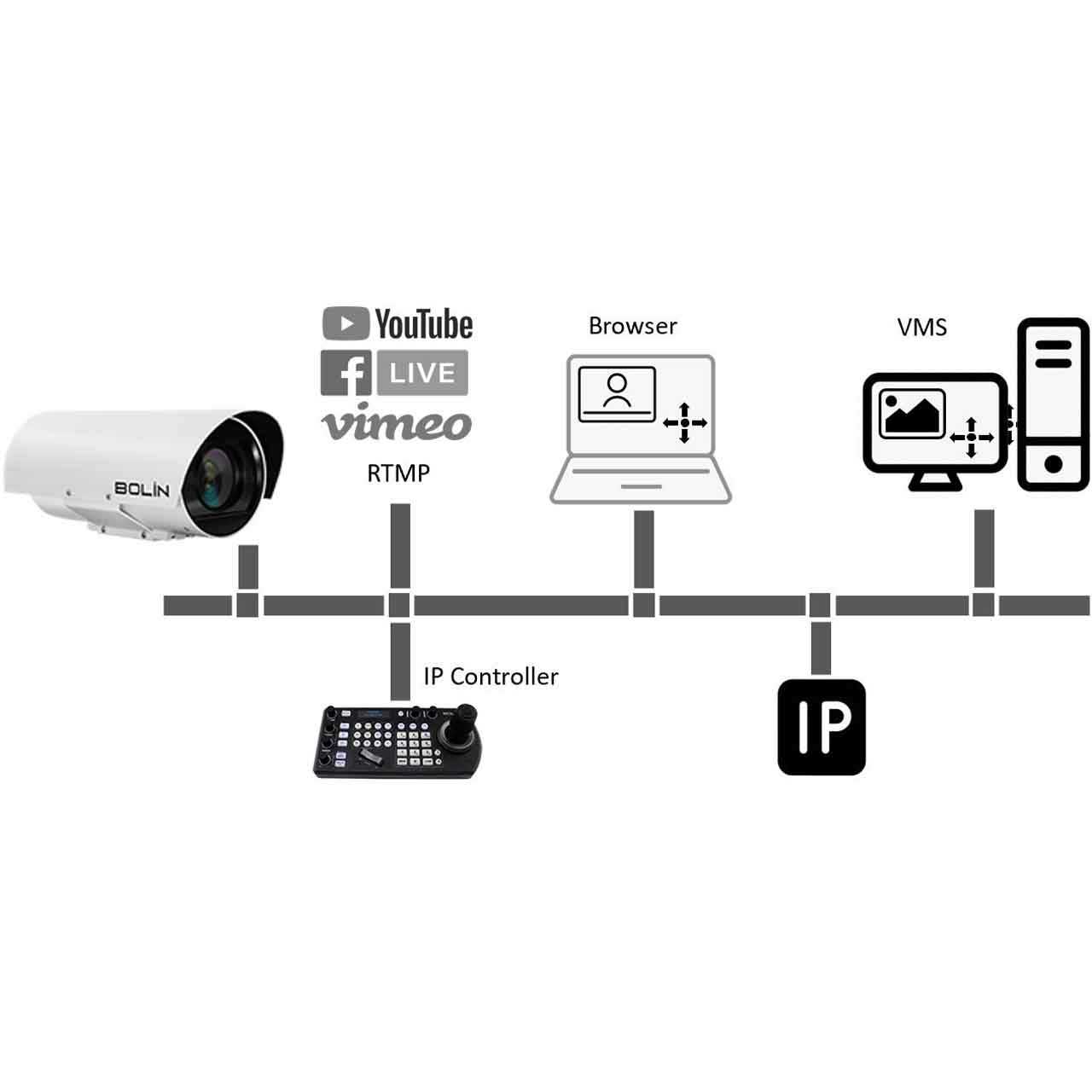

Bolin's FEX30SHD-B-RSNP2 True Dual Output SDI Zoom cameras support simultaneous 1080i59.94 3G-SDI and 1080p IP outputs. It is SDI and IP True Dual Output camera with IP streaming to provide IP remote accessibility for recording and monitoring. Bolin's FEX series Fixed Pro Dual Output SDI Zoom Camera is a rugged designed camera with IP68 and Nitrogen Pressurized enclosure protection that is applicable to both outdoor traffic control, theme park image production and indoor industrial monitoring applications within harsh environments.

It provides 30X optical zoom with FHD resolutions, low latency mode, and image stabilizer for high quality image broadcast reproduction usage.

Features:
- SDI+IP True Dual Output Video
- Image Stabilizer
- Brilliant Broadcast Quality of Imaging
- IR LED Illumination
- Full Resolution Image
- Professional Image Parameter Setting
- Always up to date
- Low Latency Mode
- Power
- Powerful 30x Optical Zoom
Specifications:
- Image Sensor: 1/2.8 inch CMOS 2.13MP
- Lens: 30X, 4.3~129mm, 12X Digital Zoom
- Horizontal Angle of View: 63.7°(W)~2.3°(T)
- Aperture: F1.6(W)~F4.7(T)
- Min. Illumination: Color: 0.01 lux (F1.6,AGC on,1/30s, High sensitive mode), 0.1 lux(F1.6,AGC on,1/30s, Normal sensitive mode)
- Shutter Speed: 1/1~1/10000s
- Focus: Auto, Push
- White Balance: Auto,Indoor,Outdoor,Manual,OPW,ATW
- Exposure: Auto,Manual,Shutter/Iris Priority
- Day/Night: Yes
- WDR: Yes, 120db
- Backlight Compensation: Yes
- Image Stabilizer: Yes
- Defog: Yes
- Noise Reduction: 2D/3D
- S/N Ratio: =50db
- Low Latency Mode: Yes
- Preset Position: 16 Zoom Position
- Home Position: Yes
- Environmental: Outdoor/Indoor, IP68, Corrosion Resistant Treated Housing, Nitrogen Pressurized Housing, Faceplate Heater, Water Proof Connector, Sun-Shield
- Infrared: Infrared Illumination distance up to 60 Meters.

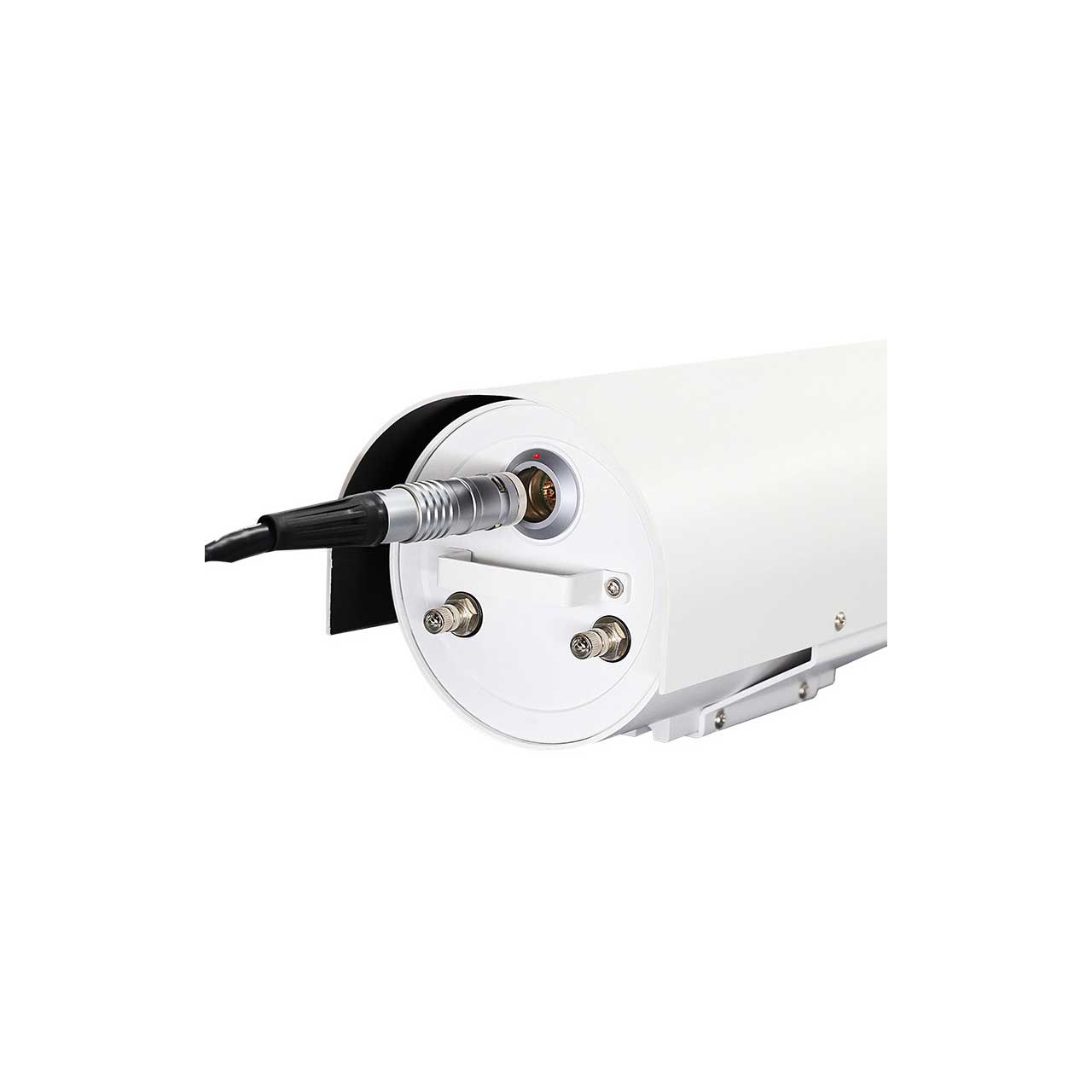

- Connector: MS connector on housing with detachable 5ft long Tail-cable water proof RJ45/12VDC Power/RS422/BNC connector
- Video Compression: MJPEG,H.264, H.265
- Resolution/Frame Rate: Supports: 1080p:60/50/30/25, 720p:6-/5030/25
- Protocols: L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,QoS,DNS,DDNS,NTP,FTP,UPnP,, RTMP, HTTP,SNMP,SIP
- Multi-stream: 3 streams
- Audio Compression: AAC-LC Broadband Audio Encoding
- OSD: Customized OSD with logo overlay
- Compatible Integration: ONVIF, VISCA Over IP
- Network: 10M/100M/1000M Base-TX Ethernet, RJ45
- Control Interface: RS485,RS422, IP
- Control Protocol: PELCO-D/P / IP Onvif / VISCA / VISCA OVER IP
- Operating Temperature: -40°C to 65°C continuous, up to 74°C for 12 hours.
- Operating Humidity: 100% Suitable for Use
- Power Input: 12VDC, PoE+ (IEEE 802.03at)
- Power Input: Built-in electrical transient/surge protection
- Power Consumption: 12W(IR & Heater Off), 22W(IR & Heater On)
- Dimension: Ø136x315mm
- Weight: 3.4kg
Item Includes:

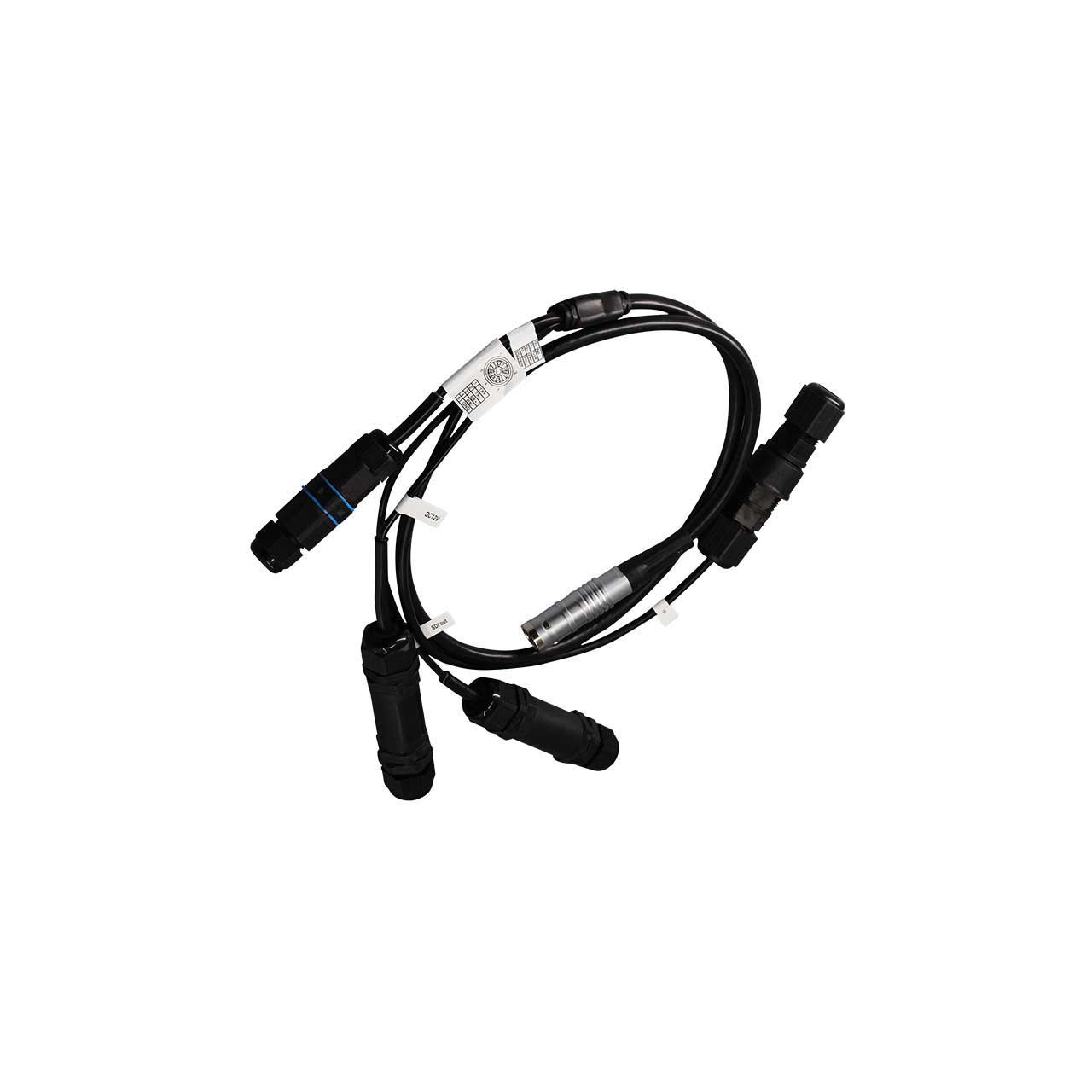

- 1x FEX Tail Cable SN
