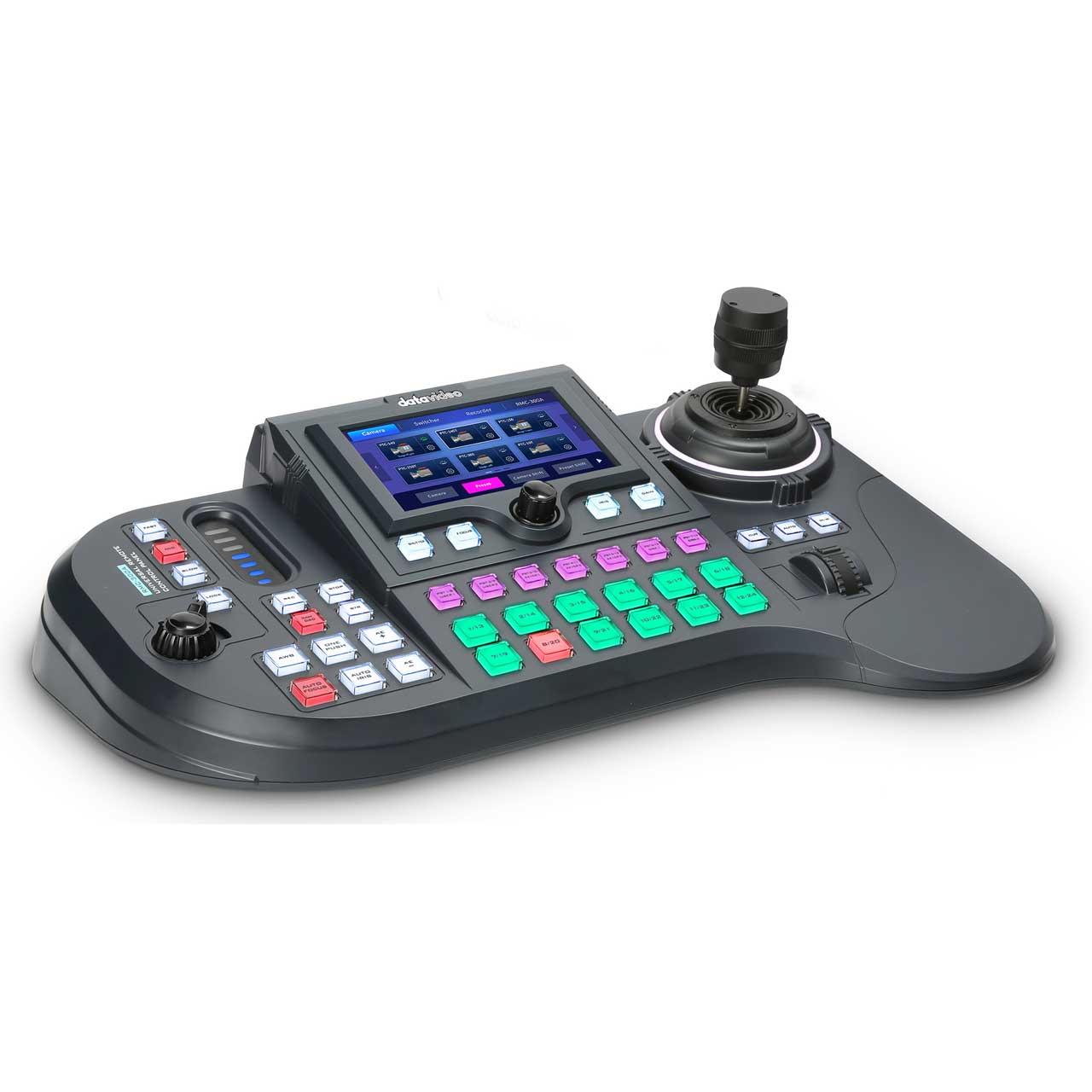

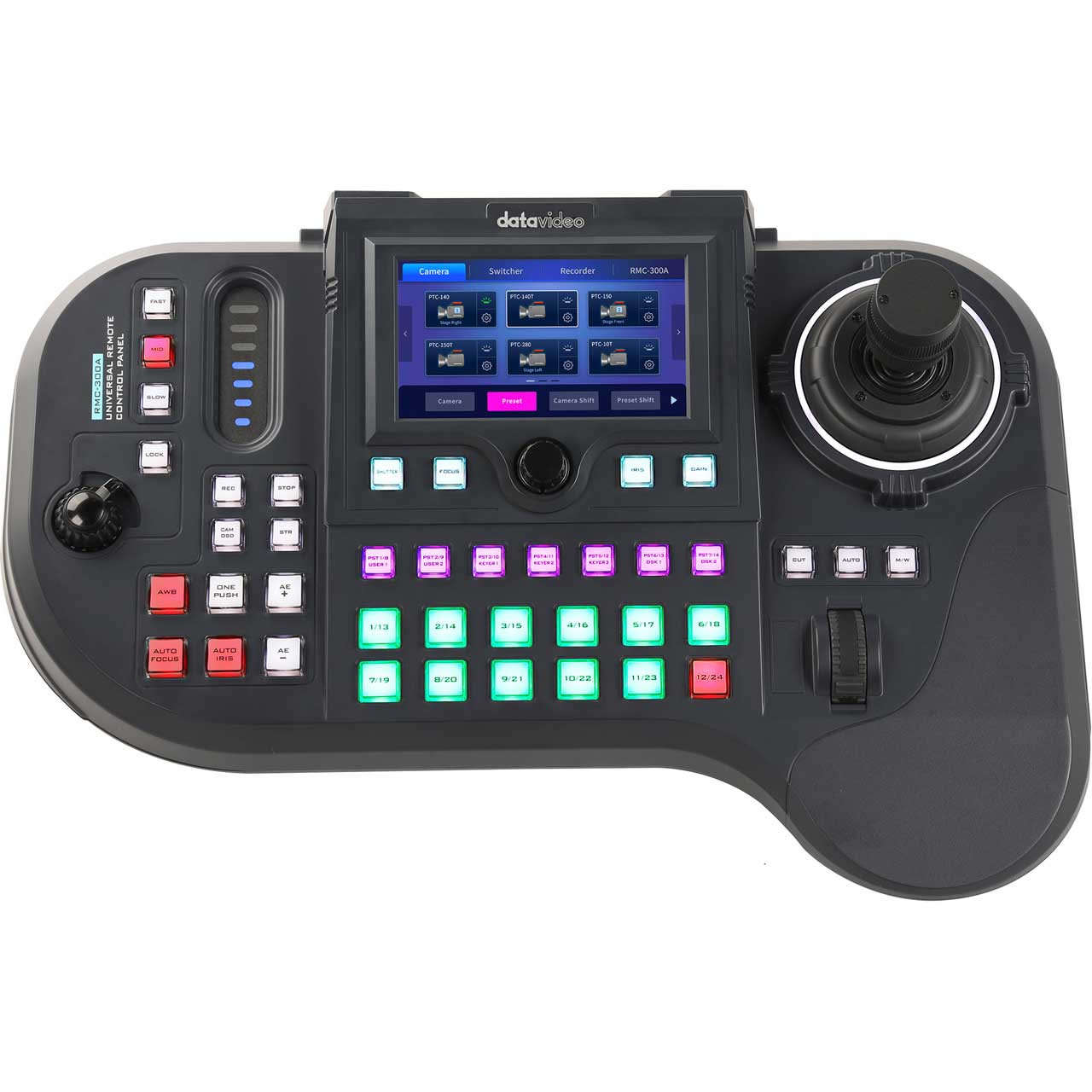

Datavideo RMC-300A Camera Controller for up to 24 PTZ Cameras

RMC-300A - Overview

• Features:

  • User friendly interface on 5-inch LCD touch panel
  • Control up to 24 Cameras
  • LCD displays GUI for Operability and Visibility
  • Professional Use
  • Remote Control via Ethernet or serial port RS-422
  • Zoom knob and lock button
  • Speed settings for PTZ control


• Specifications:

  • Maximum Camera Control: 24
  • Present (Position): 7 for each camera
  • Control Protocol: DVIP, DHCP client

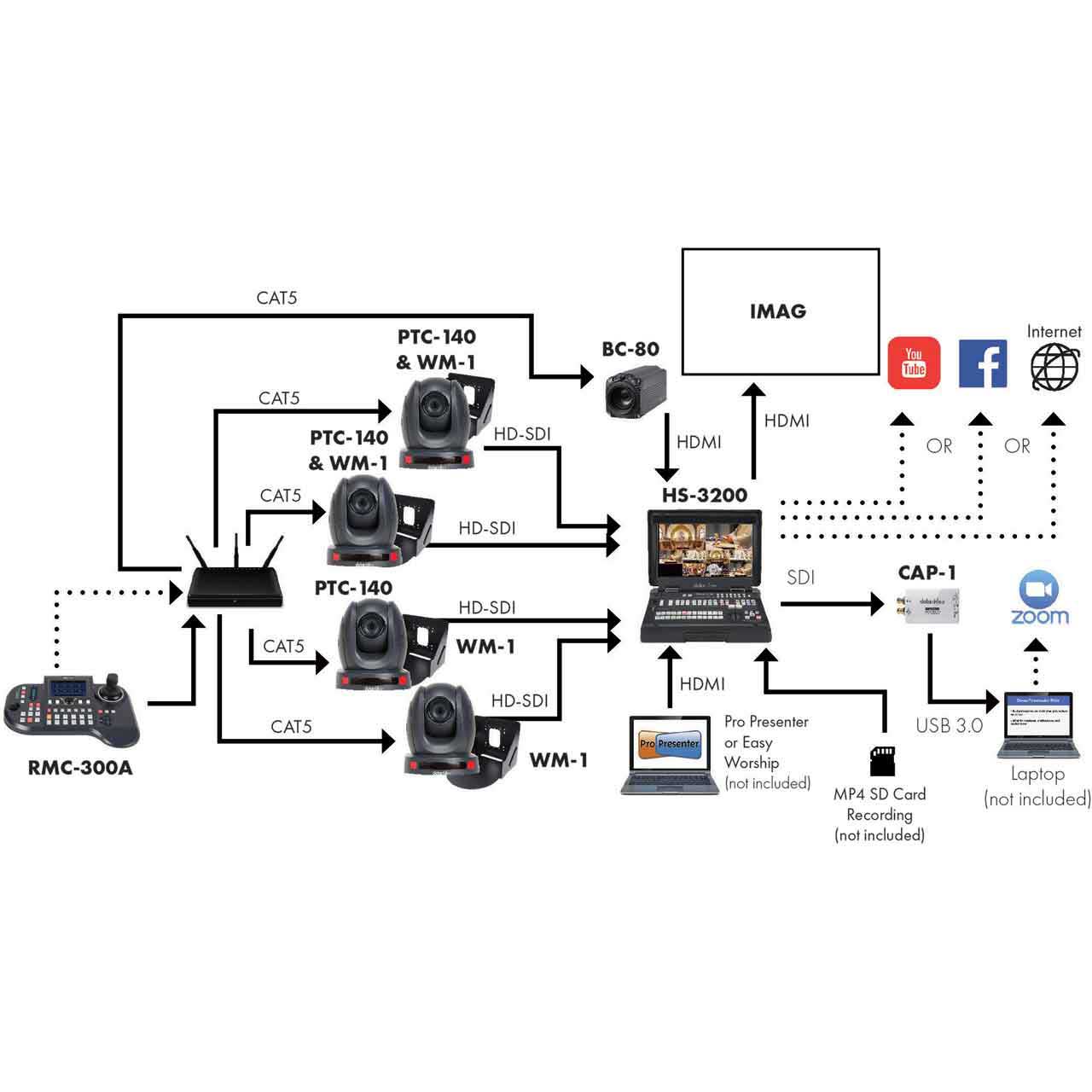

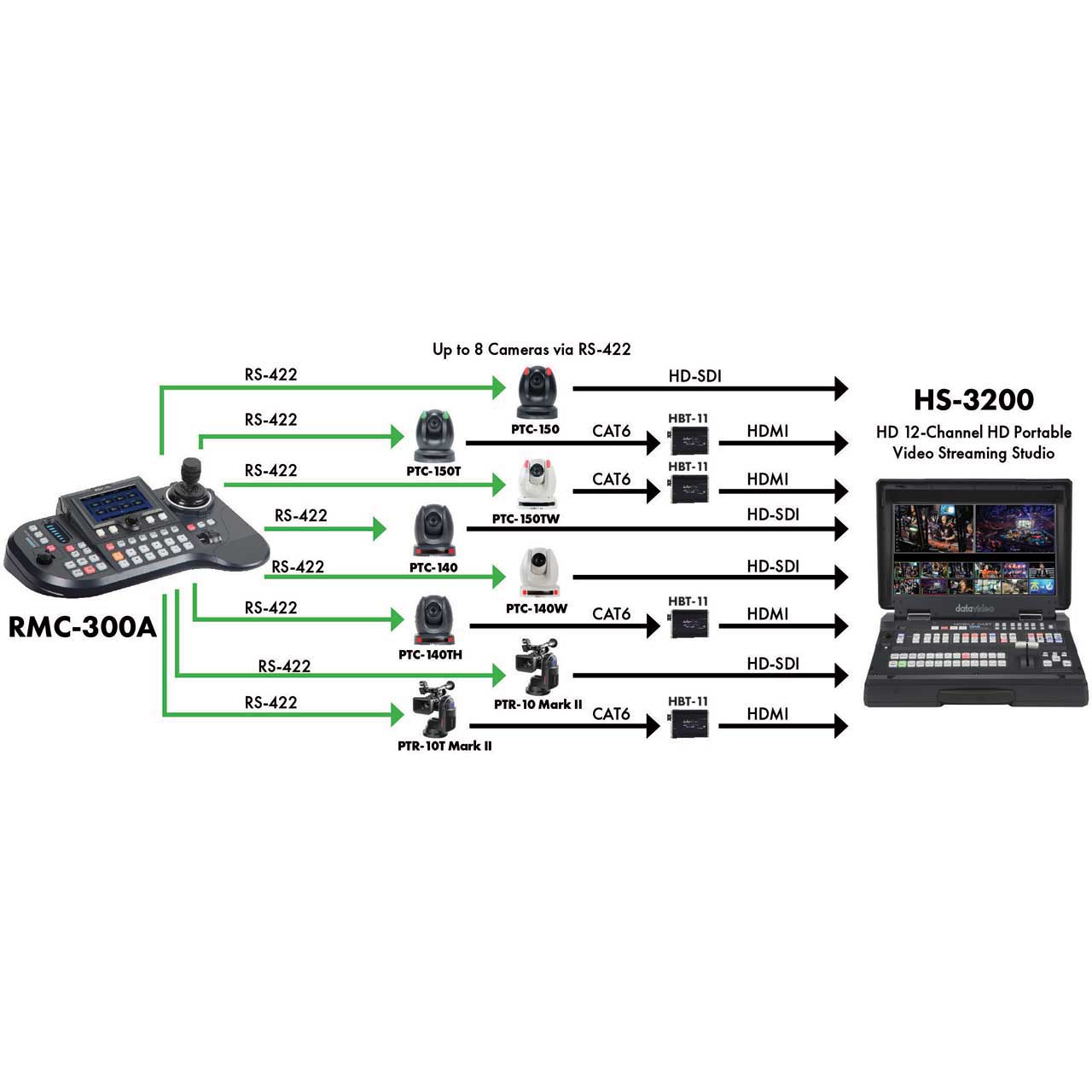

  • Connection to Cameras: RS-422, Ethernet

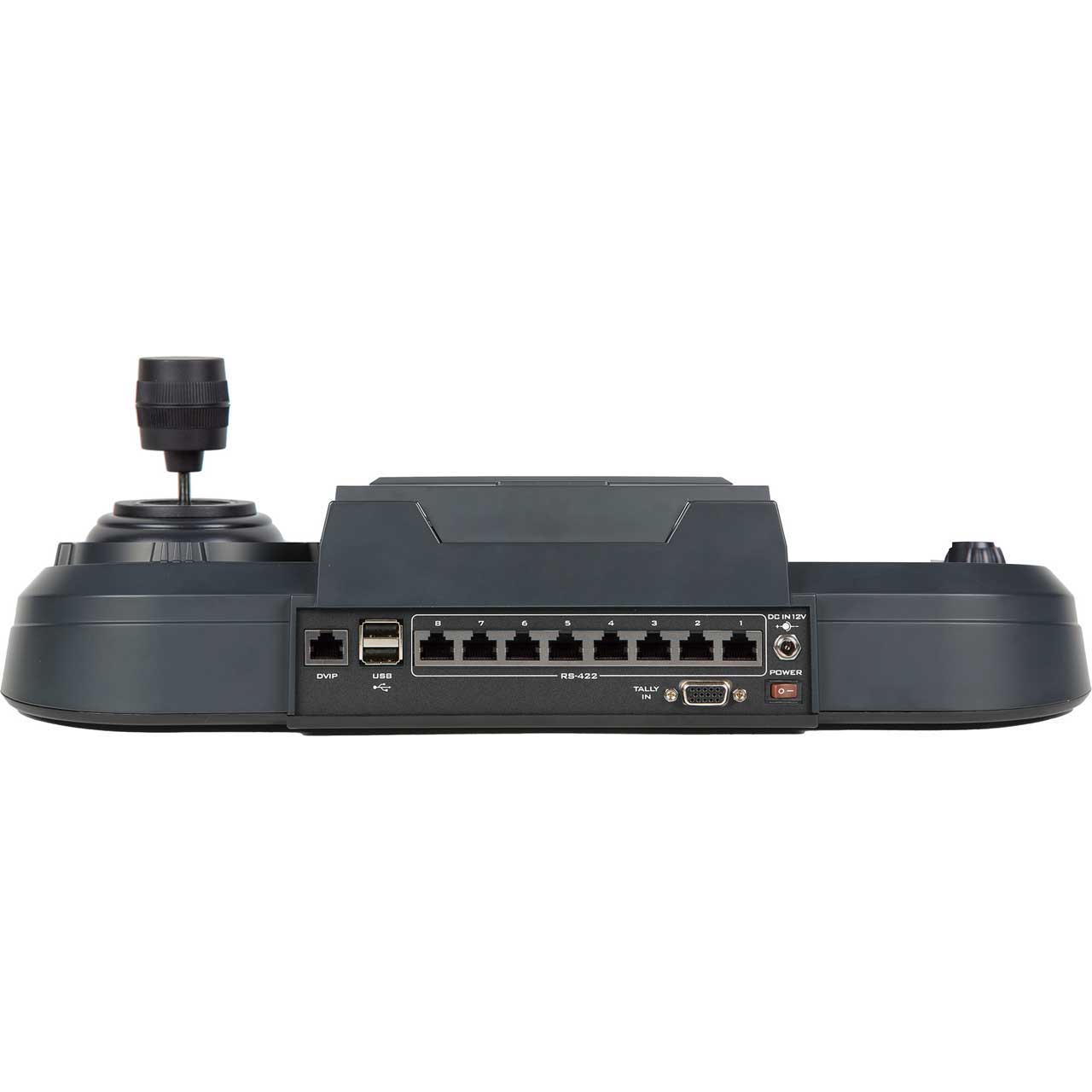

  • Input/Output: USB 2.0 x2, 10/100Mbps Ethernet (RJ-45 connector) x1, RS-422 (RJ-45 connector) x1
  • Build-in Control Panel: Size: 5"
  • Resolution: 1280 x 720
  • Firmware Upgrade: USB 2.0
  • Dimension: 420 x 294 x 134 mm
  • Weight: 1.5 kg
  • Operating Temp. Range: 0°C ~ 40°C (32°F~104°F)
  • Storage Temperature: - 10°C ~ 60°C (14°F~140°F)
  • Operating Humidity: 10 % to 80 % (non-condensing)
  • Power Supply: DC 12V, 19W


• Item Includes:

  • 1x RMC-300A Main Unit
  • 1x DC 12V power adaptor
  • 1x Thank You Card


• GTIN:

  0362255008676
