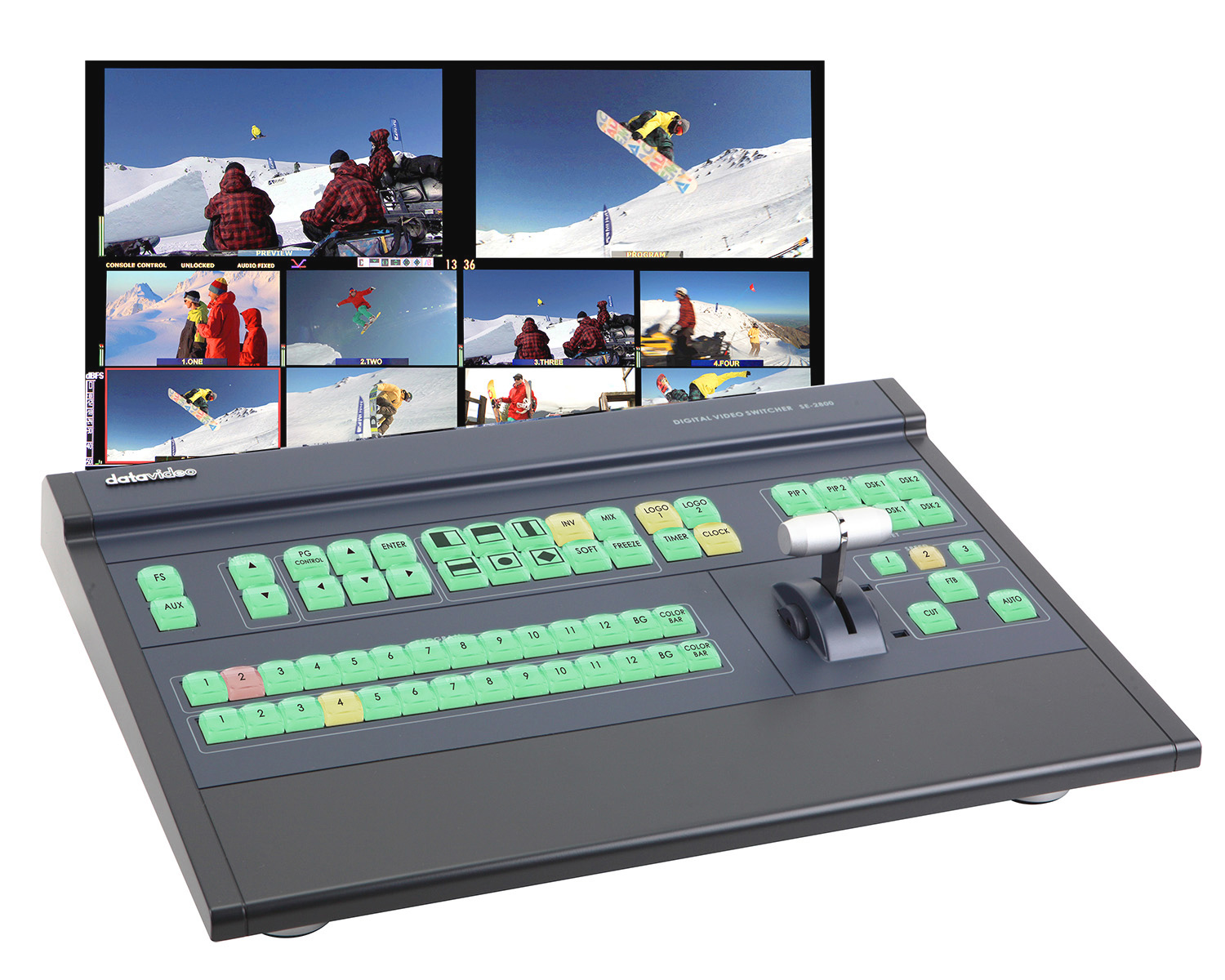

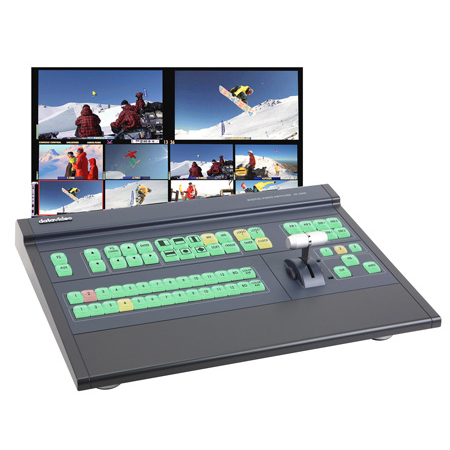

Datavideo SE-2800-12 HD-SDI Video Switcher and Control Panel

SE-2800-12 - Overview

• Features:

  • Two configurable HDMI multiview outputs.
  • (7) pre-stored static logos plus one dynamic logo
  • Luminance key, image freeze, and fade to black.
  • Two DSKs
  • Includes four-input audio mixer.
  • Supports audio-follows-video switching.
  • Audio inputs are assignable to video inputs
  • Support embedded audio on SDI and HDMI inputs/outputs
  • 2 PiP’s with borders
  • On screen clock, countdown timer and audio level monitors
  • Ethernet port for PC control
  • PC Control software included (download link on Datavideo site)


• Specifications:

  • Video Inputs:
  • 12 video inputs
  • Can simultaneously accept HD-SDI, SDI, CV and HDMI

    Video Outputs:
  • 2 HDMI (configurable Multiview or PGM out)
  • 3 HD/SD-SDI (assignable – AUX, PGM, or PVW)

    Supported Video Resolutions:
  • HD:1080i50, 1080i59.94, 1080i60
  • SD: 480i59.94 (NTSC), 576i/50 (PAL)

    Audio:
  • Input: 4 analog balanced XLR
  • Output: 2 analog balanced XLR
  • 3 SDI embedded audio output

    Tally:
  • 1 DB25 tally output – Compatible to work with Datavideo ITC-100 (Need special tally cable).


• Item Includes:

  • Datavideo SE-2800-12 HD-SDI Video Switcher
  • Control Panel
  • Instruction Manual
  • DB9 F/F 1.5m cable
  • 2x plastic buttons
  • 12VDC Adapter
  • Warranty card - 2 year warranty against defects in material and workmanship with registration. One-Year without registration.


• GTIN:

  0672255005361
