Laird CAT5e Tactical Ethernet Cable - Neutrik etherCON RJ45 to RJ45 - Black - 35 Foot

ITEM #: EC8-RJ45-35 MFG #: EC8-RJ45-35

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$70.95

Our Price:

$63.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Extended Lead Time; estimated delivery in December.


EC8-RJ45-35 - Overview

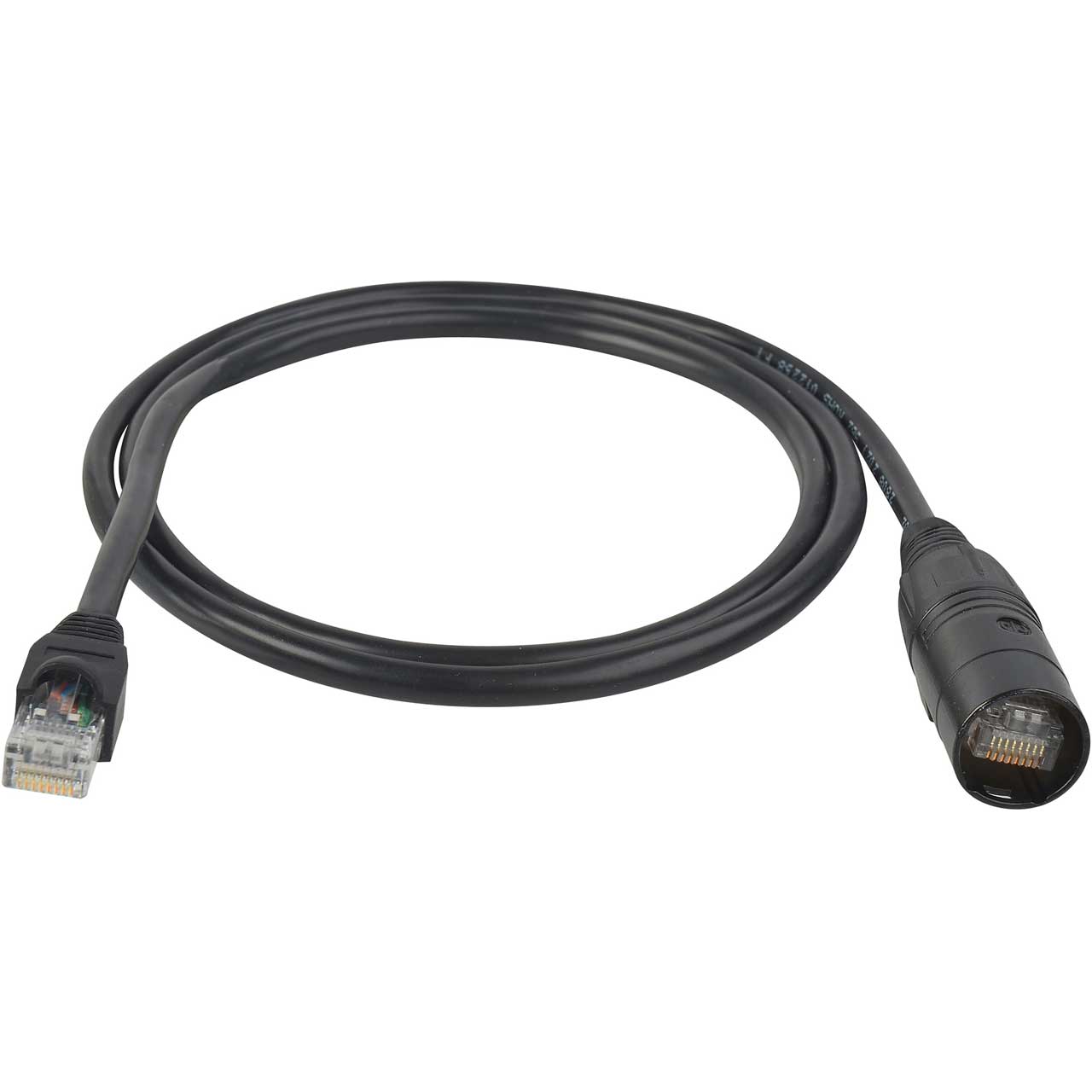

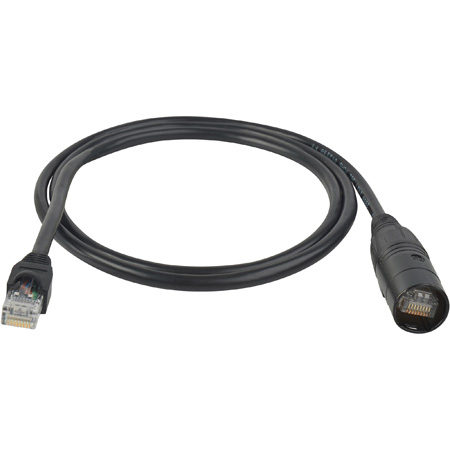

The Laird EC8-RJ45 CAT5e Tactical Ethernet Cable was developed for any application requiring heavy-duty CAT5e Ethernet cable deployment! It features Belden 7923a CAT5e DataTuff Twisted pair cable with a standard RJ45 connector at one end and a professional Neutrik EtherCON RJ45 connector on the other. The standard RJ45 connector end features a snagless round boot to protect the RJ45 locking tab.

EC8-RJ45 series Ethernet cables are Ideal for use with video and audio CAT5e extenders on set, in the field or anywhere a heavy-duty CAT5e to Neutrik EtherCON cable is needed. It's also a great Vox VC-12 Pedalboard replacement cable for connection to Valvetronix "Blue" Series amps. Because it's a tactical grade cable, it's a rugged option for stage and touring use.

Prevalent use of RJ45 connectors in the stage world has created the need for a road-worthy Ethernet cable. Neutrik's EtherCON has a rugged diecast shell and unique chuck type strain relief which protects Ethernet connections in a variety of broadcast & commercial applications, and is designed to prevent breakage of the fragile components of standard RJ45 connectors.

  • Features:

    • Vox VC-12 Pedalboard replacement cable
    • Manufactured with premium components
    • Connector withstands repeated connections and maintains mechanical and electrical integrity
    • Ideal for use with video and audio CAT5e extenders

  • Specifications:

    • Belden 7923a
    • Conductor AWG: 24
    • Conductor Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Conductor Number of Pairs: 4
    • Insulation Material: PO - Polyolefin
    • Bonded-Pair: Yes
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.230" (5.84mm)
    • Outer Jacket Ripcord: Yes
    • Overall Cable Diameter (Nominal): 0.230" (5.84mm)
    • Max. Conductor DCR: 9Ω/1000ft
    • Max. DCR Unbalance: 3.0%
    • Max. Capacitance Unbalance: 66pF/ft
    • Nom. Mutual Capacitance: 15pF/ft
    • Max. Delay Max.: 510ns/100m
    • Delay Skew: 25ns/100m
    • UL Voltage Rating: 300V (CMR), 300V (CMX-Outdoor)
    • UL Rating Temp: 167°F (75°C)
    • Operating Temp: -40°F - 167°F (-40°C - 75°C)
    • Installation Temp: -13°F - 167°F (-25°C - 75°C)
    • Storage Temp: -13°F - 167°F (-25°C - 75°C)
    • Max. Pull Tension: 40lbs
    • Bulk Cable Weight: 27lbs/1000ft
    • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
    • Flammability / Fire Resistance: UL1666 Riser, FT4, FT4, 1202 Vertical Tray, IEC 60332-1-2
    • NEC / UL Compliance: 800, CMR;CMX-Outdoor;CMG
    • CEC / C(UL) Compliance: CMX-Outdoor;CMG
    • Data Category: Category 5e
    • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
    • CPR Euroclass: Eca

      Neutrik NE8MX
    • Cable O.D.: Max. 8mm 0.315'
    • Insertion Force: =20 N
    • Withdrawal Force: =20 N
    • Lifetime: > 1000 mating cycles
    • Boot: Polyamide (PA 6)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Plating: Black chromium
    • Strain Relief: Polyacetal (POM)
    • Temperature Range: -22°F - 176°F (-30°C - 80°C)

  • Warranty:

    • 1 Year
