Laird Premium HD15 to XLR Male & Female Analog Audio I/O Breakout Cable for Ensemble Designs BrightEye 30

ITEM #: ED-BE-2XMF-003 MFG #: ED-BE-2XMF-003

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$74.49

Our Price:

$71.49

Availability: In Stock
iAvailability Description Popup


ED-BE-2XMF-003 - Overview

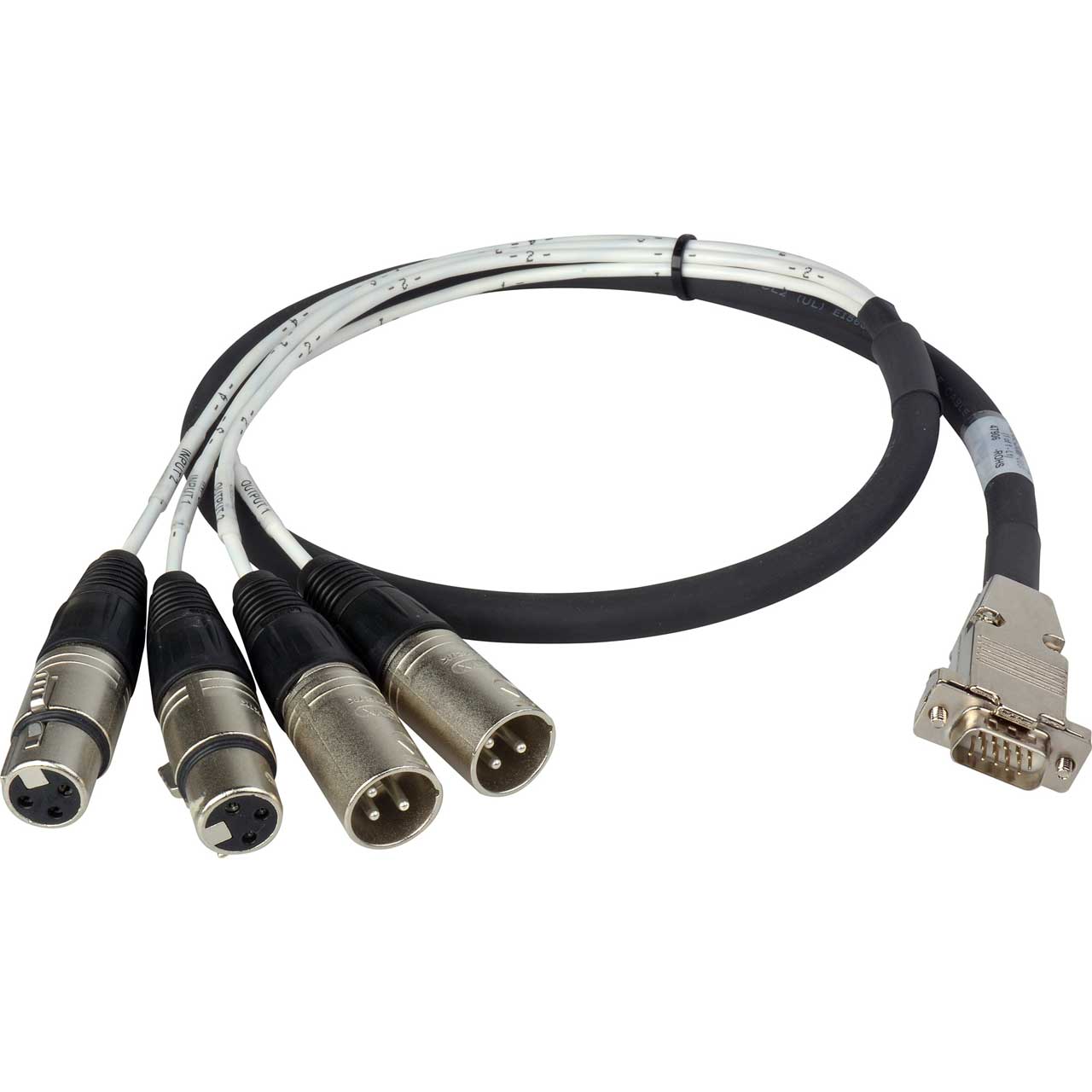

The Laird ED-BE-2XMF-003 HD15 to XLR Male & Female Analog Audio I/O Breakout Cable for Ensemble Designs BrightEye 30/30D is designed for superior connectivity with high quality 4-channel audio cable and XLR connectors. Cables are built with 24AWG stranded bare copper and are polypropylene insulated, individually shielded and jacketed with an overall heavy duty CL2 PVC jacket. The 12-inch fan out includes Neutrik 3-Pin XLR connectors which feature a durable zinc die cast shell, fiberglass reinforced hard plastic insert, and chuck type strain relief for secure clamping of all cables. Designed by Laird for the BrightEye BE 30/30D models.

  • Features:

    • 2- Neutrik NC3FX Female 3-Pin XLR Connector 2- Neutrik NC3MX Male 3-Pin XLR Connector 15 Pin HD Industry standard AMP DSub cable hood 3 ft audio cable with12-inch fan out High quality 24AWG audio cable

  • Specifications:

    • Capacitance: 25 pF/ft. @ 1 kHz Cond.-Shield Capacitance: 45 pF/ft. @ 1 kHz Characteristic Impedance: 60ohms NOMINAL D.C. Resistance @ 20°C: 24.5ohms/1000'

  • Warranty:

    • 1 Year
