Elation Professional FUZE PENDANT Compact Full Spectrum RGBWA LED Compact House Light Pendant Fixture - 144W

ITEM #: ELAT-FUZE-PND-C MFG #: FUZ292

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,250.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


FUZ292 - Overview

The Elation Professional FUZE PENDANT Compact™ provides powerful illumination for a variety of house and area lighting applications. Crisp whites with a high CRI, plus subtle pastels and powerful pure colors with 16-bit dimming, allow for a wide range of smooth illumination and dynamic effects for any environment. At up to 7,200 lumens, the FUZE PENDANT Compact is ideal for a variety of ceiling height applications yet is compact enough to be adaptable to smaller spaces. It is convection cooled for absolute silence and has no fans or other moving parts for a long maintenance free product life.

Pendant and optional yoke or recessed ceiling options provide flexibility when finding the ideal mounting position and a variety of lens choices (45° included, 25°, 40°, 50 or 100° optional) allow for precise light distribution. Industry standard power and DMX connections, plus included terminal block connections for power, emergency battery input and 0-10V control, support multiple permanent or temporary install requirements with a single product design.

  • Features:

    • Full Spectrum 144W 5in1 LED Array
    • 2400 - 8500K Color Temperature
    • CRI 90 @ 3,200K
    • 7,200 Total Lumen Fixture Output
    • 45° Lens Included
    • Optional 25°, 40°, 50° and 100° Lenses Available
    • Compact Fanless Design
    • DMX, RDM, 0-10V and E-FLY Wireless Support
    • 48V Emergency Battery Input
    • Bare Wire Block Terminal Connections (connectors included)
    • Pendant Bracket (included)
    • Optional Yoke or Recessed Ceiling Mount Kits Available
    • Optional Half and Full Snoot Kits Available

  • Specifications:

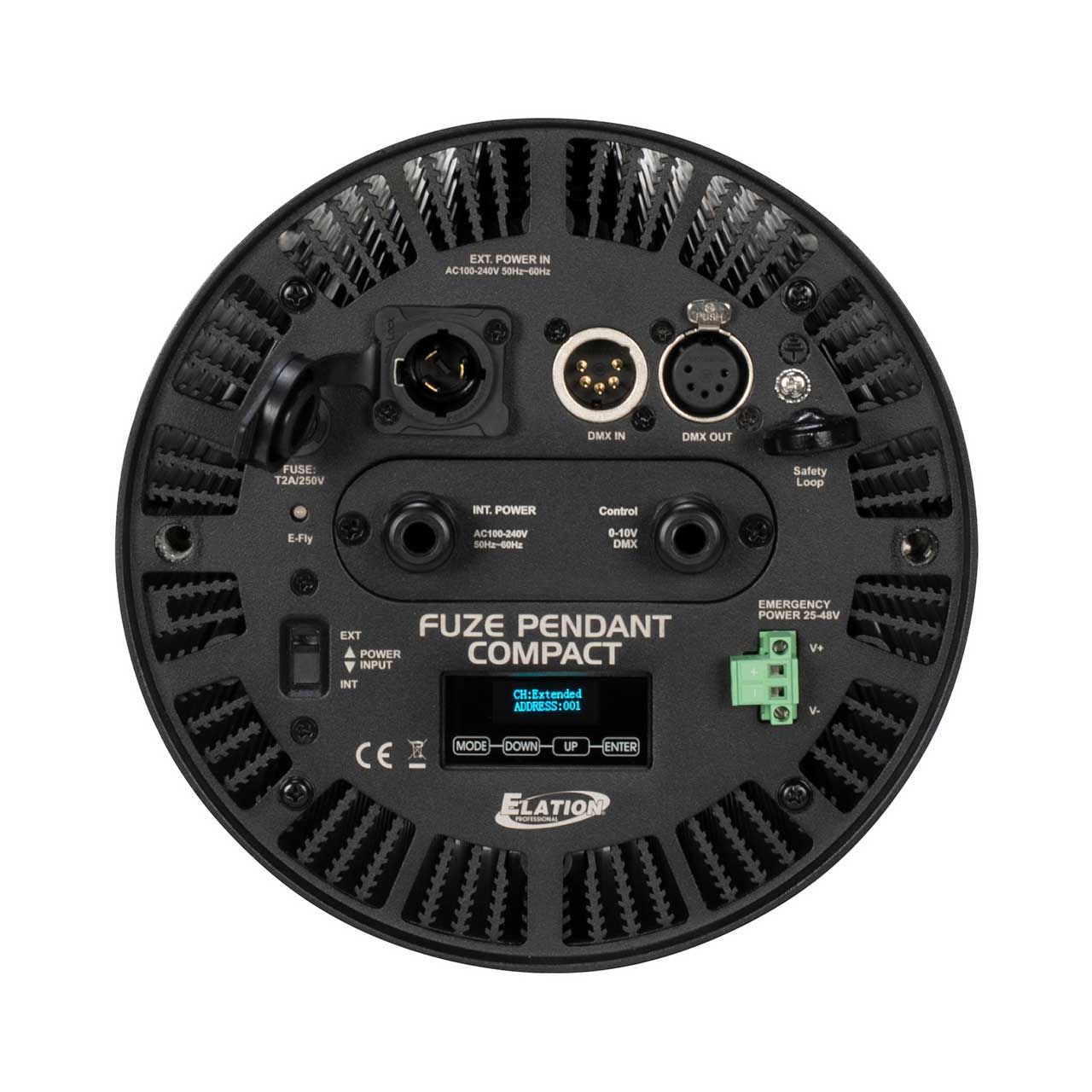

    • Control / Connections
    • 8 DMX Channel Modes
    • Standalone and Primary/Secondary Modes
    • RDM (Remote Device Management)
    • 0-10V Dimming (Current-Sink)
    • E-FLY™ Internal Extended Range Wireless DMX Transceiver
    • 4 Button Control Panel and OLED Menu Display
    • Locking 5pin XLR Connector In/Out
    • Locking IP65 Power Connector In
    • 3pin Wire Terminal Block (12-24 AWG (4.0 - 0.25 mm&Sup2)
    • 5pin Wire Terminal Block for 0-10V, DMX (24AWG / 0.25 mm&Sup2)
    • 2pin Wire Terminal Block for 48V Emergency Battery Input (24AWG / 0.25 mm&Sup2)

      Size / Weight
    • Dimensions: 7.75 x 7.71 x 11.73" (197 x 196 x 298mm)
    • Weight: 11.6lbs. (5.3 kg)

      Electrical / Thermal
    • AC 100-240V - 50/60Hz
    • Max Power Consumption 145W
    • 14°F to 113°F (-10°C to 45°C)

      Approvals / Ratings
    • CE/cETLus/IP20/FCC

  • Item Includes:

    • 1x Fuze Pendant Compact Full-Spectrum 5-in-1 LED Array (144W)
    • 1x 45° Lens
    • 1x Pendant Bracket

  • Warranty:

    • 2 Year

  • GTIN:

    0810008263426
