Elation Professional FUZE PENDANT Full Spectrum RGBWA LED House Light Pendant Fixture - 230W - Black

ITEM #: ELAT-FUZE-PND MFG #: FUZ260

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,650.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


FUZ260 - Overview

The Elation Professional FUZE PENDANT™ provides powerful illumination for a variety of house and area lighting applications. Crisp whites with a high CRI, plus subtle pastels and powerful pure colors with 16-bit dimming, allow for a wide range of smooth illumination and dynamic effects for any environment. At up to 11,000 lumens, the FUZE PENDANT is ideal for large areas and high-ceiling applications yet is compact enough to be adaptable to smaller spaces. It is convection cooled for absolute silence and has no fans or other moving parts for a long maintenance free product life.

Pendant and optional yoke or recessed ceiling options provide flexibility when finding the ideal mounting position and a variety of lens choices (45° included, 25°, 40°, 50 or 100° optional) allow for precise light distribution. Industry standard power and DMX connections, plus included terminal block connections for power, emergency battery input and 0-10V control, support multiple permanent or temporary install requirements with a single product design.

  • Features:

    • Full Spectrum 230W 5in1 LED Array
    • 2400 - 8500K Color Temperature
    • CRI 90 @ 3,200K
    • 11,000 Total Lumen Fixture Output
    • 45° Lens Included
    • Optional 25°, 40°, 50° and 100° Lenses Available
    • Compact Fanless Design
    • DMX, RDM, 0-10V and E-FLY Wireless Support
    • 48V Emergency Battery Input
    • Bare Wire Block Terminal Connections (connectors included)
    • Pendant Bracket (included)

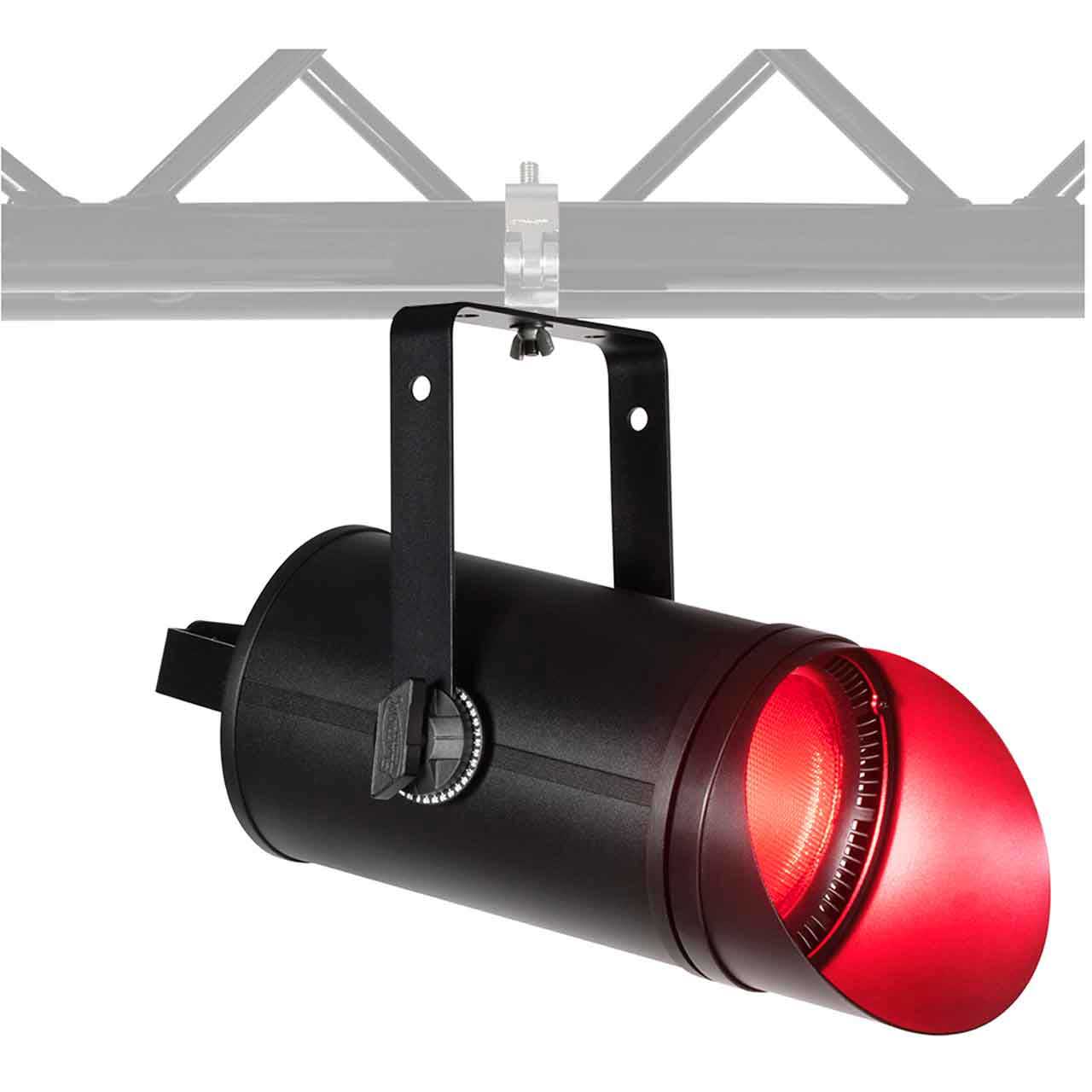

    • Optional Yoke or Recessed Ceiling Mount Kits Available
    • Optional Half and Full Snoot Kits Available

  • Specifications:

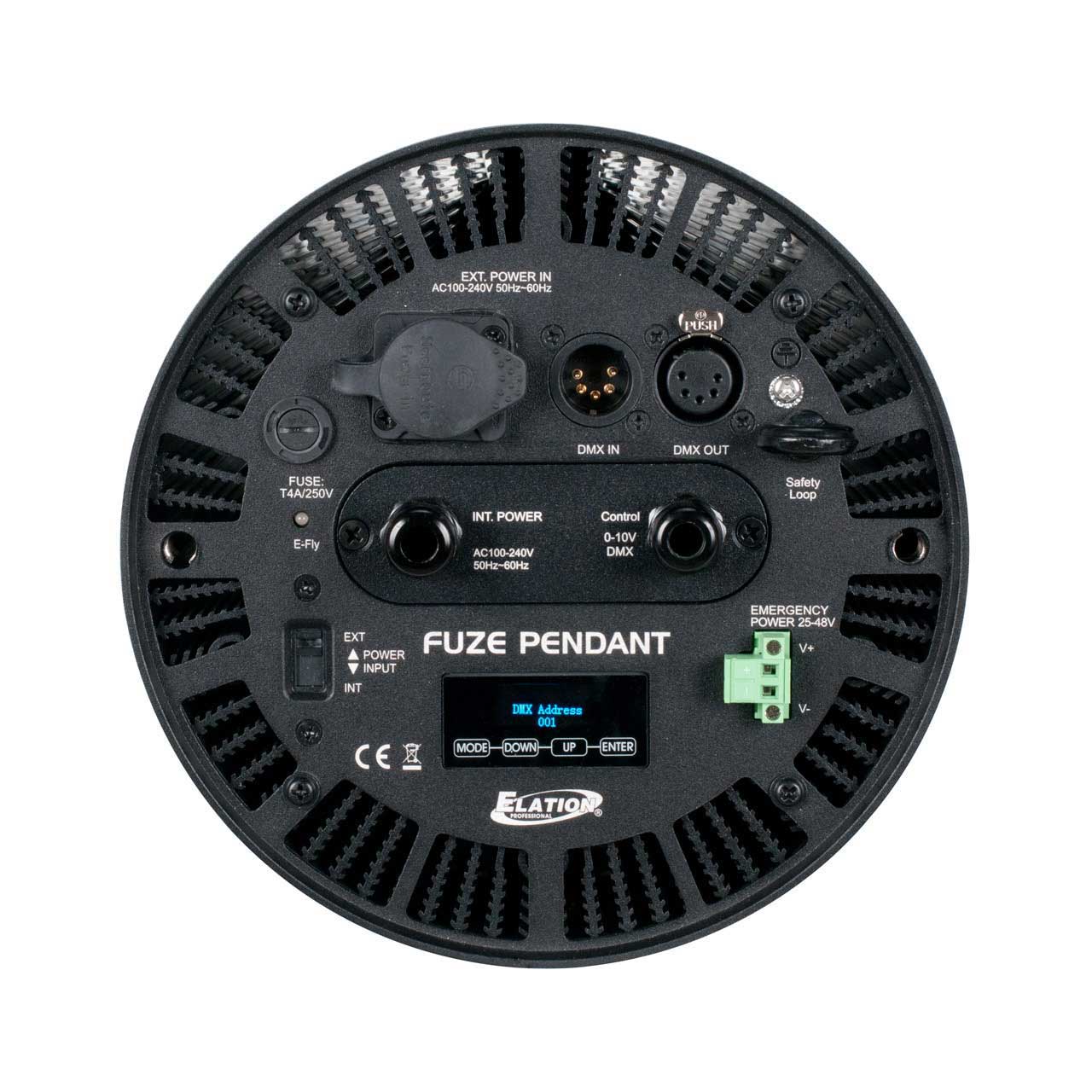

    • Control / Connections
    • 8 DMX Channel Modes
    • Standalone and Primary, Secondary Modes
    • RDM (Remote Device Management)
    • 0-10V Dimming (Current-Sink)
    • E-FLY™ Internal Extended Range Wireless DMX Transceiver
    • 4 Button Control Panel and OLED Menu Display
    • Locking 5pin XLR Connector In/Out
    • Locking IP65 Power Connector In
    • 3pin Wire Terminal Block (12-24 AWG (4.0 - 0.25 mm²)
    • 5pin Wire Terminal Block for 0-10V, DMX (24AWG / 0.25 mm²)
    • 2pin Wire Terminal Block for 48V Emergency Battery Input (24AWG / 0.25 mm²)

      Size / Weight
    • Length: 12.5"" (318mm)
    • Diameter: 7.8"" (197mm)
    • Weight: 15.8lbs (7.2 kg)

      Electrical / Thermal
    • AC 100-240V - 50/60Hz
    • Max Power Consumption 230W
    • 14°F to 113°F (-10°C to 45°C)

      Approvals / Ratings
    • CE/cETLus (pending)/IP20/FCC

  • Item Includes:

    • 1x Fuze Pendant Compact Full-Spectrum 5-in-1 LED Array- Black
    • 1x 45° Lens
    • 1xPendant Bracket

  • Warranty:

    • 2 Year

  • GTIN:

    0810008260869
