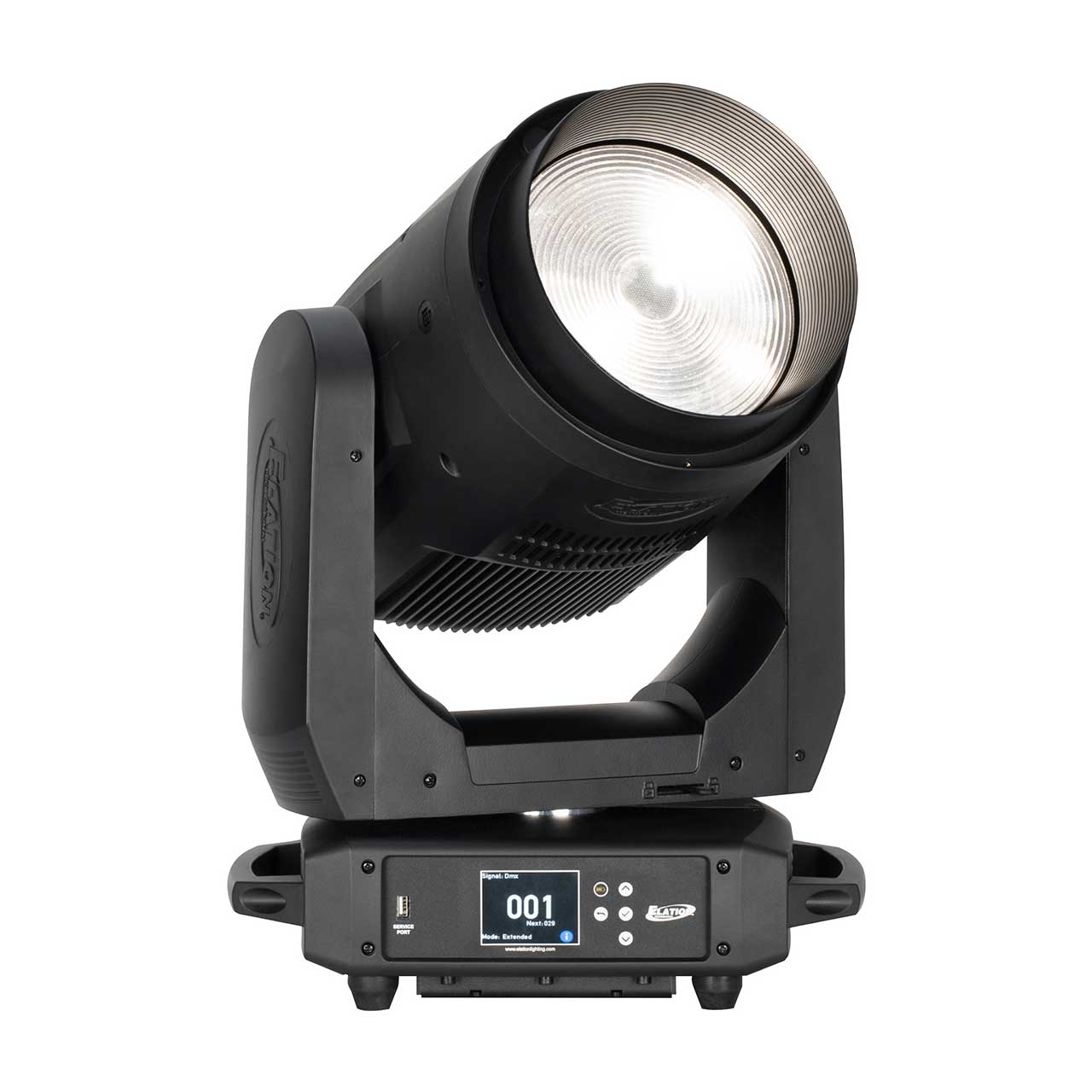

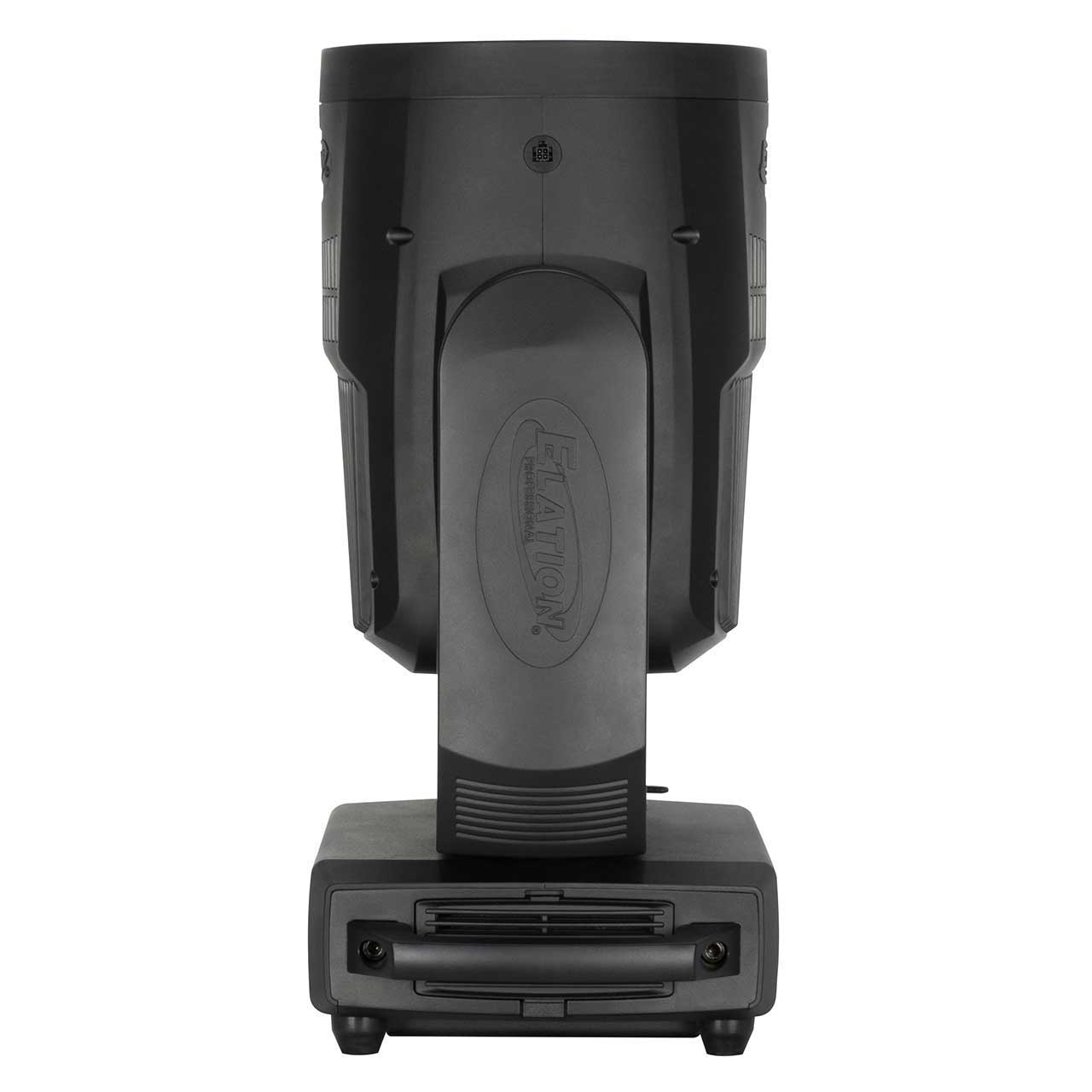

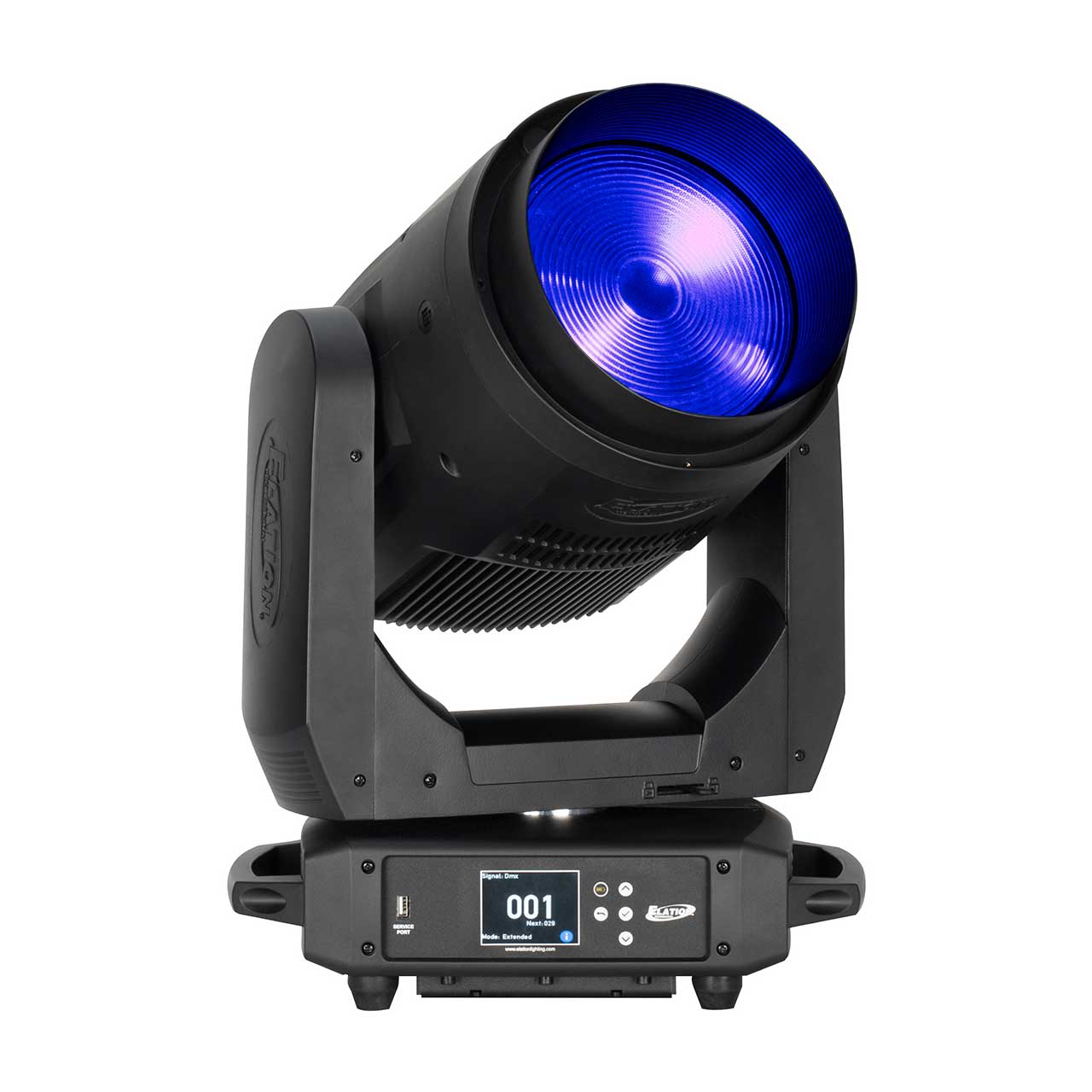

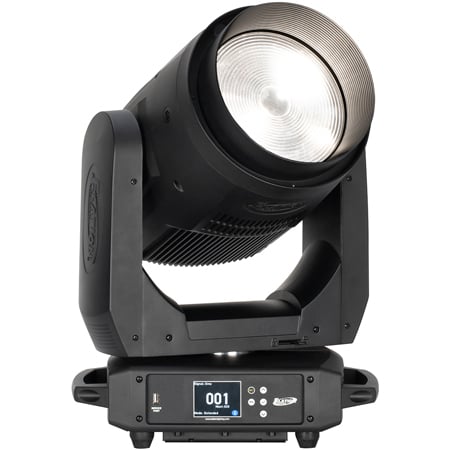

Elation Professional FUZE WASH 500 - Full Spectrum RGBMA LED Wash Fixture - 500W

ITEM #: ELAT-FUZEWSH500 MFG #: FUZ567

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$4,200.00

Our Price:

$3,360.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    FUZ567 - Overview

    The Elation Professional FUZE WASH 500™ is a powerful automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications. A High-CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of up to 17,000 lumens and maximum CRI of 92. Virtual color temperature, Magenta / Green adjustment plus CMY or RGB emulation provide the designer with immediate access to the impressive LED color array.

    The FUZE WASH 500 is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and a soft field is required. An optional indexable ovalizer lens and a fully automated barn door system is available for additional remote beam control."

    • Features:

      • 500W Full Spectrum RGBMA LED Engine
      • Up to 17,000 Total Lumen Fixture Output @ 6500K
      • CRI up to 92
      • Wide Zoom Range from 10° to 45°
      • Variable 16-bit Dimming Curve Modes
      • CMY Emulation
      • Virtual Color Correction
      • Green/Magenta Shift
      • Virtual Gel Swatch Book

    • Specifications:

      • Control / Connections
      • 6 DMX Channel Modes (RGBMA 21/ 30) (CMY 17 / 24) (RGB 20 / 26)
      • 16-bit Pan, Tilt, and Dimming Control
      • DMX Adjustable LED Frequency
      • DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support
      • 4 Button Touch Control Panel
      • Full Color 180° Reversible LCD Menu Display

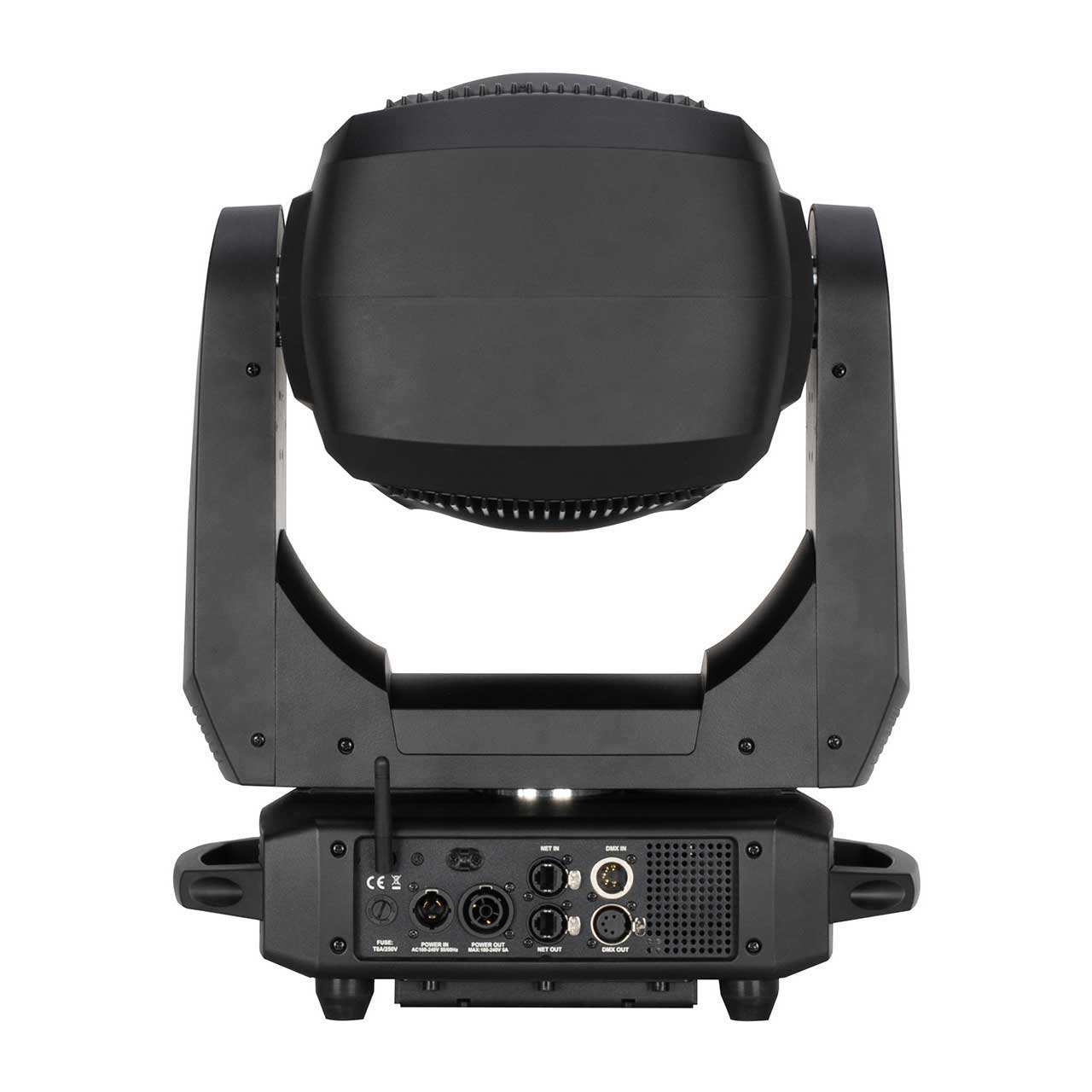

      • Locking 5pin XLR Connector In/Out
      • Locking RJ45 Ethernet Connector In/Out
      • Locking IP65 Power Connector In/Out
      • USB Connection (Firmware Updates)

        Size / Weight
      • Dimensions: (LxWxH): 16.06 x 10.07 x 21.7" (408 x 256 x 550mm)
      • Weight: 40.8 lbs. (18.5kg)

        Electrical / Thermal
      • AC 100-240V - 50/60Hz
      • Max Power Consumption 609W
      • 14°F to 113°F (-10°C to 45°C)
      • BTU/hr (+/- 10%) 2151.71

        Approvals / Ratings
      • CE/cETLus/IP20

    • Item Includes:

      • 1x FUZE WASH 500 Full Spectrum RGBMA LED Wash Fixture - 500W

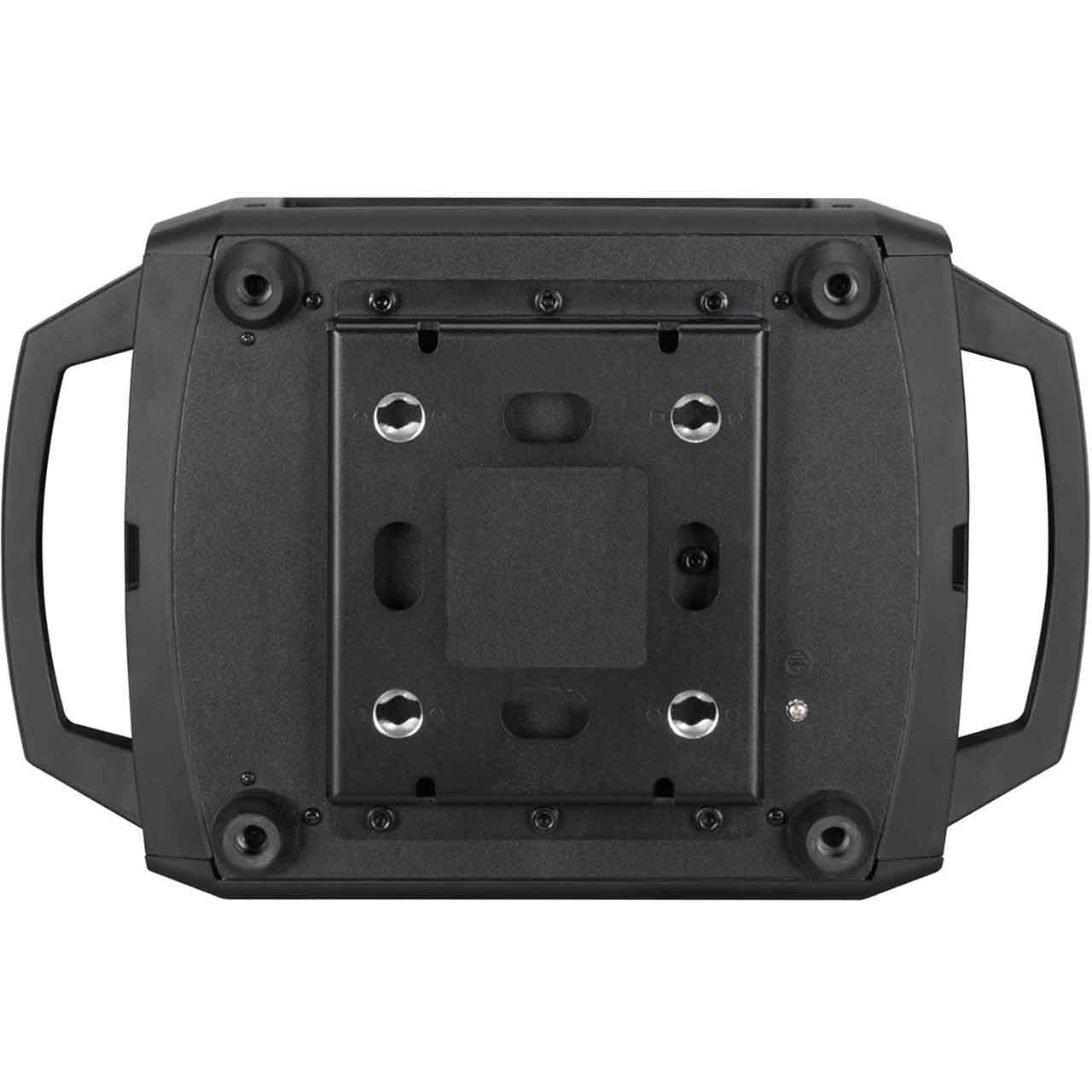

      • 1x Omega Brackets
      • 1x powerCON TRUE1 Power Cord
      • 1x Snoot

    • Warranty:

      • 2 Year

    • GTIN:

      0810008263648
