Elo 3204L 31.5 Inch Interactive Touchscreen LCD Digital Signage Display - 16:9 - Black

ITEM #: ELO-E103164 MFG #: E103164

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,448.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


E103164 - Overview

Edge-to-edge design with integrated 10-touch

Elevate your applications with Elo's 3204L 32-inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 3204L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 32-inch tablet.

Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 3204L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.With touch thru capability, Elo's TouchPro PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.

These commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop. Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo's 3204L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 3204L for diverse international markets.

  • Specifications:

    • Enclosure Color: Black
    • Touch Technology & Capacity: PCAP (TouchPro Projected Capacitive) - 40 Touch with Palm Rejection and Touch Thru capability
    • Touch Thru: Supports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mm.
    • Touch Interfaces: USB-C
    • Diagonal Size: 31.5'' diagonal, Active matrix TFT LCD (LED)
    • Active Area: 27.5" x 15.47" (698.4mm x 392.9mm)
    • Resolution: 1920x1080 @ 60Hz
    • Viewing Angle:
      - Horizontal: ±89° or 178° total
      - Vertical: ±89° or 178° total
    • Number of Colors: 8-bit (16.7 million)
    • Brightness - LCD Panel: 400 nits, PCAP: 320 nits
    • Response Time-Total (typical): 8 msec
    • Contrast Ratio: 3000:1
    • I/O Ports:
      - 2x HDMI 1.4, USB-C (for Touch control and Video input)
      - 1x USB-A (for Wi-Fi Adapter only)
      - 1x RJ45 (for IoT LAN port)
      - 1x RJ45 (for optional OSD remote)
      - 1x DisplayPort 1.2
      - 1x 3.5mm TRS jack (for RS232/MDC)
      - 1x 3.5mm Audio Headphones out
      - 4x Elo Edge Connect Micro USB 2.0
    • Headphone Output Connector: 3.5mm TRS jack
    • Speakers: 2x 5W stereo speakers
    • Maximum Operating Time: 24 hours/day
    • Operating Temperature:
      - Portrait/Landscape/Tilt (=15°) Mode: 32°F - 104°F (0°C - 40°C)
      - Table Top Mode: 32°F - 95°F (0°C - 35°C)

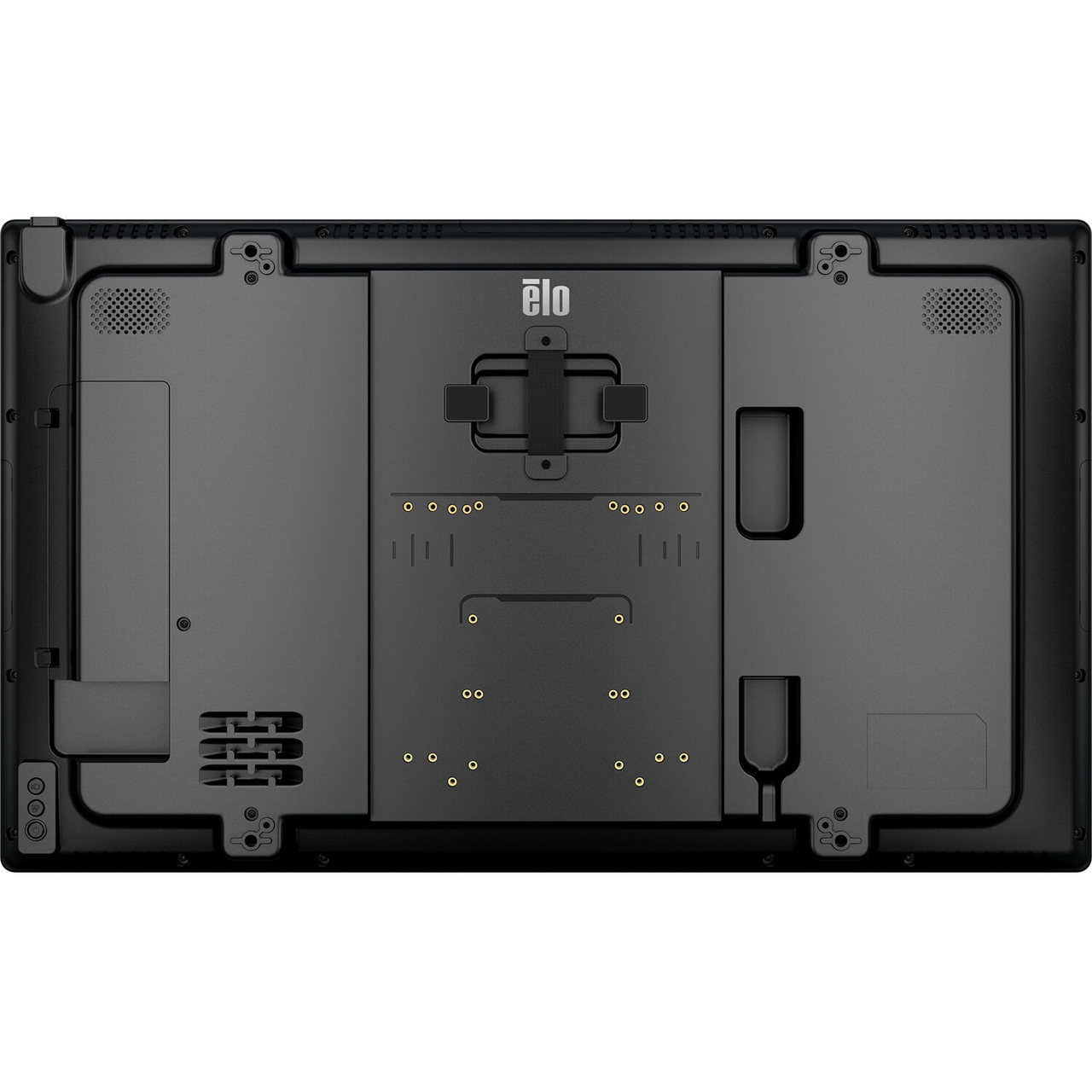

    • Mounting Options: VESA 400mm x 400mm, M6

  • Item Includes:

    • 1x 3204L Interactive Display
    • 1x Quick Install Guide
    • 1x AC (in) Power cable, IEC 60320-C13 to NA plug
    • 1x AC (in) Power cable, IEC 60320-C13 to EU/KR plug
    • 1x AC (in) Power cable, IEC 60320-C13 to UK plug
    • 1x AC (out) Power cable, IEC 60320-C14 to IEC 60320-C5 (0.3m) (With PSE certified)
    • 1x USB cable (1m) (Connector: Type-C to Type-C)
    • 1x Energy label according to EU Regulation 2019/2013, 1x EU EEI, 2x UK EEI
    • 4x M4x6mm flat head screws (for BrightSign players)

  • Warranty:

    • 3-year
