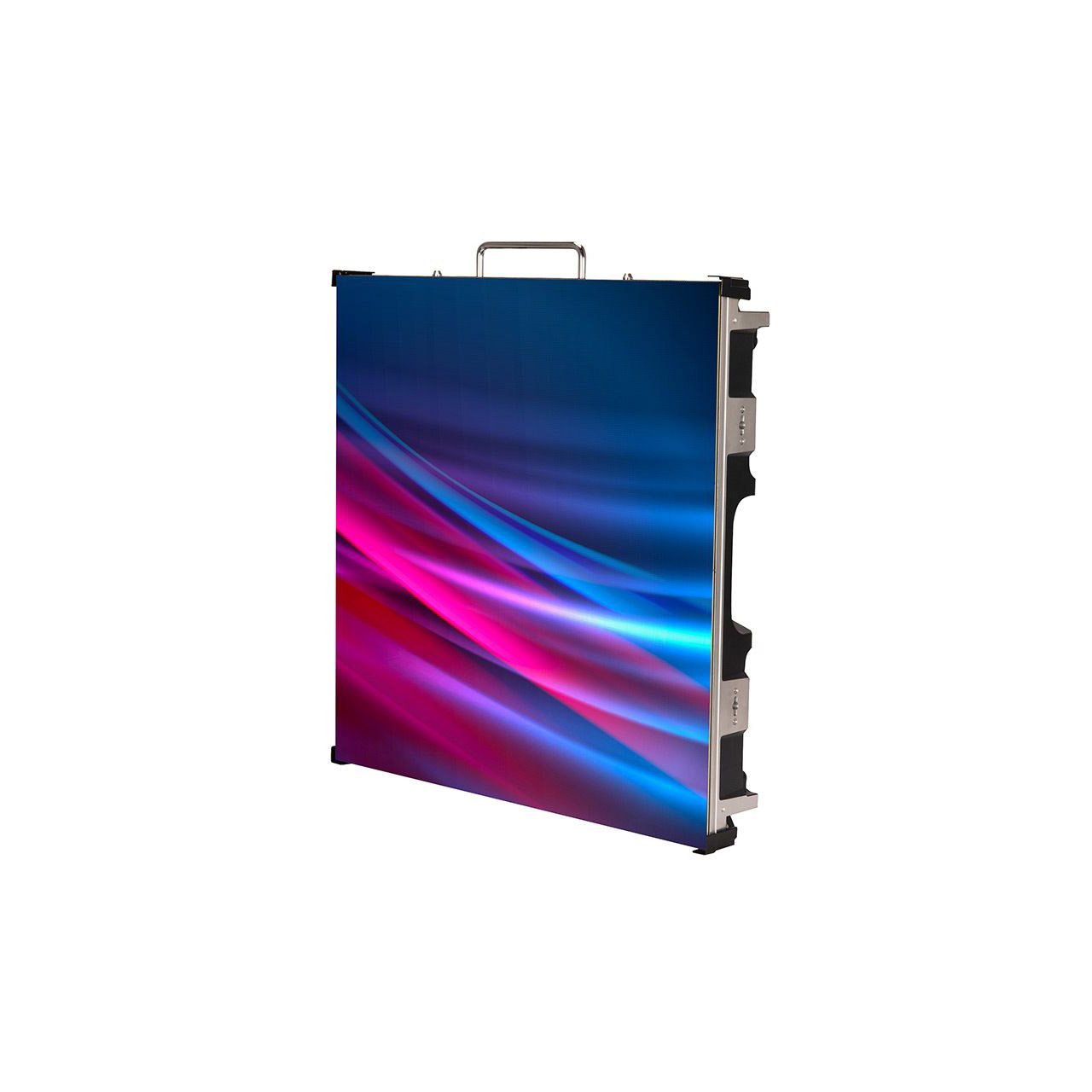

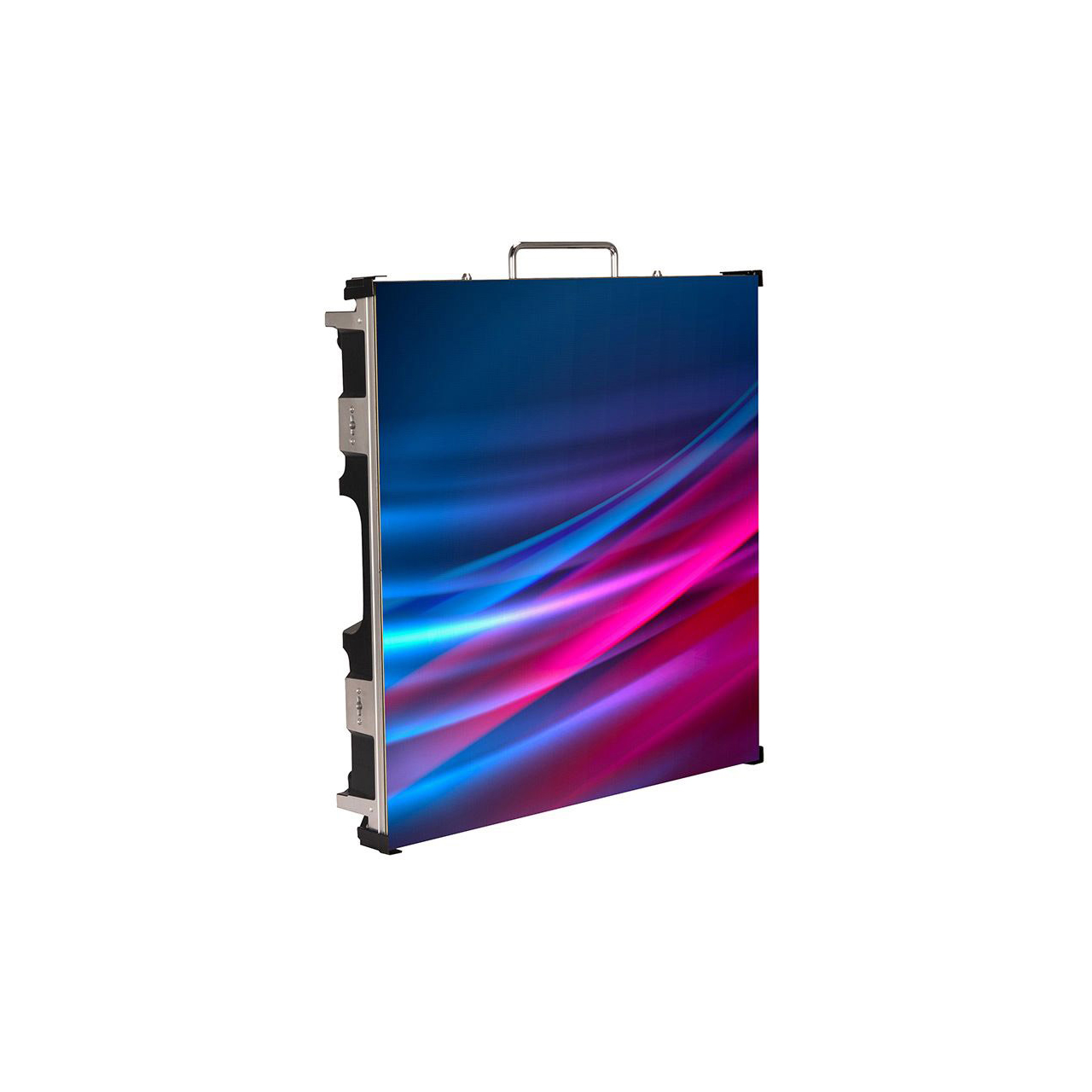

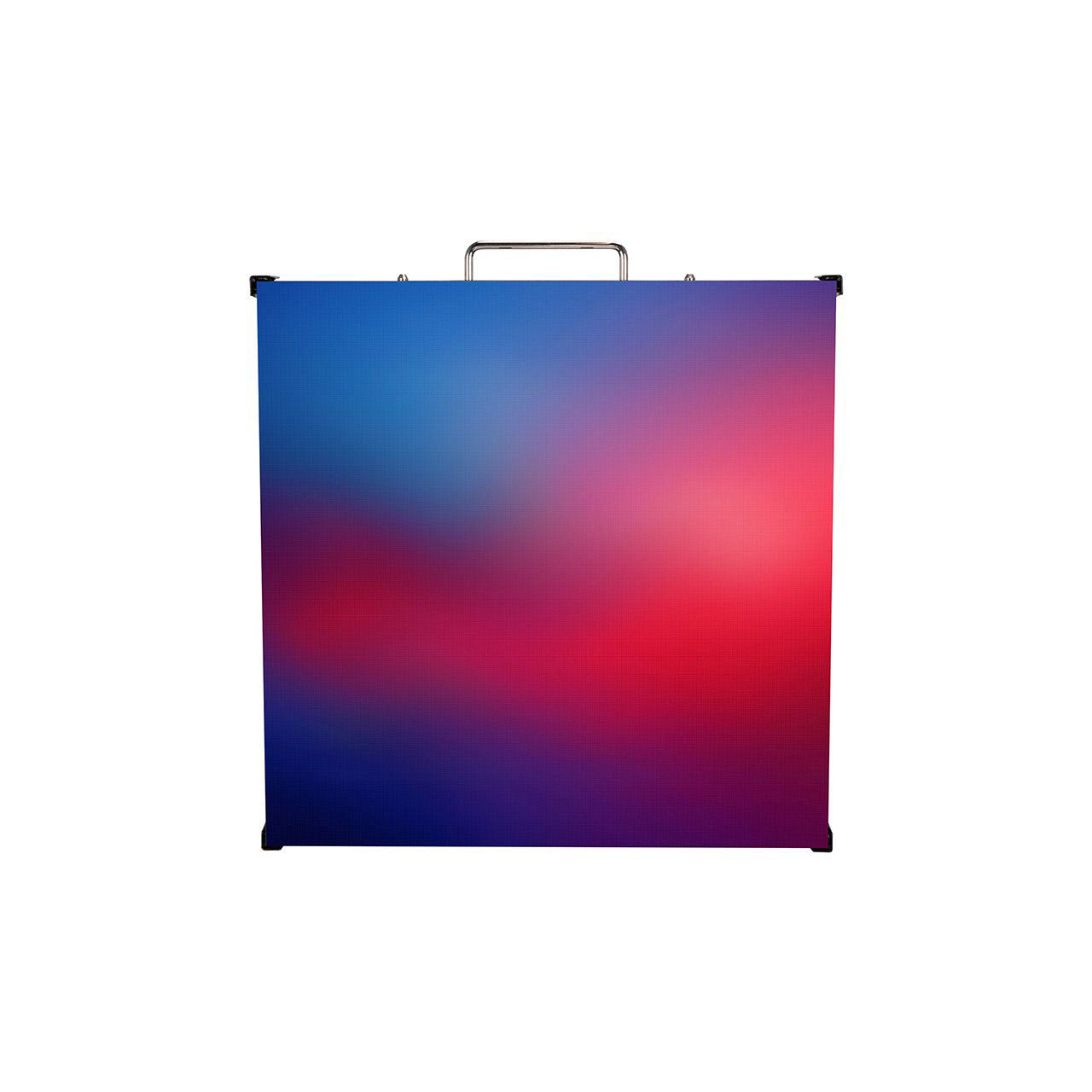

The VS1, part of ADJ's tried and true Vision Series Video Panels, features a 1.95mm pixel pitch with a 4-in-1 MiniLED configuration. Each panel includes four individual mini-modules and is designed for easy rear serviceability. Up to eight VS1 panels can be stored in the VSFC8 flight case, and the VSRB1 rigging bar allows for vertical hanging of up to 20 Vision Series panels.
The VS1 model is a high-resolution video panel with a 1.95mm pixel pitch and 4-in-1 MiniLED configuration. It boasts 1500 NITS brightness and an ultra-high refresh rate of 7680Hz, delivering exceptional image quality. With four LED modules per panel, servicing is quick and simple. The VS1 features PowerLock In/Out and DataLock In/Out connections and comes equipped with a Novastar A5s receiving card. Up to eight VS1 panels fit into the VSFC8 flight case, and the VSRB1 rigging bar allows up to 20 panels to be hung vertically. Additionally, the VS1 incorporates Memory on Module (MOM) technology to optimize performance, reliability, and usability. MOM allows the LED panel to store and recall important configuration data, such as calibration settings, brightness levels, color profiles, and other essential parameters. The VS1 panel includes four individual mini-modules and is designed for easy rear serviceability.

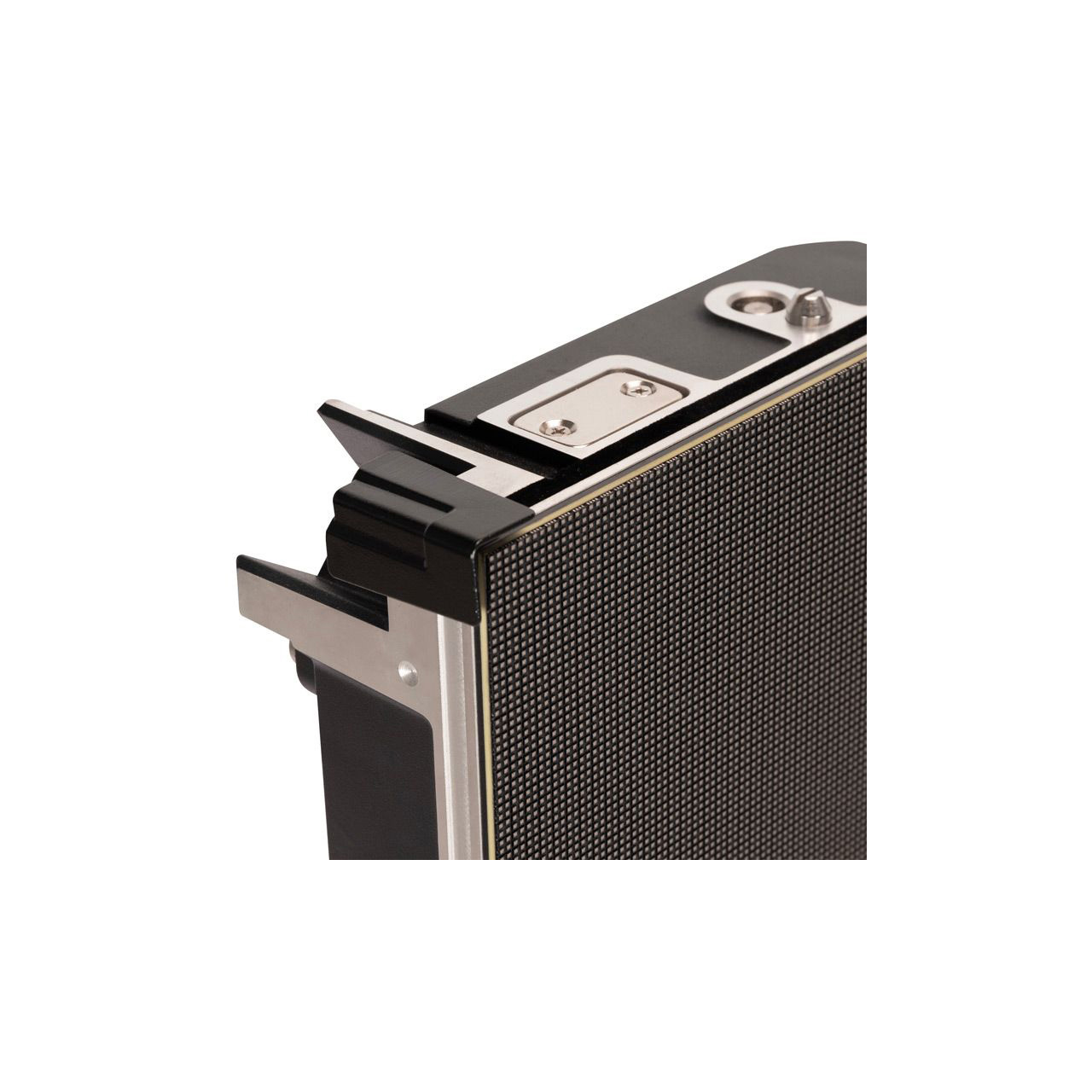

The Vision Series video panels deliver premium LED binning and outstanding brightness with crisp, clear visuals. Built on a universal frame, Vision Series panels of varying resolutions can be seamlessly combined. They share the same rigging bar and fit uniformly into a single road case. Moveable corner protectors safeguard panel edges when disconnected, and integrated magnets on the top and bottom allow temporary alignment. This magnetic feature enables a single user to assemble an entire video wall effortlessly by temporarily connecting panels, releasing them, and securely latching them from the rear.
ADJ provides complete packages with video processors, software, cables, rigging bars, and flight cases, ensuring you have everything needed to get started seamlessly.
