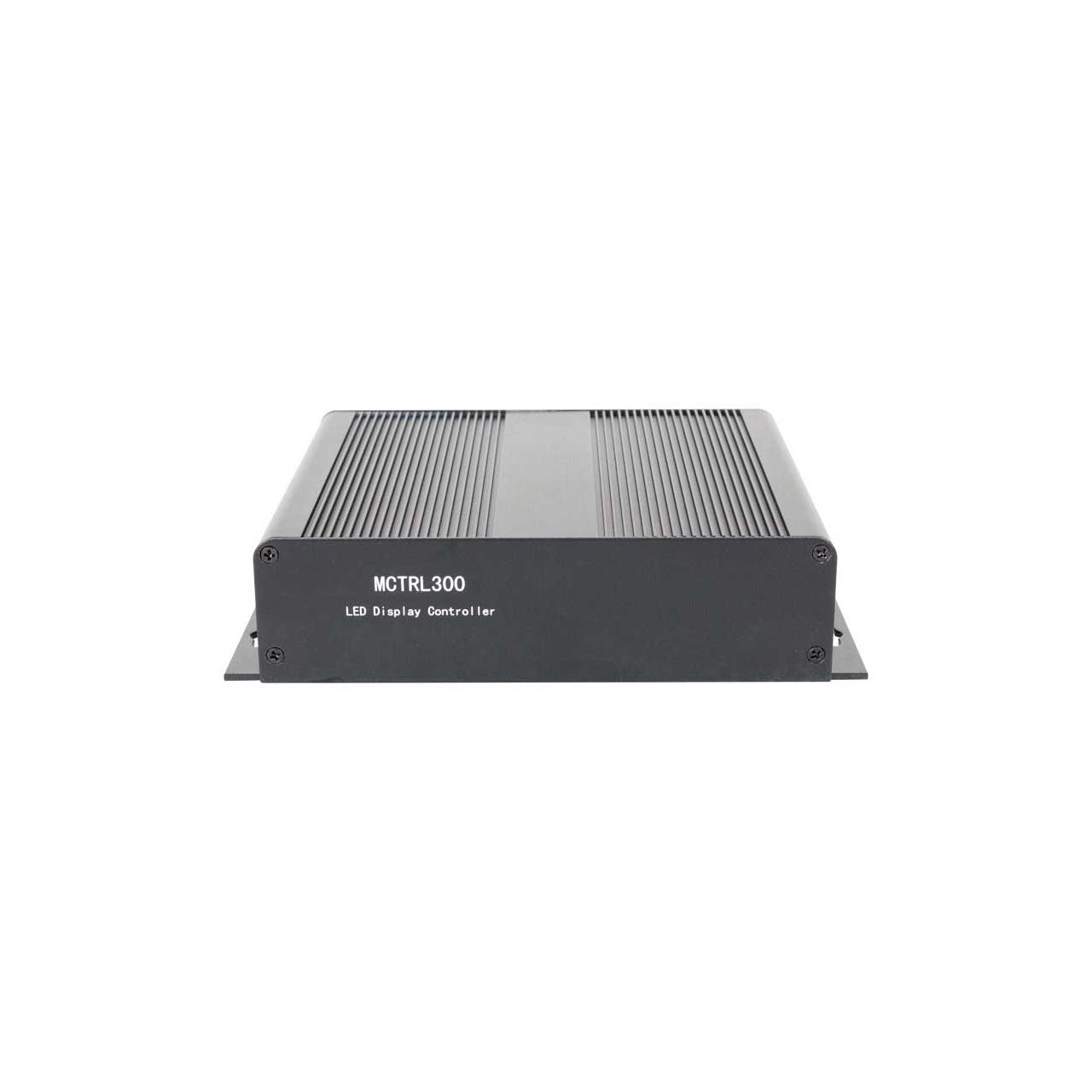

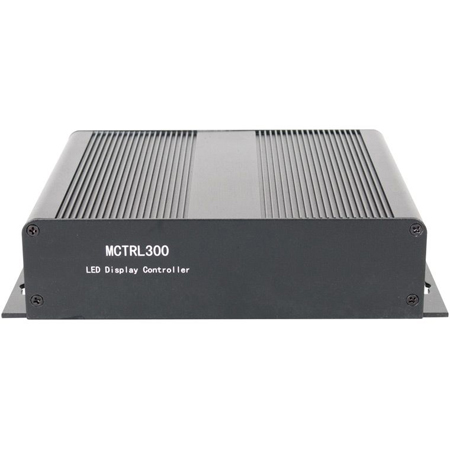

Novastar MCTRL300 Video Processor Control Box for LED Video Panel Systems

MCTRL300 - Overview

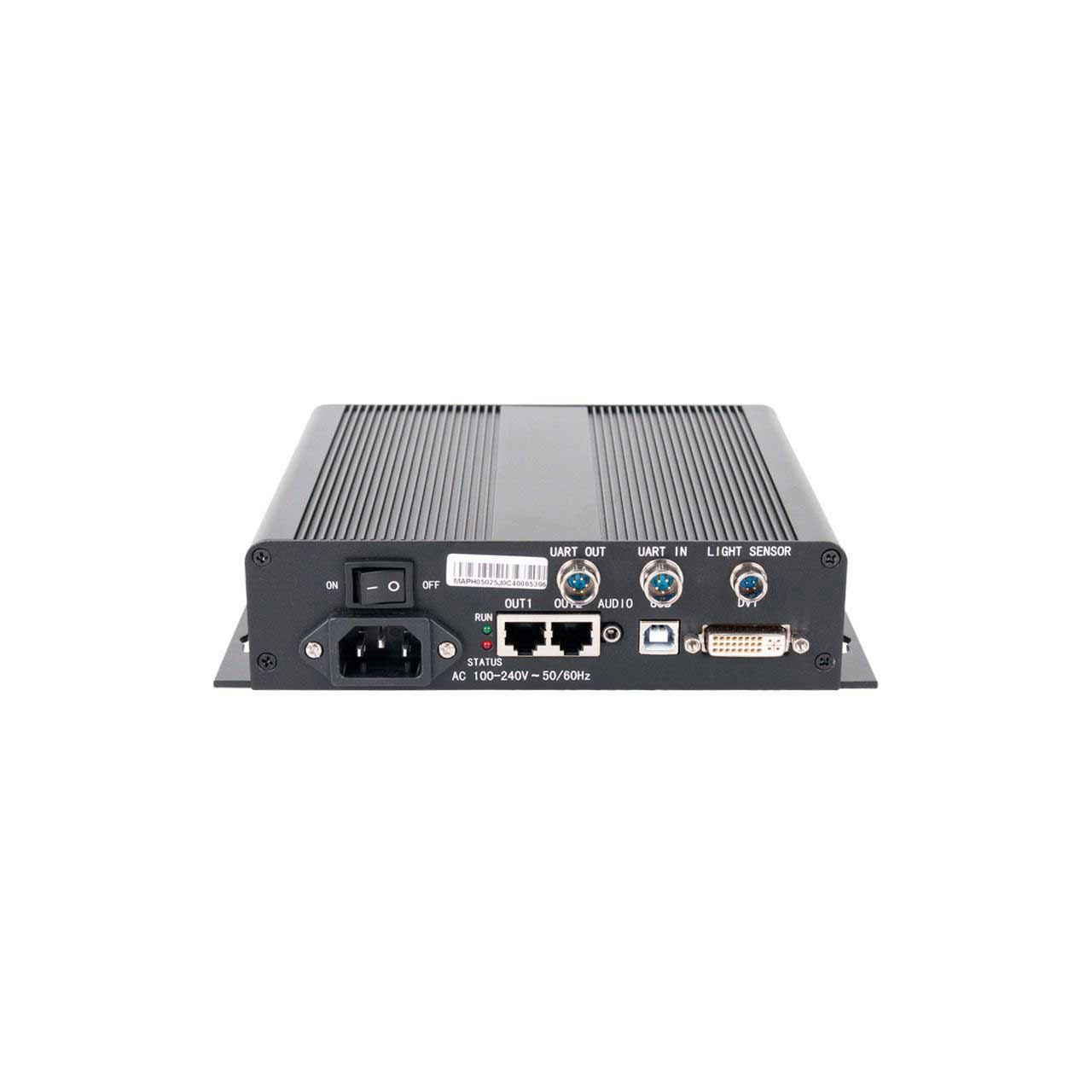

• Features:

  • 1x DVI input
  • 1x audio input
  • 1x type-B USB control port
  • UART control ports to cascade devices for uniform control.
  • Dual Ethernet outputs.
  • Supports the new generation of NovaStar calibration technology, which is fast and efficient.
  • 1x light sensor connector.
  • Supports resolutions up to 2048x668@60Hz and downward compatibility.
  • Supports a variety of video formats.


• Specifications:

  • Input
  • DVI In: Single-link DVI connector, Resolution up to 1920x1200@60Hz and downward compatible. Custom resolutions supported: Resolution with maximum width: 3840x600@60Hz Resolution with maximum height: 800x2560@60Hz
  • Audio: Audio input connector

    Output
  • RJ45 x2, 2x Gigabit Ethernet outputs. Maximum loading capacity of a single Ethernet port: 650,000 pixels. Support redundancy between Ethernet ports.

    Function
  • Light Sensor: Connect to light sensor to monitor ambient brightness to realize automatic screen brightness adjustment.

    Control
  • UART In/Out - Input and output ports for cascading devices
  • USB - Type-B USB control port for connecting to PC

    Power
  • AC 100V-240V~50/60Hz

    Indicators
  • Run - Device operating indicator. Working status: Flashing slowly: Video input unavailable, Flashing normally: Video input available, Flashing rapidly: The screen is displaying startup image. Breathing: Ethernet port redundancy has taken effect.
  • Status - Device power indicator. Working status: On: The power supply is normal. Off: The power is not supplied, or the power supply is abnormal.


• Item Includes:

  • 1x Power cord
  • 1x Cascading cable (1 meter)
  • 1x USB cable
  • 1x DVI cable


• GTIN:

  0819730016591
