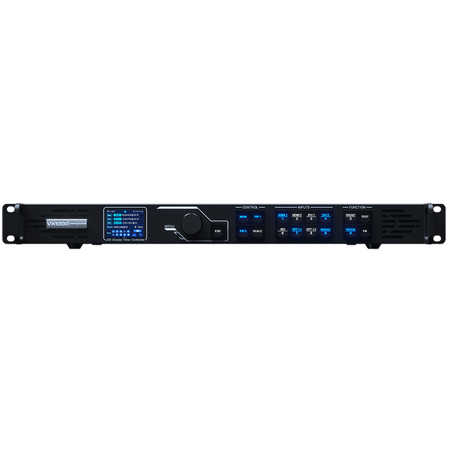

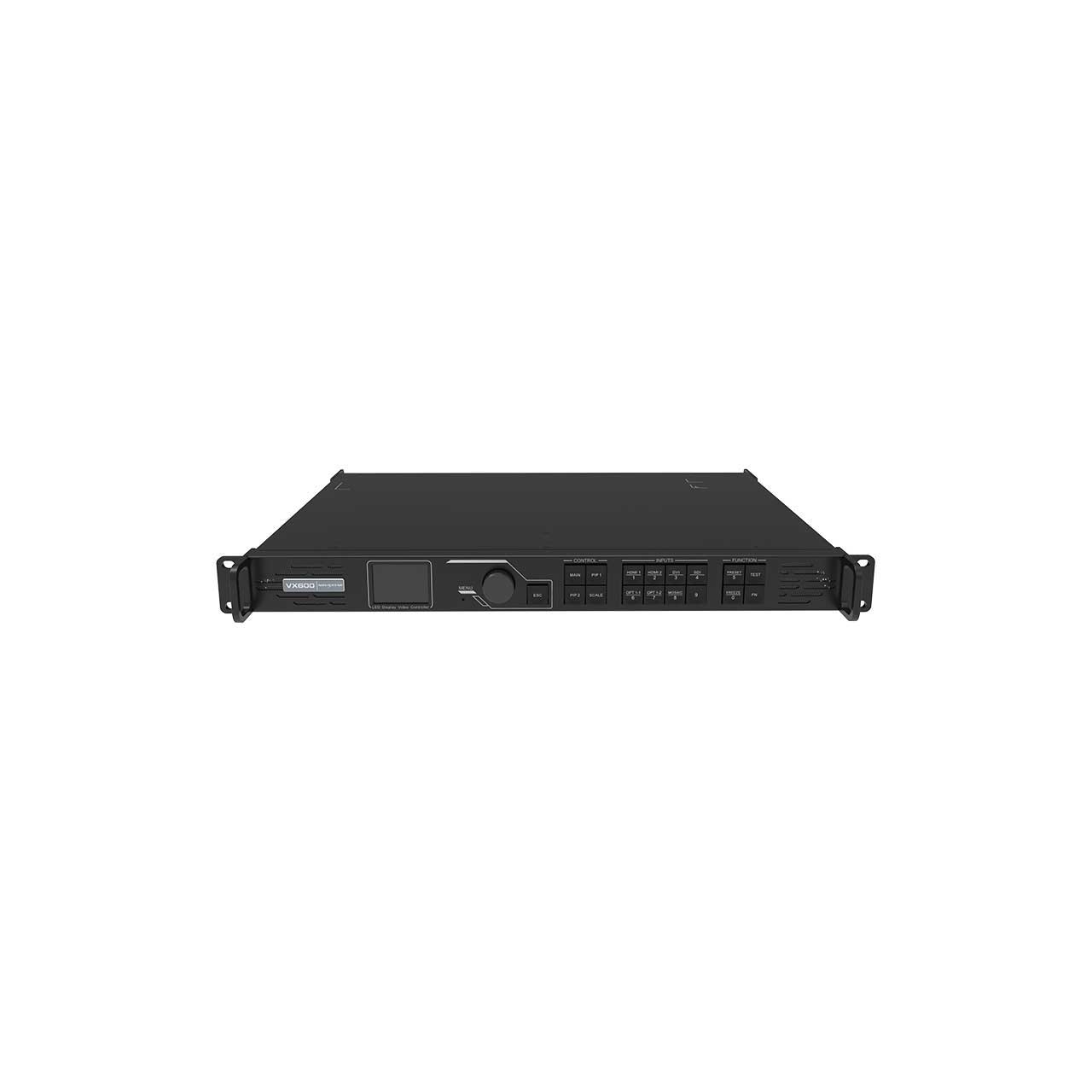

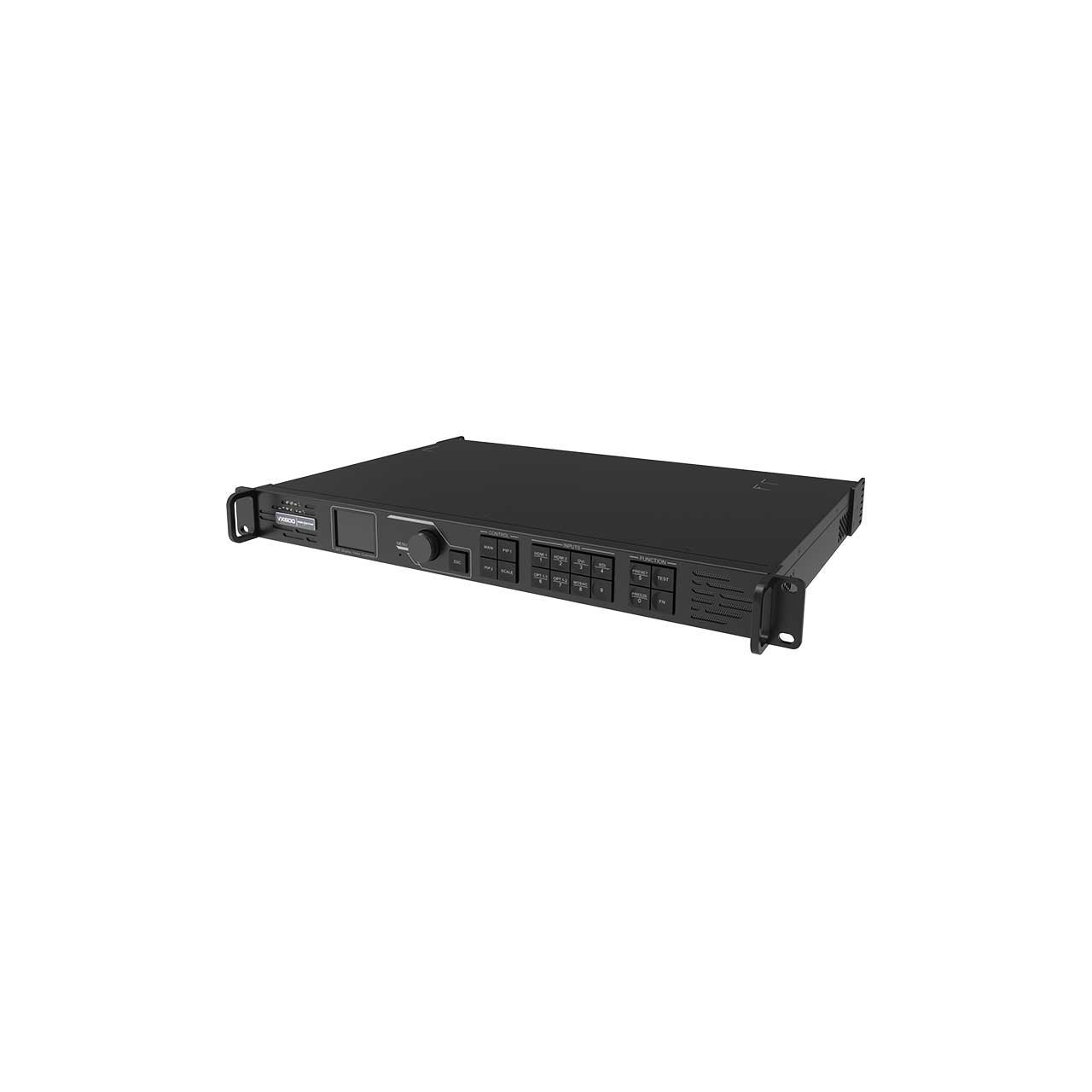

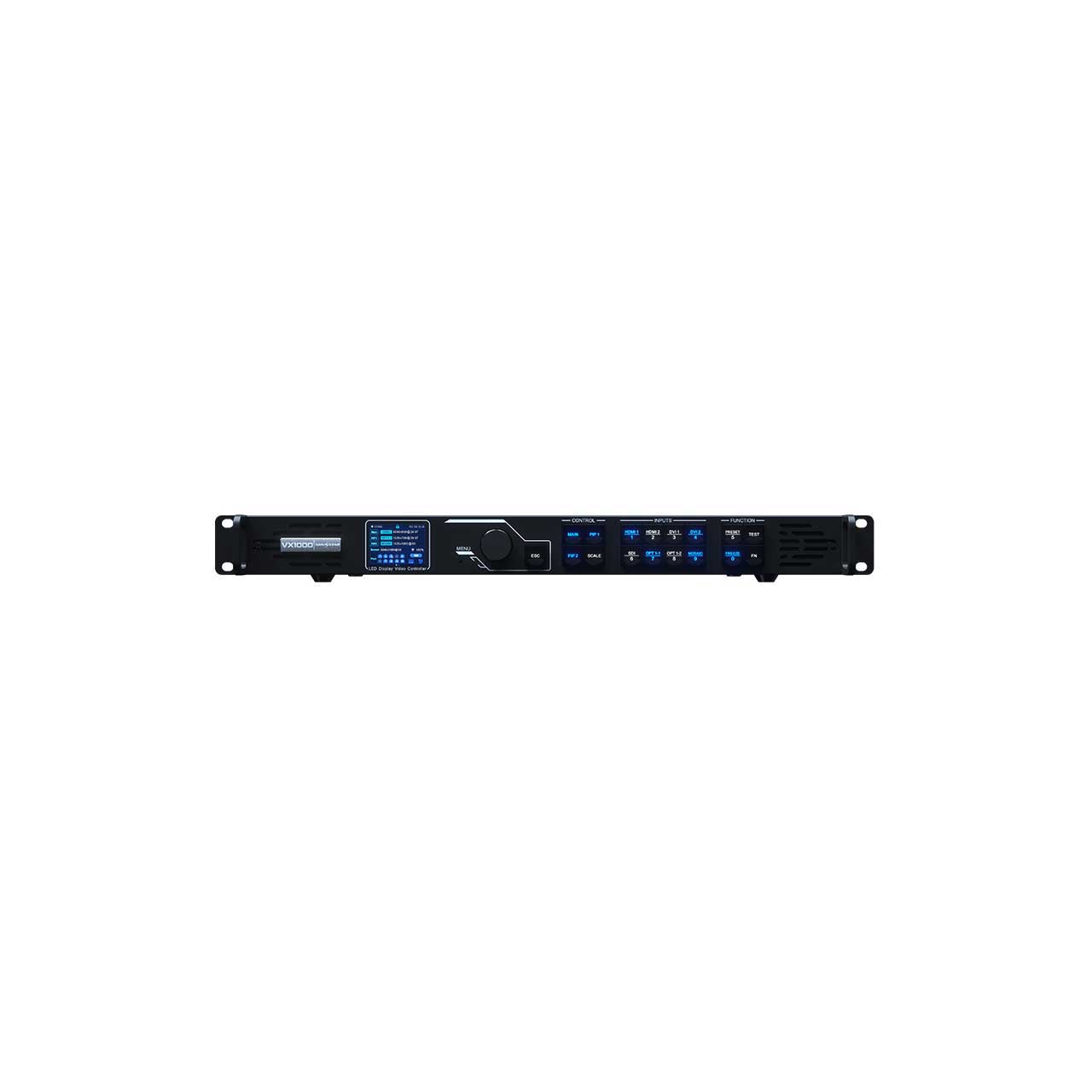

Novastar VX600 All-In-One Video Processing Controller with 6x RJ45 / 2x 10G OPT / 1x HDMI1.3 Outputs

ITEM #: NVA-VX600 MFG #: VX600

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Novastar
Free Shipping with $49 Minimum Order

List Price:

$3,097.95

Our Price:

$2,099.99

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

VX600 - Overview

The VX600 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 6 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.

The VX600 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.

What's more, the VX600 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your infield operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update.

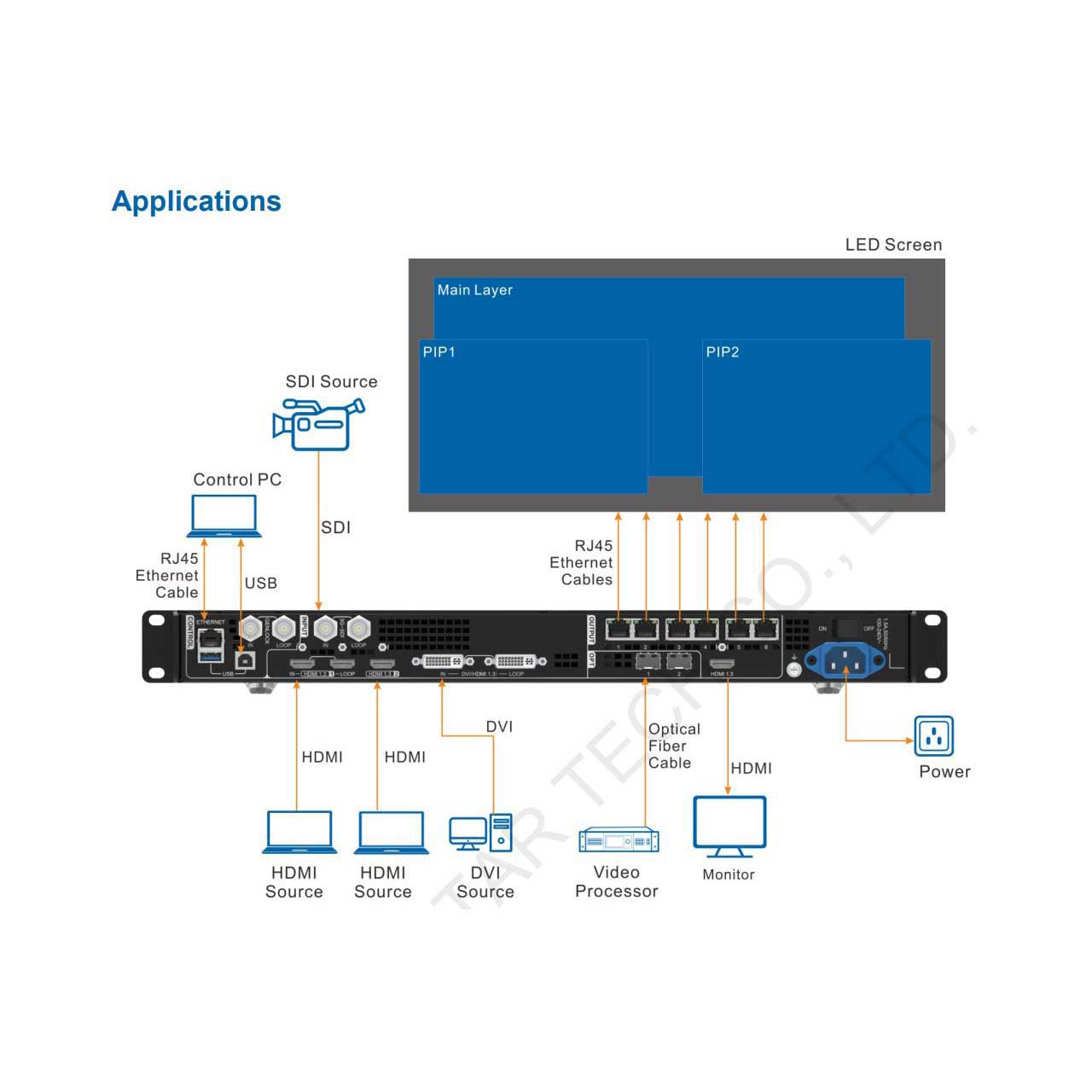

Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX600 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

  • Features:

    • Input connectors: 1x HDMI 1.3 (IN & LOOP), 1x HDMI 1.3, 1x DVI (IN & LOOP), 1x 3G-SDI (IN & LOOP), 1x 10G optical fiber port (OPT1)
    • 6x Gigabit Ethernet ports
    • A single device unit drives up to 3.9 million, pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
    • 2x Fiber outputs
    • OPT 1 copies the output on 6 Ethernet ports.
    • OPT 2 copies or backs up the output on 6 Ethernet ports
    • 1x HDMI 1.3 - For monitoring or video output
    • Self-adaptive OPT 1 for either video input or sending card output
    • Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.
    • Audio input and output - Audio input accompanied with HDMI input source, Audio output via a multifunction card, Output volume adjustment supported
    • Low latency - Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled


  • Specifications:

    • Loading Capacity: 3.9 million pixels
    • Max Width & Height: Width 10,240 pixels x Height 8,192 pixels
    • Layers: 3 Layers
    • Inputs: 1x 3G SDI (IN & LOOP), 1x HDMI1.3 (In & Loop), 1x HDMI1.3, 1x DVI (In & Loop), 1x OPT
    • Outputs : 6x RJ45, 2x 10G OPT, 1x HDMI1.3 (For Monitor or Preview)
    • Genlock (In & Loop): Yes
    • Low Latency: Yes
    • Input Source Backup: Yes
    • Bypass Mode: Yes
    • Fiber Converter Mode: Yes
    • Electrical Parameters: Power connector 100-240V~, 1.5A, 50/60Hz , Rated power consumption 28 W
    • Operating Environment: Temperature -10°C to +60°C, Humidity 20% RH to 90% RH, non-condensing
    • Storage Environment: Temperature -20°C to +70°C, Humidity 10% RH to 95% RH, non-condensing
    • Physical Specifications: Dimensions 483.6 mm x 351.2 mm x 50.1 mm / Net weight 4 kg, Gross weight 6.3 kg
    • Certifications: TBD
    • Noise Level (typical at 25°C/77°F): 45 dB (A)


  • Item Includes:

    • 1x Power cord
    • 1x HDMI to DVI cable
    • 1x USB cable1x Ethernet cable
    • 1x HDMI cable
    • 1x Quick Start Guide
    • 1x Certificate of Approval
    • 1x Customer Letter
    • 1x Safety Manual


  • GTIN:

    0810087370664
