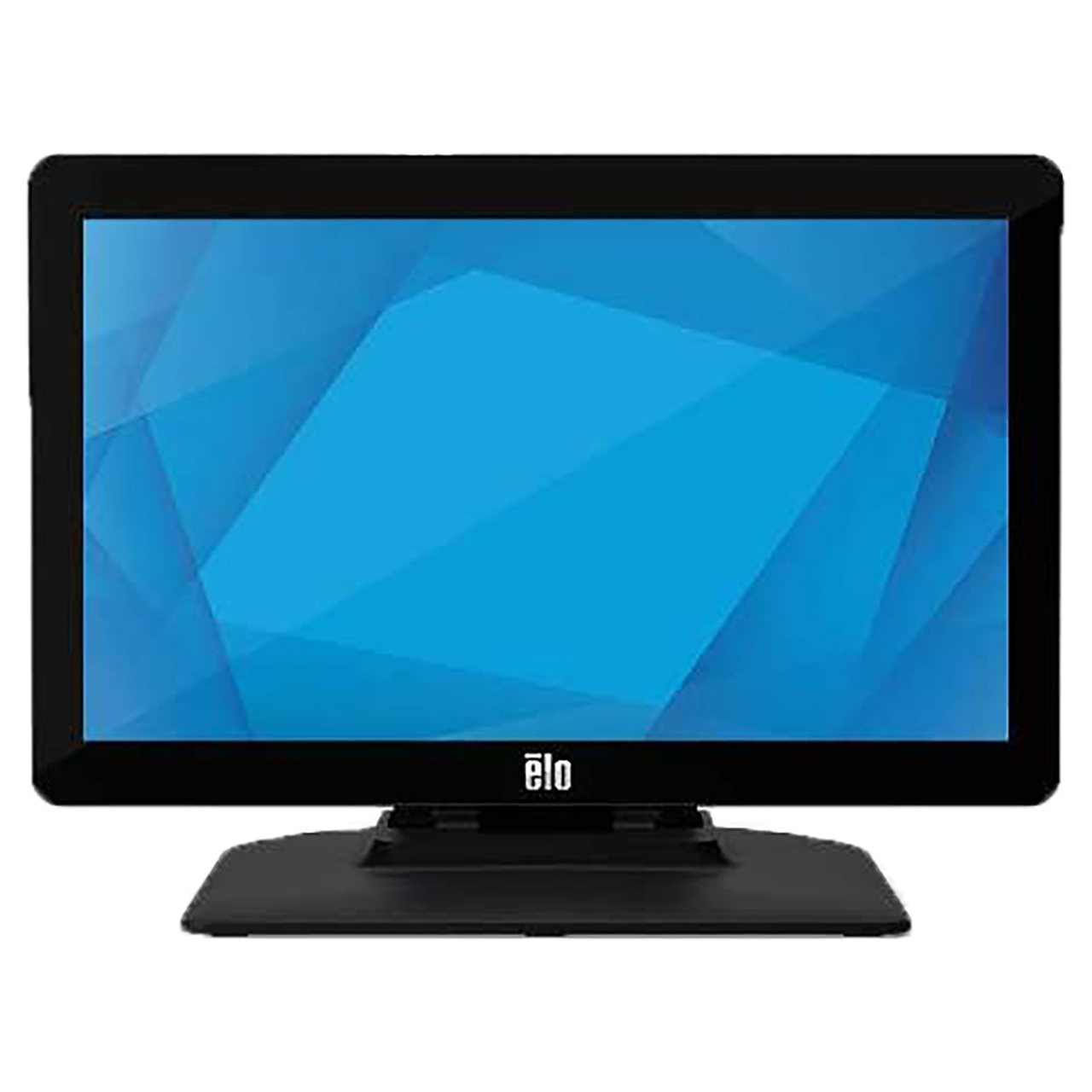

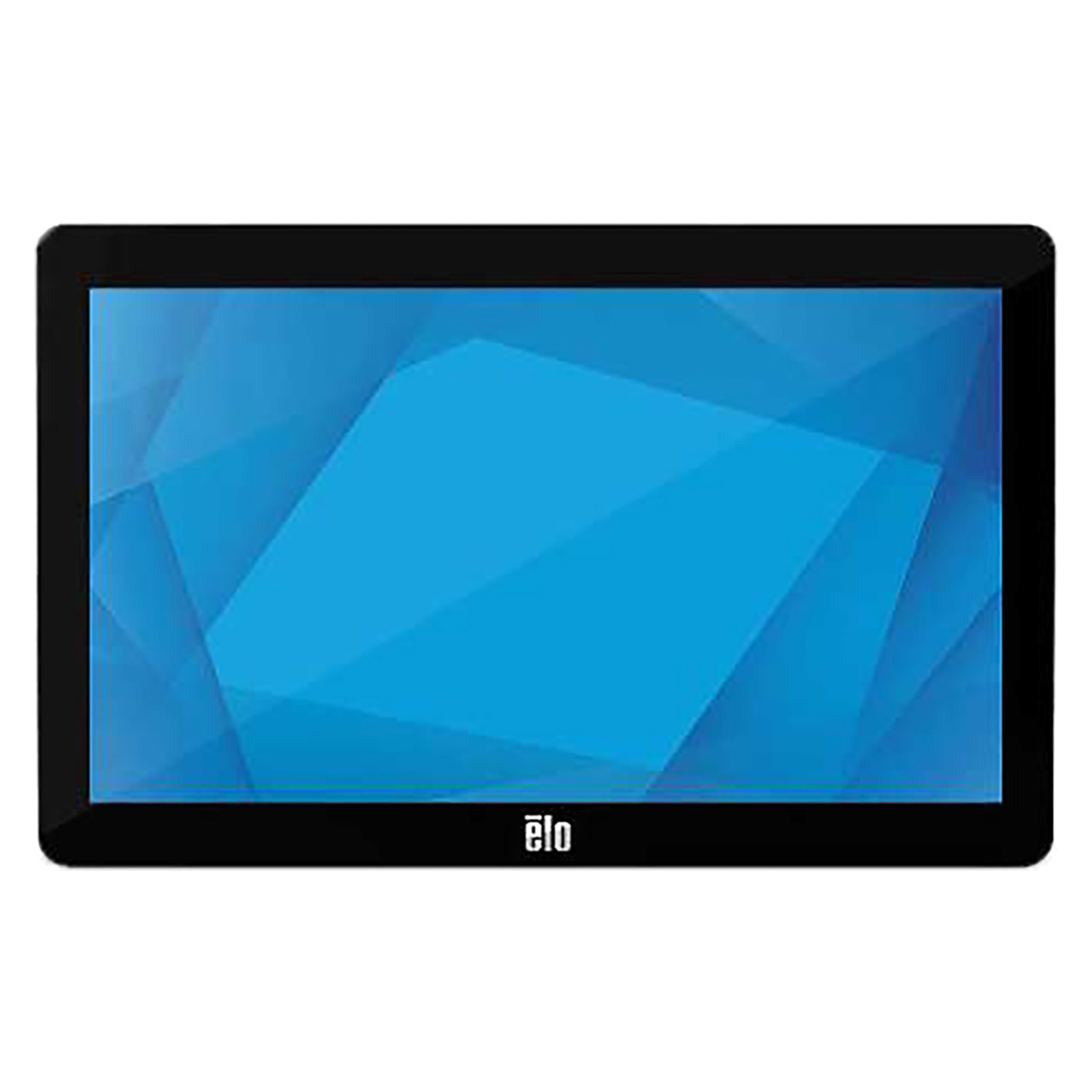

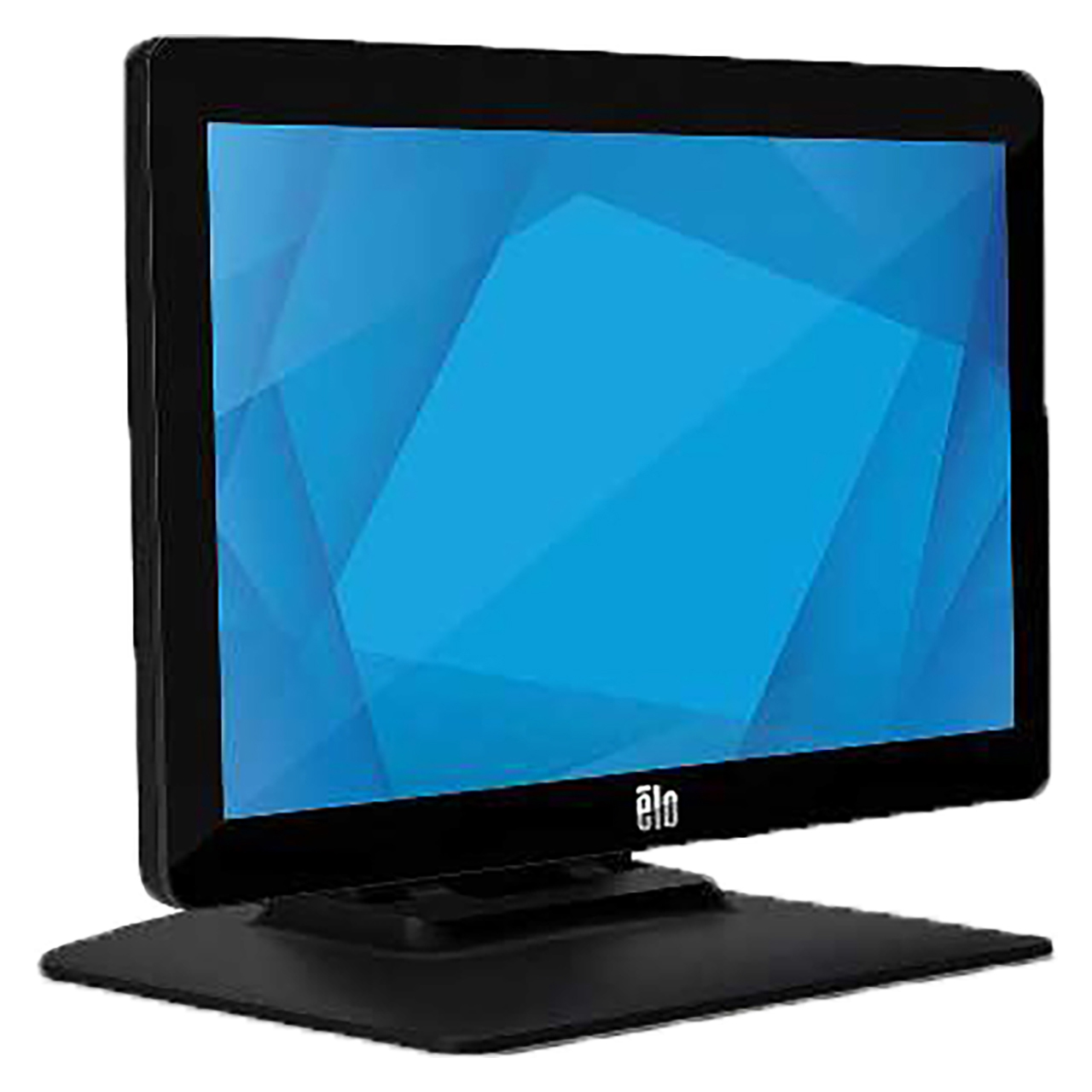

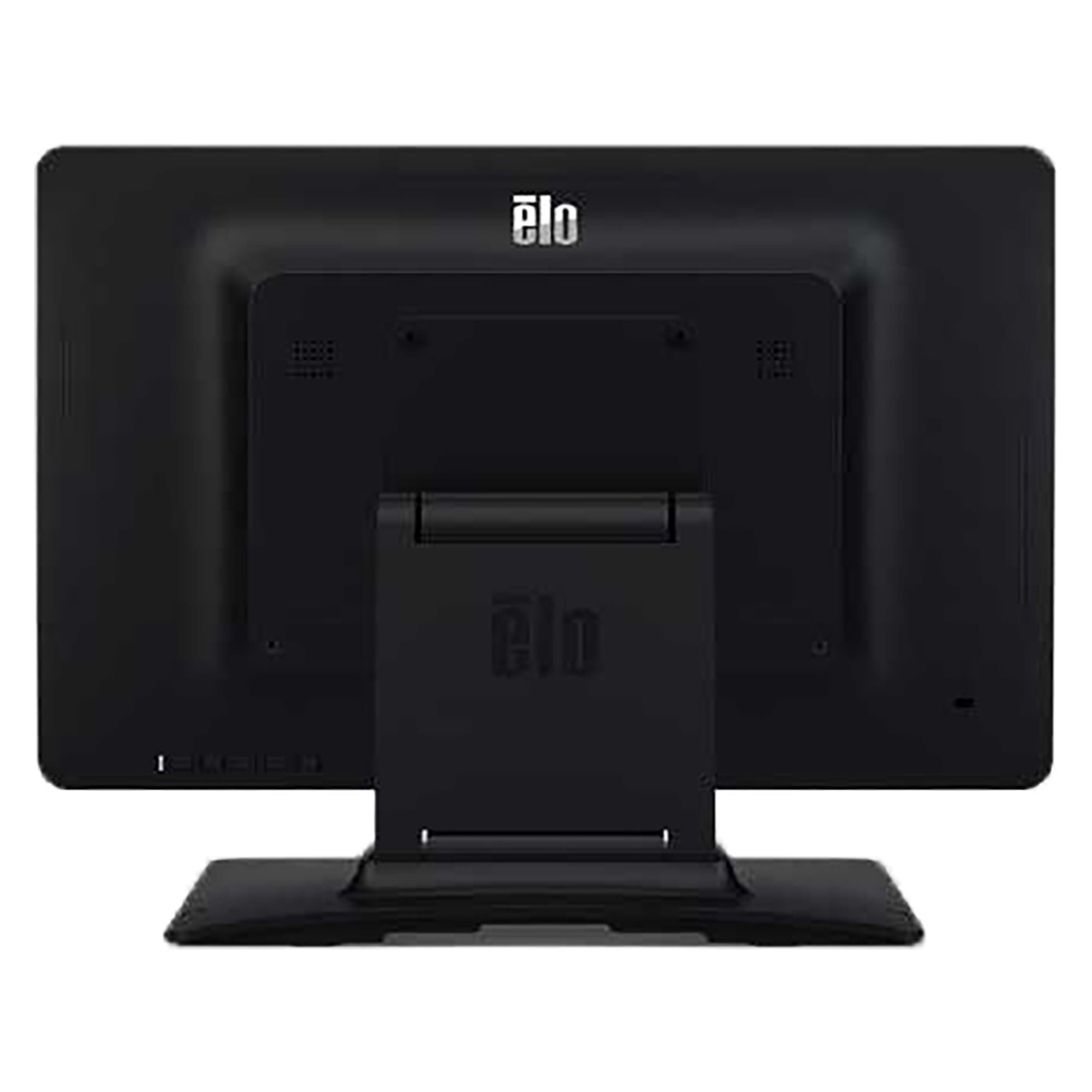

Elo M-Series 1502L 15 Inch PCAP FHD USB-C Touchscreen Monitor for Digital Signage w/ Stand - HDMI - VGA - Black

ITEM #: ELO-E15564 MFG #: E155645

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$709.00

Our Price:

$679.55

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    E155645 - Overview

    The Elo 1502L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1502L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.The 1502L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn't equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC. The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display - or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

    Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease. The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build, and stand by the complete solution, with touch integrated from the start.

    • Features:

      • Sleek and modern widescreen design with built-for-touch reliability
      • Edge-to-edge glass display with anti-glare for retail interiors
      • Installation flexibility with mounting in portrait, landscape and table-top orientation, adjustable height stand
      • Energy savings using LED technology
      • The full HD model (1920x1080) provides best of class resolution
      • Typical power consumption: 8.7W
      • Three-year standard warranty

    • Specifications:

      • Enclosure Color: Black
      • Touch Technology & Capacity: PCAP (Projected Capacitive) - 10 Touch
      • Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
      • Monitor Thickness: 1.28"
      • Aspect Ratio: 16:9
      • Active Area (mm): 13.55" x 7.62"
      • Resolution: 1920x1080, 640x480 60Hz, 640x400 70Hz, 720x400 70Hz, 800x600 56, 60Hz, 1024x768 60Hz, 1280x720 50, 60Hz, 1280x800 60Hz, 60Hz RB, 1280x960 60Hz, 1280x1024 60Hz, 1360x768 60Hz
      • Viewing Angle:Horizontal: ±80° / 160° total; Vertical: ±80° / 160° total
      • Number of Colors: 16.7 million
      • Brightness (typical): LCD Panel: 250 nits, PCAP + DC power: 225 nits, PCAP + USB-C 5V power: 180 nits
      • Response Time-total (typical): 30 ms
      • Contrast Ratio: 700:1
      • Touch Interface: USB
      • Surface Treatment: Anti-glare, Accessible through switches along the bottom:Controls: Menu, Up, Down, Select.
      • On Screen Display: Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode.
      • Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese.
      • Lockouts: OSD, Power
      • I/O Ports: 1xUSB Type-C, 1xAudio jack (Line-in), 1xVGA (Micro-HDMI female connecter), 1xHDMI, 1x12V D/C input, 3xMicro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals.
      • Speakers: Two 2W internal speakers.
      • Input Video Format: Mini-VGA (Mini-VGA to VGA DE-15 Male connecter cable included) HDMI (HDMI cable included), HDCP supported
      • Video: Analog VGA, HDMI. USB Type-C (support DP Alt mode)
      • Input Video Format: Horizontal: 31.5 - 82 KHz, Vertical: 50 - 75 Hz
      • Power: Option 1:USB Type-C Input range: 5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A, Option 2: External DC Adapter 12V/36W in box,Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth), Monitor input voltage range: 12VDC +/- 5%, Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length), Adapter input voltage range: 100-240 VAC, Input frequency: 50-60 Hz.
      • Monitor Dimensions (with Stand): 11.21" x 15.23" x 7.84"
      • Shipping Box Dimensions: 8.03 "x 17.76" x 13.54"
      • Weight (Unpackaged): With Stand: 6.72 lbs, Without Stand: 3.62 lbs
      • Weight (Packaged): 11.05 lbs
      • Operating Temperature: 32°F to 104°F
      • MTBF: 50,000 hours demonstrated

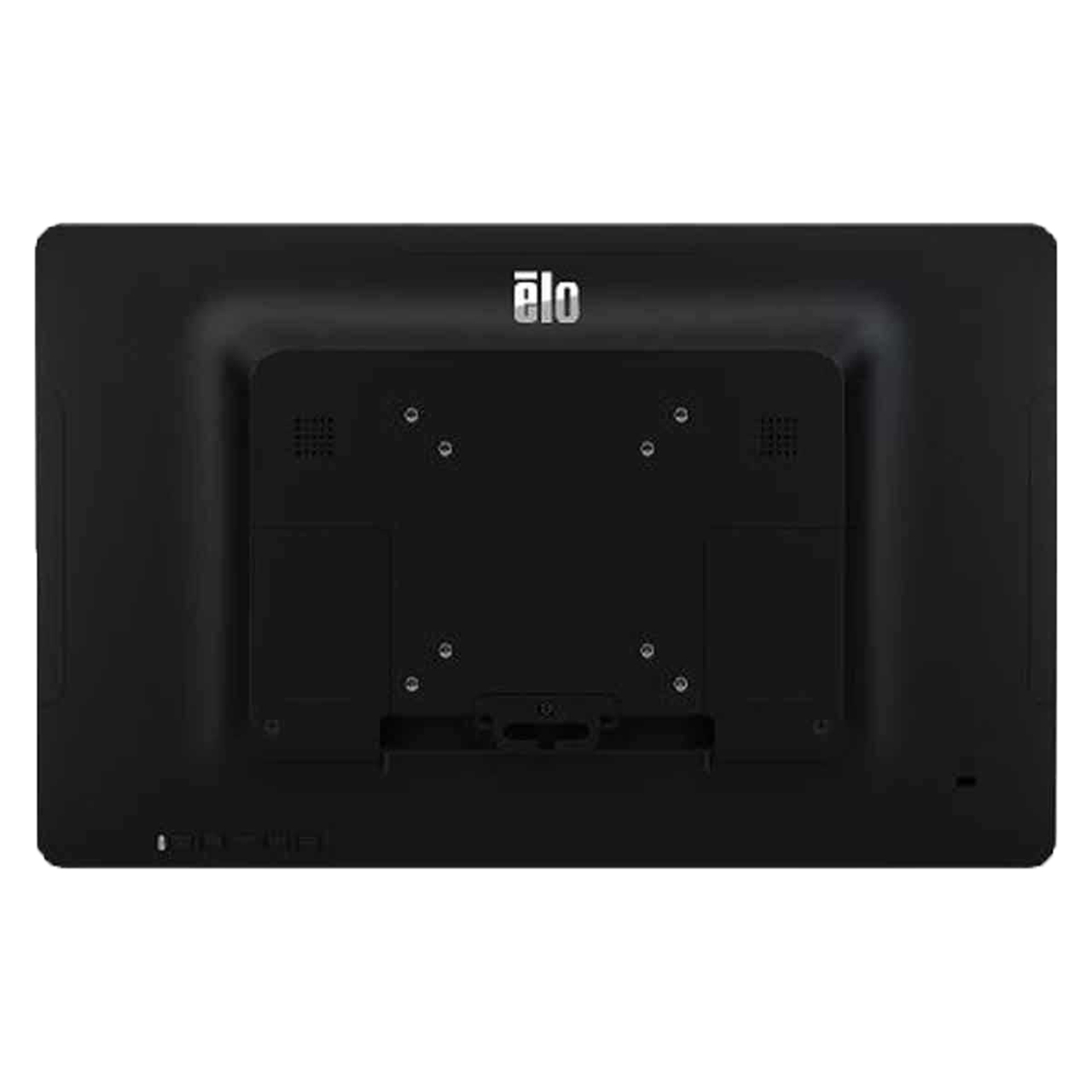

      • Mounting Options: VESA 4-hole 75mm and 100mm mounting interface on rear of unit

    • Item Includes:

      • Touchmonitor
      • Quick Install Guide
      • HDMI cable
      • Power brick
      • 2x cable clamps
      • 2x tie wraps
      • EEI Label
      • USB Cable (USB Type-A to Type-C)
      • NA Power cable
      • EU Power cable
      • 3x screws (M3x8mm) for cable clamps
      • 2x screws (M3x10mm) for cable doors
      • 4x screws (M4x10mm) for E125496 only
