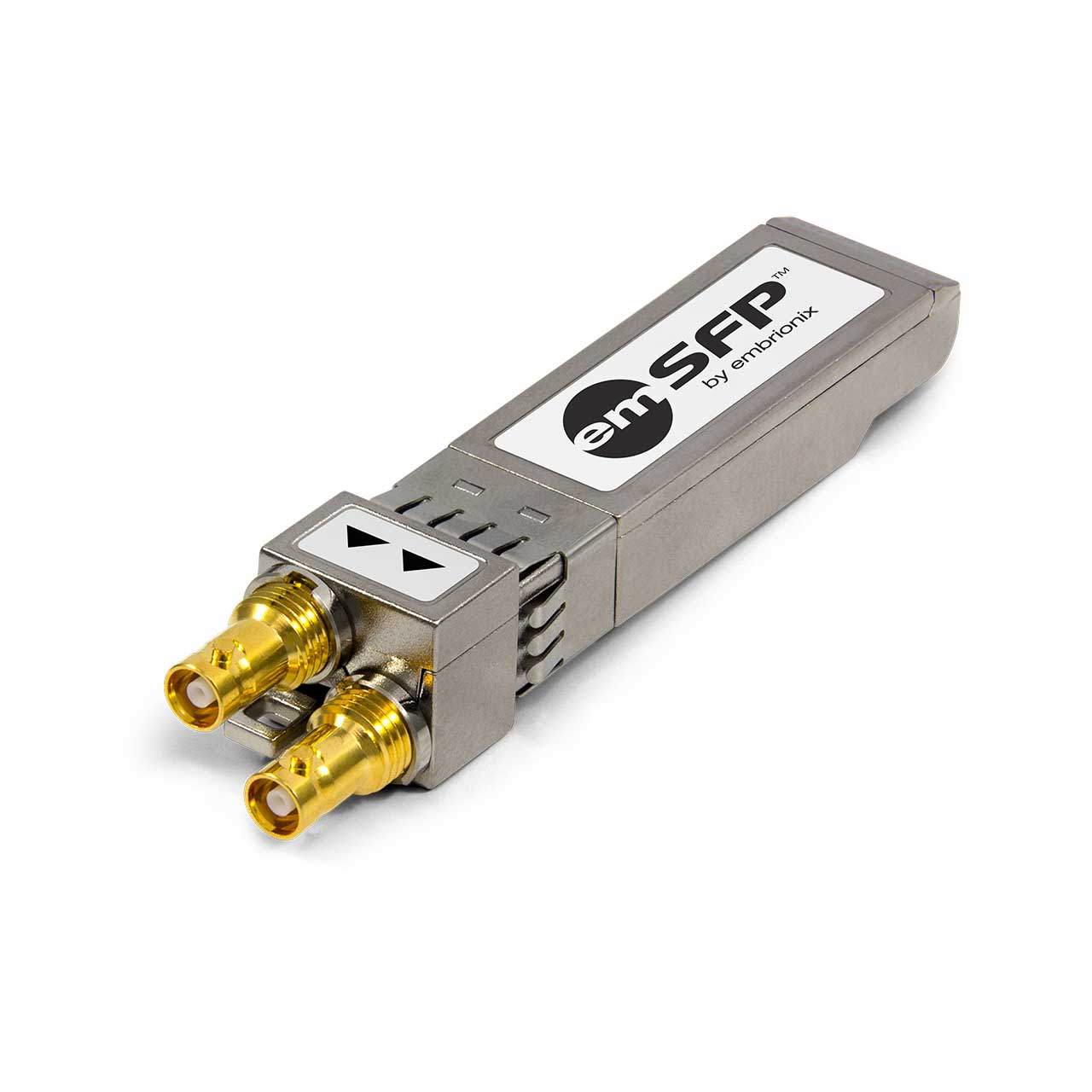

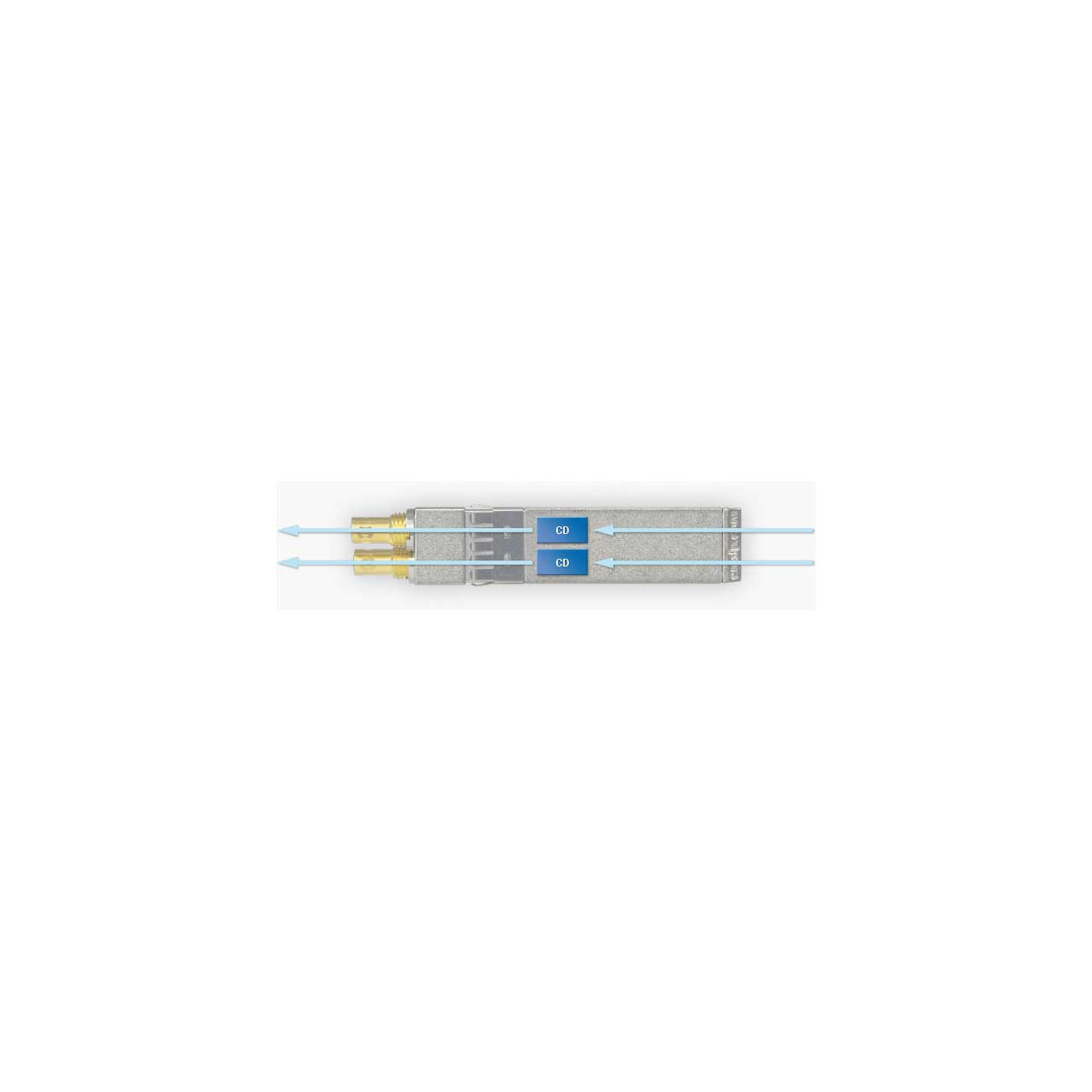

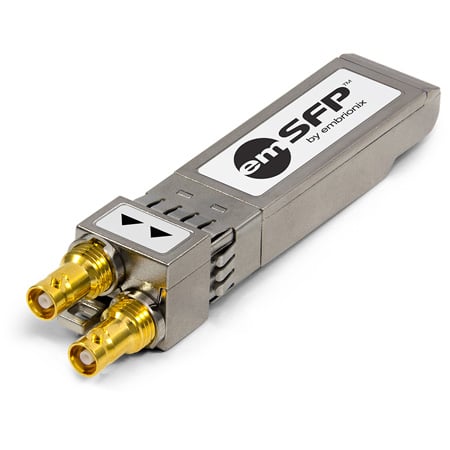

The EB30HD2T-LN is an electrical SFP transmitter module designed to transmit two SDI signals up to 2.97Gbps over 75Ω coaxial cables via HD BNC connectors. The cable driver provides two selectable slew rates in order to achieve compliance to SMPTE 424M, SMPTE 292M and SMPTE 259M.
The EB30HD2T-LN provides module identification information and configuration through a two wire serial interface. It is also a hotpluggable solution for field system upgrade and maintenance.
The EB30HD2T-LN is interchangeable with other non-MSA optical video SFP improving product flexibility. Ganged cages, belly-to-belly and superposed cages mounting are supported. The module is SMPTE compliant resulting in quick time-to-market and reduced development effort and cost. The EB30HD2T-LN is Pb-free and ROHS compliant.
